HZB50L-ZRMRXW1 (1993)
Toyota Coaster
ILLUST NO. 2 OF 3(9301-9907)HZB50,RZB50..LHD
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208G - PIPE SUB-ASSY, HEATER WATER, G | ||||
| 87208-36550 |
BB42,HZB50..LHD |
1 | ||
| 87208H - PIPE SUB-ASSY, HEATER WATER, H | ||||
| 87208-36530 |
HZB50,RZB50..ARL,EUR,GCC,GEN |
1 | ||
| 87208J - PIPE SUB-ASSY, HEATER WATER, J | ||||
| 87208-36530 |
BB4#,HZB50..ARL,EUR,GCC,GEN |
1 | ||
| 87245X - HOSE, HEATER WATER | ||||
| 99556-30100 |
HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(ARL,EUR,GCC,GEN)..5F *H,L=55 |
1 | ||
| 87245X - HOSE, HEATER WATER | ||||
| 99556-30100 |
HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(ARL,EUR,GCC,GEN)..5F *H,L=55 |
1 | ||
| 87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT) | ||||
| 87245-3B730 |
BB42..LHD..26S;HZB50..LHD..STD |
1 | ||
| 87255H - HOSE, HEATER WATER INLET, H | ||||
| 87245-3B760 |
BB42,HZB50..LHD |
1 | ||
| 87255J - HOSE, HEATER WATER INLET, J | ||||
| 99556-31000 |
HZB50..30S..4FC;BB50,HZB50,RZB50..(ARL,EUR,GCC,GEN)..5F *H,L=980 |
1 | ||
| 87255K - HOSE, REAR HEATER WATER INLET, K | ||||
| 99556-31000 |
BB42..RHD..GEN;BB40,HZB50..ARL,EUR,GCC,GEN *H,L=720 |
1 | ||
| 87256G - HOSE, REAR HEATER WATER OUTLET, G | ||||
| 87245-3B740 |
BB42..LHD..26S;HZB50..LHD..STD |
1 | ||
| 87256J - HOSE, REAR HEATER WATER OUTLRT, J | ||||
| 99556-31000 |
BB42..RHD..GEN;BB40,HZB50..ARL,EUR,GCC,GEN *H,L=720 |
1 | ||
| 87256K - HOSE, REAR HEATER WATER OUTLET, K | ||||
| 99556-31000 |
HZB50..30S..4FC;BB50,HZB50,RZB50..(ARL,EUR,GCC,GEN)..5F *H,L=980 |
1 | ||
| 87256L - HOSE, REAR HEATER WATER OUTLET, L | ||||
| 87245-3B750 |
BB42,HZB50..LHD |
1 | ||
| Common parts | ||||
| 87124-36040 | ||||
| 87124-36050 | ||||
| 87124-36060 | ||||
| 87124-90B09 | ||||
| 91651-60616 | ||||
| 96112-10250 | ||||
| 96134-42100 | ||||
| 96134-42300 | ||||

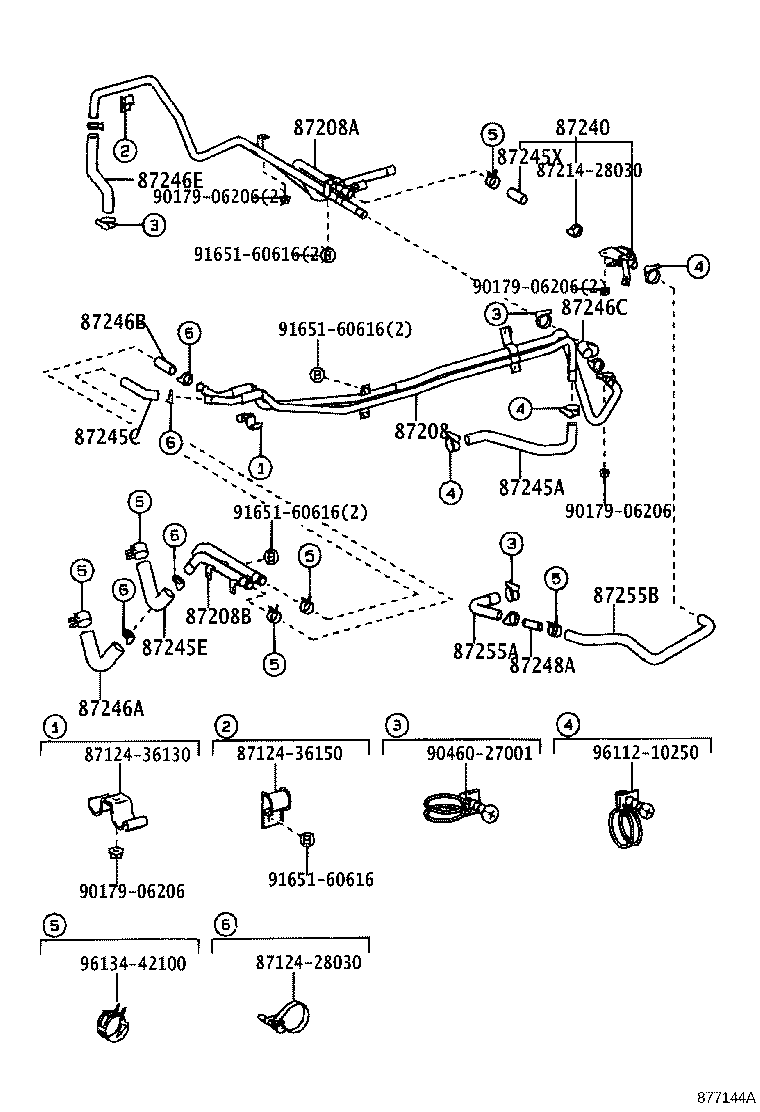

ILLUST NO. 1 OF 3(9301-9907)HZB50..LHD
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208 - PIPE SUB-ASSY, HEATER WATER | ||||
| 87208-36380 |
HZB50..LHD |
1 | ||
| 87208A - PIPE SUB-ASSY, HEATER WATER, A | ||||
| 87208-36460 |
HZB50..WOC..TD;HZB50..SRF..WOC;HZB50..LHD..STD..WC;HZB50..RHD..(ARL,EUR,GEN) |
1 | ||
| 87208-36460 |
HZB50..WOC..TD;HZB50..SRF..WOC;HZB50..RHD..(ARL,EUR,GEN);HZB50..LHD..STD..WC..(EUR,GEN) |
1 | ||
| 87208B - PIPE SUB-ASSY, HEATER WATER, B | ||||
| 87208-36480 |
BB42,HZB50,RZB40,50..LHD |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-36030 |
HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(ARL,EUR,GCC,GEN)..5F W(REAR HEATER) |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-36270 |
HZB50..DSL;HZB50..LHD..TD |
1 | ||
| 87245-3B470 |
RZB40,50 |
1 | ||
| 87245C - HOSE, HEATER WATER ,INLET C | ||||
| 87245-3B420 |
BB42,HZB50,RZB40,50..LHD |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-3B490 |
BB42,HZB50,RZB40,50..LHD |
1 | ||
| 87245X - HOSE, HEATER WATER | ||||
| 99556-30100 |
HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(ARL,EUR,GCC,GEN)..5F *H,L=55 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-3B500 |
BB42,HZB50,RZB40,50..LHD |
1 | ||
| 87246B - HOSE, HEATER WATER, OUTLET B | ||||
| 99556-30065 |
BB42,HZB50,RZB40,50..LHD *H,L=65 |
1 | ||
| 87246C - HOSE, HEATER WATER, OUTLET C | ||||
| 87245-3B410 |
BB42,HZB50,RZB40,50..LHD |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 87245-3B480 |
HZB50 |
1 | ||
| 87248A - PIPE, HEATER WATER INLET, A | ||||
| 87248-14090 |
HZB50..LHD..TD;HZB50..30S..4FC;HZB50..(ARL,GCC,GEN)..5F |
1 | ||
| 87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE) | ||||
| 87245-3B620 |
HZB50..LHD..TD;HZB50..30S..4FC;HZB50..(ARL,GCC,GEN)..5F |
1 | ||
| 87255B - HOSE, REAR HEATER WATER INLET, B | ||||
| 87245-36261 |
HZB50..LHD..TD;HZB50..30S..4FC;HZB50..(ARL,GCC,GEN)..5F |
1 | ||
| Common parts | ||||
| 87124-28030 | ||||
| 87124-36130 | ||||
| 87124-36150 | ||||
| 87214-28030 | ||||
| 90179-06206 | ||||
| 90460-27001 | ||||
| 91651-60616 | ||||
| 96112-10250 | ||||
| 96134-42100 | ||||
ILLUST NO. 1 OF 3(9301-9907)BB4#,5#,RZB40,50
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208 - PIPE SUB-ASSY, HEATER WATER | ||||
| 87208-36380 |
HZB50..LHD |
1 | ||
| 87208A - PIPE SUB-ASSY, HEATER WATER, A | ||||
| 87208-36460 |
HZB50..WOC..TD;HZB50..SRF..WOC;HZB50..LHD..STD..WC;HZB50..RHD..(ARL,EUR,GEN) |
1 | ||
| 87208-36460 |
HZB50..WOC..TD;HZB50..SRF..WOC;HZB50..RHD..(ARL,EUR,GEN);HZB50..LHD..STD..WC..(EUR,GEN) |
1 | ||
| 87208B - PIPE SUB-ASSY, HEATER WATER, B | ||||
| 87208-36480 |
BB42,HZB50,RZB40,50..LHD |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-36030 |
HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(ARL,EUR,GCC,GEN)..5F W(REAR HEATER) |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-36270 |
HZB50..DSL;HZB50..LHD..TD |
1 | ||
| 87245-3B470 |
RZB40,50 |
1 | ||
| 87245C - HOSE, HEATER WATER ,INLET C | ||||
| 87245-3B420 |
BB42,HZB50,RZB40,50..LHD |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-3B490 |
BB42,HZB50,RZB40,50..LHD |
1 | ||
| 87245X - HOSE, HEATER WATER | ||||
| 99556-30100 |
HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(ARL,EUR,GCC,GEN)..5F *H,L=55 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-3B500 |
BB42,HZB50,RZB40,50..LHD |
1 | ||
| 87246B - HOSE, HEATER WATER, OUTLET B | ||||
| 99556-30065 |
BB42,HZB50,RZB40,50..LHD *H,L=65 |
1 | ||
| 87246C - HOSE, HEATER WATER, OUTLET C | ||||
| 87245-3B410 |
BB42,HZB50,RZB40,50..LHD |
1 | ||
| 87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE) | ||||
| 87245-3B620 |
HZB50..LHD..TD;HZB50..30S..4FC;HZB50..(ARL,GCC,GEN)..5F |
1 | ||
| Common parts | ||||
| 87124-28030 | ||||
| 87124-36130 | ||||
| 90179-06206 | ||||
| 90339-16001 | ||||
| 90460-27001 | ||||
| 91651-60616 | ||||
| 96112-10250 | ||||
| 96134-42100 | ||||
