HZB50L-ZRMRXW1 (1993)
Toyota Coaster
ILLUST NO. 4 OF 4(9301- )HZB50..TD ; (9301- )BB42..RHD..SRF..WC ; (9301- )BB50,HZB50..19S,2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04477 - BUSH & BOOT KIT, LOAD SENSING SPRING | ||||
| 04477-60010 |
HZB50..TD;BB40,50..ARL,EUR;BB50,HZB50..19S,22S |
1 | ||
| 04477-60010 |
HZB50..TD;BB40,50..ARL,EUR;BB50,HZB50..19S,22S |
1 | ||
| 04477-60010 |
HZB50..TD;BB40,50..ARL,EUR;BB50,HZB50..19S,22S |
1 | ||
| 31478D - CAP, BLEEDER PLUG(FOR LSPV) | ||||
| 31478-30010 |
HZB50..TD;BB40,50..ARL,EUR;BB50,HZB50..19S,22S |
1 | ||
| 31478-30010 |
HZB50..TD;BB40,50..ARL,EUR;BB50,HZB50..19S,22S |
1 | ||
| 31478-30010 |
HZB50..TD;BB40,50..ARL,EUR;BB50,HZB50..19S,22S |
1 | ||
| 47910 - VALVE ASSY, LOAD SENSING PROPORTIONING | ||||
| 47910-36170 |
HZB50..TD;BB40,50..ARL,EUR;BB50,HZB50..19S,22S |
1 | ||
| 47910-36170 |
HZB50..TD;BB40,50..ARL,EUR;BB50,HZB50..19S,22S |
1 | ||
| 47910-36170 |
HZB50..TD;BB40,50..ARL,EUR;BB50,HZB50..19S,22S |
1 | ||
| 47920 - SPRING ASSY, LOAD SENSING | ||||
| 47920-36170 |
HZB50..TD;BB40,50..ARL,EUR;BB50,HZB50..19S,22S |
1 | ||
| 47920-36170 |
HZB50..TD;BB40,50..ARL,EUR;BB50,HZB50..19S,22S |
1 | ||
| 47920-36170 |
HZB50..TD;BB40,50..ARL,EUR;BB50,HZB50..19S,22S |
1 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
HZB50..TD;BB40,50..ARL,EUR;BB50,HZB50..19S,22S |
2 | ||
| 90387-08099 |
HZB50..TD;BB40,50..ARL,EUR;BB50,HZB50..19S,22S |
2 | ||
| 90387-08099 |
HZB50..TD;BB40,50..ARL,EUR;BB50,HZB50..19S,22S |
2 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
HZB50..TD;BB40,50..ARL,EUR;BB50,HZB50..19S,22S |
2 | ||
| 90387-08099 |
HZB50..TD;BB40,50..ARL,EUR;BB50,HZB50..19S,22S |
2 | ||
| 90387-08099 |
HZB50..TD;BB40,50..ARL,EUR;BB50,HZB50..19S,22S |
2 | ||
| 47920B - CLIP(FOR LOAD SENSING VALVE BOOT) | ||||
| 90467-31110 |
HZB50..TD;BB40,50..ARL,EUR;BB50,HZB50..19S,22S |
1 | ||
| 90467-31110 |
HZB50..TD;BB40,50..ARL,EUR;BB50,HZB50..19S,22S |
1 | ||
| 90467-31110 |
HZB50..TD;BB40,50..ARL,EUR;BB50,HZB50..19S,22S |
1 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
HZB50..TD;BB40,50..ARL,EUR;BB50,HZB50..19S,22S |
2 | ||
| 90202-10103 |
HZB50..TD;BB40,50..ARL,EUR;BB50,HZB50..19S,22S |
2 | ||
| 90202-10103 |
HZB50..TD;BB40,50..ARL,EUR;BB50,HZB50..19S,22S |
2 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
HZB50..TD;BB40,50..ARL,EUR;BB50,HZB50..19S,22S |
2 | ||
| 90202-10103 |
HZB50..TD;BB40,50..ARL,EUR;BB50,HZB50..19S,22S |
2 | ||
| 90202-10103 |
HZB50..TD;BB40,50..ARL,EUR;BB50,HZB50..19S,22S |
2 | ||
| 47931 - BRACKET, LOAD SENSING VALVE | ||||
| 47931-36120 |
HZB50..TD;BB40,50..ARL,EUR;BB50,HZB50..19S,22S |
1 | ||
| 47931-36120 |
HZB50..TD;BB40,50..ARL,EUR;BB50,HZB50..19S,22S |
1 | ||
| 47931-36120 |
HZB50..TD;BB40,50..ARL,EUR;BB50,HZB50..19S,22S |
1 | ||
| 47933 - BRACKET, LOAD SENSING SHACKLE, NO.1 | ||||
| 47933-36060 |
HZB50..TD;BB40,50..ARL,EUR;BB50,HZB50..19S,22S |
1 | ||
| 47933-36060 |
HZB50..TD;BB40,50..ARL,EUR;BB50,HZB50..19S,22S |
1 | ||
| 47933-36060 |
HZB50..TD;BB40,50..ARL,EUR;BB50,HZB50..19S,22S |
1 | ||
| 47935 - SHACKLE, LOAD SENSING SPRING, NO.1 | ||||
| 47935-35020 |
HZB50..TD;BB40,50..ARL,EUR;BB50,HZB50..19S,22S |
1 | ||
| 47935-35020 |
HZB50..TD;BB40,50..ARL,EUR;BB50,HZB50..19S,22S |
1 | ||
| 47935-35020 |
HZB50..TD;BB40,50..ARL,EUR;BB50,HZB50..19S,22S |
1 | ||
| 47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90387-08099 |
HZB50..TD;BB40,50..ARL,EUR;BB50,HZB50..19S,22S |
1 | ||
| 90387-08099 |
HZB50..TD;BB40,50..ARL,EUR;BB50,HZB50..19S,22S |
1 | ||
| 90387-08099 |
HZB50..TD;BB40,50..ARL,EUR;BB50,HZB50..19S,22S |
1 | ||
| 47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90385-10064 |
HZB50..TD;BB40,50..ARL,EUR;BB50,HZB50..19S,22S |
2 | ||
| 90385-10064 |
HZB50..TD;BB40,50..ARL,EUR;BB50,HZB50..19S,22S |
2 | ||
| 90385-10064 |
HZB50..TD;BB40,50..ARL,EUR;BB50,HZB50..19S,22S |
2 | ||
| 47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90385-10064 |
HZB50..TD;BB40,50..ARL,EUR;BB50,HZB50..19S,22S |
2 | ||
| 90385-10064 |
HZB50..TD;BB40,50..ARL,EUR;BB50,HZB50..19S,22S |
2 | ||
| 90385-10064 |
HZB50..TD;BB40,50..ARL,EUR;BB50,HZB50..19S,22S |
2 | ||
| 47936 - SHACKLE, LOAD SENSING SPRING, NO.2 | ||||
| 47936-60020 |
HZB50..TD;BB40,50..ARL,EUR;BB50,HZB50..19S,22S |
1 | ||
| 47936-60020 |
HZB50..TD;BB40,50..ARL,EUR;BB50,HZB50..19S,22S |
1 | ||
| 47936-60020 |
HZB50..TD;BB40,50..ARL,EUR;BB50,HZB50..19S,22S |
1 | ||
| 47937 - PLATE, LOAD SENSING VALVE SET | ||||
| 47937-60010 |
HZB50..TD;BB40,50..ARL,EUR;BB50,HZB50..19S,22S |
1 | ||
| 47937-60010 |
HZB50..TD;BB40,50..ARL,EUR;BB50,HZB50..19S,22S |
1 | ||
| 47937-60010 |
HZB50..TD;BB40,50..ARL,EUR;BB50,HZB50..19S,22S |
1 | ||
| Common parts | ||||
| 90015-AA103 | ||||
| 90119-08703 | ||||
| 90170-08016 | ||||
| 90179-08146 | ||||
| 90179-10016 | ||||
| 90201-08062 | ||||
| 90201-23360 | ||||
| 91611-B0816 | ||||
| 94130-00802 | ||||
| 94512-00800 | ||||
| 94612-10800 | ||||
| 95381-02020 | ||||

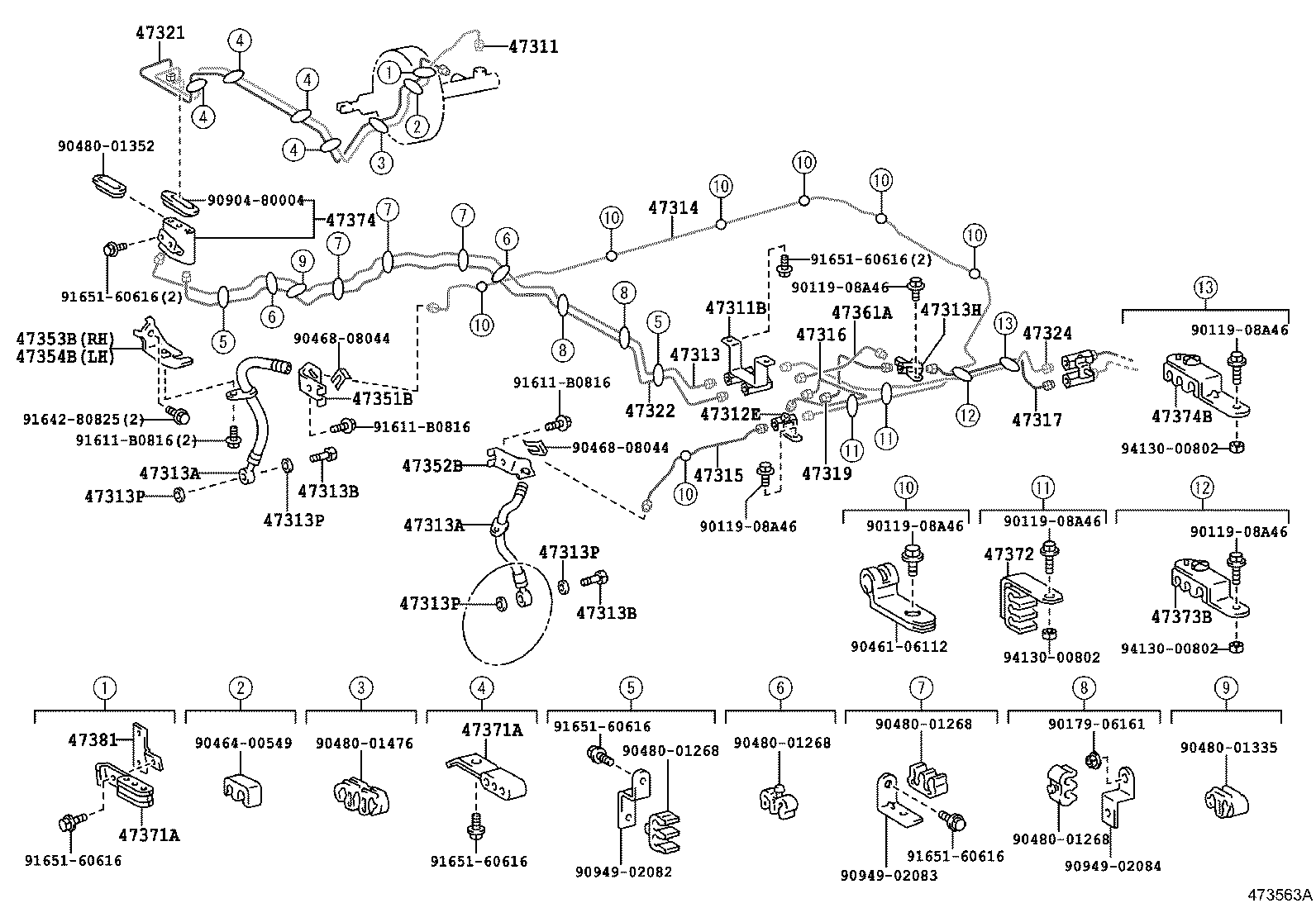

ILLUST NO. 1 OF 4(9301-9907)LHD..EUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-36500 |
BB50..GEN..IV;BB42,58,HZB50,RZB40,50..LHD |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-12047 |
BB50..STD..CBU;BB50,HZB50..EUR |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90413-10282 |
BB50,HZB50..EUR |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-36260 |
BB50,HZB50..TD |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02707 |
BB4#,5#,HZB50,RZB40,50 W(FR DISC BRAKE:RR AUTO ADJUSTER) |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02707 |
BB4#,5#,HZB50,RZB40,50 W(FR DISC BRAKE:RR AUTO ADJUSTER) |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10023 |
BB4#,5#,HZB50,RZB40,50 W(FR DISC BRAKE:RR AUTO ADJUSTER) |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10023 |
BB4#,5#,HZB50,RZB40,50 W(FR DISC BRAKE:RR AUTO ADJUSTER) |
2 | ||
| 47313H - WAY, NO.3(FOR FRONT BRAKE TUBE) | ||||
| 90413-12008 |
BB50,HZB50..EUR |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
BB4#,5#,HZB50,RZB40,50 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
BB4#,5#,HZB50,RZB40,50 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
BB4#,5#,HZB50,RZB40,50 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
BB4#,5#,HZB50,RZB40,50 |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-36310 |
BB50,HZB50..EUR |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-36210 |
BB50..GEN..IV;BB42,43,58,RZB40,50;BB50,HZB50..20S,30S |
1 | ||
| 47315-36220 |
HZB50..TD;HZB50..19S,22S;BB40,50..ARL,EUR |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-36270 |
BB50,HZB50..EUR |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-36130 |
BB50,HZB50..EUR |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47319-36150 |
BB50,HZB50..EUR |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-36320 |
BB50..GEN..IV;BB42,58,HZB50,RZB40,50..LHD |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-36340 |
BB50,HZB50..TD |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-36310 |
BB50,HZB50..EUR |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-36210 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 47352B - BRACKET, FLEXIBLE HOSE, NO.2 | ||||
| 47352-36200 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-36210 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-36090 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 47361A - TUBE, FRONT BRAKE, NO.10 | ||||
| 47361-36040 |
BB50,HZB50..EUR |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-36040 |
BB42,5#,HZB50,RZB40,50..LHD |
5 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-36040 |
BB42,5#,HZB50,RZB40,50..LHD |
5 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-36060 |
HZB50..TD;HZB50..19S,22S;BB40,50..ARL,EUR |
2 | ||
| 47371-36060 |
BB50..GEN..IV;BB42,43,58,RZB40,50;BB50,HZB50..20S,30S |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47372-36050 |
HZB50..TD |
2 | ||
| 47372-36050 |
HZB50..19S,22S;BB40,50..ARL,EUR |
1 | ||
| 47374 - CONNECTOR, TUBE | ||||
| 47307-36020 |
HZB50..TD |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47371-36050 |
HZB50..19S,22S;BB50,HZB50..EUR NO.1 |
3 | ||
| 47372-36060 |
BB50..EX;BB50..EUR;BB50..WC..GEN..IV;BB40,42,58,HZB50,RZB40,50 NO.2 |
1 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-36120 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| Common parts | ||||
| 90119-08A46 | ||||
| 90179-06161 | ||||
| 90461-06112 | ||||
| 90464-00549 | ||||
| 90468-08044 | ||||
| 90480-01268 | ||||
| 90480-01335 | ||||
| 90480-01352 | ||||
| 90480-01476 | ||||
| 90904-80004 | ||||
| 90949-02082 | ||||
| 90949-02083 | ||||
| 90949-02084 | ||||
| 91611-B0816 | ||||
| 91642-80825 | ||||
| 91651-60616 | ||||
| 94130-00802 | ||||
