HZB50L-ZRMRXW1 (1993)
Toyota Coaster
Production
Jan 1993
-
May 1996
Engine
1HZT
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9301-9505)HZB50..LHD ; (9505-9605)LHD..TD

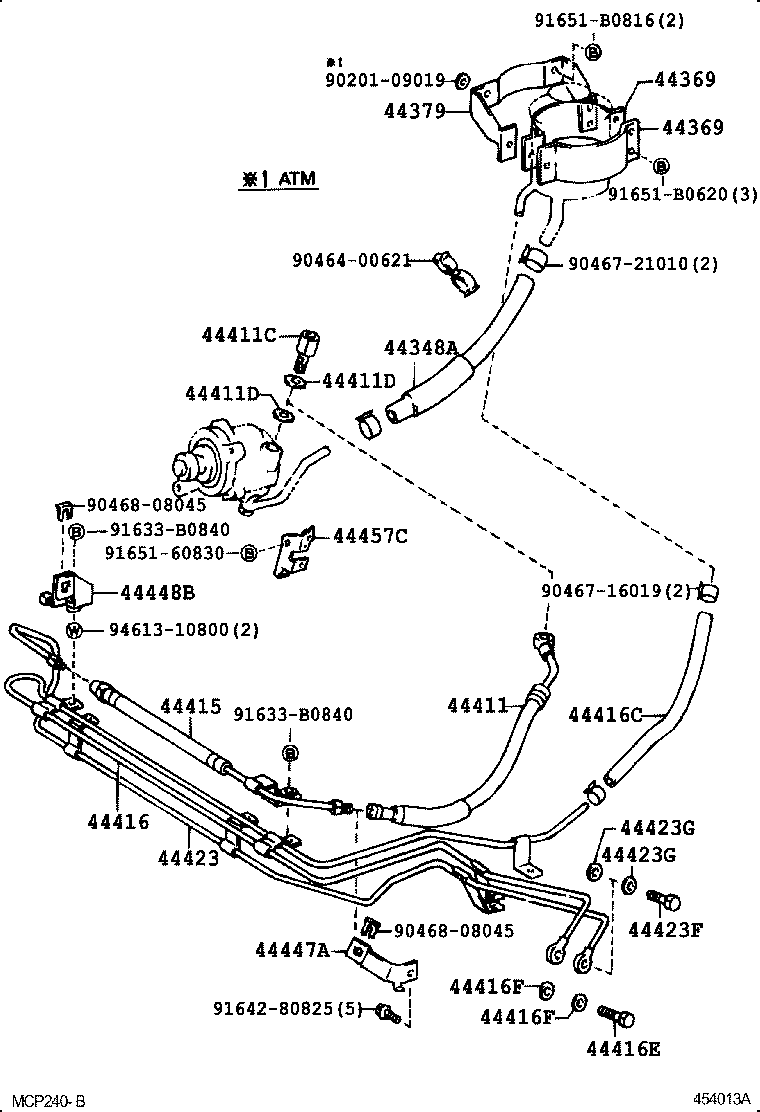

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-36260 |
BB40;HZB50..LHD |
1 | ||
| 44369 - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44369-36020 |
BB4#;HZB50..LHD |
2 | ||
| 44369 - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44369-36020 |
BB4#;HZB50..LHD |
2 | ||
| 44379 - BRACKET, OIL RESERVOIR, NO.2 | ||||
| 44369-36030 |
HZB50..LHD |
1 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-36371 |
BB42,5#..LHD |
1 | ||
| 44411-36390 |
HZB50..LHD |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90404-16024 |
BB4#,5#,HZB50 |
1 | ||
| 90401-16004 |
RZB40,50 |
1 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-16168 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-16168 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 44415 - HOSE, PRESSURE FEED, NO.2 | ||||
| 44415-36030 |
HZB50..LHD..TD |
1 | ||
| 44415-36030 |
HZB50..LHD |
1 | ||
| 44415-36030 |
BB42,HZB50..LHD |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-36360 |
BB42,5#,HZB50..LHD |
1 | ||
| 44416C - HOSE(FOR RETURN TUBE TO RESERVIOR) | ||||
| 90445-18130 |
HZB50..LHD |
1 | ||
| 90445-18139 |
RZB40,50;HZB50..RHD |
1 | ||
| 44416E - BOLT, UNION(FOR RETURN TUBE) | ||||
| 90401-14003 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 44416F - GASKET(FOR RETURN TUBE) | ||||
| 90430-14235 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 44416F - GASKET(FOR RETURN TUBE) | ||||
| 90430-14235 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 44423 - TUBE, OIL PUMP TO GEAR BOX | ||||
| 44423-36280 |
BB42,HZB50..LHD |
1 | ||
| 44423-36280 |
HZB50..LHD..TD |
1 | ||
| 44423F - BOLT, UNION | ||||
| 90401-14003 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 44423G - GASKET, UNION BOLT | ||||
| 90430-14235 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 44423G - GASKET, UNION BOLT | ||||
| 90430-14235 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 44447A - BRACKET, HOSE SUPPORT, NO.1 | ||||
| 44447-36210 |
BB42,5#,HZB50..LHD |
1 | ||
| 44448B - BRACKET, HOSE SUPPORT, NO.2 | ||||
| 44448-36050 |
BB42,HZB50 |
1 | ||
| 44448-36050 |
HZB50..LHD..TD;BB42,HZB50..RHD |
1 | ||
| 44448-36050 |
HZB50..TD |
1 | ||
| 44457C - BRACKET, POWER STEERING TUBE SUPPORT, NO.1 | ||||
| 44457-36040 |
BB4#,5# |
1 | ||
| 44457-36090 |
HZB50 |
1 | ||
| Common parts | ||||
| 90201-09019 | ||||
| 90464-00621 | ||||
| 90467-16019 | ||||
| 90467-21010 | ||||
| 90468-08045 | ||||
| 91633-B0840 | ||||
| 91642-80825 | ||||
| 91651-60830 | ||||
| 91651-B0620 | ||||
| 91651-B0816 | ||||
| 94613-10800 | ||||
