HZB50L-ZRMRXW1 (1993)
Toyota Coaster
(9301- )1HZ#

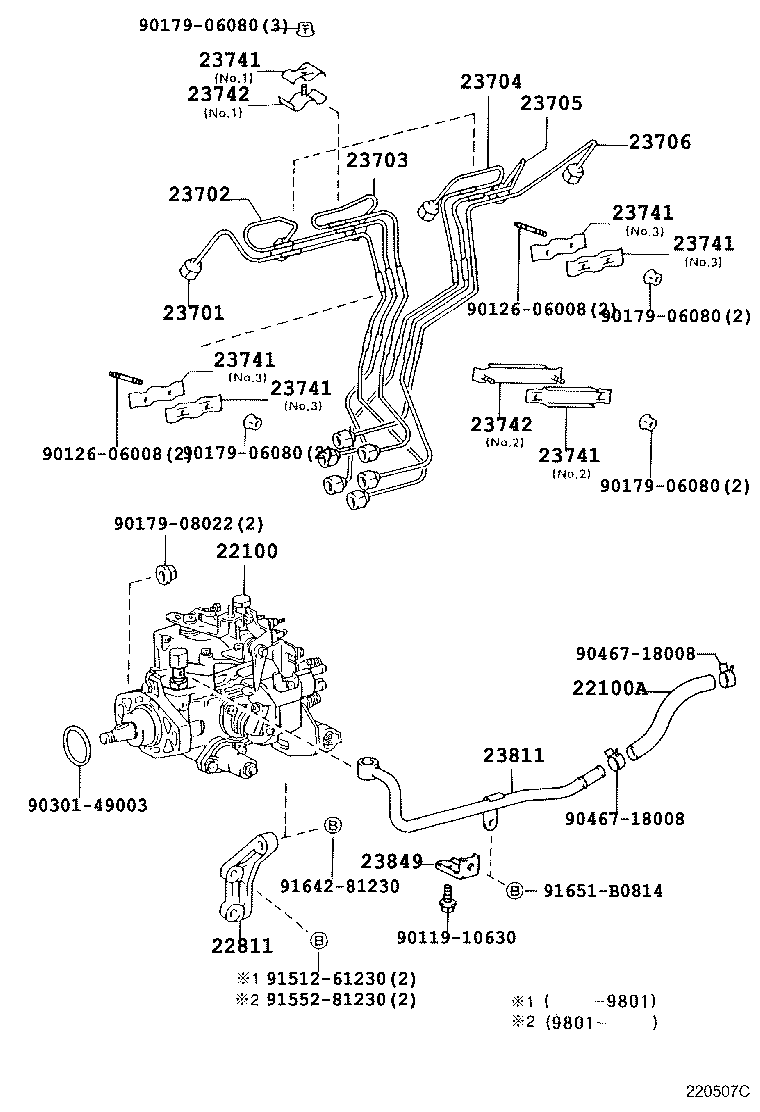

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22100 - PUMP ASSY, INJECTION OR SUPPLY | ||||
| 22100-17410 |
1HZT..HZB50 |
1 | ||
| 22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER) | ||||
| 95332-12028 |
1HZ#..HZB50 *H,L=280,ID=12 |
1 | ||
| 22811 - STAY, INJECTION PUMP, NO.1 | ||||
| 22811-17010 |
1HZT..HZB50 |
1 | ||
| 22811-17010 |
1HZ#..HZB50 |
1 | ||
| 23701 - PIPE SUB-ASSY, INJECTION, NO.1 | ||||
| 23701-17040 |
1HZT..HZB50 |
1 | ||
| 23701-17010 |
1HZ..HZB50 |
1 | ||
| 23702 - PIPE SUB-ASSY, INJECTION, NO.2 | ||||
| 23702-17010 |
1HZ..HZB50 |
1 | ||
| 23702-17040 |
1HZT..HZB50 |
1 | ||
| 23703 - PIPE SUB-ASSY, INJECTION, NO.3 | ||||
| 23703-17040 |
1HZT..HZB50 |
1 | ||
| 23703-17010 |
1HZ..HZB50 |
1 | ||
| 23704 - PIPE SUB-ASSY, INJECTION, NO.4 | ||||
| 23704-17040 |
1HZT..HZB50 |
1 | ||
| 23704-17010 |
1HZ..HZB50 |
1 | ||
| 23705 - PIPE SUB-ASSY, INJECTION, NO.5 | ||||
| 23705-17040 |
1HZT..HZB50 |
1 | ||
| 23705-17010 |
1HZ..HZB50 |
1 | ||
| 23706 - PIPE SUB-ASSY, INJECTION, NO.6 | ||||
| 23706-17010 |
1HZ..HZB50 |
1 | ||
| 23706-17040 |
1HZT..HZB50 |
1 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-17030 |
1HZ#..HZB50 NO.3 |
4 | ||
| 23741-17020 |
1HZ#..HZB50 NO.2 |
1 | ||
| 23741-17010 |
1HZ#..HZB50 NO.1 |
3 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-17030 |
1HZ#..HZB50 NO.3 |
4 | ||
| 23741-17020 |
1HZ#..HZB50 NO.2 |
1 | ||
| 23741-17010 |
1HZ#..HZB50 NO.1 |
3 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-17030 |
1HZ#..HZB50 NO.3 |
4 | ||
| 23741-17020 |
1HZ#..HZB50 NO.2 |
1 | ||
| 23741-17010 |
1HZ#..HZB50 NO.1 |
3 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-17030 |
1HZ#..HZB50 NO.3 |
4 | ||
| 23741-17020 |
1HZ#..HZB50 NO.2 |
1 | ||
| 23741-17010 |
1HZ#..HZB50 NO.1 |
3 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-17030 |
1HZ#..HZB50 NO.3 |
4 | ||
| 23741-17020 |
1HZ#..HZB50 NO.2 |
1 | ||
| 23741-17010 |
1HZ#..HZB50 NO.1 |
3 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-17030 |
1HZ#..HZB50 NO.3 |
4 | ||
| 23741-17020 |
1HZ#..HZB50 NO.2 |
1 | ||
| 23741-17010 |
1HZ#..HZB50 NO.1 |
3 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-17020 |
1HZ#..HZB50 NO.2 |
1 | ||
| 23742-17010 |
1HZ#..HZB50 NO.1 |
3 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-17020 |
1HZ#..HZB50 NO.2 |
1 | ||
| 23742-17010 |
1HZ#..HZB50 NO.1 |
3 | ||
| 23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP) | ||||
| 23811-17030 |
1HZ#..HZB50 |
1 | ||
| 23849 - SUPPORT, FUEL | ||||
| 23849-17010 |
1HZ#..HZB50 |
1 | ||
| Common parts | ||||
| 90119-10630 | ||||
| 90126-06008 | ||||
| 90179-06080 | ||||
| 90179-08022 | ||||
| 90301-49003 | ||||
| 90467-18008 | ||||
| 91512-61230 | ||||
| 91552-81230 | ||||
| 91642-81230 | ||||
| 91651-B0814 | ||||
