HZB50L-ZRMRXW1 (1993)
Toyota Coaster
Production
Jan 1993
-
May 1996
Engine
1HZT
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9301-9907)1HZ

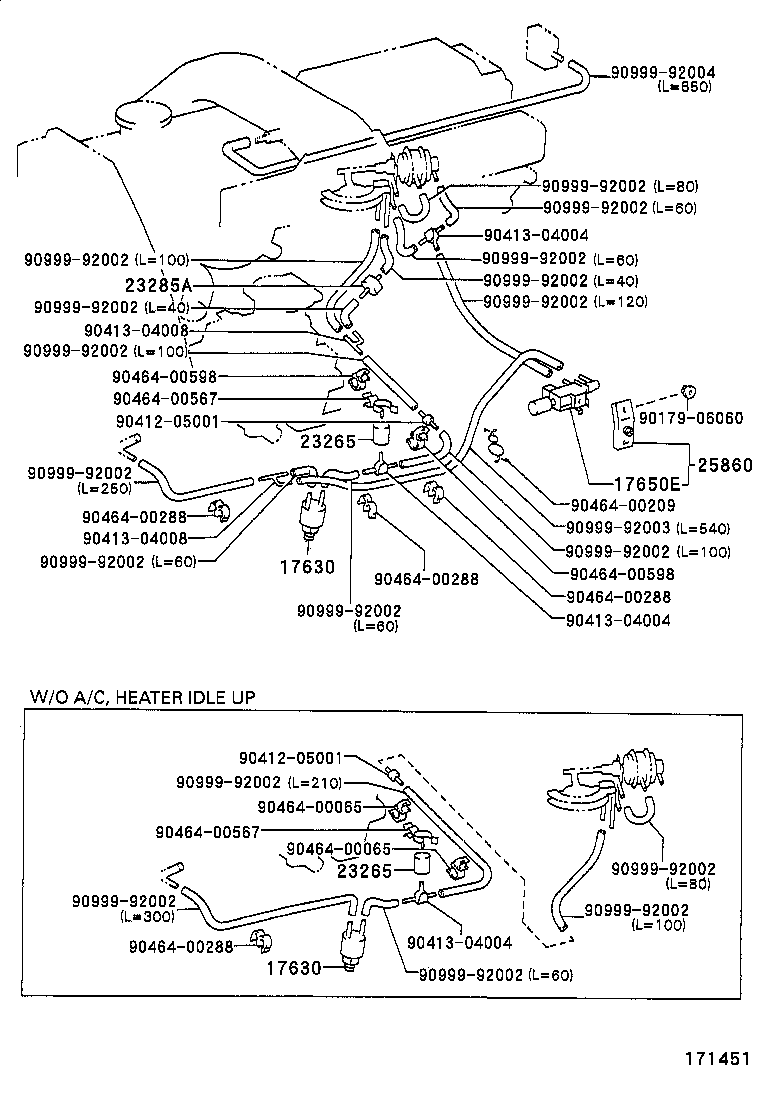

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-15010 |
1HZ..HZB50..5F |
1 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-15010 |
1HZ..HZB50..5F |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90925-06009 |
1HZ..HZB50..5F |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90925-06009 |
1HZ..HZB50..5F |
1 | ||
| Common parts | ||||
| 90179-06060 | ||||
| 90412-05001 | ||||
| 90413-04004 | ||||
| 90413-04008 | ||||
| 90464-00065 | ||||
| 90464-00209 | ||||
| 90464-00288 | ||||
| 90464-00564 | ||||
| 90464-00567 | ||||
| 90464-00598 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
(9301-9605)1HZT
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-15010 |
1HZ..HZB50..5F |
1 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-15010 |
1HZ..HZB50..5F |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90925-06009 |
1HZ..HZB50..5F |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90925-06009 |
1HZ..HZB50..5F |
1 | ||
| Common parts | ||||
| 90179-06060 | ||||
| 90412-05001 | ||||
| 90413-04004 | ||||
| 90413-04008 | ||||
| 90464-00065 | ||||
| 90464-00209 | ||||
| 90464-00288 | ||||
| 90464-00567 | ||||
| 90464-00598 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 90999-92004 | ||||
