HZB50L-ZRMRXW1 (1993)
Toyota Coaster
Production
Jan 1993
-
May 1996
Engine
1HZT
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9301-9705)1HZ#

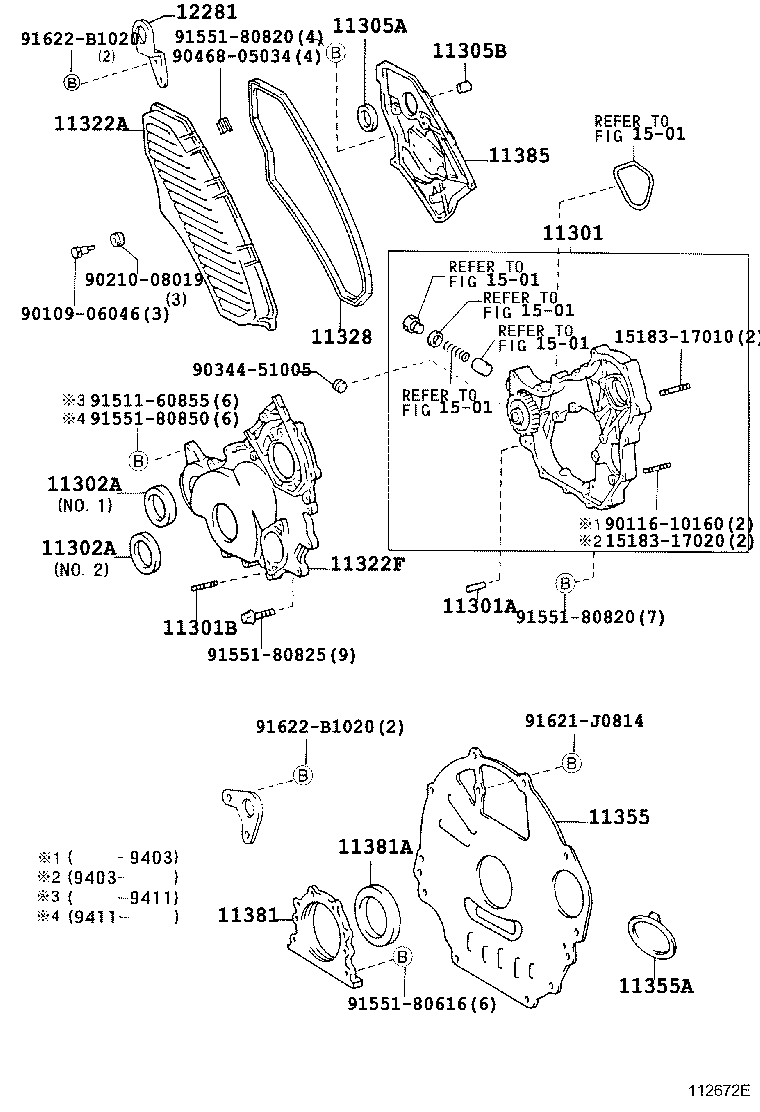

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11301 - CASE SUB-ASSY, TIMING GEAR | ||||
| 11301-17020 |
1HZ#..HZB50 |
1 | ||
| 11301A - PIN, STRAIGHT(FOR TIMING GEAR CASE) | ||||
| 90250-08054 |
1HZ#..HZB50 L=23,OD=8 |
1 | ||
| 11301B - BOLT,STUD(FOR TIMING GEAR CASE) | ||||
| 90116-10160 |
1HZ#..HZB50 |
2 | ||
| 11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER) | ||||
| 90311-58007 |
1HZ#..HZB50 NO.2 |
1 | ||
| 90311-58006 |
1HZ#..HZB50 NO.1 |
1 | ||
| 11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER) | ||||
| 90311-58007 |
1HZ#..HZB50 NO.2 |
1 | ||
| 90311-58006 |
1HZ#..HZB50 NO.1 |
1 | ||
| 11305A - SEAL, OIL(FOR OIL SEAL RETAINER, NO.2) | ||||
| 90311-32017 |
1HZ#..HZB50 |
1 | ||
| 11305B - PIN, RING(FOR OIL SEAL RETAINER, NO.2) | ||||
| 90253-11021 |
1HZ#..HZB50 |
2 | ||
| 11322A - COVER, TIMING BELT, NO.1 | ||||
| 11321-17010 |
1HZ#..HZB50 |
1 | ||
| 11322F - COVER, TIMING GEAR, NO.2 | ||||
| 11322-17010 |
1HZ#..HZB50 |
1 | ||
| 11328 - GASKET, TIMING GEAR OR CHAIN COVER | ||||
| 11328-17010 |
1HZ#..HZB50 |
1 | ||
| 11355 - PLATE, REAR END | ||||
| 11355-17010 |
1HZ#..HZB50..5F |
1 | ||
| 11381 - RETAINER, ENGINE REAR OIL SEAL | ||||
| 11381-17010 |
1HZ#..HZB50 |
1 | ||
| 11381A - SEAL, ENGINE REAR OIL | ||||
| 90311-95008 |
1HZ#..HZB50 |
1 | ||
| 11385 - RETAINER, CAMSHAFT OIL SEAL | ||||
| 11382-17010 |
1HZ#..HZB50 |
1 | ||
| Common parts | ||||
| 15183-17010 | ||||
| 15183-17020 | ||||
| 90109-06046 | ||||
| 90116-10160 | ||||
| 90210-08019 | ||||
| 90344-51005 | ||||
| 90468-05034 | ||||
| 91511-60855 | ||||
| 91551-80616 | ||||
| 91551-80820 | ||||
| 91551-80825 | ||||
| 91551-80850 | ||||
| 91621-J0814 | ||||
| 91622-B1020 | ||||
| Linked diagrams | ||||
| 1501 | ||||
