HZB50L-ZGPSSV (1993)

Toyota Coaster

Production Jan 1993 - May 1997
Engine 1HZ
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9301-0108)4FC

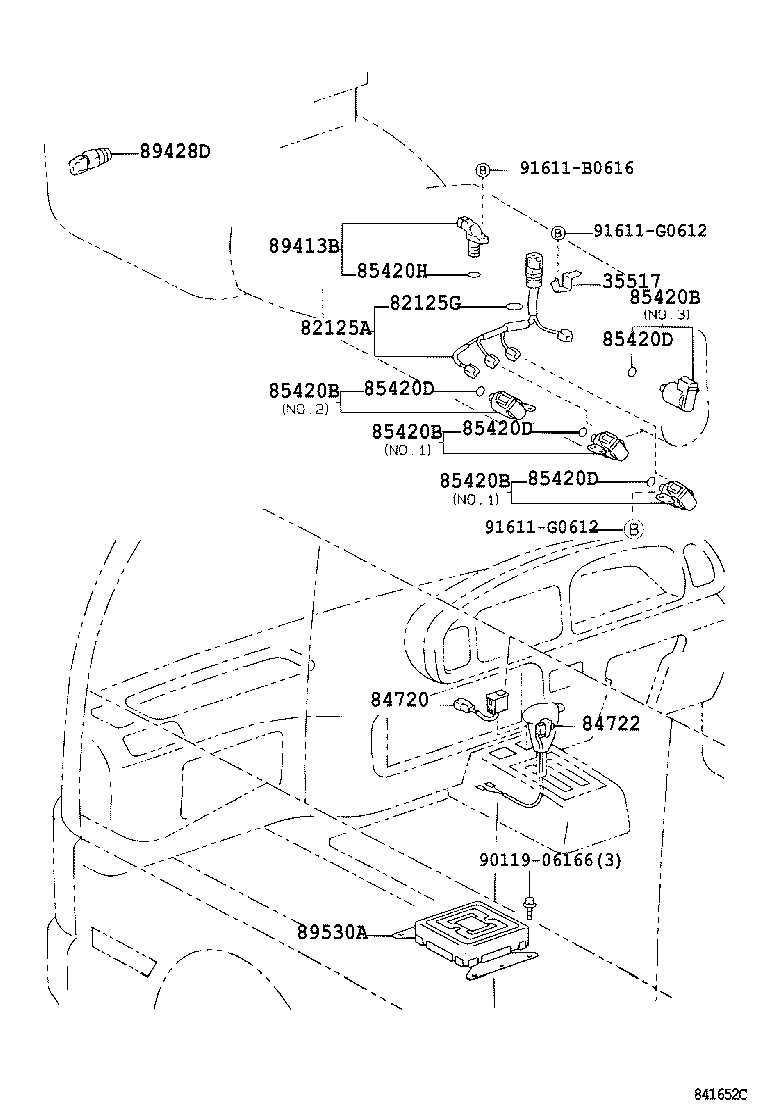

Click highlighted areas on diagram

diagram 35517 82125A 82125G 84720 84722 85420B 85420B 85420B 85420B 85420D 85420D 85420D 85420D 85420H 89413B 89428D 89530A 9011906166 91611B0616 91611G0612 91611G0612
Part # Description Qty Price
35517 - PLATE, TRANSMISSION WIRE LOCK
35517-36010

HZB50..4FC

 1
82125A - WIRE, TRANSMISSION
82125-36010

HZB50..4FC

 1
82125G - RING, O(FOR TRANSMISSION WIRE)
96721-24018

HZB50..4FC

 1
84720 - SWITCH ASSY, PATTERN SELECT
84720-36010

HZB50..4FC

 1
84722 - SWITCH, TRANSMISSION CONTROL
84722-36050E1

HZB50..4FC

GREIGE,TRIM4#

 1
85420B - SOLENOID ASSY, TRANSMISSION
85420-36020

HZB50..4FC

NO.2

 1
85420-36030

HZB50..4FC

NO.3

 1
85420-36010

HZB50..4FC

NO.1

 2
85420B - SOLENOID ASSY, TRANSMISSION
85420-36020

HZB50..4FC

NO.2

 1
85420-36030

HZB50..4FC

NO.3

 1
85420-36010

HZB50..4FC

NO.1

 2
85420B - SOLENOID ASSY, TRANSMISSION
85420-36020

HZB50..4FC

NO.2

 1
85420-36030

HZB50..4FC

NO.3

 1
85420-36010

HZB50..4FC

NO.1

 2
85420B - SOLENOID ASSY, TRANSMISSION
85420-36020

HZB50..4FC

NO.2

 1
85420-36030

HZB50..4FC

NO.3

 1
85420-36010

HZB50..4FC

NO.1

 2
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

HZB50..4FC

 4
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

HZB50..4FC

 4
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

HZB50..4FC

 4
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

HZB50..4FC

 4
85420H - RING, O(FOR SPEED SENSOR)
90301-11008

HZB50..4FC

 1
89413B - SENSOR, TRANSMISSION REVOLUTION
89413-32010

HZB50..4FC

 1
89428D - SWITCH, TEMPERATURE, NO.2
89428-36030

HZB50..4FC

 1
89530A - COMPUTER ASSY, TRANSMISSION CONTROL
89530-36110

HZB50..4FC

 1
89530-36090

HZB50..4FC

 1
Common parts
90119-06166
91611-B0616
91611-G0612
