HZB50L-ZGPRS (1993)
Toyota Coaster
Production
Jan 1993
-
May 1997
Engine
1HZ
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9301-9505)4FC

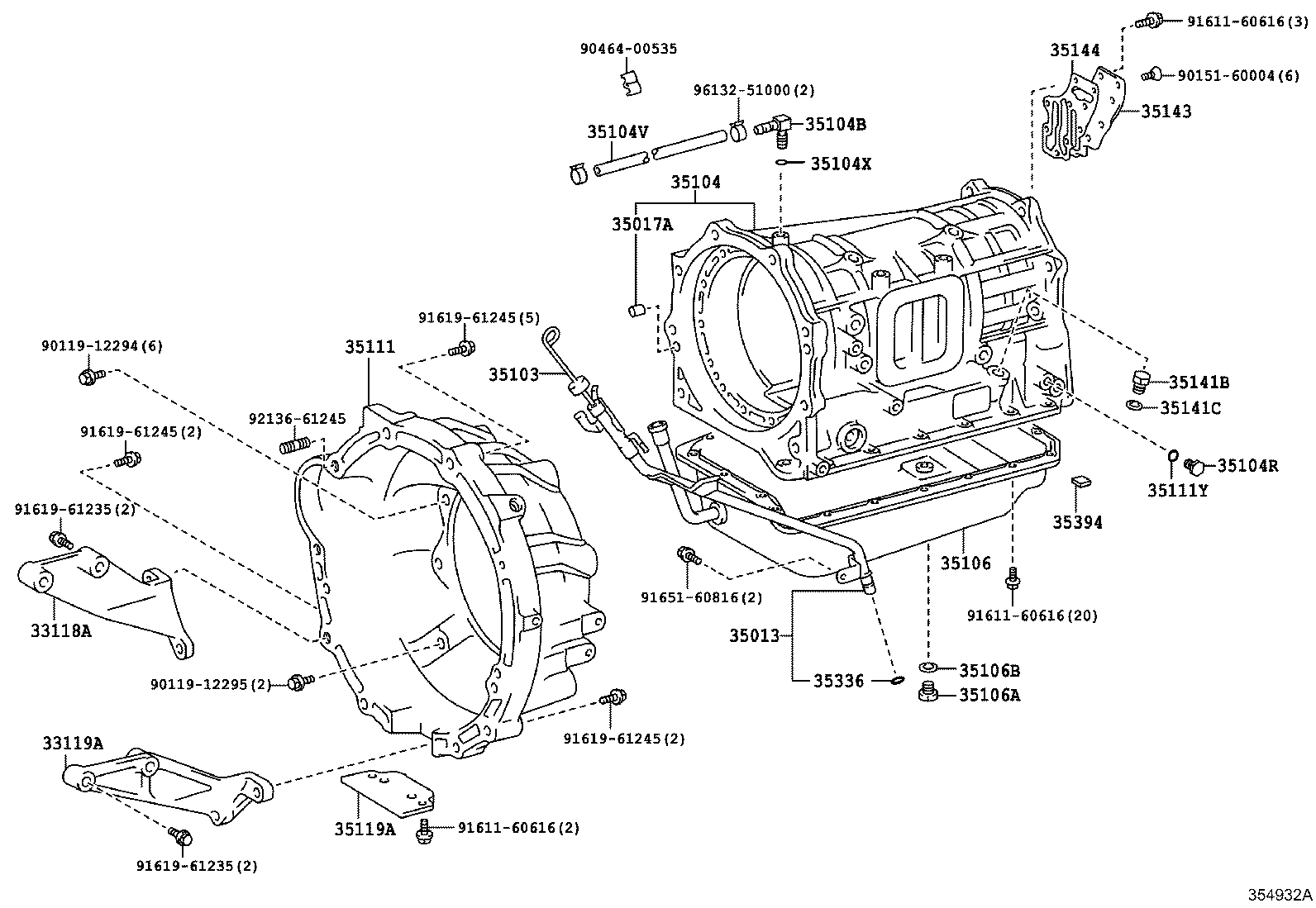

Click highlighted areas on diagram
A441E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33118A - PLATE, STIFFENER, RH(ATM) | ||||
| 33118-60030 |
HZB50..4FC |
1 | ||
| 33119A - PLATE, STIFFENER, LH(ATM) | ||||
| 33119-60031 |
HZB50..4FC |
1 | ||
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-36070 |
HZB50..4FC |
1 | ||
| 35017A - PIN, STRAIGHT(FOR TRANSMISSION HOUSING ADAPTER, FRONT) | ||||
| 90250-12146 |
HZB50..4FC |
2 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-36050 |
HZB50..4FC |
1 | ||
| 35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION | ||||
| 35104-36041 |
HZB50..4FC |
1 | ||
| 35104-36040 |
HZB50..4FC |
1 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03094 |
HZB50..4FC |
1 | ||
| 35104R - PLUG, NO.2 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
HZB50..4FC |
7 | ||
| 35104V - HOSE (FOR BREATHER PLUG) | ||||
| 90445-11123 |
HZB50..4FC |
1 | ||
| 35104X - RING, O (FOR BREATHER PLUG) | ||||
| 90301-06005 |
HZB50..4FC |
1 | ||
| 35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL | ||||
| 35106-36050 |
HZB50..4FC |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-18057 |
HZB50..4FC |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 12157-10010 |
HZB50..4FC |
1 | ||
| 35111 - HOUSING, AUTOMATIC TRANSMISSION | ||||
| 35111-60040 |
HZB50..4FC |
1 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
HZB50..4FC |
7 | ||
| 35119A - COVER, TRANSMISSION HOUSING | ||||
| 35119-36010 |
HZB50..4FC |
1 | ||
| 35141B - PLUG (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90341-16010 |
HZB50..4FC |
1 | ||
| 35141C - WASHER, PLATE (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90201-16013 |
HZB50..4FC |
1 | ||
| 35143 - COVER, TRANSMISSION CASE, REAR | ||||
| 35143-36010 |
HZB50..4FC |
1 | ||
| 35144 - GASKET, TRANSMISSION CASE REAR COVER | ||||
| 35144-60010 |
HZB50..4FC |
1 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09173 |
HZB50..4FC |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
HZB50..4FC |
4 | ||
| Common parts | ||||
| 90119-12294 | ||||
| 90119-12295 | ||||
| 90151-60004 | ||||
| 90464-00535 | ||||
| 91611-60616 | ||||
| 91619-61235 | ||||
| 91619-61245 | ||||
| 91651-60816 | ||||
| 92136-61245 | ||||
| 96132-51000 | ||||
