Toyota Coaster HZB50 PARKING BRAKE & CABLE

Manufacturers Home
Toyota
GR
COASTER
HZB50L-BGMRS (1993)
4601 - PARKING BRAKE & CABLE

HZB50L-BGMRS (1993)

Toyota Coaster

Production Jan 1993 - Dec 2016

Engine 1HZ

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

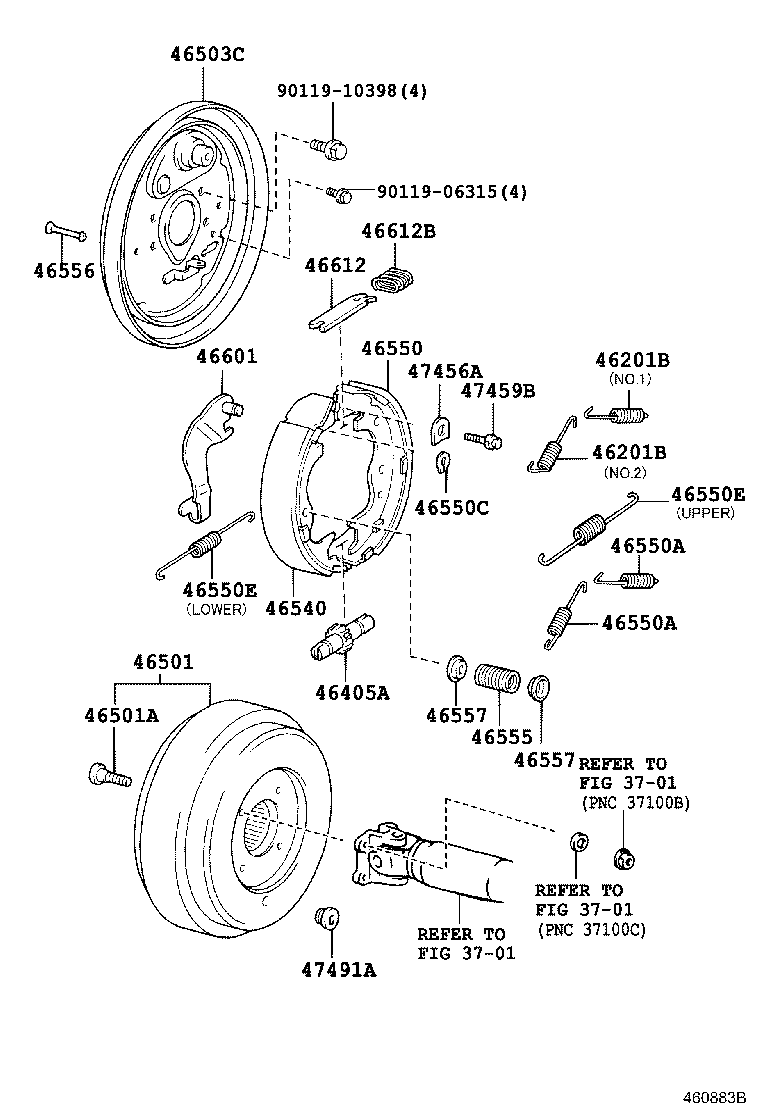

ILLUST NO. 2 OF 2(9301-1209)HZB50..LHD ; (9301- )HZB50..RHD ;(9301- )BB58,59,BZB50,RZB50,TRB5

Click highlighted areas on diagram

Part #	Description	Period	Qty
46201B - SPRING, TENSION
90507-20020	BB5#,HZB50,RZB50 NO.1	01/1993 - 07/1999	1
90507-20020	BB5#,HZB50,RZB50 NO.1	01/1993 - 07/1999	1
90507-20020	HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN) NO.1	07/1999 - 08/2004	1
90507-20020	HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN) NO.1	07/1999 - 08/2004	1
90507-20021	HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN) NO.2	07/1999 - 08/2004	1
90507-20021	HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN) NO.2	07/1999 - 08/2004	1
90507-20021	BB5#,HZB50,RZB50 NO.2	01/1993 - 07/1999	1
90507-20021	BB5#,HZB50,RZB50 NO.2	01/1993 - 07/1999	1
90507-20021	XZB59;XZB50..(20S,21S)..WC;BB50,BZB50,HZB50,TRB50..STD..(DSL,EFI,LPG,TD) NO.2	08/2004 - 01/2015	1
90507-20021	XZB59;XZB50..(20S,21S)..WC;BB50,BZB50,HZB50,TRB50..STD..(DSL,EFI,LPG,TD) NO.2	08/2004 - 01/2015	1
90507-20020	XZB40..26S;BZB50,HZB50,TRB50,XZB5# NO.1	01/2015 - 12/2999	1
90507-20020	XZB40..26S;BZB50,HZB50,TRB50,XZB5# NO.1	01/2015 - 12/2999	1
90507-20021	XZB40..26S;BZB50,HZB50,TRB50,XZB5# NO.2	01/2015 - 12/2999	1
90507-20021	XZB40..26S;BZB50,HZB50,TRB50,XZB5# NO.2	01/2015 - 12/2999	1
90507-20020	XZB59;XZB50..(20S,21S)..WC;BB50,BZB50,HZB50,TRB50..STD..(DSL,EFI,LPG,TD) NO.1	08/2004 - 01/2015	1
90507-20020	XZB59;XZB50..(20S,21S)..WC;BB50,BZB50,HZB50,TRB50..STD..(DSL,EFI,LPG,TD) NO.1	08/2004 - 01/2015	1
46201B - SPRING, TENSION
90507-20020	BB5#,HZB50,RZB50 NO.1	01/1993 - 07/1999	1
90507-20020	BB5#,HZB50,RZB50 NO.1	01/1993 - 07/1999	1
90507-20020	HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN) NO.1	07/1999 - 08/2004	1
90507-20020	HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN) NO.1	07/1999 - 08/2004	1
90507-20021	HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN) NO.2	07/1999 - 08/2004	1
90507-20021	HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN) NO.2	07/1999 - 08/2004	1
90507-20021	BB5#,HZB50,RZB50 NO.2	01/1993 - 07/1999	1
90507-20021	BB5#,HZB50,RZB50 NO.2	01/1993 - 07/1999	1
90507-20021	XZB59;XZB50..(20S,21S)..WC;BB50,BZB50,HZB50,TRB50..STD..(DSL,EFI,LPG,TD) NO.2	08/2004 - 01/2015	1
90507-20021	XZB59;XZB50..(20S,21S)..WC;BB50,BZB50,HZB50,TRB50..STD..(DSL,EFI,LPG,TD) NO.2	08/2004 - 01/2015	1
90507-20020	XZB40..26S;BZB50,HZB50,TRB50,XZB5# NO.1	01/2015 - 12/2999	1
90507-20020	XZB40..26S;BZB50,HZB50,TRB50,XZB5# NO.1	01/2015 - 12/2999	1
90507-20021	XZB40..26S;BZB50,HZB50,TRB50,XZB5# NO.2	01/2015 - 12/2999	1
90507-20021	XZB40..26S;BZB50,HZB50,TRB50,XZB5# NO.2	01/2015 - 12/2999	1
90507-20020	XZB59;XZB50..(20S,21S)..WC;BB50,BZB50,HZB50,TRB50..STD..(DSL,EFI,LPG,TD) NO.1	08/2004 - 01/2015	1
90507-20020	XZB59;XZB50..(20S,21S)..WC;BB50,BZB50,HZB50,TRB50..STD..(DSL,EFI,LPG,TD) NO.1	08/2004 - 01/2015	1
46405A - SCREW SET, SHOE ADJUSTING, RH
47405-36010	XZB59;XZB50..(20S,21S)..WC;BB50,BZB50,HZB50,TRB50..STD..(DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
47405-36010	XZB59;XZB50..(20S,21S)..WC;BB50,BZB50,HZB50,TRB50..STD..(DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
47405-36010	BB5#,HZB50,RZB50	01/1993 - 07/1999	1
47405-36010	BB5#,HZB50,RZB50	01/1993 - 07/1999	1
47405-36010	XZB40..26S;BZB50,HZB50,TRB50,XZB5#	01/2015 - 12/2999	1
47405-36010	XZB40..26S;BZB50,HZB50,TRB50,XZB5#	01/2015 - 12/2999	1
47405-36010	HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN)	07/1999 - 08/2004	1
47405-36010	HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN)	07/1999 - 08/2004	1
46501 - DRUM SUB-ASSY, PARKING BRAKE
46501-36200	BB5#,HZB50,RZB50..5F	01/1993 - 07/1999	1
46501-36200	BB5#,HZB50,RZB50..5F	01/1993 - 07/1999	1
46501-36220	HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN)	07/1999 - 08/2004	1
46501-36220	HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN)	07/1999 - 08/2004	1
46501-36220	BB5#,BZB50,HZB50,RZB50,TRB50,XZB5#..MTM	08/2004 - 01/2015	1
46501-36220	BB5#,BZB50,HZB50,RZB50,TRB50,XZB5#..MTM	08/2004 - 01/2015	1
46501-36220	XZB40..26S;BZB50,HZB50,TRB50,XZB5#..5F	01/2015 - 12/2016	1
46501-36220	XZB40..26S;BZB50,HZB50,TRB50,XZB5#..5F	01/2015 - 12/2016	1
46501A - BOLT, SERRATION(FOR PARKING BRAKE DRUM)
90114-11124	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	4
90114-11124	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	4
90114-11124	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	4
90114-11124	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	4
90114-11124	BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	4
90114-11124	BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	4
90114-11124	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	4
90114-11124	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	4
46503C - PLATE SUB-ASSY, PARKING BRAKE
46503-36070	HZB50,RZB50..LHD	01/1993 - 05/1996	1
46503-36070	HZB50,RZB50..LHD	01/1993 - 05/1996	1
46503-36071	BB5#,HZB50,RZB50..LHD	05/1996 - 07/1999	1
46503-36071	BB5#,HZB50,RZB50..LHD	05/1996 - 07/1999	1
46503-36071	BB50..LHD..TDEFI;BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN)	07/1999 - 08/2004	1
46503-36071	BB50..LHD..TDEFI;BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN)	07/1999 - 08/2004	1
46503-36071	BB50,HZB50,TRB50,XZB50..LHD..CBU..5F	08/2004 - 01/2015	1
46503-36071	BB50,HZB50,TRB50,XZB50..LHD..CBU..5F	08/2004 - 01/2015	1
46503-36071	HZB50,TRB50,XZB40,50..LHD	01/2015 - 12/2999	1
46503-36071	HZB50,TRB50,XZB40,50..LHD	01/2015 - 12/2999	1
46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1
46540-37030	BB5#,HZB50,RZB50	01/1993 - 07/1999	1
46540-37030	BB5#,HZB50,RZB50	01/1993 - 07/1999	1
46540-37030	HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN)	07/1999 - 08/2004	1
46540-37030	HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN)	07/1999 - 08/2004	1
46540-37030	BB50,59,BZB50,HZB50,RZB50..5F	08/2004 - 12/2005	1
46540-37030	BB50,59,BZB50,HZB50,RZB50..5F	08/2004 - 12/2005	1
46540-37040	XZB40..26S;BZB50,HZB50,TRB50,XZB5#	01/2015 - 12/2999	1
46540-37040	XZB40..26S;BZB50,HZB50,TRB50,XZB5#	01/2015 - 12/2999	1
46540-37040	XZB59;XZB50..(20S,21S)..WC;BB50,BZB50,HZB50,TRB50..STD..(DSL,EFI,LPG,TD)	01/2006 - 01/2015	1
46540-37040	XZB59;XZB50..(20S,21S)..WC;BB50,BZB50,HZB50,TRB50..STD..(DSL,EFI,LPG,TD)	01/2006 - 01/2015	1
46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2
46550-37030	BB5#,HZB50,RZB50	01/1993 - 07/1999	1
46550-37030	BB5#,HZB50,RZB50	01/1993 - 07/1999	1
46550-37030	HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN)	07/1999 - 08/2004	1
46550-37030	HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN)	07/1999 - 08/2004	1
46550-37030	BB50,59,BZB50,HZB50,RZB50..5F	08/2004 - 12/2005	1
46550-37030	BB50,59,BZB50,HZB50,RZB50..5F	08/2004 - 12/2005	1
46550-37040	XZB40..26S;BZB50,HZB50,TRB50,XZB5#	01/2015 - 12/2999	1
46550-37040	XZB40..26S;BZB50,HZB50,TRB50,XZB5#	01/2015 - 12/2999	1
46550-37040	XZB59;XZB50..(20S,21S)..WC;BB50,BZB50,HZB50,TRB50..STD..(DSL,EFI,LPG,TD)	01/2006 - 01/2015	1
46550-37040	XZB59;XZB50..(20S,21S)..WC;BB50,BZB50,HZB50,TRB50..STD..(DSL,EFI,LPG,TD)	01/2006 - 01/2015	1
46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE)
90213-06003	HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN)	07/1999 - 08/2004	1
90213-06003	HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN)	07/1999 - 08/2004	1
90213-06003	BB5#,HZB50,RZB50	01/1993 - 07/1999	1
90213-06003	BB5#,HZB50,RZB50	01/1993 - 07/1999	1
90213-06003	XZB59;XZB50..(20S,21S)..WC;BB50,BZB50,HZB50,TRB50..STD..(DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
90213-06003	XZB59;XZB50..(20S,21S)..WC;BB50,BZB50,HZB50,TRB50..STD..(DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
90213-06003	XZB40..26S;BZB50,HZB50,TRB50,XZB5#	01/2015 - 12/2999	1
90213-06003	XZB40..26S;BZB50,HZB50,TRB50,XZB5#	01/2015 - 12/2999	1
46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN)
90506-14054	BB50..RHD;BB50..GEN..IV;BB58,HZB50,RZB50	01/1993 - 07/1999	1
90506-14054	BB50..RHD;BB50..GEN..IV;BB58,HZB50,RZB50	01/1993 - 07/1999	1
90506-14054	HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..RHD..IV..TDEFI;BB59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN)	07/1999 - 08/2004	1
90506-14054	HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..RHD..IV..TDEFI;BB59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN)	07/1999 - 08/2004	1
90506-14054	BB50,HZB50..LHD LOWER	09/2012 - 01/2015	1
90506-14054	BB50,HZB50..LHD LOWER	09/2012 - 01/2015	1
90506-14054	BB50,HZB50..LHD..5F	08/2004 - 09/2012	1
90506-14054	BB50,HZB50..LHD..5F	08/2004 - 09/2012	1
90506-23049	BB50,HZB50..LHD UPPER	09/2012 - 01/2015	1
90506-23049	BB50,HZB50..LHD UPPER	09/2012 - 01/2015	1
90506-23049	XZB5#;HZB50,XZB40..LHD UPPER	01/2015 - 12/2999	1
90506-23049	XZB5#;HZB50,XZB40..LHD UPPER	01/2015 - 12/2999	1
90506-14054	XZB5#;HZB50,XZB40..LHD LOWER	01/2015 - 12/2999	1
90506-14054	XZB5#;HZB50,XZB40..LHD LOWER	01/2015 - 12/2999	1
46555 - SPRING, BRAKE SHOE HOLD DOWN
90501-16108	BB5#,HZB50,RZB50	01/1993 - 07/1999	2
90501-16108	BB5#,HZB50,RZB50	01/1993 - 07/1999	2
90501-16108	HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN)	07/1999 - 08/2004	2
90501-16108	HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN)	07/1999 - 08/2004	2
90501-16108	XZB40..26S;BZB50,HZB50,TRB50,XZB5#	01/2015 - 12/2999	2
90501-16108	XZB40..26S;BZB50,HZB50,TRB50,XZB5#	01/2015 - 12/2999	2
90501-16108	XZB59;XZB50..(20S,21S)..WC;BB50,BZB50,HZB50,TRB50..STD..(DSL,EFI,LPG,TD)	08/2004 - 01/2015	2
90501-16108	XZB59;XZB50..(20S,21S)..WC;BB50,BZB50,HZB50,TRB50..STD..(DSL,EFI,LPG,TD)	08/2004 - 01/2015	2
46556 - PIN, SHOE HOLD DOWN SPRING
47447-20030	XZB59;XZB50..(20S,21S)..WC;BB50,BZB50,HZB50,TRB50..STD..(DSL,EFI,LPG,TD)	08/2004 - 01/2015	2
47447-20030	XZB59;XZB50..(20S,21S)..WC;BB50,BZB50,HZB50,TRB50..STD..(DSL,EFI,LPG,TD)	08/2004 - 01/2015	2
47447-20030	HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN)	07/1999 - 08/2004	2
47447-20030	HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN)	07/1999 - 08/2004	2
47447-20030	BB5#,HZB50,RZB50	01/1993 - 07/1999	2
47447-20030	BB5#,HZB50,RZB50	01/1993 - 07/1999	2
47447-20030	XZB40..26S;BZB50,HZB50,TRB50,XZB5#	01/2015 - 12/2999	2
47447-20030	XZB40..26S;BZB50,HZB50,TRB50,XZB5#	01/2015 - 12/2999	2
46557 - CUP, BRAKE SHOE HOLD DOWN
47449-20011	BB5#,HZB50,RZB50	01/1993 - 07/1999	4
47449-20011	BB5#,HZB50,RZB50	01/1993 - 07/1999	4
47449-20011	HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN)	07/1999 - 08/2004	4
47449-20011	HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN)	07/1999 - 08/2004	4
47449-20011	XZB40..26S;BZB50,HZB50,TRB50,XZB5#	01/2015 - 12/2999	4
47449-20011	XZB40..26S;BZB50,HZB50,TRB50,XZB5#	01/2015 - 12/2999	4
47449-20011	XZB59;XZB50..(20S,21S)..WC;BB50,BZB50,HZB50,TRB50..STD..(DSL,EFI,LPG,TD)	08/2004 - 01/2015	4
47449-20011	XZB59;XZB50..(20S,21S)..WC;BB50,BZB50,HZB50,TRB50..STD..(DSL,EFI,LPG,TD)	08/2004 - 01/2015	4
46557 - CUP, BRAKE SHOE HOLD DOWN
47449-20011	BB5#,HZB50,RZB50	01/1993 - 07/1999	4
47449-20011	BB5#,HZB50,RZB50	01/1993 - 07/1999	4
47449-20011	HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN)	07/1999 - 08/2004	4
47449-20011	HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN)	07/1999 - 08/2004	4
47449-20011	XZB40..26S;BZB50,HZB50,TRB50,XZB5#	01/2015 - 12/2999	4
47449-20011	XZB40..26S;BZB50,HZB50,TRB50,XZB5#	01/2015 - 12/2999	4
47449-20011	XZB59;XZB50..(20S,21S)..WC;BB50,BZB50,HZB50,TRB50..STD..(DSL,EFI,LPG,TD)	08/2004 - 01/2015	4
47449-20011	XZB59;XZB50..(20S,21S)..WC;BB50,BZB50,HZB50,TRB50..STD..(DSL,EFI,LPG,TD)	08/2004 - 01/2015	4
46601 - LEVER SUB-ASSY, PARKING BRAKE SHOE
46601-36061	BB5#,HZB50,RZB50..LHD	05/1996 - 07/1999	1
46601-36061	BB5#,HZB50,RZB50..LHD	05/1996 - 07/1999	1
46601-36060	HZB50,RZB50..LHD	01/1993 - 05/1996	1
46601-36060	HZB50,RZB50..LHD	01/1993 - 05/1996	1
46601-36061	BB50..LHD..TDEFI;BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN)	07/1999 - 08/2004	1
46601-36061	BB50..LHD..TDEFI;BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN)	07/1999 - 08/2004	1
46601-36061	BB50,HZB50,TRB50,XZB50..LHD..CBU..5F	08/2004 - 01/2015	1
46601-36061	BB50,HZB50,TRB50,XZB50..LHD..CBU..5F	08/2004 - 01/2015	1
46601-36061	HZB50,TRB50,XZB40,50..LHD	01/2015 - 12/2999	1
46601-36061	HZB50,TRB50,XZB40,50..LHD	01/2015 - 12/2999	1
46612 - STRUT, PARKING BRAKE SHOE LEVER
46612-36060	BB5#,HZB50,RZB50..LHD	01/1993 - 07/1999	1
46612-36060	BB5#,HZB50,RZB50..LHD	01/1993 - 07/1999	1
46612-36060	BB50..LHD..TDEFI;BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN)	07/1999 - 08/2004	1
46612-36060	BB50..LHD..TDEFI;BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN)	07/1999 - 08/2004	1
46612-36060	HZB50,TRB50,XZB40,50..LHD	01/2015 - 12/2999	1
46612-36060	HZB50,TRB50,XZB40,50..LHD	01/2015 - 12/2999	1
46612-36060	BB50,HZB50,TRB50,XZB50..LHD..CBU..5F	08/2004 - 01/2015	1
46612-36060	BB50,HZB50,TRB50,XZB50..LHD..CBU..5F	08/2004 - 01/2015	1
46612B - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT)
90504-10010	HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN)	07/1999 - 08/2004	1
90504-10010	HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN)	07/1999 - 08/2004	1
90504-10010	XZB59;XZB50..(20S,21S)..WC;BB50,BZB50,HZB50,TRB50..STD..(DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
90504-10010	XZB59;XZB50..(20S,21S)..WC;BB50,BZB50,HZB50,TRB50..STD..(DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
90504-10010	BB5#,HZB50,RZB50	01/1993 - 07/1999	1
90504-10010	BB5#,HZB50,RZB50	01/1993 - 07/1999	1
90504-10010	XZB40..26S;BZB50,HZB50,TRB50,XZB5#	01/2015 - 12/2999	1
90504-10010	XZB40..26S;BZB50,HZB50,TRB50,XZB5#	01/2015 - 12/2999	1
47456A - PLATE, SHOE GUIDE(FOR PARKING BRAKE)
47456-35010	BB50,BZB50,HZB50,TRB50,XZB5#..ARL,GCC,GEN,TAIW	06/2013 - 01/2015	1
47456-20030	BB5#,HZB50,RZB50	01/1993 - 07/1999	1
47456-20030	BB5#,HZB50,RZB50	01/1993 - 07/1999	1
47456-35010	XZB40..26S;BZB50,HZB50,TRB50,XZB5#	01/2015 - 12/2999	1
47456-35010	XZB40..26S;BZB50,HZB50,TRB50,XZB5#	01/2015 - 12/2999	1
47456-20030	HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN)	07/1999 - 08/2004	1
47456-20030	HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN)	07/1999 - 08/2004	1
47456-20030	XZB5#..IV;XZB50..(20S,21S)..WC;BB50,BZB50,HZB50,TRB50..STD..(DSL,EFI,LPG,TD)	08/2004 - 05/2013	1
47456-20030	XZB5#..IV;XZB50..(20S,21S)..WC;BB50,BZB50,HZB50,TRB50..STD..(DSL,EFI,LPG,TD)	08/2004 - 05/2013	1
47456-35010	BB50,BZB50,HZB50,TRB50,XZB5#..ARL,GCC,GEN,TAIW	06/2013 - 01/2015	1
47459B - BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE)
47459-30010	XZB59;XZB50..(20S,21S)..WC;BB50,BZB50,HZB50,TRB50..STD..(DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
47459-30010	XZB59;XZB50..(20S,21S)..WC;BB50,BZB50,HZB50,TRB50..STD..(DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
47459-30010	HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN)	07/1999 - 08/2004	1
47459-30010	HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN)	07/1999 - 08/2004	1
47459-30010	BB5#,HZB50,RZB50	01/1993 - 07/1999	1
47459-30010	BB5#,HZB50,RZB50	01/1993 - 07/1999	1
47459-30010	XZB40..26S;BZB50,HZB50,TRB50,XZB5#	01/2015 - 12/2999	1
47459-30010	XZB40..26S;BZB50,HZB50,TRB50,XZB5#	01/2015 - 12/2999	1
47491A - PLUG, SHOE ADJUSTING HOLE(FOR PARKING BRAKE SHOE)
47491-22020	BB5#,BZB50,HZB50,RZB50,TRB50,XZB5#	08/2004 - 01/2015	1
47491-22020	BB5#,BZB50,HZB50,RZB50,TRB50,XZB5#	08/2004 - 01/2015	1
47491-22020	BB5#,HZB50,RZB50	01/1993 - 07/1999	1
47491-22020	BB5#,HZB50,RZB50	01/1993 - 07/1999	1
47491-22020	HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN)	07/1999 - 08/2004	1
47491-22020	HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN)	07/1999 - 08/2004	1
47491-22020	XZB40..26S;BZB50,HZB50,TRB50,XZB5#	01/2015 - 12/2016	1
47491-22020	XZB40..26S;BZB50,HZB50,TRB50,XZB5#	01/2015 - 12/2016	1
Common parts
90119-06315
90119-10398
Linked diagrams
3701

ILLUST NO. 2 OF 2(0608- )XZB5# ; (0608- )XZB40..26S ; (1209- )BB50,HZB50..LHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
46201B - SPRING, TENSION
90507-20020	BB5#,HZB50,RZB50 NO.1	01/1993 - 07/1999	1
90507-20020	HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN) NO.1	07/1999 - 08/2004	1
90507-20021	HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN) NO.2	07/1999 - 08/2004	1
90507-20021	BB5#,HZB50,RZB50 NO.2	01/1993 - 07/1999	1
90507-20021	XZB59;XZB50..(20S,21S)..WC;BB50,BZB50,HZB50,TRB50..STD..(DSL,EFI,LPG,TD) NO.2	08/2004 - 01/2015	1
90507-20020	XZB40..26S;BZB50,HZB50,TRB50,XZB5# NO.1	01/2015 - 12/2999	1
90507-20021	XZB40..26S;BZB50,HZB50,TRB50,XZB5# NO.2	01/2015 - 12/2999	1
90507-20020	XZB59;XZB50..(20S,21S)..WC;BB50,BZB50,HZB50,TRB50..STD..(DSL,EFI,LPG,TD) NO.1	08/2004 - 01/2015	1
46201B - SPRING, TENSION
90507-20020	BB5#,HZB50,RZB50 NO.1	01/1993 - 07/1999	1
90507-20020	HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN) NO.1	07/1999 - 08/2004	1
90507-20021	HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN) NO.2	07/1999 - 08/2004	1
90507-20021	BB5#,HZB50,RZB50 NO.2	01/1993 - 07/1999	1
90507-20021	XZB59;XZB50..(20S,21S)..WC;BB50,BZB50,HZB50,TRB50..STD..(DSL,EFI,LPG,TD) NO.2	08/2004 - 01/2015	1
90507-20020	XZB40..26S;BZB50,HZB50,TRB50,XZB5# NO.1	01/2015 - 12/2999	1
90507-20021	XZB40..26S;BZB50,HZB50,TRB50,XZB5# NO.2	01/2015 - 12/2999	1
90507-20020	XZB59;XZB50..(20S,21S)..WC;BB50,BZB50,HZB50,TRB50..STD..(DSL,EFI,LPG,TD) NO.1	08/2004 - 01/2015	1
46405A - SCREW SET, SHOE ADJUSTING, RH
47405-36010	XZB59;XZB50..(20S,21S)..WC;BB50,BZB50,HZB50,TRB50..STD..(DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
47405-36010	BB5#,HZB50,RZB50	01/1993 - 07/1999	1
47405-36010	XZB40..26S;BZB50,HZB50,TRB50,XZB5#	01/2015 - 12/2999	1
47405-36010	HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN)	07/1999 - 08/2004	1
46501 - DRUM SUB-ASSY, PARKING BRAKE
46501-36200	BB5#,HZB50,RZB50..5F	01/1993 - 07/1999	1
46501-36220	HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN)	07/1999 - 08/2004	1
46501-36220	BB5#,BZB50,HZB50,RZB50,TRB50,XZB5#..MTM	08/2004 - 01/2015	1
46501-36220	XZB40..26S;BZB50,HZB50,TRB50,XZB5#..5F	01/2015 - 12/2016	1
46501A - BOLT, SERRATION(FOR PARKING BRAKE DRUM)
90114-11124	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	4
90114-11124	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	4
90114-11124	BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	4
90114-11124	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	4
46503C - PLATE SUB-ASSY, PARKING BRAKE
46503-36070	HZB50,RZB50..LHD	01/1993 - 05/1996	1
46503-36071	BB5#,HZB50,RZB50..LHD	05/1996 - 07/1999	1
46503-36071	BB50..LHD..TDEFI;BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN)	07/1999 - 08/2004	1
46503-36071	BB50,HZB50,TRB50,XZB50..LHD..CBU..5F	08/2004 - 01/2015	1
46503-36071	HZB50,TRB50,XZB40,50..LHD	01/2015 - 12/2999	1
46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1
46540-37030	BB5#,HZB50,RZB50	01/1993 - 07/1999	1
46540-37030	HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN)	07/1999 - 08/2004	1
46540-37030	BB50,59,BZB50,HZB50,RZB50..5F	08/2004 - 12/2005	1
46540-37040	XZB40..26S;BZB50,HZB50,TRB50,XZB5#	01/2015 - 12/2999	1
46540-37040	XZB59;XZB50..(20S,21S)..WC;BB50,BZB50,HZB50,TRB50..STD..(DSL,EFI,LPG,TD)	01/2006 - 01/2015	1
46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2
46550-37030	BB5#,HZB50,RZB50	01/1993 - 07/1999	1
46550-37030	HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN)	07/1999 - 08/2004	1
46550-37030	BB50,59,BZB50,HZB50,RZB50..5F	08/2004 - 12/2005	1
46550-37040	XZB40..26S;BZB50,HZB50,TRB50,XZB5#	01/2015 - 12/2999	1
46550-37040	XZB59;XZB50..(20S,21S)..WC;BB50,BZB50,HZB50,TRB50..STD..(DSL,EFI,LPG,TD)	01/2006 - 01/2015	1
46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN)
90905-06020	BB50,HZB50..LHD	09/2012 - 01/2015	2
90905-06020	XZB5#;HZB50,XZB40..LHD	01/2015 - 12/2999	2
46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN)
90905-06020	BB50,HZB50..LHD	09/2012 - 01/2015	2
90905-06020	XZB5#;HZB50,XZB40..LHD	01/2015 - 12/2999	2
46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE)
90213-06003	HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN)	07/1999 - 08/2004	1
90213-06003	BB5#,HZB50,RZB50	01/1993 - 07/1999	1
90213-06003	XZB59;XZB50..(20S,21S)..WC;BB50,BZB50,HZB50,TRB50..STD..(DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
90213-06003	XZB40..26S;BZB50,HZB50,TRB50,XZB5#	01/2015 - 12/2999	1
46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN)
90506-14054	BB50..RHD;BB50..GEN..IV;BB58,HZB50,RZB50	01/1993 - 07/1999	1
90506-14054	HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..RHD..IV..TDEFI;BB59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN)	07/1999 - 08/2004	1
90506-14054	BB50,HZB50..LHD LOWER	09/2012 - 01/2015	1
90506-14054	BB50,HZB50..LHD..5F	08/2004 - 09/2012	1
90506-23049	BB50,HZB50..LHD UPPER	09/2012 - 01/2015	1
90506-23049	XZB5#;HZB50,XZB40..LHD UPPER	01/2015 - 12/2999	1
90506-14054	XZB5#;HZB50,XZB40..LHD LOWER	01/2015 - 12/2999	1
46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN)
90506-14054	BB50..RHD;BB50..GEN..IV;BB58,HZB50,RZB50	01/1993 - 07/1999	1
90506-14054	HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..RHD..IV..TDEFI;BB59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN)	07/1999 - 08/2004	1
90506-14054	BB50,HZB50..LHD LOWER	09/2012 - 01/2015	1
90506-14054	BB50,HZB50..LHD..5F	08/2004 - 09/2012	1
90506-23049	BB50,HZB50..LHD UPPER	09/2012 - 01/2015	1
90506-23049	XZB5#;HZB50,XZB40..LHD UPPER	01/2015 - 12/2999	1
90506-14054	XZB5#;HZB50,XZB40..LHD LOWER	01/2015 - 12/2999	1
46555 - SPRING, BRAKE SHOE HOLD DOWN
90501-16108	BB5#,HZB50,RZB50	01/1993 - 07/1999	2
90501-16108	HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN)	07/1999 - 08/2004	2
90501-16108	XZB40..26S;BZB50,HZB50,TRB50,XZB5#	01/2015 - 12/2999	2
90501-16108	XZB59;XZB50..(20S,21S)..WC;BB50,BZB50,HZB50,TRB50..STD..(DSL,EFI,LPG,TD)	08/2004 - 01/2015	2
46556 - PIN, SHOE HOLD DOWN SPRING
47447-20030	HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN)	07/1999 - 08/2004	2
47447-20030	BB5#,HZB50,RZB50	01/1993 - 07/1999	2
47447-20030	XZB59;XZB50..(20S,21S)..WC;BB50,BZB50,HZB50,TRB50..STD..(DSL,EFI,LPG,TD)	08/2004 - 01/2015	2
47447-20030	XZB40..26S;BZB50,HZB50,TRB50,XZB5#	01/2015 - 12/2999	2
46557 - CUP, BRAKE SHOE HOLD DOWN
47449-20011	BB5#,HZB50,RZB50	01/1993 - 07/1999	4
47449-20011	HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN)	07/1999 - 08/2004	4
47449-20011	XZB40..26S;BZB50,HZB50,TRB50,XZB5#	01/2015 - 12/2999	4
47449-20011	XZB59;XZB50..(20S,21S)..WC;BB50,BZB50,HZB50,TRB50..STD..(DSL,EFI,LPG,TD)	08/2004 - 01/2015	4
46557 - CUP, BRAKE SHOE HOLD DOWN
47449-20011	BB5#,HZB50,RZB50	01/1993 - 07/1999	4
47449-20011	HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN)	07/1999 - 08/2004	4
47449-20011	XZB40..26S;BZB50,HZB50,TRB50,XZB5#	01/2015 - 12/2999	4
47449-20011	XZB59;XZB50..(20S,21S)..WC;BB50,BZB50,HZB50,TRB50..STD..(DSL,EFI,LPG,TD)	08/2004 - 01/2015	4
46601 - LEVER SUB-ASSY, PARKING BRAKE SHOE
46601-36061	BB5#,HZB50,RZB50..LHD	05/1996 - 07/1999	1
46601-36060	HZB50,RZB50..LHD	01/1993 - 05/1996	1
46601-36061	BB50..LHD..TDEFI;BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN)	07/1999 - 08/2004	1
46601-36061	BB50,HZB50,TRB50,XZB50..LHD..CBU..5F	08/2004 - 01/2015	1
46601-36061	HZB50,TRB50,XZB40,50..LHD	01/2015 - 12/2999	1
46612 - STRUT, PARKING BRAKE SHOE LEVER
46612-36060	BB5#,HZB50,RZB50..LHD	01/1993 - 07/1999	1
46612-36060	BB50..LHD..TDEFI;BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN)	07/1999 - 08/2004	1
46612-36060	HZB50,TRB50,XZB40,50..LHD	01/2015 - 12/2999	1
46612-36060	BB50,HZB50,TRB50,XZB50..LHD..CBU..5F	08/2004 - 01/2015	1
46612B - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT)
90504-10010	HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN)	07/1999 - 08/2004	1
90504-10010	XZB59;XZB50..(20S,21S)..WC;BB50,BZB50,HZB50,TRB50..STD..(DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
90504-10010	BB5#,HZB50,RZB50	01/1993 - 07/1999	1
90504-10010	XZB40..26S;BZB50,HZB50,TRB50,XZB5#	01/2015 - 12/2999	1
47456A - PLATE, SHOE GUIDE(FOR PARKING BRAKE)
47456-35010	BB50,BZB50,HZB50,TRB50,XZB5#..ARL,GCC,GEN,TAIW	06/2013 - 01/2015	1
47456-20030	BB5#,HZB50,RZB50	01/1993 - 07/1999	1
47456-35010	XZB40..26S;BZB50,HZB50,TRB50,XZB5#	01/2015 - 12/2999	1
47456-20030	HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN)	07/1999 - 08/2004	1
47456-20030	XZB5#..IV;XZB50..(20S,21S)..WC;BB50,BZB50,HZB50,TRB50..STD..(DSL,EFI,LPG,TD)	08/2004 - 05/2013	1
47459B - BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE)
47459-30010	XZB59;XZB50..(20S,21S)..WC;BB50,BZB50,HZB50,TRB50..STD..(DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
47459-30010	BB5#,HZB50,RZB50	01/1993 - 07/1999	1
47459-30010	HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN)	07/1999 - 08/2004	1
47459-30010	XZB40..26S;BZB50,HZB50,TRB50,XZB5#	01/2015 - 12/2999	1
47491A - PLUG, SHOE ADJUSTING HOLE(FOR PARKING BRAKE SHOE)
47491-22020	BB5#,BZB50,HZB50,RZB50,TRB50,XZB5#	08/2004 - 01/2015	1
47491-22020	BB5#,HZB50,RZB50	01/1993 - 07/1999	1
47491-22020	HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN)	07/1999 - 08/2004	1
47491-22020	XZB40..26S;BZB50,HZB50,TRB50,XZB5#	01/2015 - 12/2016	1
Common parts
90119-06315
90119-10398
Linked diagrams
3701

ILLUST NO. 1 OF 2(9301-9907)ARL,GCC,GEN,SCO ; (9907- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
46201E - LEVER SUB-ASSY, PARKING BRAKE
46210-36040B1	HZB50..GCC,GEN;BB42,5#,BZB40,50,RZB40,50..ARL,EUR,GCC,GEN MD.CHARCOAL,TRIM1#	08/2001 - 08/2004	1
46210-36040B1	BB42,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# MD.CHARCOAL,TRIM1#	08/2004 - 01/2015	1
46210-36040B1	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# MD.CHARCOAL,TRIM1#	01/2015 - 12/2016	1
46210-36040E0	BB4#,5#,HZB50,RZB40,50..ARL,GCC,GEN,SCO GRAIGE,TRIM4#	01/1993 - 07/1999	1
46210-36040E0	BB50..EX;BB50..WOC..5F;BB50..STD..CBU;BB4#,58,HZB50,RZB40,50 GRAIGE,TRIM4#	07/1999 - 08/2001	1
46241 - BOOT, PARKING BRAKE LEVER
46241-36030E0	BB42,5#,HZB50,RZB40,50..LHD..(GCC,GEN) GRAIGE,TRIM4#	01/1993 - 07/1999	1
46241-36030B1	BB42,50,58,HZB50,RZB40,50,TRB40,50,XZB50..LHD..CBU MD.CHARCOAL,TRIM1#	08/2004 - 01/2015	1
46241-36030E0	BB50..WOC..5F;BB42,5#,HZB50,RZB40,50..LHD..CBU GRAIGE,TRIM4#	07/1999 - 08/2001	1
46241-36030B1	BB42,50,58,HZB50,RZB40,50..LHD..(EUR,GCC,GEN) MD.CHARCOAL,TRIM1#	08/2001 - 08/2004	1
46241-36030B1	BB42,HZB50,TRB40,50,XZB40,50..LHD MD.CHARCOAL,TRIM1#	01/2015 - 12/2016	1
46243 - COVER, PARKING BRAKE LEVER
46243-36030E0	BB42,5#,HZB50,RZB40,50..LHD..(GCC,GEN) GRAIGE,TRIM4#	07/1999 - 07/2000	1
46243-36031B1	BB42,50,58,HZB50,RZB40,50..LHD..(EUR,GCC,GEN) MD.CHARCOAL,TRIM1#	08/2001 - 08/2004	1
46243-36030E0	BB42,5#,HZB50,RZB40,50..LHD..(GCC,GEN) GRAIGE,TRIM4#	01/1993 - 07/1999	1
46243-36031E0	BB50..WOC..5F;BB42,5#,HZB50,RZB40,50..LHD..CBU GREIGE,TRIM4#	07/2000 - 08/2001	1
46243-36031B1	BB42,50,58,HZB50,RZB40,50,TRB40,50,XZB50..LHD..CBU MD.CHARCOAL,TRIM1#	08/2004 - 01/2015	1
46243-36031B1	BB42,HZB50,TRB40,50,XZB40,50..LHD MD.CHARCOAL,TRIM1#	01/2015 - 12/2016	1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-36420	BB5#,HZB50..LHD..(GCC,GEN)..5F	01/1993 - 07/1999	1
46410-36420	BB50,HZB50..LHD..(GCC,GEN)..CBU..5F	07/1999 - 08/2004	1
46410-36420	BB50,HZB50..LHD..5F	08/2004 - 01/2015	1
46410-36420	HZB50..LHD	01/2015 - 12/2999	1
46410-36590	XZB40,50..LHD	01/2015 - 12/2999	1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-36420	BB5#,HZB50..LHD..(GCC,GEN)..5F	01/1993 - 07/1999	1
46410-36420	BB50,HZB50..LHD..(GCC,GEN)..CBU..5F	07/1999 - 08/2004	1
46410-36420	BB50,HZB50..LHD..5F	08/2004 - 01/2015	1
46410-36420	HZB50..LHD	01/2015 - 12/2999	1
46410-36590	XZB40,50..LHD	01/2015 - 12/2999	1
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
90949-01839	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
90949-01839	BB42..RHD;BB42..LHD..SRF;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
90949-01839	XZB40..17S;BB42,BZB40,50,HZB50,TRB40,50	01/2015 - 12/2999	1
90949-01839	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
90949-01B36	XZB59;XZB40,50..20S,21S,26S,30S	01/2015 - 12/2999	1
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
90949-01839	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
90949-01839	BB42..RHD;BB42..LHD..SRF;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
90949-01839	XZB40..17S;BB42,BZB40,50,HZB50,TRB40,50	01/2015 - 12/2999	1
90949-01839	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
90949-01B36	XZB59;XZB40,50..20S,21S,26S,30S	01/2015 - 12/2999	1
46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE)
90949-01842	BB42,5#,HZB50,RZB40,50..LHD	01/1993 - 07/1999	1
90949-01842	BB42..WC..GCC;RZB40..WOC..GEN;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN)	07/1999 - 08/2004	1
90949-01842	BB42..LHD..SRF;BB50,HZB50,TRB40,50,XZB50..LHD..CBU..5F	08/2004 - 01/2015	1
90949-01842	BB42,HZB50,TRB40,50,XZB40,50..LHD	01/2015 - 12/2999	1
46451C - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.1
46451-36060	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	1
46451-36060	BB4#,5#,HZB50,RZB40,50..ARL,GCC,GEN,SCO	01/1993 - 07/1999	1
46451-36060	BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
46451-36060	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
46464 - PLATE, CABLE CLAMP SUPPORT
46464-36030	BB42,5#,HZB50,RZB40,50..LHD	02/1999 - 07/1999	1
46464-36010	BB4#,5#,HZB50,RZB40,50	01/1993 - 02/1999	1
46464-36030	BB42..WC..GCC;RZB40..WOC..GEN;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN)	07/1999 - 08/2004	1
46464-36030	BB42,HZB50,TRB40,50,XZB40,50..LHD	01/2015 - 12/2999	1
46464-36030	BB42..LHD..SRF;BB50,HZB50,TRB40,50,XZB50..LHD..CBU..5F	08/2004 - 01/2015	1
46464 - PLATE, CABLE CLAMP SUPPORT
46464-36030	BB42,5#,HZB50,RZB40,50..LHD	02/1999 - 07/1999	1
46464-36010	BB4#,5#,HZB50,RZB40,50	01/1993 - 02/1999	1
46464-36030	BB42..WC..GCC;RZB40..WOC..GEN;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN)	07/1999 - 08/2004	1
46464-36030	BB42,HZB50,TRB40,50,XZB40,50..LHD	01/2015 - 12/2999	1
46464-36030	BB42..LHD..SRF;BB50,HZB50,TRB40,50,XZB50..LHD..CBU..5F	08/2004 - 01/2015	1
Common parts
90119-06315
90339-04024
90461-08225
90468-08001
91611-G0820
91651-40814
91651-B0820
91651-B0825
93319-55016
94130-60600

HZB50L-BGMRS (1993)

ILLUST NO. 2 OF 2(9301-1209)HZB50..LHD ; (9301- )HZB50..RHD ;(9301- )BB58,59,BZB50,RZB50,TRB5

ILLUST NO. 2 OF 2(0608- )XZB5# ; (0608- )XZB40..26S ; (1209- )BB50,HZB50..LHD

ILLUST NO. 1 OF 2(9301-9907)ARL,GCC,GEN,SCO ; (9907- )

Part Price Details
