HDB30L-MRXW1 (1991)

Toyota Coaster

Production Sep 1991 - Jan 1993
Engine 1HDT
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )

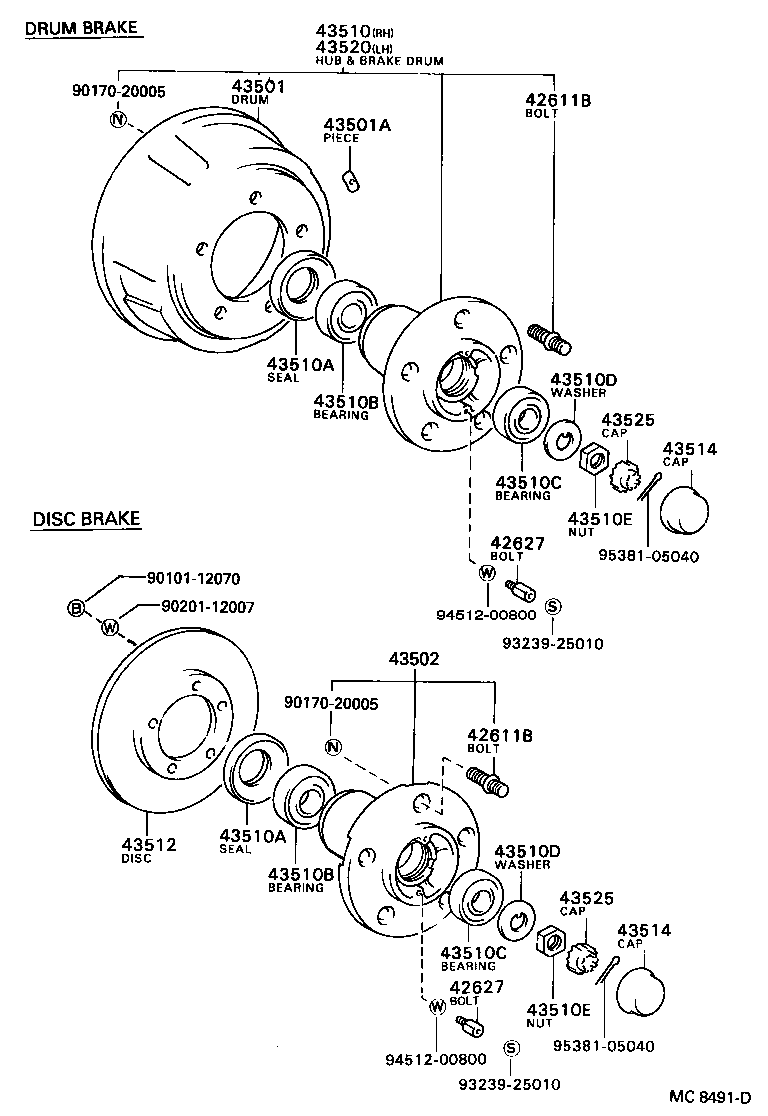

Click highlighted areas on diagram

diagram 42611B 42611B 42627 42627 43501 43501A 43502 43510 43510A 43510A 43510B 43510B 43510C 43510C 43510D 43510D 43510E 43510E 43512 43514 43514 43520 43525 43525 9010112070 9017020005 9017020005 9020112007 9323925010 9323925010 9451200800 9451200800 9538105040 9538105040
Part # Description Qty Price
42611B - BOLT, HUB (FOR FRONT AXLE)
90942-02045

BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20

RH

 5
90942-02046

BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20

LH

 5
42611B - BOLT, HUB (FOR FRONT AXLE)
90942-02045

BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20

RH

 5
90942-02046

BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20

LH

 5
42627 - BOLT, FRONT WHEEL CAP SET
42627-36011

BB2#,3#,FB30,HB3#,RB20

 4
42627 - BOLT, FRONT WHEEL CAP SET
42627-36011

BB2#,3#,FB30,HB3#,RB20

 4
43510A - SEAL, OIL (FOR FRONT AXLE HUB)
90311-68001

BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20

 2
43510A - SEAL, OIL (FOR FRONT AXLE HUB)
90311-68001

BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20

 2
43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)
90368-42045

BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20

 2
43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)
90368-42045

BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20

 2
43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)
90368-28001

BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20

 2
43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)
90368-28001

BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20

 2
43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER)
90214-27001

BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20

 2
43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER)
90214-27001

BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20

 2
43510E - NUT (FOR STEERING KNUCKLE)
90170-26001

BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20

 2
43510E - NUT (FOR STEERING KNUCKLE)
90170-26001

BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20

 2
43514 - CAP, FRONT HUB GREASE
43514-36040

BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20

 2
43514 - CAP, FRONT HUB GREASE
43514-36040

BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20

 2
43525 - CAP, FRONT WHEEL ADJUSTING LOCK
43525-36010

BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20

 2
43525 - CAP, FRONT WHEEL ADJUSTING LOCK
43525-36010

BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20

 2
Common parts
90101-12070
90170-20005
90201-12007
93239-25010
94512-00800
95381-05040
