HDB30L-MRXW1 (1991)

Toyota Coaster

Production Sep 1991 - Jan 1993
Engine 1HDT
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

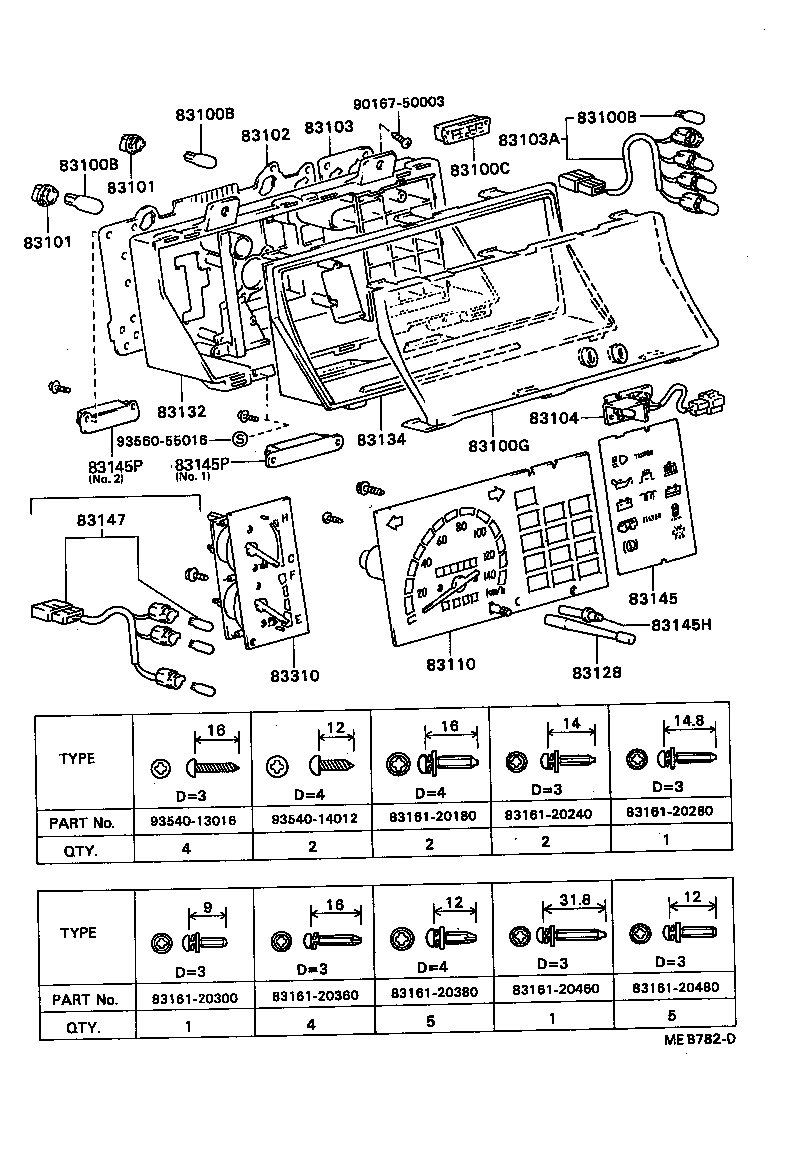

ILLUST NO. 1 OF 4(8205- )

Click highlighted areas on diagram

diagram 83100B 83100B 83100B 83100C 83100G 83101 83101 83102 83103 83103A 83104 83110 83128 83132 83134 83145 83145H 83145P 83145P 83147 8316120180 8316120240 8316120280 8316120300 8316120360 8316120380 8316120460 8316120480 83310 9016750003 9354013016 9354014012 9356055016
Part # Description Qty Price
83100B - BULB, COMBINATION METER, NO.1
90981-11022

HB30..DLX,EX;BB20..20S..WC;HB30..STD..GEN;BB21,22,23,3#,HB31;BB20..15S,16S,22S,26S

24V 1.4W,24V 1.4W

 1
83100B - BULB, COMBINATION METER, NO.1
90981-11022

HB30..DLX,EX;BB20..20S..WC;HB30..STD..GEN;BB21,22,23,3#,HB31;BB20..15S,16S,22S,26S

24V 1.4W,24V 1.4W

 1
83100B - BULB, COMBINATION METER, NO.1
90981-11022

HB30..DLX,EX;BB20..20S..WC;HB30..STD..GEN;BB21,22,23,3#,HB31;BB20..15S,16S,22S,26S

24V 1.4W,24V 1.4W

 1
83100G - GLASS, COMBINATION METER
83138-90B00

BB2#,3#,FB30,HB3#,RB20

 1
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-95020

HB30..DLX,EX;BB20..20S..WC;HB30..STD..GEN;BB21,22,23,3#,HB31;BB20..15S,16S,22S,26S

24V 1.4W

 1
83101-89101

HB30..DLX,EX;BB20..20S..WC;HB30..STD..GEN;BB21,22,23,3#,HB31;BB20..15S,16S,22S,26S

24V 3W

 1
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-95020

HB30..DLX,EX;BB20..20S..WC;HB30..STD..GEN;BB21,22,23,3#,HB31;BB20..15S,16S,22S,26S

24V 1.4W

 1
83101-89101

HB30..DLX,EX;BB20..20S..WC;HB30..STD..GEN;BB21,22,23,3#,HB31;BB20..15S,16S,22S,26S

24V 3W

 1
83103 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2
83247-90B04

BB20,30,RB20

 1
83247-90B08

HDB30..EUR

 1
83128 - KNOB, TRIP COUNTER
83128-90B00

BB2#,3#,HB3#,HDB30,HZB30,RB20

 1
83132 - CASE, COMBINATION METER
83132-90B00

BB2#,3#,HB30,RB20

 1
83134 - COVER, COMBINATION METER, NO.1
83134-90B00

BB2#,3#,HB3#,HDB30,HZB30,RB20

 1
83145P - DROPPER, METER
83340-90B00

HB30..DLX,EX;BB20..20S..WC;HB30..STD..GEN;BB21,22,23,3#,HB31;BB20..15S,16S,22S,26S

NO.1

 1
83145P - DROPPER, METER
83340-90B00

HB30..DLX,EX;BB20..20S..WC;HB30..STD..GEN;BB21,22,23,3#,HB31;BB20..15S,16S,22S,26S

NO.1

 1
Common parts
83161-20180
83161-20240
83161-20280
83161-20300
83161-20360
83161-20380
83161-20460
83161-20480
90167-50003
93540-13016
93540-14012
93560-55016

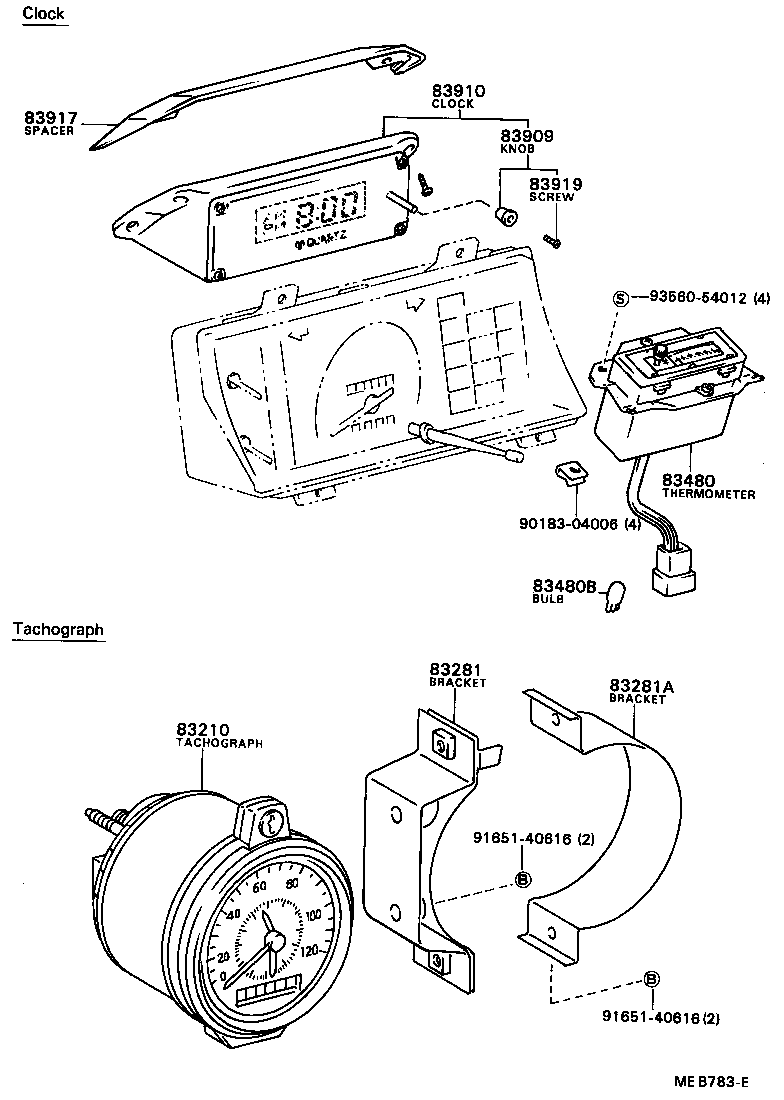

ILLUST NO. 2 OF 4(8205- )

Click highlighted areas on diagram

diagram 83210 83281 83281A 83480 83480B 83909 83910 83917 83919 9018304006 9165140616 9165140616 9356054012
Part # Description Qty Price
Common parts
90183-04006
91651-40616
93560-54012

ILLUST NO. 3 OF 4(8205- )BB2#,3#,RB20

Click highlighted areas on diagram

diagram 83710 83710 83710 83710A 83740 83770 9165140820
Part # Description Qty Price
83710A - CABLE ASSY, SPEEDOMETER DRIVE, NO.2
83710-90B24

HDB30..EUR

 1
83740 - CABLE ASSY, TACHOGRAPH DRIVE
83740-90B03

HDB30..EUR

 1
83770 - ADAPTER ASSY, SPEEDOMETER CABLE
83770-90B02

HDB30..EUR

 1
Common parts
91651-40820

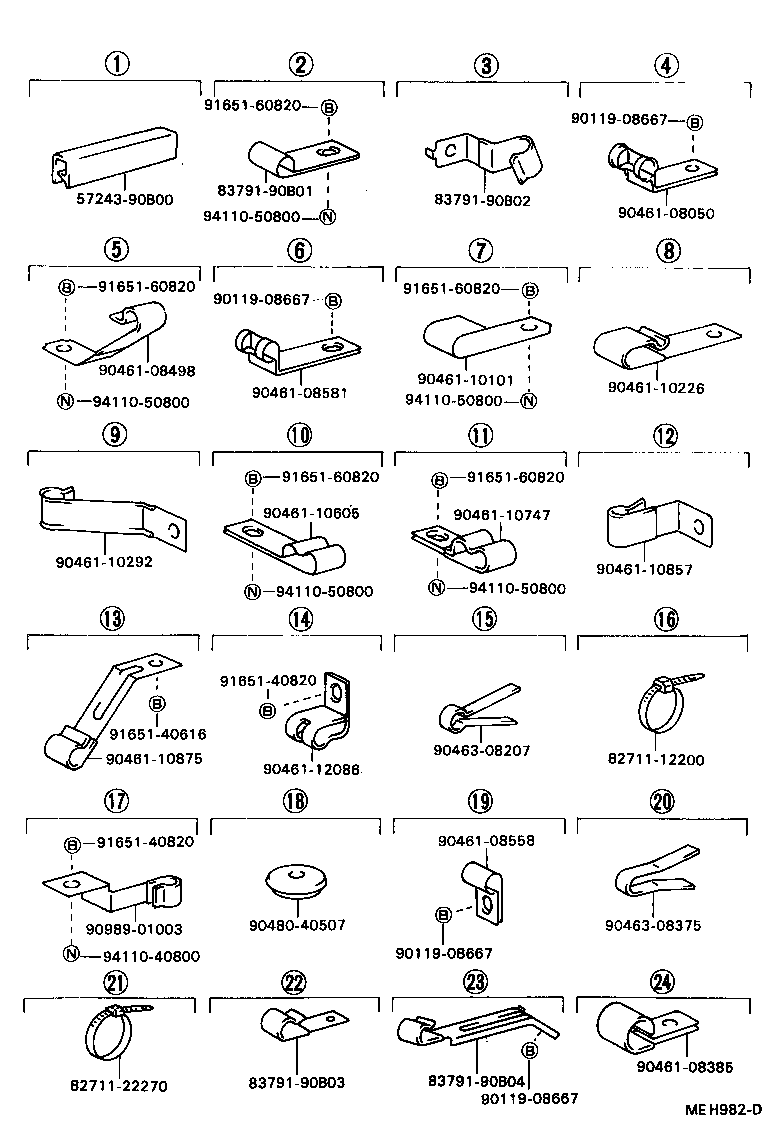

ILLUST NO. 4 OF 4(8205- )

Click highlighted areas on diagram

diagram 5724390B00 8271112200 8271122270 8379190B01 8379190B02 8379190B03 8379190B04 9011908667 9011908667 9011908667 9011908667 9046108050 9046108385 9046108498 9046108558 9046108581 9046110101 9046110226 9046110292 9046110605 9046110747 9046110857 9046110875 9046112086 9046308207 9046308375 9048040507 9098901003 9165140616 9165140820 9165140820 9165160820 9165160820 9165160820 9165160820 9165160820 9411040800 9411050800 9411050800 9411050800 9411050800 9411050800
Part # Description Qty Price
Common parts
57243-90B00
82711-12200
82711-22270
83791-90B01
83791-90B02
83791-90B03
83791-90B04
90119-08667
90461-08050
90461-08385
90461-08498
90461-08558
90461-08581
90461-10101
90461-10226
90461-10292
90461-10605
90461-10747
90461-10857
90461-10875
90461-12086
90463-08207
90463-08375
90480-40507
90989-01003
91651-40616
91651-40820
91651-60820
94110-40800
94110-50800

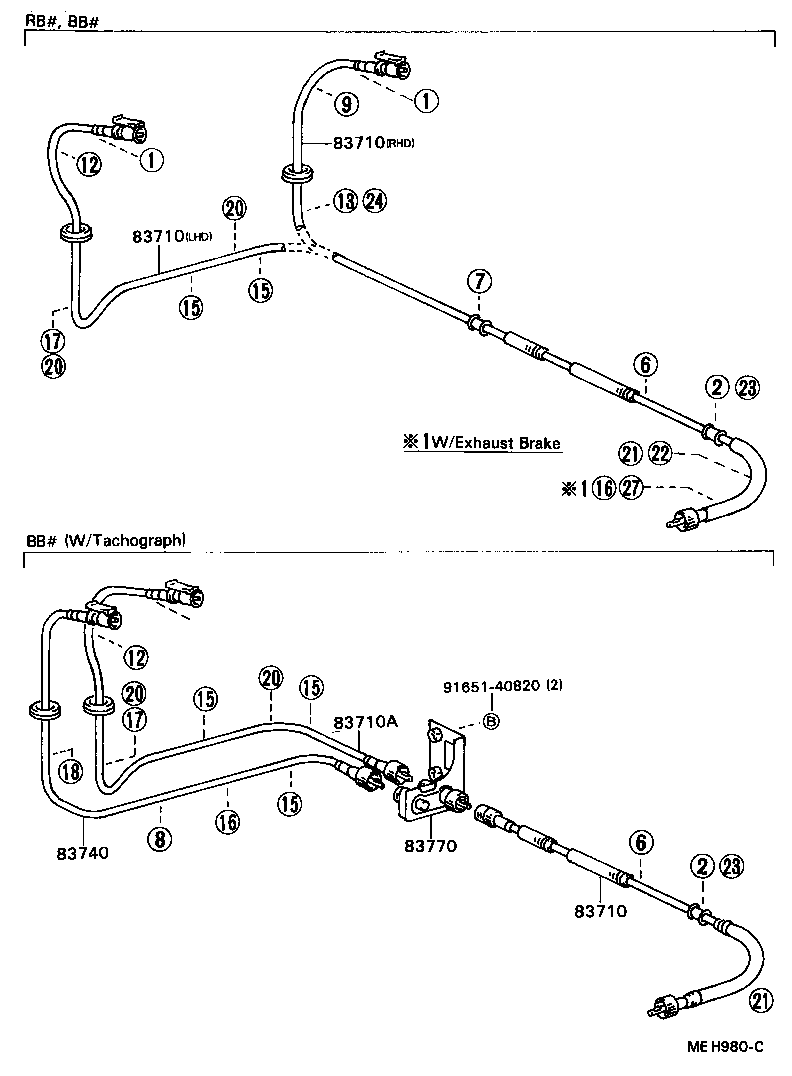

ILLUST NO. 3 OF 4(8205- )HB30,HDB30,HZB30..LHD ; (8612- )HB3#,HDB30,HZB30..RHD

Click highlighted areas on diagram

diagram 83710 83710A 83740 83770 9165140820
Part # Description Qty Price
83710A - CABLE ASSY, SPEEDOMETER DRIVE, NO.2
83710-90B24

HDB30..EUR

 1
83740 - CABLE ASSY, TACHOGRAPH DRIVE
83740-90B03

HDB30..EUR

 1
83770 - ADAPTER ASSY, SPEEDOMETER CABLE
83770-90B02

HDB30..EUR

 1
Common parts
91651-40820

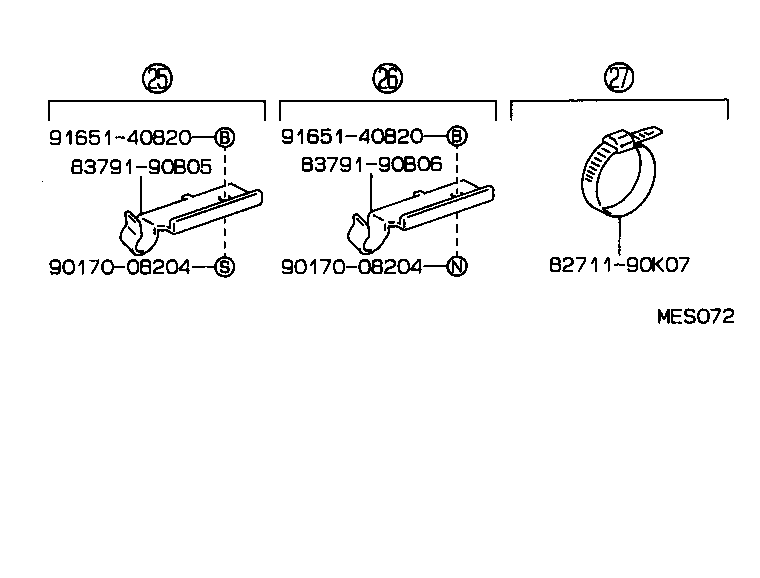

ILLUST NO. 4 OF 4(8205- )

Click highlighted areas on diagram

diagram 8271190K07 8379190B05 8379190B06 9017008204 9017008204 9165140820 9165140820
Part # Description Qty Price
Common parts
82711-90K07
83791-90B05
83791-90B06
90170-08204
91651-40820
