HDB30L-MRXW1 (1991)
Toyota Coaster

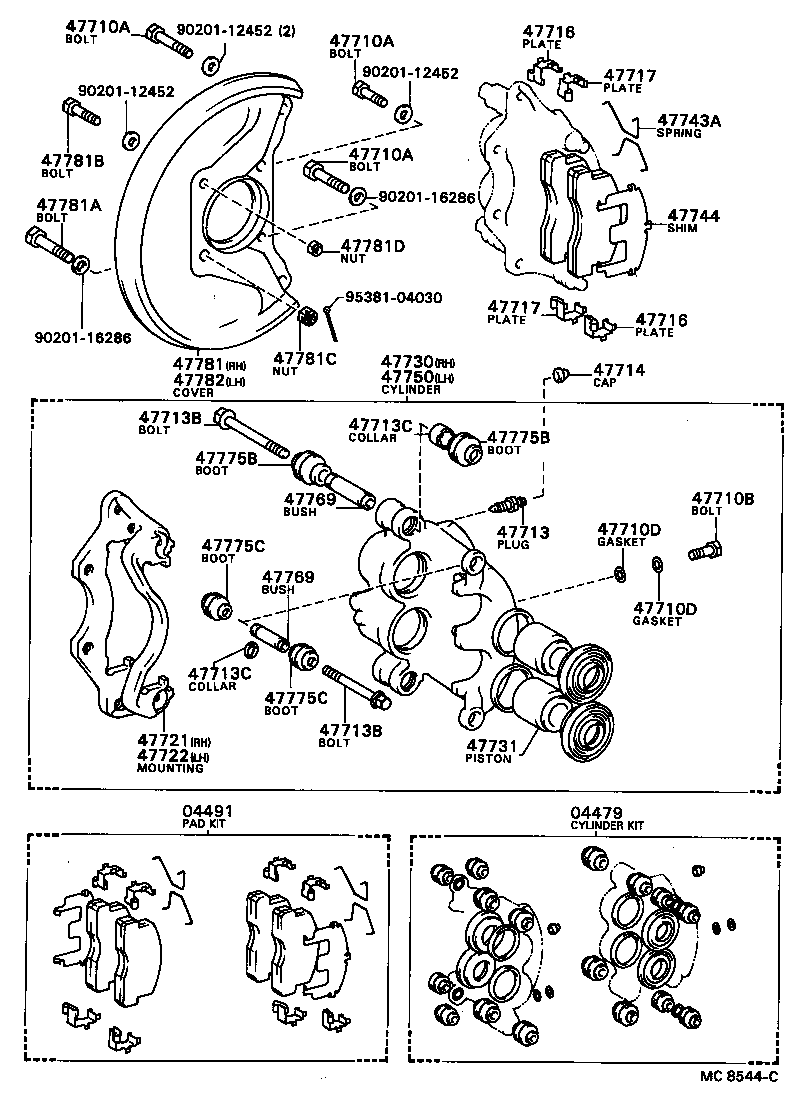

ILLUST NO. 1 OF 2(8205- )ARL,EUR,GEN,ME
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-36010 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME |
1 | ||
| 04491 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04491-36010 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME |
1 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90101-16009 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME *16-1.5PX75-30 |
2 | ||
| 90101-12070 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME *12-1.25PX29-25,*12-1.25PX28-25 |
2 | ||
| 90101-12077 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME *12-1.25PX50-30 |
4 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90101-16009 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME *16-1.5PX75-30 |
2 | ||
| 90101-12070 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME *12-1.25PX29-25,*12-1.25PX28-25 |
2 | ||
| 90101-12077 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME *12-1.25PX50-30 |
4 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90101-16009 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME *16-1.5PX75-30 |
2 | ||
| 90101-12070 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME *12-1.25PX29-25,*12-1.25PX28-25 |
2 | ||
| 90101-12077 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME *12-1.25PX50-30 |
4 | ||
| 47710B - BOLT, UNION(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90401-10098 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME |
2 | ||
| 47710D - GASKET(FOR FRONT DISC BRAKE CALIPER UNION) | ||||
| 90430-10035 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME |
4 | ||
| 47710D - GASKET(FOR FRONT DISC BRAKE CALIPER UNION) | ||||
| 90430-10035 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME |
4 | ||
| 47713 - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-12010 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME |
2 | ||
| 47713B - BOLT(FOR FRONT DISC BRAKE CYLINDER) | ||||
| 90119-08297 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME OUTER |
4 | ||
| 90119-12030 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME INNER |
4 | ||
| 47713B - BOLT(FOR FRONT DISC BRAKE CYLINDER) | ||||
| 90119-08297 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME OUTER |
4 | ||
| 90119-12030 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME INNER |
4 | ||
| 47713C - COLLAR(FOR FRONT DISC BRAKE CYLINDER) | ||||
| 90387-14005 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME OUTER |
4 | ||
| 90387-20003 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME INNER |
4 | ||
| 47713C - COLLAR(FOR FRONT DISC BRAKE CYLINDER) | ||||
| 90387-14005 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME OUTER |
4 | ||
| 90387-20003 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME INNER |
4 | ||
| 47714 - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME |
2 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-36010 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME |
4 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-36010 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME |
4 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-36010 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME |
4 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-36010 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME |
4 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-36010 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME |
1 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47722-36010 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-36010 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME |
4 | ||
| 47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE) | ||||
| 47743-36010 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME |
4 | ||
| 47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47769-36010 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME INNER |
4 | ||
| 47769-36020 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME OUTER |
4 | ||
| 47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47769-36010 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME INNER |
4 | ||
| 47769-36020 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME OUTER |
4 | ||
| 47775B - BOOT, BUSH DUST, NO.1 | ||||
| 47775-36010 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME |
8 | ||
| 47775B - BOOT, BUSH DUST, NO.1 | ||||
| 47775-36010 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME |
8 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47703-36010 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME |
1 | ||
| 47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) | ||||
| 90102-16003 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME |
2 | ||
| 47781B - BOLT(FOR DUST COVER SETTING) | ||||
| 90101-12070 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME *12-1.25PX29-25 |
2 | ||
| 47781C - NUT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) | ||||
| 94145-71600 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME |
2 | ||
| 47781D - NUT(FOR DUST COVER SETTING) | ||||
| 94115-71200 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME |
2 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47704-36010 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME |
1 | ||
| Common parts | ||||
| 90201-12452 | ||||
| 90201-16286 | ||||
| 95381-04030 | ||||
ILLUST NO. 2 OF 2(8205- )ARL,EUR,GEN,ME
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-36050 |
FB30,HDB30,HZB30 MARK AISIN T536 |
1 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-40040 |
FB30,HDB30,HZB30 |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 04947-36010 |
FB30,HDB30,HZB30 |
1 | ||
