HB30R-MR (1986)
Toyota Coaster
(8610-9001)2H..WOC
12V 40A,24V 25A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

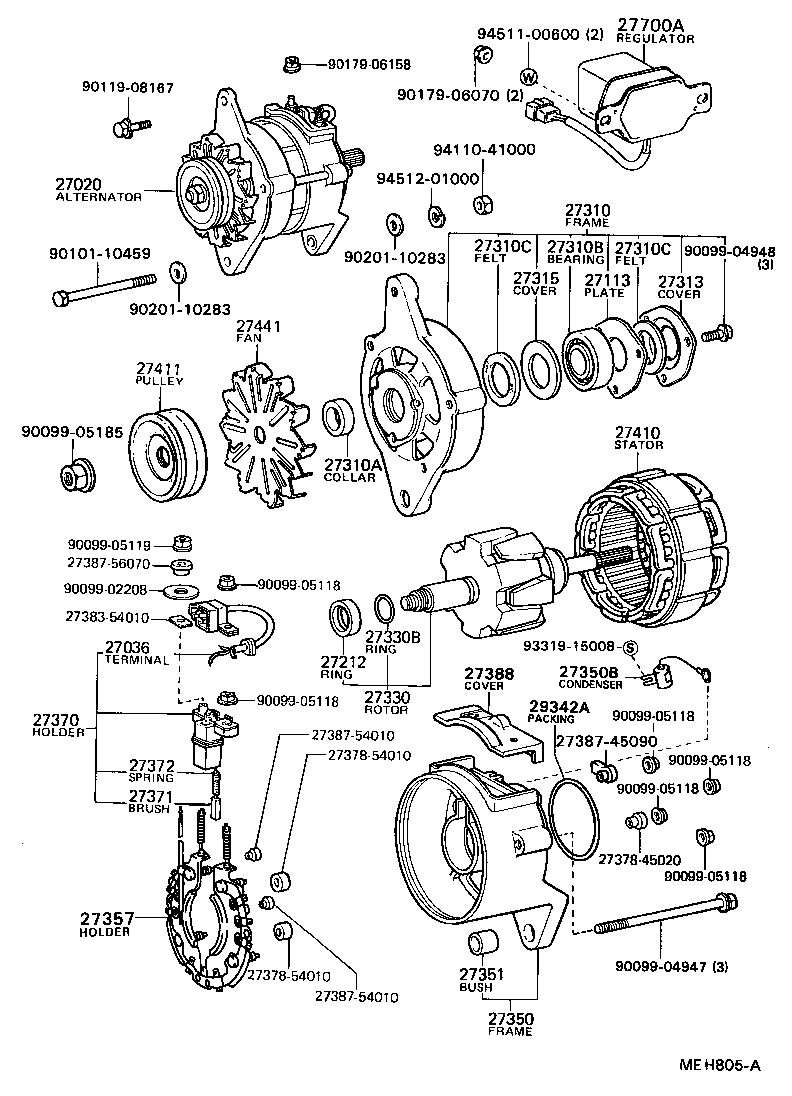

| 27020 - ALTERNATOR ASSY | ||||
| 27020-68100 |
2H..HB30..WOC 12V 40A,12V 40A |
1 | ||
| 27020-68110 |
2H..HB30..WOC 12V 45A,12V 40A |
1 | ||
| 27020-68040 |
2H..HB30..WOC..GEN 24V 25A,24V 25A |
1 | ||
| 27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR | ||||
| 27036-54010 |
2H..HB30..WOC 12V 40A,24V 25A |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-57060 |
2H..HB30..WOC 12V 40A,24V 25A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27333-57060 |
2H..HB30..WOC 12V 40A,24V 25A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-56160 |
2H..HB30..WOC 12V 40A |
1 | ||
| 27310-56180 |
2H..HB30..WOC..GEN 24V 25A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-57060 |
2H..HB30..WOC 12V 40A,24V 25A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10137 |
2H..HB30..WOC 12V 40A,24V 25A |
1 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02209 |
2H..HB30..WOC 12V 40A,24V 25A |
2 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02209 |
2H..HB30..WOC 12V 40A,24V 25A |
2 | ||
| 27313 - COVER, ALTERNATOR FELT, INNER NO.2 | ||||
| 27313-57060 |
2H..HB30..WOC 12V 40A,24V 25A |
1 | ||
| 27315 - COVER, ALTERNATOR FELT, INNER NO.1 | ||||
| 27315-57060 |
2H..HB30..WOC 12V 40A,24V 25A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-56110 |
2H..HB30..WOC..GEN 24V 25A |
1 | ||
| 27330-56140 |
2H..HB30..WOC 12V 40A |
1 | ||
| 27330B - RING, SNAP(FOR ALTERNATOR ROTOR) | ||||
| 90099-07103 |
2H..HB30..WOC 12V 40A,24V 25A |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27350-68040 |
2H..HB30..WOC..GEN 24V 25A |
1 | ||
| 27350-68030 |
2H..HB30..WOC 12V 40A |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| 90099-52066 |
2H..HB30..WOC 12V 40A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-56013 |
2H..HB30..WOC 12V 40A,24V 25A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-54190 |
2H..HB30..WOC 12V 40A,24V 25A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-54010 |
2H..HB30..WOC 12V 40A,24V 25A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-56070 |
12HT,2H..HB3# 12V 40A,24V 25A,55A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-56070 |
12HT,2H..HB3# 12V 40A,24V 25A,55A |
2 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-68040 |
2H..HB30..WOC 12V 40A,24V 25A |
1 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-54190 |
2H..HB30..WOC 12V 40A |
1 | ||
| 27410-56110 |
2H..HB30..WOC..GEN 24V 25A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-68041 |
2H..HB30..WOC 12V 40A,24V 25A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-56090 |
2H..HB30..WOC 12V 40A,24V 25A |
1 | ||
| 27441-35070 |
2H..HB30..WOC 12V 90A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-35030 |
22R,3B,3F,2H..BB20,21,FB30,HB30,RB20..(20S,22S,23S,25S,26S,29S,30S)..WOC 12V 40A,45A,50A |
1 | ||
| 27700-57070 |
3B,2H..BB20,21,HB30..(22S,26S,30S)..WOC..GEN 24V 20A,25A |
1 | ||
| 27700-57051 |
12HT,2H..HB3# 24V 55A |
1 | ||
| 29342A - PACKING, VACUUM PUMP | ||||
| 90099-14055 |
12HT,2H..HB3# 12V 40A,24V 25A,55A |
1 | ||
| Common parts | ||||
| 27378-45020 | ||||
| 27378-54010 | ||||
| 27383-54010 | ||||
| 27387-45090 | ||||
| 27387-54010 | ||||
| 27387-56070 | ||||
| 90099-02208 | ||||
| 90099-04947 | ||||
| 90099-04948 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90099-05185 | ||||
| 90101-10459 | ||||
| 90119-08167 | ||||
| 90179-06070 | ||||
| 90179-06158 | ||||
| 90201-10283 | ||||
| 93319-15008 | ||||
| 94110-41000 | ||||
| 94511-00600 | ||||
| 94512-01000 | ||||
