HB30R-MDZRQ (1986)

Toyota Coaster

Production Oct 1986 - Jan 1990
Engine 2H
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(8205-8808)BB20,21,30..RHD

Click highlighted areas on diagram

diagram 2302 77241 77241A 77241B 77242 77242A 77242B 9046108422 9046713007 9161140816
Part # Description Qty Price
77241 - TUBE, FUEL MAIN, NO.1
77251-36663

BB2#,30

 1
77251-3B261

HB30

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95333-08040

HB30

*H,L=320

 1
95332-08030

BB20,21,30

*H,L=300,ID=7.6

 1
95332-08040

HB30

*H,L=320,ID=7.6

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95332-08020

BB2#,30

*H,L=190,ID=7.6

 1
95332-08030

HB30

*H,L=240,ID=7.6

 1
95333-08030

HB30

*H,L=240

 1
77242 - TUBE, FUEL MAIN, NO.2
77252-36190

BB2#,30..RHD

 1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95332-08020

BB2#,30

*H,L=190,ID=7.6

 1
77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2)
95332-08040

BB2#,30

*H,L=360,ID=7.6

 1
95333-08040

BB2#,30

*H,L=360

 1
Common parts
90461-08422
90467-13007
91611-40816
Linked diagrams
2302

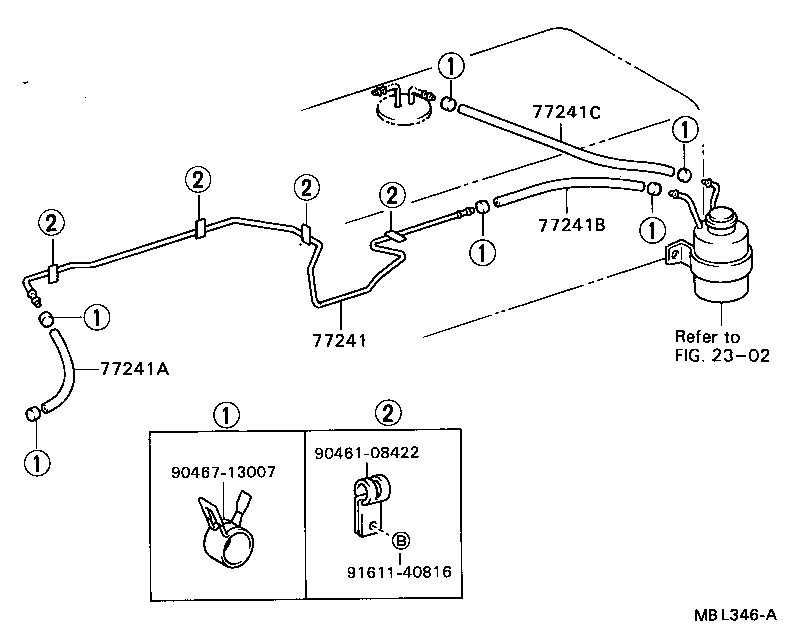

ILLUST NO. 2 OF 2(8610-9001)HB30..RHD

Click highlighted areas on diagram

diagram 2302 77241 77241A 77241B 77241C 9046108422 9046713007 9161140816
Part # Description Qty Price
77241 - TUBE, FUEL MAIN, NO.1
77251-36663

BB2#,30

 1
77251-3B261

HB30

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95333-08040

HB30

*H,L=320

 1
95332-08030

BB20,21,30

*H,L=300,ID=7.6

 1
95332-08040

HB30

*H,L=320,ID=7.6

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95332-08020

BB2#,30

*H,L=190,ID=7.6

 1
95332-08030

HB30

*H,L=240,ID=7.6

 1
95333-08030

HB30

*H,L=240

 1
77241C - HOSE, FUEL, NO.3 (FOR MAIN TUBE, NO.1)
95332-08040

HB30..RHD

*H,L=400,ID=7.6

 1
95333-08040

HB30..RHD

L=400

 1
Common parts
90461-08422
90467-13007
91611-40816
Linked diagrams
2302
