HB30R-MDZRQ (1986)
Toyota Coaster
(8610- )HB30,HZB30..RHD

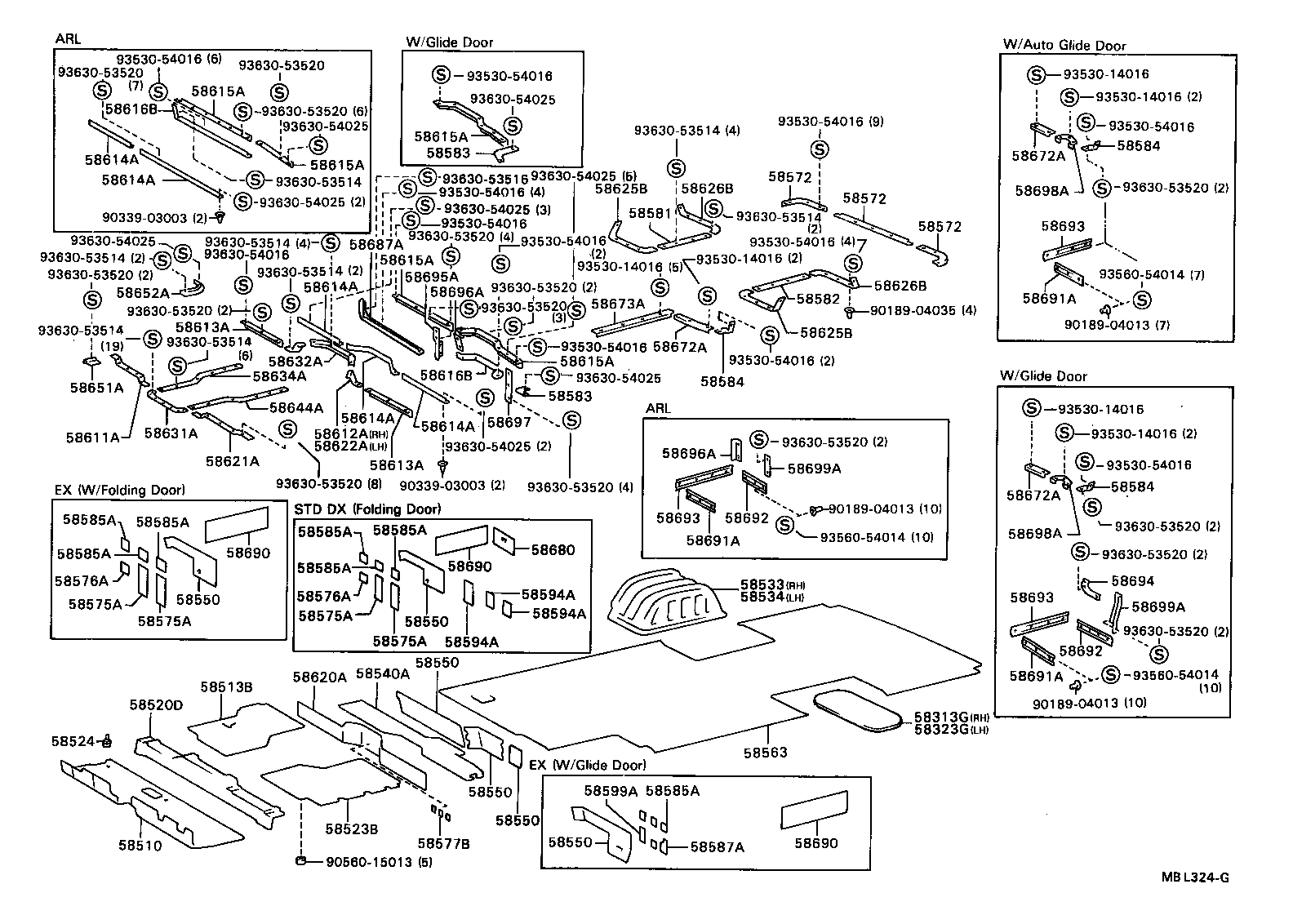

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58510 - MAT ASSY, FRONT FLOOR, FRONT NO.1 | ||||
| 58510-90B02 |
BB20,21,HB30,RB20..RHD..(20S,22S,23S,26S,30S) W/FR *HEA |
1 | ||
| 58510-90B02 |
BB21,HB30,RB20..RHD..(DLX,STD)..(20S,22S,23S,26S,30S) W/FR *HEA |
1 | ||
| 58513B - MAT, FRONT FLOOR CENTER, NO.1 RH | ||||
| 58530-90B00 |
BB20,21,HB30,RB20..RHD..(20S,22S,23S,26S,30S) |
1 | ||
| 58530-90B3906 |
BB21,HB30,RB20..RHD..(DLX,EX,STD) SABLE,SABLE |
1 | ||
| 58530-90B3902 |
BB21,HB30,RB20..RHD..(20S,22S,23S,26S,30S) D-WINE,DARK WINE |
1 | ||
| 58530-90B4006 |
BB21,HB30,RB20..RHD..(DLX,EX,STD) SABLE,SABLE |
1 | ||
| 58523B - MAT, FRONT FLOOR, CENTER NO.1 LH | ||||
| 58610-90B02 |
BB20,21,HB30,RB20..20S,23S |
1 | ||
| 58610-90B0006 |
BB21,HB30,RB20..RHD..(DLX,EX,STD) SABLE,SABLE |
1 | ||
| 58610-90B0206 |
BB21,HB30,RB20..20S,23S SABLE,SABLE |
1 | ||
| 58524 - FASTENER, FLOOR MAT, MALE | ||||
| 90530-06001 |
BB2#,FB30,HB30,RB20 |
7 | ||
| 58533 - MAT, REAR WHEEL HOUSE, RH | ||||
| 58519-90B00 |
BB20,21,FB30,HB30,RB20..DLX |
1 | ||
| 58534 - MAT, REAR WHEEL HOUSE, LH | ||||
| 58519-90B00 |
BB20,21,FB30,HB30,RB20..DLX |
1 | ||
| 58540A - MAT ASSY, FRONT FLOOR, REAR NO.1 | ||||
| 58540-90B04 |
HB30..WC..ARL W/*GLD |
1 | ||
| 58540-9052306 |
HB30..WC..ARL W/*GLD,SABLE,SABLE |
1 | ||
| 58550 - MAT ASSY, FRONT FLOOR, REAR NO.2 | ||||
| 58526-90B00 |
HB30..RHD..(23S,30S) CENTER |
1 | ||
| 58550-90B02 |
HB30..RHD..(23S,30S) RH |
1 | ||
| 58526-90B0006 |
HB30..RHD..(23S,30S) CENTER,SABLE,SABLE |
1 | ||
| 58560-90B01 |
HB30..WC..ARL LH |
1 | ||
| 58560-90B0106 |
HB30..WC..ARL LH,SABLE,SABLE |
1 | ||
| 58550 - MAT ASSY, FRONT FLOOR, REAR NO.2 | ||||
| 58526-90B00 |
HB30..RHD..(23S,30S) CENTER |
1 | ||
| 58550-90B02 |
HB30..RHD..(23S,30S) RH |
1 | ||
| 58526-90B0006 |
HB30..RHD..(23S,30S) CENTER,SABLE,SABLE |
1 | ||
| 58560-90B01 |
HB30..WC..ARL LH |
1 | ||
| 58560-90B0106 |
HB30..WC..ARL LH,SABLE,SABLE |
1 | ||
| 58550 - MAT ASSY, FRONT FLOOR, REAR NO.2 | ||||
| 58526-90B00 |
HB30..RHD..(23S,30S) CENTER |
1 | ||
| 58550-90B02 |
HB30..RHD..(23S,30S) RH |
1 | ||
| 58526-90B0006 |
HB30..RHD..(23S,30S) CENTER,SABLE,SABLE |
1 | ||
| 58560-90B01 |
HB30..WC..ARL LH |
1 | ||
| 58560-90B0106 |
HB30..WC..ARL LH,SABLE,SABLE |
1 | ||
| 58550 - MAT ASSY, FRONT FLOOR, REAR NO.2 | ||||
| 58526-90B00 |
HB30..RHD..(23S,30S) CENTER |
1 | ||
| 58550-90B02 |
HB30..RHD..(23S,30S) RH |
1 | ||
| 58526-90B0006 |
HB30..RHD..(23S,30S) CENTER,SABLE,SABLE |
1 | ||
| 58560-90B01 |
HB30..WC..ARL LH |
1 | ||
| 58560-90B0106 |
HB30..WC..ARL LH,SABLE,SABLE |
1 | ||
| 58550 - MAT ASSY, FRONT FLOOR, REAR NO.2 | ||||
| 58526-90B00 |
HB30..RHD..(23S,30S) CENTER |
1 | ||
| 58550-90B02 |
HB30..RHD..(23S,30S) RH |
1 | ||
| 58526-90B0006 |
HB30..RHD..(23S,30S) CENTER,SABLE,SABLE |
1 | ||
| 58560-90B01 |
HB30..WC..ARL LH |
1 | ||
| 58560-90B0106 |
HB30..WC..ARL LH,SABLE,SABLE |
1 | ||
| 58550 - MAT ASSY, FRONT FLOOR, REAR NO.2 | ||||
| 58526-90B00 |
HB30..RHD..(23S,30S) CENTER |
1 | ||
| 58550-90B02 |
HB30..RHD..(23S,30S) RH |
1 | ||
| 58526-90B0006 |
HB30..RHD..(23S,30S) CENTER,SABLE,SABLE |
1 | ||
| 58560-90B01 |
HB30..WC..ARL LH |
1 | ||
| 58560-90B0106 |
HB30..WC..ARL LH,SABLE,SABLE |
1 | ||
| 58563 - MAT, REAR FLOOR | ||||
| 58581-90B01 |
HB30..RHD |
1 | ||
| 58572 - SET PLATE, REAR FLOOR MAT, REAR | ||||
| 58619-90B02 |
BB20,21,FB30,HB30,RB20..20S,22S,23S,25S,26S,29S,30S CTR |
1 | ||
| 58628-90B00 |
BB20,21,FB30,HB30,RB20..20S,22S,23S,25S,26S,29S,30S LH |
1 | ||
| 58618-90B01 |
BB20,21,FB30,HB30,RB20..(DLX,EX)..WC RH |
1 | ||
| 58572 - SET PLATE, REAR FLOOR MAT, REAR | ||||
| 58619-90B02 |
BB20,21,FB30,HB30,RB20..20S,22S,23S,25S,26S,29S,30S CTR |
1 | ||
| 58628-90B00 |
BB20,21,FB30,HB30,RB20..20S,22S,23S,25S,26S,29S,30S LH |
1 | ||
| 58618-90B01 |
BB20,21,FB30,HB30,RB20..(DLX,EX)..WC RH |
1 | ||
| 58572 - SET PLATE, REAR FLOOR MAT, REAR | ||||
| 58619-90B02 |
BB20,21,FB30,HB30,RB20..20S,22S,23S,25S,26S,29S,30S CTR |
1 | ||
| 58628-90B00 |
BB20,21,FB30,HB30,RB20..20S,22S,23S,25S,26S,29S,30S LH |
1 | ||
| 58618-90B01 |
BB20,21,FB30,HB30,RB20..(DLX,EX)..WC RH |
1 | ||
| 58581 - PLATE, WHEEL HOUSE MAT SET, RH | ||||
| 58617-90B00 |
BB2#,FB30,HB30,RB20..DLX,EX,STD |
1 | ||
| 58582 - PLATE, WHEEL HOUSE MAT SET, LH | ||||
| 58617-90B00 |
BB2#,FB30,HB30,RB20..DLX,EX,STD |
1 | ||
| 58599A - PAD, FRONT FLOOR, REAR NO.7 | ||||
| 58599-90B00 |
HB30..WC..ARL |
3 | ||
| 58611A - PLATE, MAT SET, NO.1 RH | ||||
| 58611-90B00 |
BB2#,HB30,RB20..RHD..(DLX,EX,STD) |
1 | ||
| 58612A - PLATE, MAT SET, NO.2 RH | ||||
| 58612-90B00 |
BB2#,FB30,HB30,RB20..DLX,EX,STD |
1 | ||
| 58613A - PLATE, MAT SET, NO.3 | ||||
| 58616-90B00 |
BB2#,FB30,HB30,RB20..DLX,EX,STD |
2 | ||
| 58613A - PLATE, MAT SET, NO.3 | ||||
| 58616-90B00 |
BB2#,FB30,HB30,RB20..DLX,EX,STD |
2 | ||
| 58614A - PLATE, MAT SET, NO.4 | ||||
| 58613-90B00 |
HB30..ARL LH |
1 | ||
| 58623-90B0006 |
HB30..ARL RH,SABLE,SABLE |
1 | ||
| 58623-90B00 |
HB30..ARL RH |
1 | ||
| 58613-90B0006 |
HB30..ARL LH,SABLE,SABLE |
1 | ||
| 58614A - PLATE, MAT SET, NO.4 | ||||
| 58613-90B00 |
HB30..ARL LH |
1 | ||
| 58623-90B0006 |
HB30..ARL RH,SABLE,SABLE |
1 | ||
| 58623-90B00 |
HB30..ARL RH |
1 | ||
| 58613-90B0006 |
HB30..ARL LH,SABLE,SABLE |
1 | ||
| 58614A - PLATE, MAT SET, NO.4 | ||||
| 58613-90B00 |
HB30..ARL LH |
1 | ||
| 58623-90B0006 |
HB30..ARL RH,SABLE,SABLE |
1 | ||
| 58623-90B00 |
HB30..ARL RH |
1 | ||
| 58613-90B0006 |
HB30..ARL LH,SABLE,SABLE |
1 | ||
| 58614A - PLATE, MAT SET, NO.4 | ||||
| 58613-90B00 |
HB30..ARL LH |
1 | ||
| 58623-90B0006 |
HB30..ARL RH,SABLE,SABLE |
1 | ||
| 58623-90B00 |
HB30..ARL RH |
1 | ||
| 58613-90B0006 |
HB30..ARL LH,SABLE,SABLE |
1 | ||
| 58614A - PLATE, MAT SET, NO.4 | ||||
| 58613-90B00 |
HB30..ARL LH |
1 | ||
| 58623-90B0006 |
HB30..ARL RH,SABLE,SABLE |
1 | ||
| 58623-90B00 |
HB30..ARL RH |
1 | ||
| 58613-90B0006 |
HB30..ARL LH,SABLE,SABLE |
1 | ||
| 58615A - PLATE, MAT SET, NO.5 | ||||
| 58624-90B00 |
HB30..ARL RH |
1 | ||
| 58624-90B0006 |
HB30..ARL RH,SABLE,SABLE |
1 | ||
| 58614-90B0306 |
HB30..WC..ARL LH,W/GLIDE DOOR,SABLE,SABLE |
1 | ||
| 58615A - PLATE, MAT SET, NO.5 | ||||
| 58624-90B00 |
HB30..ARL RH |
1 | ||
| 58624-90B0006 |
HB30..ARL RH,SABLE,SABLE |
1 | ||
| 58614-90B0306 |
HB30..WC..ARL LH,W/GLIDE DOOR,SABLE,SABLE |
1 | ||
| 58615A - PLATE, MAT SET, NO.5 | ||||
| 58624-90B00 |
HB30..ARL RH |
1 | ||
| 58624-90B0006 |
HB30..ARL RH,SABLE,SABLE |
1 | ||
| 58614-90B0306 |
HB30..WC..ARL LH,W/GLIDE DOOR,SABLE,SABLE |
1 | ||
| 58615A - PLATE, MAT SET, NO.5 | ||||
| 58624-90B00 |
HB30..ARL RH |
1 | ||
| 58624-90B0006 |
HB30..ARL RH,SABLE,SABLE |
1 | ||
| 58614-90B0306 |
HB30..WC..ARL LH,W/GLIDE DOOR,SABLE,SABLE |
1 | ||
| 58615A - PLATE, MAT SET, NO.5 | ||||
| 58624-90B00 |
HB30..ARL RH |
1 | ||
| 58624-90B0006 |
HB30..ARL RH,SABLE,SABLE |
1 | ||
| 58614-90B0306 |
HB30..WC..ARL LH,W/GLIDE DOOR,SABLE,SABLE |
1 | ||
| 58616B - PLATE, MAT SET, NO.6 | ||||
| 58615-90B0006 |
HB30..ARL SABLE,SABLE |
1 | ||
| 58615-90B00 |
HB30..ARL |
1 | ||
| 58616B - PLATE, MAT SET, NO.6 | ||||
| 58615-90B0006 |
HB30..ARL SABLE,SABLE |
1 | ||
| 58615-90B00 |
HB30..ARL |
1 | ||
| 58620A - MAT ASSY, FRONT FLOOR, CENTER NO.2 | ||||
| 58620-90B0206 |
HB30..RHD..(23S,30S) SABLE,SABLE |
1 | ||
| 58620-90B02 |
HB30..RHD..(23S,30S) |
1 | ||
| 58622A - PLATE, MAT SET, NO.2 LH | ||||
| 58622-90B01 |
FB30,HB30 |
1 | ||
| 58625B - PLATE, REAR WHEEL HOUSE MAT, FRONT | ||||
| 58626-90B00 |
BB2#,FB30,HB30,RB20..DLX,STD LH |
1 | ||
| 58625-90B00 |
BB2#,FB30,HB30,RB20..DLX,STD RH |
1 | ||
| 58625B - PLATE, REAR WHEEL HOUSE MAT, FRONT | ||||
| 58626-90B00 |
BB2#,FB30,HB30,RB20..DLX,STD LH |
1 | ||
| 58625-90B00 |
BB2#,FB30,HB30,RB20..DLX,STD RH |
1 | ||
| 58626B - PLATE, REAR WHEEL HOUSE MAT, REAR | ||||
| 58625-90B00 |
BB2#,FB30,HB30,RB20..DLX,STD LH |
1 | ||
| 58626-90B00 |
BB2#,FB30,HB30,RB20..DLX,STD RH |
1 | ||
| 58626B - PLATE, REAR WHEEL HOUSE MAT, REAR | ||||
| 58625-90B00 |
BB2#,FB30,HB30,RB20..DLX,STD LH |
1 | ||
| 58626-90B00 |
BB2#,FB30,HB30,RB20..DLX,STD RH |
1 | ||
| 58631A - PLATE, ENGINE SERVICE HOLE MAT, FRONT | ||||
| 58631-90B00 |
BB2#,FB30,HB30,RB20 |
1 | ||
| 58632A - PLATE, ENGINE SERVICE HOLE MAT, REAR | ||||
| 58632-90B01 |
FB30,HB30 |
1 | ||
| 58634A - PLATE, ENGINE SERVICE HOLE MAT, RH | ||||
| 58634-90B00 |
BB2#,FB30,HB30,RB20 |
1 | ||
| 58644A - PLATE, ENGINE SERVICE HOLE MAT, LH | ||||
| 58644-90B00 |
BB2#,FB30,HB30,RB20 |
1 | ||
| 58651A - PLATE, FRONT DOOR MAT, NO.1 | ||||
| 58651-90B00 |
BB2#,FB30,HB30,RB20 |
1 | ||
| 58652A - PLATE, FRONT DOOR MAT, NO.2 | ||||
| 58652-90B00 |
BB2#,HB30,RB20..RHD..(DLX,EX,STD) |
1 | ||
| 58652-90B0006 |
BB21,HB30,RB20..RHD..(DLX,EX,STD) SABLE,SABLE |
1 | ||
| 58680 - MAT ASSY, CENTER DOOR STEP, REAR | ||||
| 58680-90B03 |
HB30..WC..ARL |
1 | ||
| 58690 - MAT ASSY, CENTER DOOR STEP | ||||
| 58690-90B00 |
HB30..WC..ARL |
1 | ||
| 58690 - MAT ASSY, CENTER DOOR STEP | ||||
| 58690-90B00 |
HB30..WC..ARL |
1 | ||
| 58690 - MAT ASSY, CENTER DOOR STEP | ||||
| 58690-90B00 |
HB30..WC..ARL |
1 | ||
| 58691A - PLATE, CENTER DOOR STEP MAT, LOWER FRONT | ||||
| 58691-90B0306 |
HB30..WC..ARL W/GLIDE DOOR,SABLE,SABLE |
1 | ||
| 58691A - PLATE, CENTER DOOR STEP MAT, LOWER FRONT | ||||
| 58691-90B0306 |
HB30..WC..ARL W/GLIDE DOOR,SABLE,SABLE |
1 | ||
| 58691A - PLATE, CENTER DOOR STEP MAT, LOWER FRONT | ||||
| 58691-90B0306 |
HB30..WC..ARL W/GLIDE DOOR,SABLE,SABLE |
1 | ||
| 58693 - PLATE, CENTER DOOR STEP MAT, LOWER SIDE | ||||
| 58693-90B0306 |
HB30..WC..ARL W/AUTO GLIDE DOOR,SABLE,SABLE |
1 | ||
| 58693 - PLATE, CENTER DOOR STEP MAT, LOWER SIDE | ||||
| 58693-90B0306 |
HB30..WC..ARL W/AUTO GLIDE DOOR,SABLE,SABLE |
1 | ||
| 58693 - PLATE, CENTER DOOR STEP MAT, LOWER SIDE | ||||
| 58693-90B0306 |
HB30..WC..ARL W/AUTO GLIDE DOOR,SABLE,SABLE |
1 | ||
| 58695A - PLATE, REAR FLOOR MAT VERTICAL, NO.1 | ||||
| 58695-90B0406 |
HB30..ARL SABLE,SABLE |
1 | ||
| 58695-90B04 |
HB30..ARL |
1 | ||
| 58697 - PLATE, REAR FLOOR MAT VERTICAL, NO.3 | ||||
| 58697-90B0306 |
HB30..WC..ARL W/GLIDE DOOR,SABLE,SABLE |
1 | ||
| Common parts | ||||
| 90189-04013 | ||||
| 90189-04035 | ||||
| 90339-03003 | ||||
| 90560-15013 | ||||
| 93530-14016 | ||||
| 93530-54016 | ||||
| 93560-54014 | ||||
| 93630-53514 | ||||
| 93630-53516 | ||||
| 93630-53520 | ||||
| 93630-54016 | ||||
| 93630-54025 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
