HB30R-MDZRQ (1986)

Toyota Coaster

Production Oct 1986 - Jan 1990
Engine 2H
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

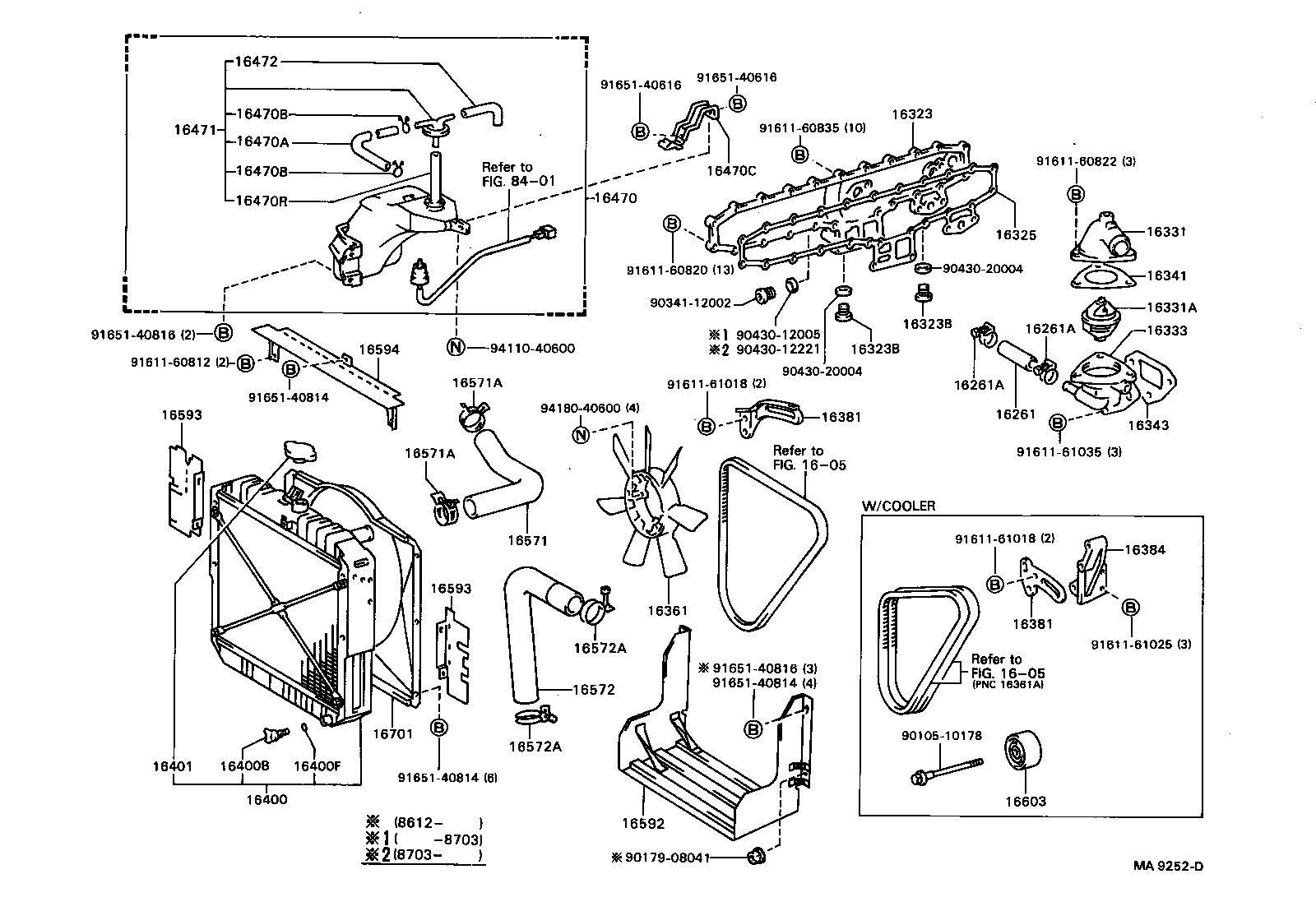

ILLUST NO. 1 OF 2(8610-9001)2H

Click highlighted areas on diagram

diagram 1605 1605 16261 16261A 16261A 16323 16323B 16323B 16325 16331 16331A 16333 16341 16343 16361 16381 16381 16384 16400 16400B 16400F 16401 16470 16470A 16470B 16470B 16470C 16470R 16471 16472 16571 16571A 16571A 16572 16572A 16572A 16592 16593 16593 16594 16603 16701 8401 9010510178 9017908041 9034112002 9043012005 9043012221 9043020004 9043020004 9161160812 9161160820 9161160822 9161160835 9161161018 9161161018 9161161025 9161161035 9165140616 9165140616 9165140814 9165140814 9165140814 9165140816 9165140816 9411040600 9418040600
Part # Description Qty Price
16261 - HOSE, WATER BY-PASS
99555-40090

12HT,2H..HB3#

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96111-10330

12HT,2H..HB3#

ID=33

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96111-10330

12HT,2H..HB3#

ID=33

 2
16323 - HOUSING, WATER INLET
16323-68020

2H..HB30

 1
16323B - PLUG(FOR WATER INLET HOUSING)
90341-20002

12HT,2H..HB3#

 2
16323B - PLUG(FOR WATER INLET HOUSING)
90341-20002

12HT,2H..HB3#

 2
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-68020

12HT,2H..HB3#

 1
16331 - OUTLET, WATER
16331-68011

12HT,2H..HB3#

 1
16331A - THERMOSTAT
90916-03026

2H..HB30

*WAX 82-95

 1
16333 - HOUSING, WATER OUTLET
16333-68030

2H..HB30

 1
16341 - GASKET, WATER OUTLET
16341-68010

12HT,2H..HB3#

 1
16343 - GASKET, WATER OUTLET HOUSING
16343-68010

12HT,2H..HB3#

 1
16361 - FAN
16361-41090

12HT,2H..HB3#

 1
16381 - BAR, FAN BELT ADJUSTING
16381-68020

2H..HB30..WC

 1
16381 - BAR, FAN BELT ADJUSTING
16381-68020

2H..HB30..WC

 1
16384 - BRACKET, FAN BELT ADJUSTING BAR
16384-68010

2H..HB30..WC

 1
16400 - RADIATOR ASSY
16400-68141

12HT,2H..HB3#

FIN PITCH 4.0

 1
16400-68142

12HT,2H..HB3#

FIN PITCH 4.0

 1
16400B - PLUG, RADIATOR DRAIN COCK
16417-24200

12HT,2H..HB3#

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16418-24200

12HT,2H..HB3#

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-68050

12HT,2H..HB3#..RHD..(DLX,STD)

 1
16470-68060

2H..HB30..WC..ARL

W/OK MONITOR

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12078

12HT,2H..HB3#..RHD

*H,L=280

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

12HT,1H#,2H..HB3#,HDB30,HZB30

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

12HT,1H#,2H..HB3#,HDB30,HZB30

 2
16470C - BRACKET(FOR RADIATOR RESERVE TANK)
16611-90B02

12HT,2H..HB3#..RHD

 1
16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK)
85338-68050

12HT,2H..HB3#..RHD

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16405-68040

12HT,2H..HB3#..RHD

 1
16472 - HOSE, BREATHER
85338-70100

12HT,2H..HB3#

 1
16571 - HOSE, RADIATOR, INLET
16571-68030

12HT,2H..HB3#..RHD

 1
16572 - HOSE, RADIATOR, OUTLET
16572-68060

12HT,2H..HB3#..RHD

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90460-50016

12HT,2H..HB3#

RADIATOR SIDE

 1
96111-10560

12HT,2H..HB3#

WATER PUMP SIDE

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90460-50016

12HT,2H..HB3#

RADIATOR SIDE

 1
96111-10560

12HT,2H..HB3#

WATER PUMP SIDE

 1
16592 - GUIDE, RADIATOR AIR, NO.3
16592-68010

2H..HB30

W/RADIATOR DUCT

 1
16593 - GUIDE, RADIATOR AIR, NO.1
16593-68010

12HT,2H..HB3#..RHD

RH

 1
16595-68010

12HT,2H..HB3#..RHD

LH

 1
16593 - GUIDE, RADIATOR AIR, NO.1
16593-68010

12HT,2H..HB3#..RHD

RH

 1
16595-68010

12HT,2H..HB3#..RHD

LH

 1
16603 - PULLEY SUB-ASSY, IDLER, NO.1
16603-68011

2H..HB30..WC

 1
16701 - SHROUD SUB-ASSY, FAN
16701-47030

12HT,2H..HB3#..RHD

 1
Common parts
90105-10178
90179-08041
90341-12002
90430-12005
90430-12221
90430-20004
91611-60812
91611-60820
91611-60822
91611-60835
91611-61018
91611-61025
91611-61035
91651-40616
91651-40814
91651-40816
94110-40600
94180-40600
Linked diagrams
1605
8401
