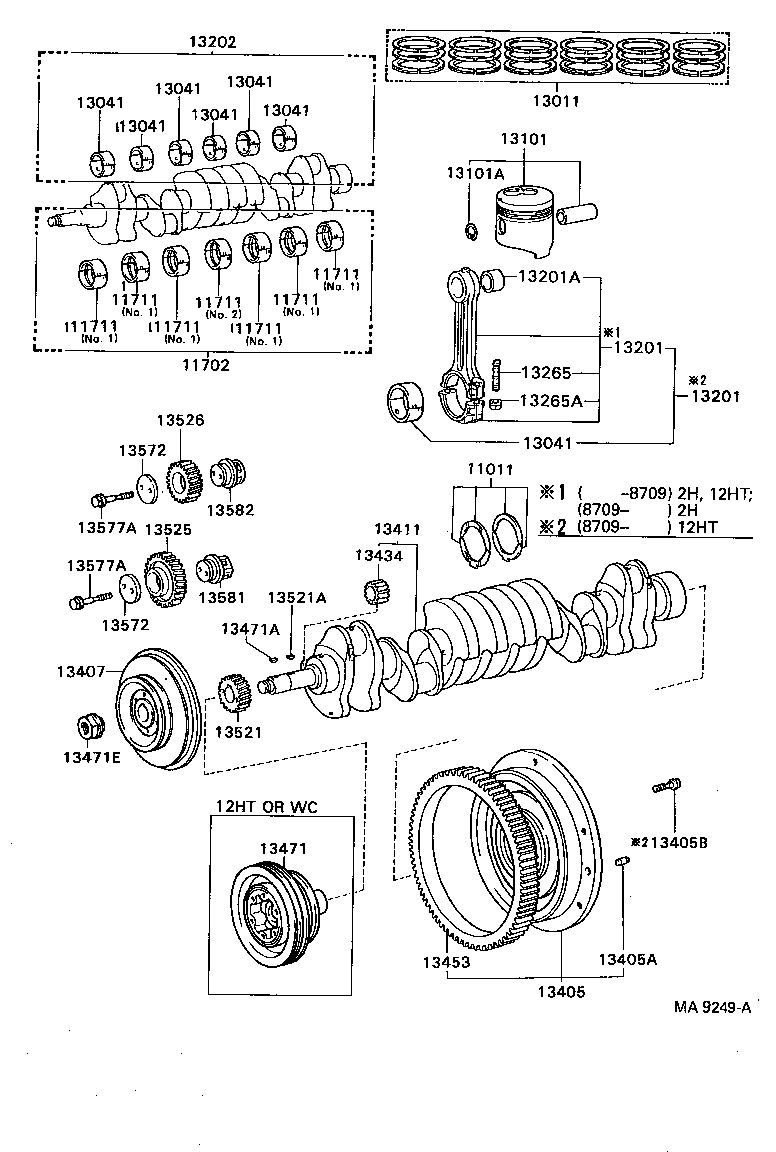

HB30R-MDZRQ (1986)
Toyota Coaster
(8610-9001)12HT,2H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11011-68020 |
12HT,2H..HB3# STD,STD |
1 | ||
| 11013-68020 |
12HT,2H..HB3# O/S 0.250,O/S 0.250 |
1 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11705-68021 |
12HT,2H..HB3# U/S 0.50,U/S 0.50 |
1 | ||
| 11704-68021 |
12HT,2H..HB3# U/S 0.25,U/S 0.25 |
1 | ||
| 11706-68021 |
12HT,2H..HB3# U/S 0.75,U/S 0.75 |
1 | ||
| 11707-68021 |
12HT,2H..HB3# U/S 1.00,U/S 1.00 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-6802002 |
12HT,2H..HB3# NO.1,MARK"2",MARK 2 |
6 | ||
| 11071-6802001 |
12HT,2H..HB3# NO.2,MARK"1",MARK 1 |
1 | ||
| 11071-6802003 |
12HT,2H..HB3# NO.2,MARK"3",MARK 3 |
1 | ||
| 11071-6802002 |
12HT,2H..HB3# NO.2,MARK"2",MARK 2 |
1 | ||
| 11701-6802001 |
12HT,2H..HB3# NO.1,MARK"1",MARK 1 |
6 | ||
| 11701-6802003 |
12HT,2H..HB3# NO.1,MARK"3",MARK 3 |
6 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-6802002 |
12HT,2H..HB3# NO.1,MARK"2",MARK 2 |
6 | ||
| 11071-6802001 |
12HT,2H..HB3# NO.2,MARK"1",MARK 1 |
1 | ||
| 11071-6802003 |
12HT,2H..HB3# NO.2,MARK"3",MARK 3 |
1 | ||
| 11071-6802002 |
12HT,2H..HB3# NO.2,MARK"2",MARK 2 |
1 | ||
| 11701-6802001 |
12HT,2H..HB3# NO.1,MARK"1",MARK 1 |
6 | ||
| 11701-6802003 |
12HT,2H..HB3# NO.1,MARK"3",MARK 3 |
6 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-6802002 |
12HT,2H..HB3# NO.1,MARK"2",MARK 2 |
6 | ||
| 11071-6802001 |
12HT,2H..HB3# NO.2,MARK"1",MARK 1 |
1 | ||
| 11071-6802003 |
12HT,2H..HB3# NO.2,MARK"3",MARK 3 |
1 | ||
| 11071-6802002 |
12HT,2H..HB3# NO.2,MARK"2",MARK 2 |
1 | ||
| 11701-6802001 |
12HT,2H..HB3# NO.1,MARK"1",MARK 1 |
6 | ||
| 11701-6802003 |
12HT,2H..HB3# NO.1,MARK"3",MARK 3 |
6 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-6802002 |
12HT,2H..HB3# NO.1,MARK"2",MARK 2 |
6 | ||
| 11071-6802001 |
12HT,2H..HB3# NO.2,MARK"1",MARK 1 |
1 | ||
| 11071-6802003 |
12HT,2H..HB3# NO.2,MARK"3",MARK 3 |
1 | ||
| 11071-6802002 |
12HT,2H..HB3# NO.2,MARK"2",MARK 2 |
1 | ||
| 11701-6802001 |
12HT,2H..HB3# NO.1,MARK"1",MARK 1 |
6 | ||
| 11701-6802003 |
12HT,2H..HB3# NO.1,MARK"3",MARK 3 |
6 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-6802002 |
12HT,2H..HB3# NO.1,MARK"2",MARK 2 |
6 | ||
| 11071-6802001 |
12HT,2H..HB3# NO.2,MARK"1",MARK 1 |
1 | ||
| 11071-6802003 |
12HT,2H..HB3# NO.2,MARK"3",MARK 3 |
1 | ||
| 11071-6802002 |
12HT,2H..HB3# NO.2,MARK"2",MARK 2 |
1 | ||
| 11701-6802001 |
12HT,2H..HB3# NO.1,MARK"1",MARK 1 |
6 | ||
| 11701-6802003 |
12HT,2H..HB3# NO.1,MARK"3",MARK 3 |
6 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-6802002 |
12HT,2H..HB3# NO.1,MARK"2",MARK 2 |
6 | ||
| 11071-6802001 |
12HT,2H..HB3# NO.2,MARK"1",MARK 1 |
1 | ||
| 11071-6802003 |
12HT,2H..HB3# NO.2,MARK"3",MARK 3 |
1 | ||
| 11071-6802002 |
12HT,2H..HB3# NO.2,MARK"2",MARK 2 |
1 | ||
| 11701-6802001 |
12HT,2H..HB3# NO.1,MARK"1",MARK 1 |
6 | ||
| 11701-6802003 |
12HT,2H..HB3# NO.1,MARK"3",MARK 3 |
6 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-6802002 |
12HT,2H..HB3# NO.1,MARK"2",MARK 2 |
6 | ||
| 11071-6802001 |
12HT,2H..HB3# NO.2,MARK"1",MARK 1 |
1 | ||
| 11071-6802003 |
12HT,2H..HB3# NO.2,MARK"3",MARK 3 |
1 | ||
| 11071-6802002 |
12HT,2H..HB3# NO.2,MARK"2",MARK 2 |
1 | ||
| 11701-6802001 |
12HT,2H..HB3# NO.1,MARK"1",MARK 1 |
6 | ||
| 11701-6802003 |
12HT,2H..HB3# NO.1,MARK"3",MARK 3 |
6 | ||
| 13011 - RING SET, PISTON | ||||
| 13013-68020 |
2H..HB30 O/S 0.50,O/S 0.50 |
1 | ||
| 13011-68020 |
2H..HB30 STD,STD |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-6804001 |
12HT,2H..HB3# MARK"1",MARK 1 |
6 | ||
| 13041-6804001 |
2H..HB30 MARK"1",MARK 1 |
6 | ||
| 13041-6804002 |
12HT,2H..HB3# MARK"2",MARK 2 |
6 | ||
| 13041-6804002 |
2H..HB30 MARK"2",MARK 2 |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-6804001 |
12HT,2H..HB3# MARK"1",MARK 1 |
6 | ||
| 13041-6804001 |
2H..HB30 MARK"1",MARK 1 |
6 | ||
| 13041-6804002 |
12HT,2H..HB3# MARK"2",MARK 2 |
6 | ||
| 13041-6804002 |
2H..HB30 MARK"2",MARK 2 |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-6804001 |
12HT,2H..HB3# MARK"1",MARK 1 |
6 | ||
| 13041-6804001 |
2H..HB30 MARK"1",MARK 1 |
6 | ||
| 13041-6804002 |
12HT,2H..HB3# MARK"2",MARK 2 |
6 | ||
| 13041-6804002 |
2H..HB30 MARK"2",MARK 2 |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-6804001 |
12HT,2H..HB3# MARK"1",MARK 1 |
6 | ||
| 13041-6804001 |
2H..HB30 MARK"1",MARK 1 |
6 | ||
| 13041-6804002 |
12HT,2H..HB3# MARK"2",MARK 2 |
6 | ||
| 13041-6804002 |
2H..HB30 MARK"2",MARK 2 |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-6804001 |
12HT,2H..HB3# MARK"1",MARK 1 |
6 | ||
| 13041-6804001 |
2H..HB30 MARK"1",MARK 1 |
6 | ||
| 13041-6804002 |
12HT,2H..HB3# MARK"2",MARK 2 |
6 | ||
| 13041-6804002 |
2H..HB30 MARK"2",MARK 2 |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-6804001 |
12HT,2H..HB3# MARK"1",MARK 1 |
6 | ||
| 13041-6804001 |
2H..HB30 MARK"1",MARK 1 |
6 | ||
| 13041-6804002 |
12HT,2H..HB3# MARK"2",MARK 2 |
6 | ||
| 13041-6804002 |
2H..HB30 MARK"2",MARK 2 |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-6804001 |
12HT,2H..HB3# MARK"1",MARK 1 |
6 | ||
| 13041-6804001 |
2H..HB30 MARK"1",MARK 1 |
6 | ||
| 13041-6804002 |
12HT,2H..HB3# MARK"2",MARK 2 |
6 | ||
| 13041-6804002 |
2H..HB30 MARK"2",MARK 2 |
6 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-68011 |
2H..HB30 STD,STD |
6 | ||
| 13101-6801102 |
2H..HB30 STD,STD,MARK"2",MARK 2 |
6 | ||
| 13101-6801101 |
2H..HB30 STD,STD,MARK"1",MARK 1 |
6 | ||
| 13103-68011 |
2H..HB30 O/S 0.50,O/S 0.50 |
6 | ||
| 13101-6801103 |
2H..HB30 STD,STD,MARK"3",MARK 3 |
6 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90521-31001 |
2H..HB30 |
12 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-68010 |
2H..HB30 |
6 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-68010 |
2H..HB30 |
6 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 90999-73087 |
2H..HB30 |
6 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13204-68040 |
12HT,2H..HB3# U/S 0.25,U/S 0.25 |
1 | ||
| 13205-68040 |
12HT,2H..HB3# U/S 0.50,U/S 0.50 |
1 | ||
| 13206-68040 |
12HT,2H..HB3# U/S 0.75,U/S 0.75 |
1 | ||
| 13204-68040 |
2H..HB30 U/S 0.25,U/S 0.25 |
1 | ||
| 13205-68040 |
2H..HB30 U/S 0.50,U/S 0.50 |
1 | ||
| 13206-68040 |
2H..HB30 U/S 0.75,U/S 0.75 |
1 | ||
| 13207-68040 |
12HT,2H..HB3# U/S 1.00,U/S 1.00 |
1 | ||
| 13207-68040 |
2H..HB30 U/S 1.00,U/S 1.00 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-68010 |
12HT,2H..HB3# |
12 | ||
| 13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT) | ||||
| 90179-12015 |
12HT,2H..HB3# |
12 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-68011 |
12HT,2H..HB3# |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-10192 |
12HT,2H..HB3# L=22,OD=10,L=22,OD=10 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90105-12039 |
12HT,2H..HB3# |
6 | ||
| 13407 - DAMPER SUB-ASSY, CRANKSHAFT | ||||
| 13407-68011 |
2H..HB30..WC |
1 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-68011 |
2H..HB30 |
1 | ||
| 13434 - SPLINE, OIL PUMP DRIVE | ||||
| 13519-68010 |
12HT,2H..HB3# |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-47010 |
12HT,2H..HB3# N=108 |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13470-68030 |
2H..HB30..WC |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 95161-10519 |
12HT,2H..HB3# |
1 | ||
| 13471E - NUT(FOR CRANKSHAFT PULLEY) | ||||
| 90179-22062 |
12HT,2H..HB3# |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-68010 |
12HT,2H..HB3# |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 95161-10519 |
12HT,2H..HB3# |
1 | ||
| 13525 - GEAR, IDLE, NO.1 | ||||
| 13525-68010 |
12HT,2H..HB3# N=51 |
1 | ||
| 13526 - GEAR, IDLE, NO.2 | ||||
| 13526-68010 |
12HT,2H..HB3# N=37 |
1 | ||
| 13572 - PLATE, IDLE GEAR THRUST | ||||
| 13572-68010 |
12HT,2H..HB3# |
2 | ||
| 13572 - PLATE, IDLE GEAR THRUST | ||||
| 13572-68010 |
12HT,2H..HB3# |
2 | ||
| 13577A - BOLT, HEXAGON(FOR IDLE GEAR BOLT LOCK) | ||||
| 90105-10036 |
12HT,2H..HB3# |
4 | ||
| 13577A - BOLT, HEXAGON(FOR IDLE GEAR BOLT LOCK) | ||||
| 90105-10036 |
12HT,2H..HB3# |
4 | ||
| 13581 - SHAFT, IDLE GEAR, NO.1 | ||||
| 13581-68010 |
12HT,2H..HB3# |
1 | ||
| 13582 - SHAFT, IDLE GEAR, NO.2 | ||||
| 13582-68010 |
12HT,2H..HB3# |
1 | ||
