HB30R-MDZRQ (1986)

Toyota Coaster

Production Oct 1986 - Jan 1990
Engine 2H
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8610-9001)2H

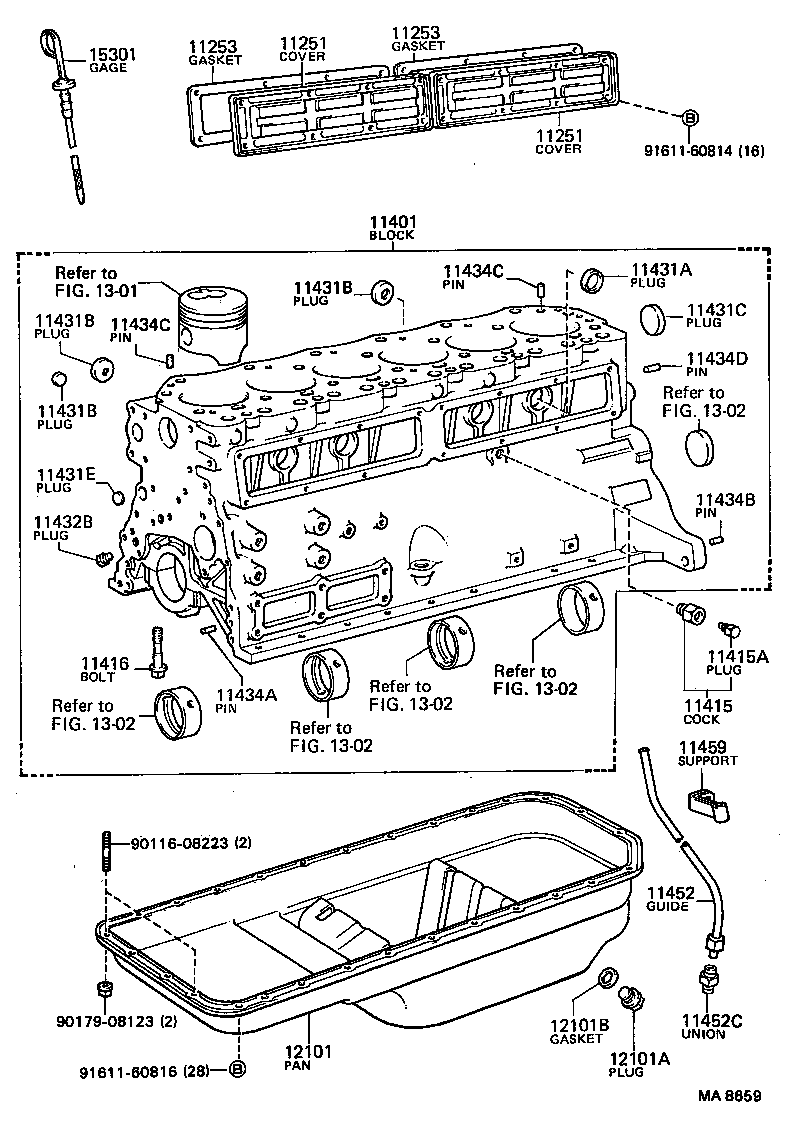

Click highlighted areas on diagram

diagram 11251 11251 11253 11253 11401 11415 11415A 11416 11431A 11431B 11431B 11431B 11431C 11431E 11432B 11434A 11434B 11434C 11434C 11434D 11452 11452C 11459 12101 12101A 12101B 1301 1302 1302 1302 1302 1302 15301 9011608223 9017908123 9161160814 9161160816
Part # Description Qty Price
11251 - COVER, VALVE PUSH ROD
11251-68010

12HT,2H..HB3#

 2
11251 - COVER, VALVE PUSH ROD
11251-68010

12HT,2H..HB3#

 2
11253 - GASKET, VALVE PUSH ROD COVER
11253-68010

12HT,2H..HB3#

 2
11253 - GASKET, VALVE PUSH ROD COVER
11253-68010

12HT,2H..HB3#

 2
11401 - BLOCK SUB-ASSY, CYLINDER
11401-69196

2H..HB30

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90105-14039

12HT,2H..HB3#

*14-1,5PX81-25

 14
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-43500

12HT,2H..HB3#

OD=35

 4
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
90331-35002

12HT,2H..HB3#

OD=35,ID=12

 2
90331-35003

12HT,2H..HB3#

OD=35,ID=14

 2
96411-42000

12HT,2H..HB3#

OD=20

 1
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
90331-35002

12HT,2H..HB3#

OD=35,ID=12

 2
90331-35003

12HT,2H..HB3#

OD=35,ID=14

 2
96411-42000

12HT,2H..HB3#

OD=20

 1
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
90331-35002

12HT,2H..HB3#

OD=35,ID=12

 2
90331-35003

12HT,2H..HB3#

OD=35,ID=14

 2
96411-42000

12HT,2H..HB3#

OD=20

 1
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-45000

12HT,2H..HB3#

OD=50

 2
11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)
96411-41800

12HT,2H..HB3#

 2
96411-11800

12HT,2H..HB3#

OD=18

 2
11432B - PLUG, W/HEAD TAPER SCREW, NO.2
90345-51003

12HT,2H..HB3#

 1
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-08120

12HT,2H..HB3#

L=18,OD=8,L=18,OD=8

 4
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-08054

12HT,2H..HB3#

L=23,OD=8,L=23,OD=8

 2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-06037

12HT,2H..HB3#

L=12,OD=6,FR,L=12,OD=6

 1
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-06037

12HT,2H..HB3#

L=12,OD=6,FR,L=12,OD=6

 1
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-08054

12HT,2H..HB3#

L=23,OD=8,L=23,OD=8

 1
11452 - GUIDE, OIL LEVEL GAGE
11409-68020

12HT,2H..HB3#

 1
11452C - UNION(FOR OIL LEVEL GAGE GUIDE)
96335-11600

12HT,2H..HB3#

 1
11459 - SUPPORT, OIL LEVEL GAGE GUIDE
11459-68020

12HT,2H..HB3#

 1
12101 - PAN SUB-ASSY, OIL
12101-68012

2H..HB30

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-18013

12HT,2H..HB3#

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-68020

12HT,2H..HB3#

 1
Common parts
90116-08223
90179-08123
91611-60814
91611-60816
