HB30R-MDZR (1986)
Toyota Coaster
Production
Oct 1986
-
Jan 1990
Engine
2H
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8610-9001)12HT,2H

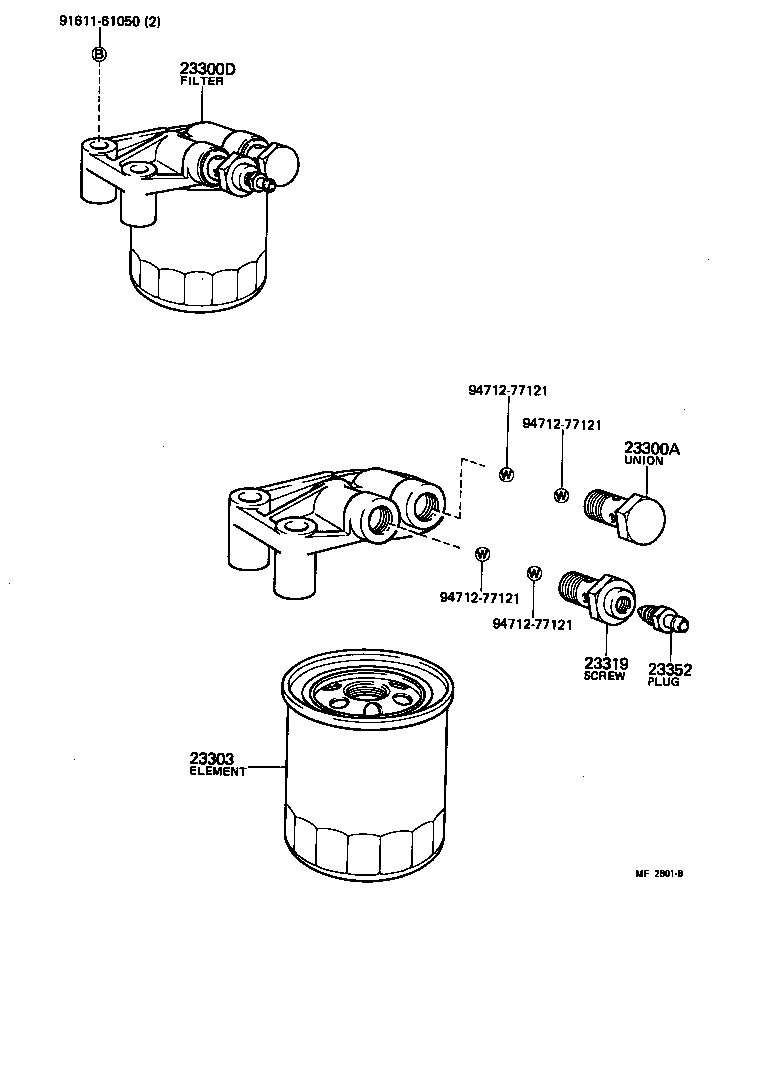

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23300A - UNION, NIPPLE(FOR FUEL FILTER INLET) | ||||
| 90099-18010 |
12HT,2H..HB3# |
1 | ||
| 23300D - FILTER ASSY, FUEL(FOR DIESEL) | ||||
| 23300-68030 |
12HT,2H..HB3# |
1 | ||
| 23303 - ELEMENT SUB-ASSY, FUEL FILTER | ||||
| 23303-54072 |
12HT,2H..HB3# |
1 | ||
| 23319 - SCREW, FUEL PIPE FOLLOW | ||||
| 23319-48010 |
12HT,2H..HB3# |
1 | ||
| 23319-48010 |
12HT,2H..HB3# |
1 | ||
| 23352 - PLUG, BLEEDER | ||||
| 47547-12030 |
12HT,2H..HB3# |
1 | ||
| Common parts | ||||
| 91611-61050 | ||||
| 94712-77121 | ||||
ILLUST NO. 2 OF 2(8205-8808)2H ; (8808-9001)2H
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23338 - GASKET(FOR WARNING SWITCH) | ||||
| 23338-54010 |
2H..HB30 |
1 | ||
| 23338-54010 |
2H..HB30 |
1 | ||
| 23338-54010 |
2H..HB30 |
1 | ||
| 23338-54010 |
2H..HB30 |
1 | ||
| 23351 - PLUG, AIR VENT | ||||
| 23351-54010 |
2H..HB30 SEDIMENTER |
2 | ||
| 23351-54010 |
2H..HB30 SEDIMENTER |
2 | ||
| 23351-54010 |
2H..HB30 SEDIMENTER |
2 | ||
| 23351-54010 |
2H..HB30 SEDIMENTER |
2 | ||
| 23351 - PLUG, AIR VENT | ||||
| 23351-54010 |
2H..HB30 SEDIMENTER |
2 | ||
| 23351-54010 |
2H..HB30 SEDIMENTER |
2 | ||
| 23351-54010 |
2H..HB30 SEDIMENTER |
2 | ||
| 23351-54010 |
2H..HB30 SEDIMENTER |
2 | ||
| 23353 - RING, O(FOR AIR VENT PLUG) | ||||
| 23353-54010 |
2H..HB30 W/SEDIMENTER |
2 | ||
| 23353-54010 |
2H..HB30 W/SEDIMENTER |
2 | ||
| 23353-54010 |
2H..HB30 W/SEDIMENTER |
2 | ||
| 23353-54010 |
2H..HB30 W/SEDIMENTER |
2 | ||
| 23353 - RING, O(FOR AIR VENT PLUG) | ||||
| 23353-54010 |
2H..HB30 W/SEDIMENTER |
2 | ||
| 23353-54010 |
2H..HB30 W/SEDIMENTER |
2 | ||
| 23353-54010 |
2H..HB30 W/SEDIMENTER |
2 | ||
| 23353-54010 |
2H..HB30 W/SEDIMENTER |
2 | ||
| 23922 - SUPPORT, FUEL SEDIMENTER | ||||
| 23922-58010 |
2H..HB30 |
1 | ||
| 23922-58010 |
2H..HB30 |
1 | ||
| 23922-58010 |
2H..HB30 |
1 | ||
| 23922-58010 |
2H..HB30 |
1 | ||
| 23930 - SEDIMENTER ASSY, FUEL | ||||
| 23930-68041 |
2H..HB30 |
1 | ||
| 23930-68041 |
2H..HB30 |
1 | ||
| Common parts | ||||
| 91651-40816 | ||||
| 91665-60845 | ||||
| Linked diagrams | ||||
| 8401 | ||||
