HB30R-MD (1986)

Toyota Coaster

Production Oct 1986 - Jan 1990
Engine 2H
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8610-9001)HB3#..RHD

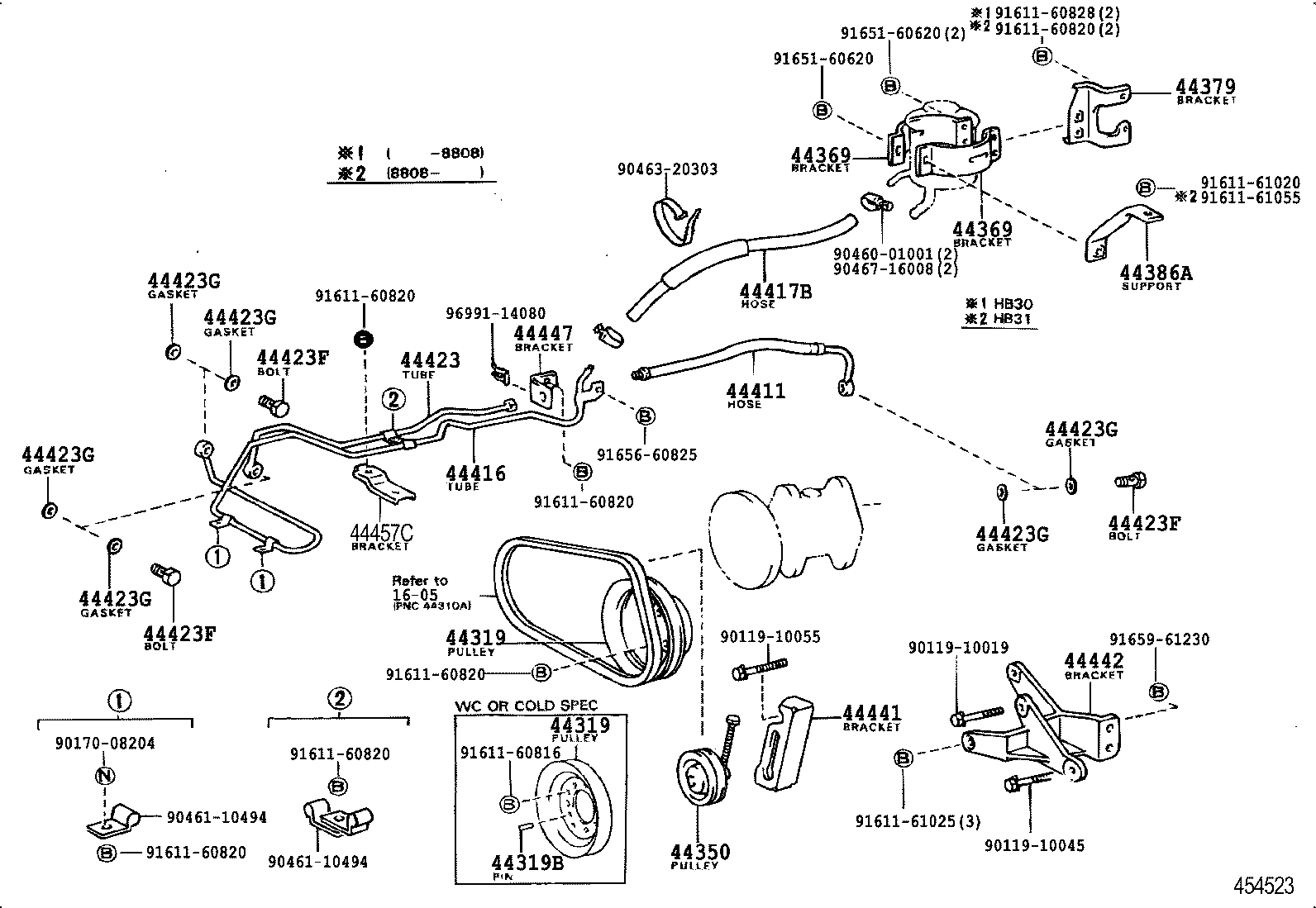

Click highlighted areas on diagram

diagram 1605 44319 44319 44319B 44350 44369 44369 44379 44386A 44411 44416 44417B 44423 44423F 44423F 44423F 44423G 44423G 44423G 44423G 44423G 44423G 44441 44442 44447 44457C 9011910019 9011910045 9011910055 9017008204 9046001001 9046110494 9046110494 9046320303 9046716008 9161160816 9161160820 9161160820 9161160820 9161160820 9161160820 9161160820 9161160828 9161161020 9161161025 9161161055 9165160620 9165160620 9165660825 9165961230 9699114080
Part # Description Qty Price
44319 - PULLEY, VANE PUMP DRIVE
44319-36030

HB30..WOC

 1
44319-36020

HB30..RHD..WOC

COLD SPEC

 1
44319 - PULLEY, VANE PUMP DRIVE
44319-36030

HB30..WOC

 1
44319-36020

HB30..RHD..WOC

COLD SPEC

 1
44350 - PULLEY ASSY, POWER STEERING IDLE
16630-56020

BB20,30..ARL,GEN

 1
44350-36011

HB3#

 1
44369 - BRACKET, OIL RESERVOIR, NO.1
44369-36010

BB20,21,30,HB3#..ARL,GEN,ME

 2
44369 - BRACKET, OIL RESERVOIR, NO.1
44369-36010

BB20,21,30,HB3#..ARL,GEN,ME

 2
44379 - BRACKET, OIL RESERVOIR, NO.2
44379-36050

HB30

 1
44379-36040

BB20,21,30..ARL,GEN,ME

 1
44386A - SUPPORT, OIL RESERVOIR
44386-36050

HB30

 1
44386-36040

BB20,21,30..ARL,GEN,ME

 1
44411 - HOSE, PRESSURE FEED
44411-36220

HB3#..RHD

 1
44411-36050

BB2#,30..RHD

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-36020

BB20,21,22,30..RHD

 1
44416-36040

HB3#..RHD

 1
44417B - HOSE, RETURN TUBE(FOR RETURN TUBE TO VANE PUMP)
90445-18026

HB30..RHD

 1
90445-18110

BB20,21,30..ARL,GEN,ME

 1
44423 - TUBE, OIL PUMP TO GEAR BOX
44423-36060

HB3#..RHD

 1
44423-36050

BB20,30..ARL,GEN

 1
44423-36200

HB3#..RHD

 1
44423F - BOLT, UNION
90401-14003

BB20,30..ARL,GEN

 3
90401-16004

BB22,FB30,HB3#,HDB30,HZB30,RB20

PUMP SIDE

 1
44423F - BOLT, UNION
90401-14003

BB20,30..ARL,GEN

 3
90401-16004

BB22,FB30,HB3#,HDB30,HZB30,RB20

PUMP SIDE

 1
44423F - BOLT, UNION
90401-14003

BB20,30..ARL,GEN

 3
90401-16004

BB22,FB30,HB3#,HDB30,HZB30,RB20

PUMP SIDE

 1
44423G - GASKET, UNION BOLT
90430-14235

BB20,30..ARL,GEN

 6
44423G - GASKET, UNION BOLT
90430-14235

BB20,30..ARL,GEN

 6
44423G - GASKET, UNION BOLT
90430-14235

BB20,30..ARL,GEN

 6
44423G - GASKET, UNION BOLT
90430-14235

BB20,30..ARL,GEN

 6
44423G - GASKET, UNION BOLT
90430-14235

BB20,30..ARL,GEN

 6
44423G - GASKET, UNION BOLT
90430-14235

BB20,30..ARL,GEN

 6
44441 - BRACKET, PUMP, FRONT
44441-36040

BB20,30..ARL,GEN

 1
44441-36050

HB3#

 1
44442 - BRACKET, PUMP, REAR
44442-36090

HB3#

 1
44442-36030

BB20,30..ARL,GEN

 1
44447 - BRACKET, POWER STEERING OIL COOLER TUBE SUPPORT
44447-36040

BB2#,30..ARL,GEN,ME

 1
44447-36051

HB3#..RHD

 1
44457C - BRACKET, POWER STEERING TUBE SUPPORT, NO.1
44457-36030

BB20,21,30..ARL,GEN,ME

 1
Common parts
90119-10019
90119-10045
90119-10055
90170-08204
90460-01001
90461-10494
90463-20303
90467-16008
91611-60816
91611-60820
91611-60828
91611-61020
91611-61025
91611-61055
91651-60620
91656-60825
91659-61230
96991-14080
Linked diagrams
1605
