HB30L-MR (1986)

Toyota Coaster

Production Oct 1986 - Jan 1990
Engine 2H
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

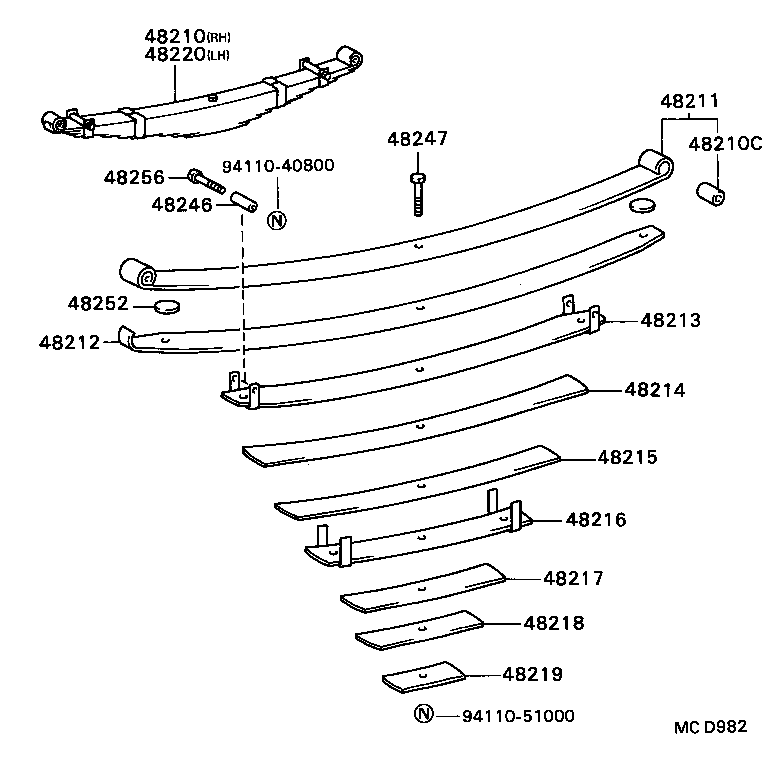

ILLUST NO. 2 OF 3(8610- )FB30,HB30,HZB30..GEN,ME

Click highlighted areas on diagram

diagram 48210 48210C 48211 48212 48213 48214 48215 48216 48217 48218 48219 48220 48246 48247 48252 48256 9411040800 9411051000
Part # Description Qty Price
48210C - BUSH(FOR REAR SPRING LEAF)
90389-16006

BB20,30,RB20

RR

 2
90389-16005

HZB30..ARL;BB20,21,22,30,FB30,HB3#,HDB30,RB20

FR

 2
Common parts
94110-40800
94110-51000
