HB30L-MDZ (1986)

Toyota Coaster

Production Oct 1986 - Jan 1990
Engine 2H
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

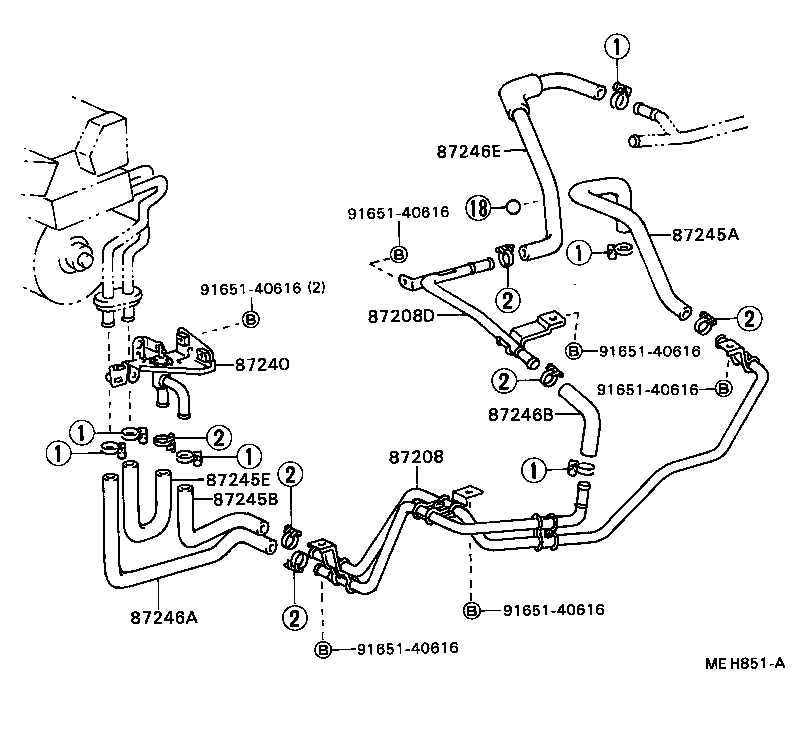

ILLUST NO. 1 OF 3(8610-9001)HB30..LHD

Click highlighted areas on diagram

diagram 87208 87208D 87240 87245A 87245B 87245E 87246A 87246B 87246E 9165140616 9165140616 9165140616 9165140616 9165140616 9165140616
Part # Description Qty Price
87208 - PIPE SUB-ASSY, HEATER WATER
87208-90B05

BB2#,3#

 1
87208D - PIPE SUB-ASSY, HEATER WATER, D
87208-90B23

HB30..LHD

 1
87240 - VALVE ASSY, HEATER WATER
87240-90B02

BB20,21,3#,FB30,HB30,HDB30,HZB30,RB20..LHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-90B60

HB30..LHD

 1
87245E - HOSE, HEATER WATER, INLET E
87245-90B00

BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-90B55

HB30..LHD

 1
87245-90B04

BB20,21,23,3#,RB20

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-90B25

BB2#,3#

 1
Common parts
91651-40616

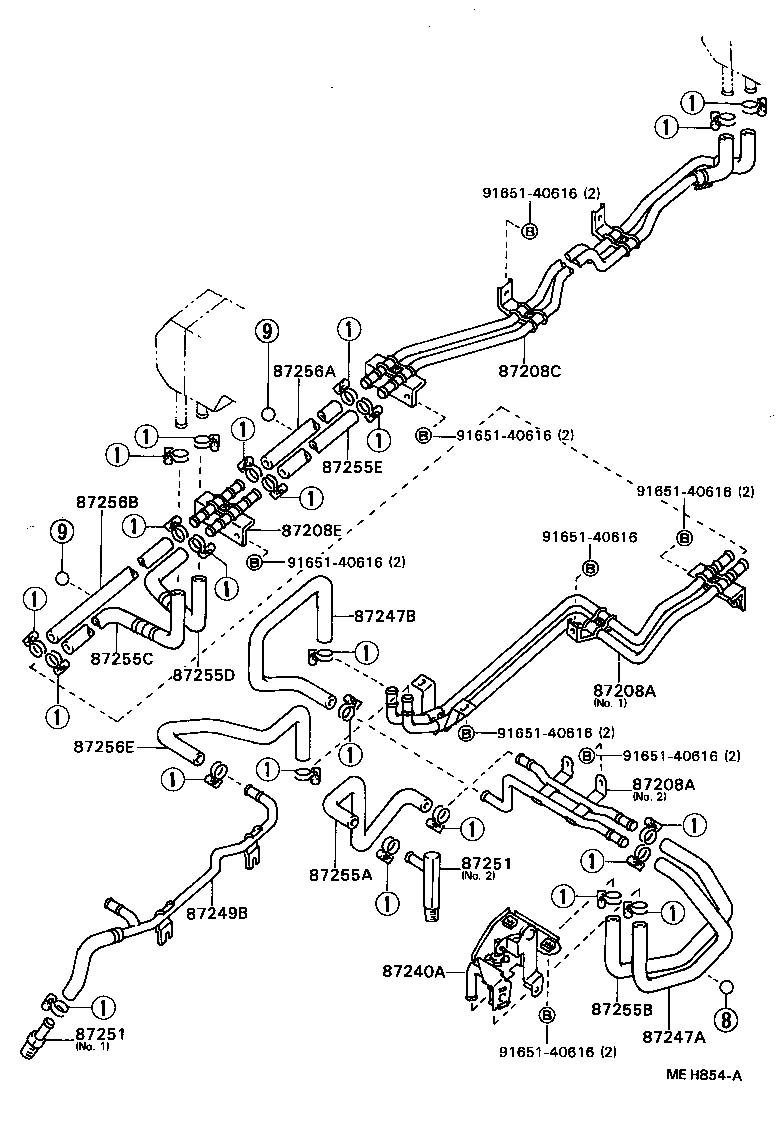

ILLUST NO. 2 OF 3(8610-9001)HB30..LHD

Click highlighted areas on diagram

diagram 87208A 87208A 87208C 87208E 87240A 87247A 87247B 87249B 87251 87251 87255A 87255B 87255C 87255D 87255E 87256A 87256B 87256E 9165140616 9165140616 9165140616 9165140616 9165140616 9165140616 9165140616 9165140616
Part # Description Qty Price
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-90B06

BB20,21,FB30,HB30,HDB30,HZB30,RB20..LHD

HB30,FB30,HDB30,HZB30:NO.1

 1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-90B06

BB20,21,FB30,HB30,HDB30,HZB30,RB20..LHD

HB30,FB30,HDB30,HZB30:NO.1

 1
87240A - VALVE ASSY, REAR HEATER WATER
87240-90B03

BB20,21,FB30,HB30,HDB30,HZB30,RB20..LHD

 1
87249B - PIPE, HEATER WATER OUTLET, B
87209-90B20

HB30

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-30200

HB3#

NO.1

 1
87251-60010

HB30

NO.2

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-30200

HB3#

NO.1

 1
87251-60010

HB30

NO.2

 1
87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
87245-90B07

HB30

 1
Common parts
91651-40616
