HB30L-MDZ (1986)

Toyota Coaster

Production Oct 1986 - Jan 1990
Engine 2H
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

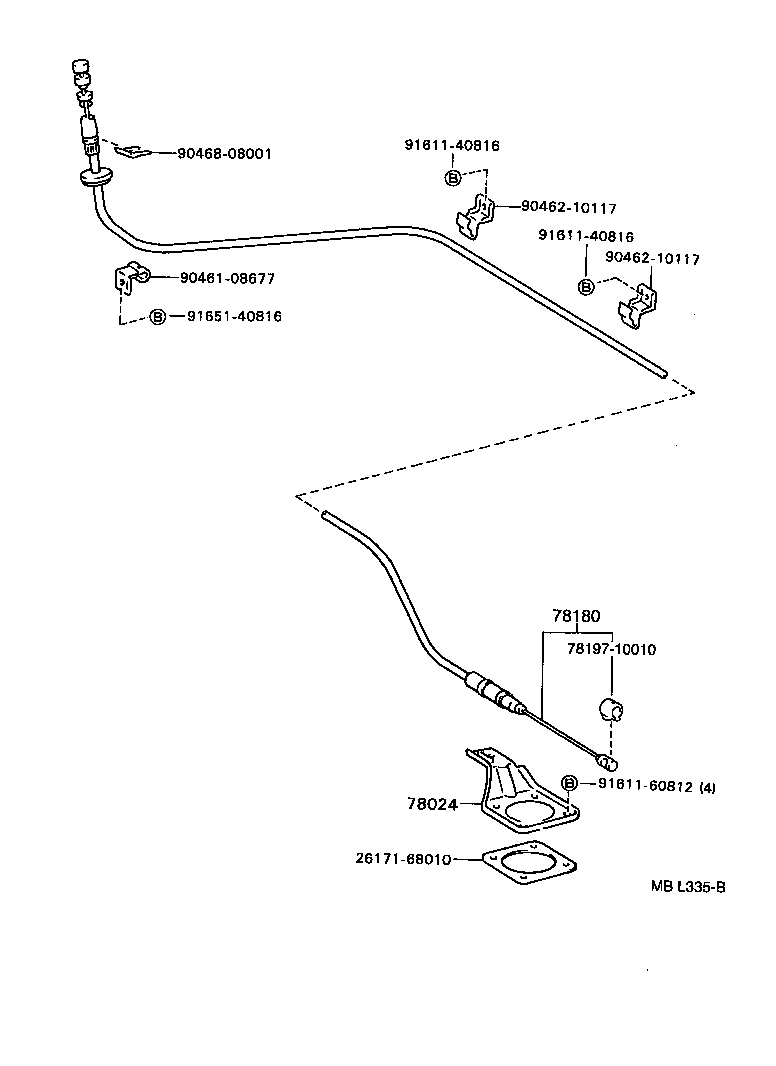

ILLUST NO. 2 OF 2(8610-9001)HB30..LHD

Click highlighted areas on diagram

diagram 2617168010 78024 78180 7819710010 9046108677 9046210117 9046210117 9046808001 9161140816 9161140816 9161160812 9165140816
Part # Description Qty Price
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-90B00

BB20,21,30

 1
78184-90B01

HB30

 1
78180 - WIRE ASSY, ACCELERATOR
78180-90B01

BB20,21,30..LHD

 1
78180-90B09

HB30..LHD

 1
Common parts
26171-68010
78197-10010
90461-08677
90462-10117
90468-08001
91611-40816
91611-60812
91651-40816
