HB30L-MDZ (1986)
Toyota Coaster
Production
Oct 1986
-
Jan 1990
Engine
2H
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8610- )HB30,HZB30..LHD..HRF..WOC

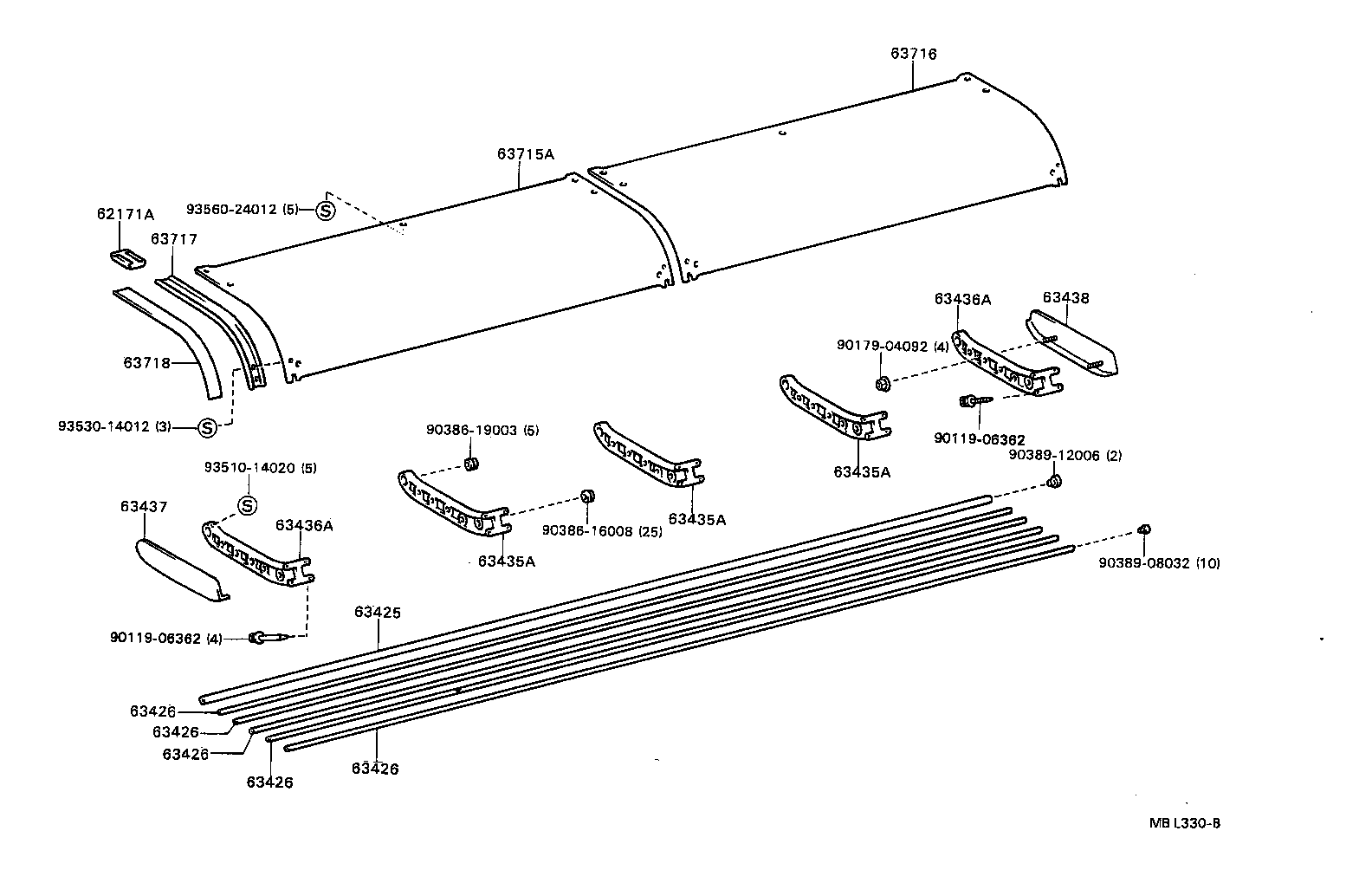

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63716 - PROTECTOR, ROOF LINING, REAR | ||||
| 63716-90B14 |
HB30..LHD..HRF..WOC |
1 | ||
| 63716-90B15 |
HB30..LHD..HRF..WOC W/SPEAKER |
1 | ||
| Common parts | ||||
| 90119-06362 | ||||
| 90179-04092 | ||||
| 90386-16008 | ||||
| 90386-19003 | ||||
| 90389-08032 | ||||
| 90389-12006 | ||||
| 93510-14020 | ||||
| 93530-14012 | ||||
| 93560-24012 | ||||
