HB30L-MDZ (1986)
Toyota Coaster
(8610-9001)HB30..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44319 - PULLEY, VANE PUMP DRIVE | ||||
| 44319-36030 |
HB30..WOC |
1 | ||
| 44319 - PULLEY, VANE PUMP DRIVE | ||||
| 44319-36030 |
HB30..WOC |
1 | ||
| 44350 - PULLEY ASSY, POWER STEERING IDLE | ||||
| 16630-56020 |
BB20,30..ARL,GEN |
1 | ||
| 44350-36011 |
HB3# |
1 | ||
| 44369 - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44369-36010 |
BB20,21,30,HB3#..ARL,GEN,ME |
2 | ||
| 44379 - BRACKET, OIL RESERVOIR, NO.2 | ||||
| 44379-36050 |
HB30 |
1 | ||
| 44379-36040 |
BB20,21,30..ARL,GEN,ME |
1 | ||
| 44386A - SUPPORT, OIL RESERVOIR | ||||
| 44386-36050 |
HB30 |
1 | ||
| 44386-36040 |
BB20,21,30..ARL,GEN,ME |
1 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-36060 |
BB20,21,30..LHD..(GEN,ME) |
1 | ||
| 44411-36260 |
HB30..LHD |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-36170 |
HB30..LHD |
1 | ||
| 44416-36230 |
HB30..LHD |
1 | ||
| 44416-36030 |
BB20,21,30..LHD..(GEN,ME) |
1 | ||
| 44417 - TUBE, RETURN, NO.2 | ||||
| 44417-36110 |
HB30..LHD |
1 | ||
| 44417-36020 |
BB20,21,30..ARL,GEN,ME |
1 | ||
| 44417A - HOSE, RETURN TUBE (FOR RETURN TUBE TO RETURN TUBE NO.2) | ||||
| 90445-18109 |
BB2#,3#..ARL,GEN,ME |
1 | ||
| 44417B - HOSE, RETURN TUBE(FOR RETURN TUBE TO VANE PUMP) | ||||
| 90445-18110 |
BB20,21,30..ARL,GEN,ME |
1 | ||
| 90445-18132 |
HB30..LHD |
1 | ||
| 44423 - TUBE, OIL PUMP TO GEAR BOX | ||||
| 44423-36050 |
BB20,30..ARL,GEN |
1 | ||
| 44423-36080 |
FB30,HB30..LHD |
1 | ||
| 44423F - BOLT, UNION | ||||
| 90401-14003 |
BB20,30..ARL,GEN |
3 | ||
| 90401-16004 |
BB22,FB30,HB3#,HDB30,HZB30,RB20 PUMP SIDE |
1 | ||
| 44423F - BOLT, UNION | ||||
| 90401-14003 |
BB20,30..ARL,GEN |
3 | ||
| 90401-16004 |
BB22,FB30,HB3#,HDB30,HZB30,RB20 PUMP SIDE |
1 | ||
| 44423F - BOLT, UNION | ||||
| 90401-14003 |
BB20,30..ARL,GEN |
3 | ||
| 90401-16004 |
BB22,FB30,HB3#,HDB30,HZB30,RB20 PUMP SIDE |
1 | ||
| 44423G - GASKET, UNION BOLT | ||||
| 90430-14235 |
BB20,30..ARL,GEN |
6 | ||
| 44423G - GASKET, UNION BOLT | ||||
| 90430-14235 |
BB20,30..ARL,GEN |
6 | ||
| 44423G - GASKET, UNION BOLT | ||||
| 90430-14235 |
BB20,30..ARL,GEN |
6 | ||
| 44423G - GASKET, UNION BOLT | ||||
| 90430-14235 |
BB20,30..ARL,GEN |
6 | ||
| 44423G - GASKET, UNION BOLT | ||||
| 90430-14235 |
BB20,30..ARL,GEN |
6 | ||
| 44423G - GASKET, UNION BOLT | ||||
| 90430-14235 |
BB20,30..ARL,GEN |
6 | ||
| 44441 - BRACKET, PUMP, FRONT | ||||
| 44441-36040 |
BB20,30..ARL,GEN |
1 | ||
| 44441-36050 |
HB3# |
1 | ||
| 44442 - BRACKET, PUMP, REAR | ||||
| 44442-36090 |
HB3# |
1 | ||
| 44442-36030 |
BB20,30..ARL,GEN |
1 | ||
| 44447 - BRACKET, POWER STEERING OIL COOLER TUBE SUPPORT | ||||
| 44447-36040 |
BB2#,30..ARL,GEN,ME |
1 | ||
| 44457C - BRACKET, POWER STEERING TUBE SUPPORT, NO.1 | ||||
| 44457-36030 |
BB20,21,30..ARL,GEN,ME |
1 | ||
| Common parts | ||||
| 90119-10019 | ||||
| 90119-10045 | ||||
| 90119-10055 | ||||
| 90119-10080 | ||||
| 90170-08204 | ||||
| 90460-01001 | ||||
| 90467-16008 | ||||
| 90949-01383 | ||||
| 91611-60614 | ||||
| 91611-60814 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 91611-60828 | ||||
| 91611-61020 | ||||
| 91611-61025 | ||||
| 91616-60825 | ||||
| 91651-60620 | ||||
| 91651-60820 | ||||
| 91656-60825 | ||||
| 91659-61230 | ||||
| 94110-51000 | ||||
| 96991-14080 | ||||

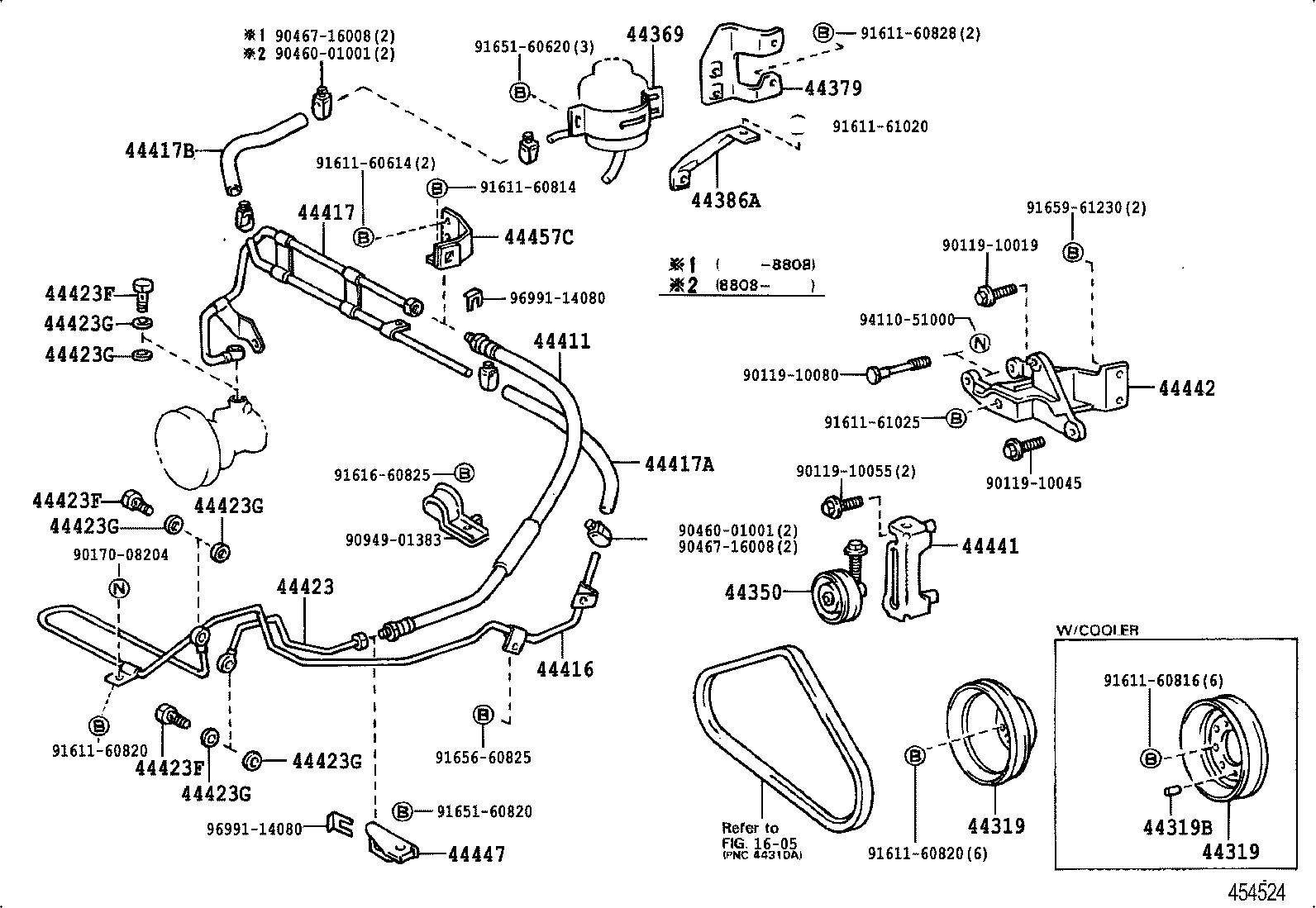

| Linked diagrams | ||||
| 1605 | ||||
