FB30L-MDR (1986)
Toyota Coaster
(8808-9301)EUR ; (8808-9301)BB2#,FB30,HB30..WC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-36181 |
BB2#,FB30,HB30..WC |
1 | ||
| 88320-36250 |
BB2#,FB30,HB30..WC |
1 | ||
| 88320A - BOLT, THROUGH | ||||
| 88329-36030 |
BB2#,FB30,RB20..WC NO.1 |
5 | ||
| 88329-36040 |
BB2#,FB30,RB20..WC NO.2 |
2 | ||
| 88320A - BOLT, THROUGH | ||||
| 88329-36030 |
BB2#,FB30,RB20..WC NO.1 |
5 | ||
| 88329-36040 |
BB2#,FB30,RB20..WC NO.2 |
2 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88323-36070 |
BB2#,FB30,RB20..WC RR |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88323-36070 |
BB2#,FB30,RB20..WC RR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88306-36030 |
BB2#,FB30,RB20..WC RR |
1 | ||
| 88306-36020 |
BB2#,FB30,RB20..WC FR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88306-36030 |
BB2#,FB30,RB20..WC RR |
1 | ||
| 88306-36020 |
BB2#,FB30,RB20..WC FR |
1 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-36040 |
BB2#,FB30,RB20..WC |
1 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-36040 |
BB2#,FB30,RB20..WC |
1 | ||
| 88322 - VALVE, COOLER COMPRESSOR SUCTION SERVICE | ||||
| 88371-36140 |
BB2#,FB30,RB20..WC |
1 | ||
| 88325A - PIN, CYLINDER BLOCK | ||||
| 90099-08058 |
BB2#,FB30,RB20..WC |
1 | ||
| 88325A - PIN, CYLINDER BLOCK | ||||
| 90099-08058 |
BB2#,FB30,RB20..WC |
1 | ||
| 88332 - VALVE, COOLER COMPRESSOR DISCHARGE SERVICE | ||||
| 88372-36130 |
BB2#,FB30,RB20..WC |
1 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 88335-36030 |
BB2#,FB30,RB20..WC |
1 | ||
| 88360 - SEAL ASSY, COOLER COMPRESSOR SHAFT | ||||
| 88360-36050 |
BB2#,FB30,RB20..WC |
1 | ||

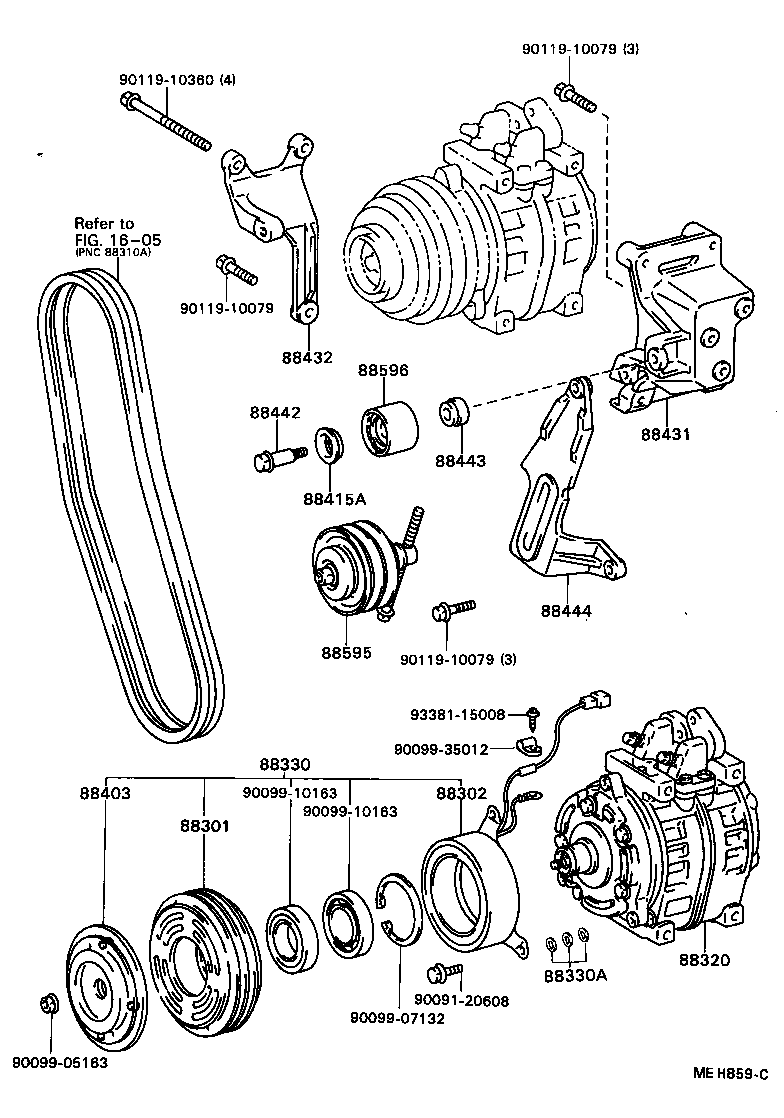

ILLUST NO. 1 OF 2(8610-9301)FB30..WC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-36181 |
BB2#,FB30,HB30..WC |
1 | ||
| 88320-36250 |
BB2#,FB30,HB30..WC |
1 | ||
| 88330 - CLUTCH ASSY, MAGNET | ||||
| 88410-36250 |
FB30,RB20..WC |
1 | ||
| 88415A - COVER, DUST | ||||
| 88415-36050 |
FB30..WC |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-36450 |
FB30..WC |
1 | ||
| 88431-36280 |
FB30..WC |
1 | ||
| 88432 - BRACKET, COMPRESSOR MOUNTING, NO.2 | ||||
| 88434-36150 |
FB30..WC |
1 | ||
| 88434-36140 |
FB30..WC |
1 | ||
| 88442 - SHAFT, IDLE PULLEY | ||||
| 88442-36010 |
FB30..WC |
1 | ||
| 88443 - COLLAR, IDLE PULLEY | ||||
| 88443-36010 |
FB30..WC |
1 | ||
| 88444 - BRACKET, IDLE PULLEY | ||||
| 88444-36130 |
FB30..WC |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-36110 |
FB30..WC |
1 | ||
| 88440-36130 |
BB2#,FB30,RB20..WC |
1 | ||
| 88596 - PULLEY ASSY, IDLE, NO.2 | ||||
| 88440-36100 |
FB30..WC |
1 | ||
| Common parts | ||||
| 90091-20608 | ||||
| 90099-05163 | ||||
| 90099-07132 | ||||
| 90099-10163 | ||||
| 90099-35012 | ||||
| 90119-10079 | ||||
| 90119-10360 | ||||
| 93381-15008 | ||||
| Linked diagrams | ||||
| 1605 | ||||
