FB30L-MDR (1986)

Toyota Coaster

Production Oct 1986 - Jan 1993
Engine 3F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

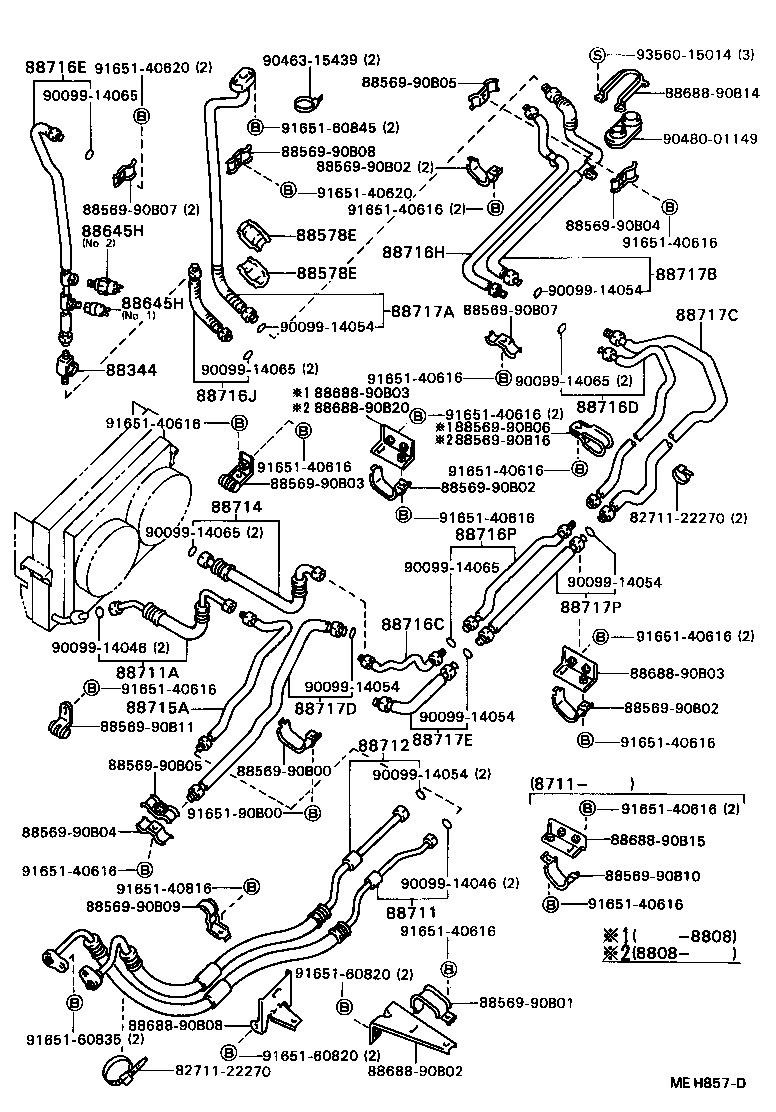

ILLUST NO. 2 OF 2(8610- )FB30

Click highlighted areas on diagram

diagram 8271122270 8271122270 88344 8856990B00 8856990B01 8856990B02 8856990B02 8856990B02 8856990B03 8856990B04 8856990B04 8856990B05 8856990B05 8856990B06 8856990B07 8856990B07 8856990B08 8856990B09 8856990B10 8856990B11 8856990B16 88578E 88578E 88645H 88645H 8868890B02 8868890B03 8868890B03 8868890B08 8868890B14 8868890B15 8868890B20 88711 88711A 88712 88714 88715A 88716C 88716D 88716E 88716H 88716J 88716P 88717A 88717B 88717C 88717D 88717E 88717P 9009914046 9009914046 9009914054 9009914054 9009914054 9009914054 9009914054 9009914054 9009914065 9009914065 9009914065 9009914065 9009914065 9046315439 9048001149 9165140616 9165140616 9165140616 9165140616 9165140616 9165140616 9165140616 9165140616 9165140616 9165140616 9165140616 9165140616 9165140616 9165140616 9165140616 9165140620 9165140620 9165140816 9165160820 9165160820 9165160835 9165160845 9165190B00 9356015014
Part # Description Qty Price
88344 - GLASS SUB-ASSY, SIGHT
88344-90B00

BB2#,FB30,HB30,HZB30,RB20..WC

 1
88578E - PACKING, COOLER PIPE, NO.2
88578-90B01

BB2#,FB30,HB30,HZB30,RB20..WC

 2
88578E - PACKING, COOLER PIPE, NO.2
88578-90B01

BB2#,FB30,HB30,HZB30,RB20..WC

 2
88645H - SWITCH, PRESSURE NO.1
88645-30250

BB2#,FB30,HB30,HZB30,RB20..WC

NO.2

 1
88645H - SWITCH, PRESSURE NO.1
88645-30250

BB2#,FB30,HB30,HZB30,RB20..WC

NO.2

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-90B10

FB30..WC

 1
88711A - HOSE, COOLER REFRIGERANT DISCHARGE, NO.2
88711-90B03

BB2#,FB30,HB30,HZB30,RB20..WC

 1
88711-90B03

HDB30..EUR;BB2#,FB30,HB30,HZB30,RB20

HONG KONG SPEC

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-90B10

FB30..WC

 1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88721-90B00

BB2#,FB30,HB30,HZB30,RB20..WC

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-90B04

FB30..WC

 1
88715-90B11

BB2#,FB30,HZB30,RB20..WC

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-90B03

BB2#,FB30,HB30,HZB30,RB20..WC

 1
88716D - PIPE, COOLER REFRIGERANT LIQUID, D
88716-90B04

BB2#,FB30,HB30,RB20..WC

 1
88716-90B11

BB2#,FB30,HB30,HZB30,RB20..WC

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-90B07

BB20,21,FB30,HZB30,RB20..SRF..WC

 1
88716H - PIPE, COOLER REFRIGERANT LIQUID, H
88716-90B10

BB21,22,FB30,HB30,HZB30,RB20

 1
88716-90B05

BB20..15S;BB2#,FB30,HB30,RB20..WC

 1
88716J - PIPE, COOLER REFRIGERANT LIQUID, J
88716-90B08

BB2#,FB30,HB30,HZB30,RB20..WC

 1
88716P - PIPE, COOLER REFRIGERANT LIQUID, P
88716-90B06

FB30,HB30,HZB30..WC

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-90B08

BB20,21,FB30,HZB30,RB20..SRF..WC

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-90B04

BB2#,FB30,HB30,RB20..WC

 1
88717C - PIPE, COOLER REFRIGERANT SUCTION, C
88717-90B22

BB2#,FB30,HB30,HZB30,RB20..WC

 1
88717-90B03

BB2#,FB30,HB30,RB20..WC

 1
88717D - PIPE, COOLER REFRIGERANT SUCTION, D
88717-90B18

FB30..WC

 1
88717P - PIPE, COOLER REFRIGERANT SUCTION, P
88717-90B05

FB30,HB30,HZB30..WC

 1
Common parts
82711-22270
88569-90B00
88569-90B01
88569-90B02
88569-90B03
88569-90B04
88569-90B05
88569-90B06
88569-90B07
88569-90B08
88569-90B09
88569-90B10
88569-90B11
88569-90B16
88688-90B02
88688-90B03
88688-90B08
88688-90B14
88688-90B15
88688-90B20
90099-14046
90099-14054
90099-14065
90463-15439
90480-01149
91651-40616
91651-40620
91651-40816
91651-60820
91651-60835
91651-60845
91651-90B00
93560-15014
