Toyota Coaster FB30 HEATING & AIR CONDITIONING - WATER PIPING

Part #	Description	Period	Qty
87208D - PIPE SUB-ASSY, HEATER WATER, D
87208-90B22	FB30	10/1986 - 01/1993	1
87209 - HOSE SUB-ASSY, WATER
87209-90B30	FB30	10/1986 - 01/1993	1
87240 - VALVE ASSY, HEATER WATER
87240-90B02	BB20,21,3#,FB30,HB30,HDB30,HZB30,RB20..LHD	05/1982 - 01/1993	1
87245A - HOSE, HEATER WATER, INLET A
87245-90B47	FB30	10/1986 - 01/1993	1
87245B - HOSE, HEATER WATER, INLET B
87245-90B27	FB30,HB30..LHD	10/1986 - 01/1993	1
87245E - HOSE, HEATER WATER, INLET E
87245-90B00	BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20	05/1982 - 01/1993	1
87246A - HOSE, HEATER WATER, OUTLET A
87245-90B04	BB20,21,23,3#,RB20	05/1982 - 01/1993	1
87245-90B55	FB30	10/1986 - 01/1993	1
87246B - HOSE, HEATER WATER, OUTLET B
87245-90B57	FB30	10/1986 - 01/1993	1
87246E - HOSE, HEATER WATER, OUTLET E
87245-90B25	BB2#,3#	05/1982 - 01/1993	1
87245-90B56	FB30	10/1986 - 01/1993	1
Common parts
90339-16001
91651-40616

Part #	Description	Period	Qty
87208 - PIPE SUB-ASSY, HEATER WATER
87208-90B21	FB30	10/1986 - 01/1993	1
87208-90B05	BB2#,3#	05/1982 - 01/1993	1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-90B06	BB20,21,FB30,HB30,HDB30,HZB30,RB20..LHD HB30,FB30,HDB30,HZB30:NO.1	05/1982 - 01/1993	1
87208-90B17	FB30,HB30..LHD NO.2	10/1986 - 01/1993	1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-90B06	BB20,21,FB30,HB30,HDB30,HZB30,RB20..LHD HB30,FB30,HDB30,HZB30:NO.1	05/1982 - 01/1993	1
87208-90B17	FB30,HB30..LHD NO.2	10/1986 - 01/1993	1
87208C - PIPE SUB-ASSY, HEATER WATER, C
87209-90B15	FB30,HB30,HDB30,HZB30..LHD	10/1986 - 01/1993	1
87208E - PIPE SUB-ASSY, HEATER WATER, E
87208-90B09	FB30,HDB30,HZB30	10/1986 - 01/1993	1
87240A - VALVE ASSY, REAR HEATER WATER
87240-90B03	BB20,21,FB30,HB30,HDB30,HZB30,RB20..LHD	05/1982 - 01/1993	1
87245A - HOSE, HEATER WATER, INLET A
87245-90B47	FB30	10/1986 - 01/1993	1
87246E - HOSE, HEATER WATER, OUTLET E
87245-90B25	BB2#,3#	05/1982 - 01/1993	1
87245-90B56	FB30	10/1986 - 01/1993	1
87247A - HOSE, HEATER WATER, A
87245-90B51	FB30,HB30..LHD	10/1986 - 01/1993	1
87247B - HOSE, HEATER WATER, B
87245-90B52	FB30,HB30..LHD	10/1986 - 01/1993	1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
87245-90B49	FB30	10/1986 - 01/1993	1
87255B - HOSE, REAR HEATER WATER INLET, B
87245-90B50	FB30,HB30..LHD	10/1986 - 01/1993	1
87255C - HOSE, REAR HEATER WATER INLET, C
87209-90B11	HZB30..DLX,STD;FB30,HB30,HDB30	10/1986 - 01/1993	1
87255D - HOSE, REAR HEATER WATER INLET, D
87209-90B12	HZB30..DLX,STD;FB30,HB30,HDB30	10/1986 - 01/1993	1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
99556-30700	FB30,HB30,HDB30,HZB30 *H,L=630	10/1986 - 01/1993	1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
99556-30700	FB30,HB30,HDB30,HZB30 *H,L=630	10/1986 - 01/1993	1
87256B - HOSE, REAR HEATER WATER OUTLET, B
99556-30980	FB30,HB30,HDB30,HZB30 *H,L=730	10/1986 - 01/1993	1
87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
87245-90B53	FB30	10/1986 - 01/1993	1
Common parts
91621-40812
91651-40616

FB30L-MDR (1986)

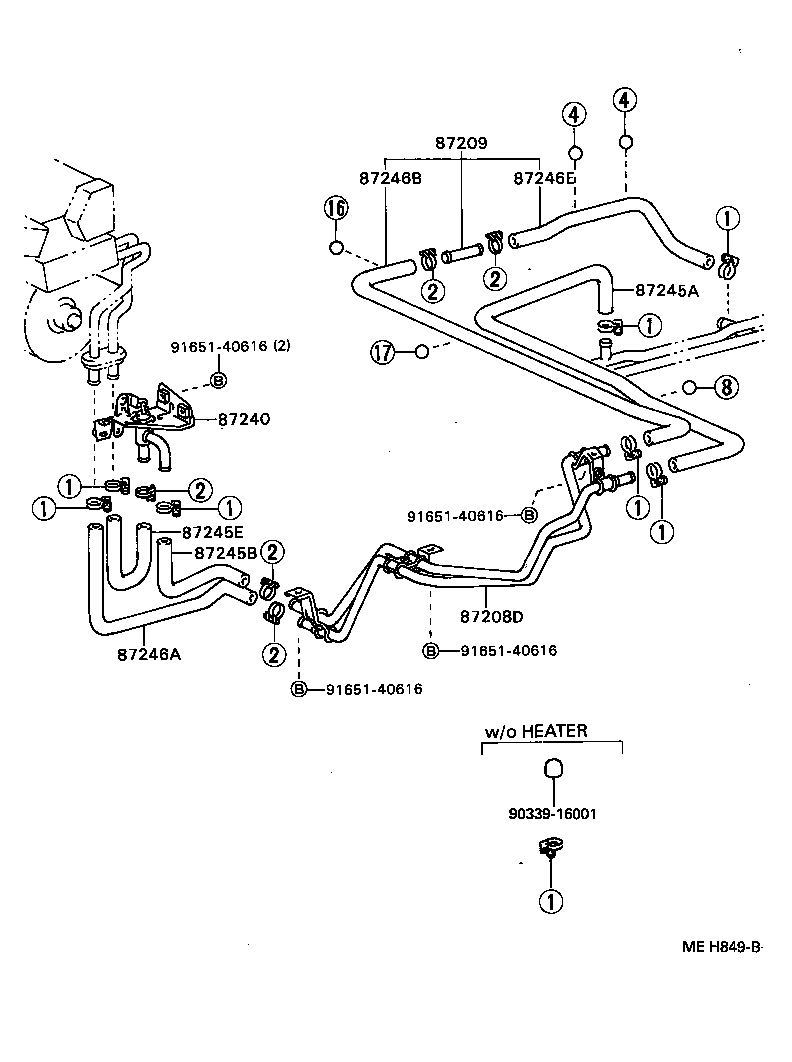

ILLUST NO. 1 OF 3(8610- )FB30

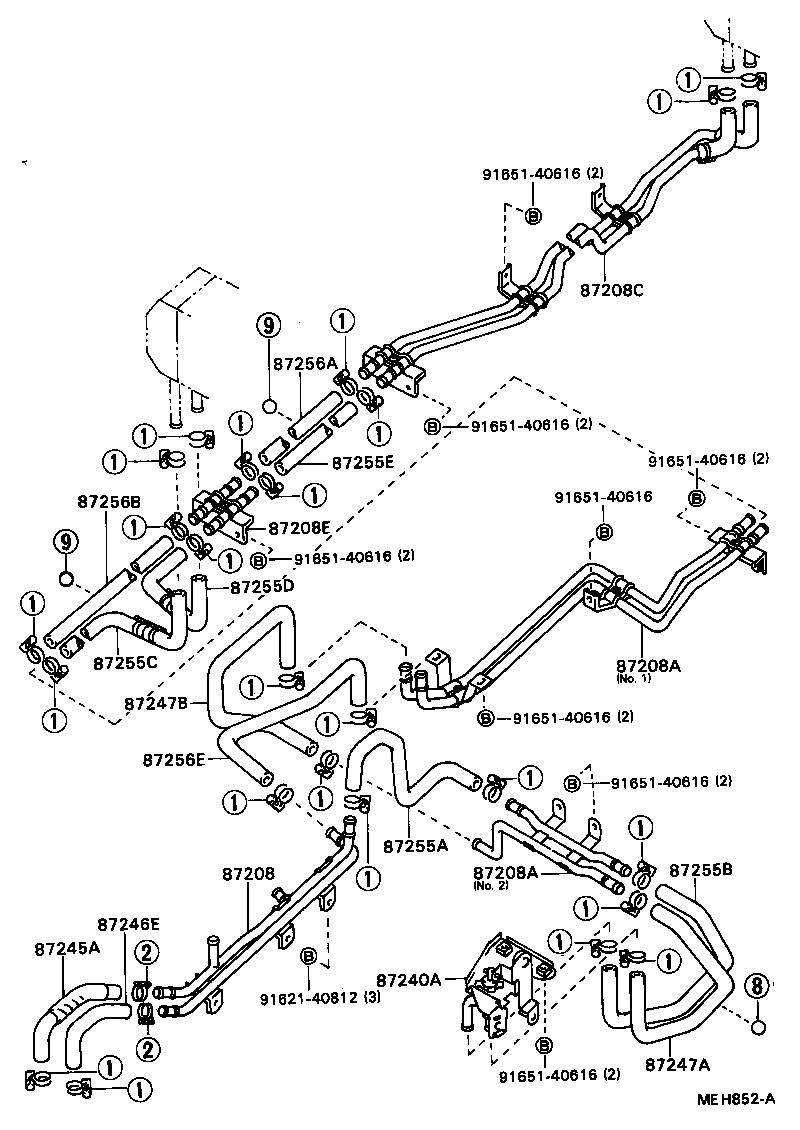

ILLUST NO. 2 OF 3(8610- )FB30
