FB30L-MDR (1986)

Toyota Coaster

Production Oct 1986 - Jan 1993
Engine 3F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8610- )FB30

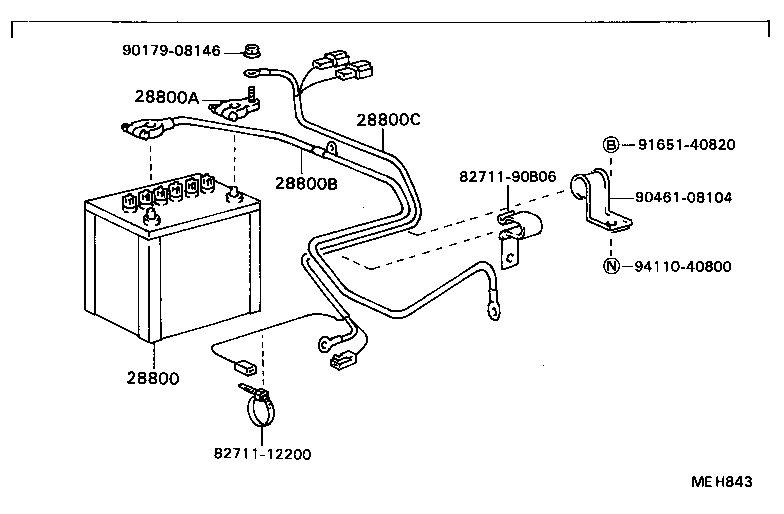

Click highlighted areas on diagram

diagram 28800 28800A 28800B 28800C 8271112200 8271190B06 9017908146 9046108104 9165140820 9411040800
Part # Description Qty Price
28800 - BATTERY
28800-14010

22R,3F..FB30,RB20..GEN,ME

55D23R,55D23R

 1
28800-30082

1HZ..HZB30;22R,3F,2H..FB30,HB30,RB20..DLX,EXS,STD

48D26R,48D26R(N50)

 2
28800-15010

22R,3F..FB30,RB20..GEN,ME

55D23R,55D23R

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05030

12HT,22R,13B,14B,3B,3F,1H#,2H..BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20

 1
28800B - CABLE, BATTERY TO GROUND
82123-90B05

3F..FB30

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82113-90B09

3F..FB30

 1
Common parts
82711-12200
82711-90B06
90179-08146
90461-08104
91651-40820
94110-40800
