FB30L-MDR (1986)
Toyota Coaster
ILLUST NO. 2 OF 2(8205-8808)BB20,21,30..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77252-36531 |
FB30 |
1 | ||
| 77251-36663 |
BB2#,30 |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95333-08030 |
BB21,30 *H,L=300 |
1 | ||
| 95333-08020 |
FB30 *H,L=150 |
1 | ||
| 95333-08015 |
FB30 *H,L=150 |
1 | ||
| 95332-08030 |
BB20,21,30 *H,L=300,ID=7.6 |
1 | ||
| 95332-08030 |
FB30,HB31 *H,L=260,ID=7.6 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08020 |
BB2#,30 *H,L=190,ID=7.6 |
1 | ||
| 95332-08020 |
FB30 *H,L=200,ID=7.6 |
1 | ||
| 95333-08020 |
FB30 L=200,ID=8 |
1 | ||
| 95333-08020 |
BB2#,30 *H,L=190 |
1 | ||
| 77242 - TUBE, FUEL MAIN, NO.2 | ||||
| 77252-36230 |
BB20,21,30..LHD |
1 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 95332-08020 |
BB2#,30 *H,L=190,ID=7.6 |
1 | ||
| 95333-08020 |
BB2#,30 *H,L=190 |
1 | ||
| 77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2) | ||||
| 95332-08040 |
BB2#,30 *H,L=360,ID=7.6 |
1 | ||
| 95333-08040 |
BB2#,30 *H,L=360 |
1 | ||
| 95333-08020 |
BB2#,30 L=200,ID=8 |
1 | ||
| Common parts | ||||
| 90461-08422 | ||||
| 90467-13007 | ||||
| 91611-40816 | ||||
| Linked diagrams | ||||
| 2302 | ||||

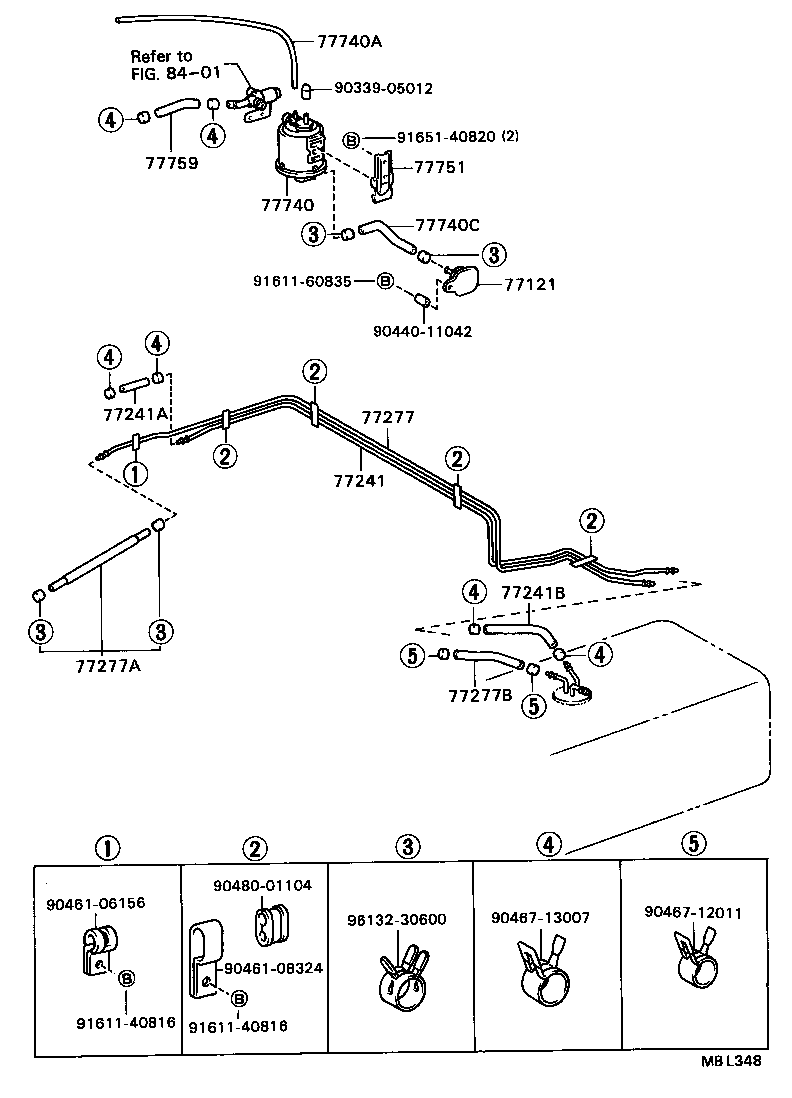

ILLUST NO. 2 OF 2(8610- )FB30
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77121 - PROTECTOR, FUEL TUBE | ||||
| 77243-36010 |
BB20,21,22,30,FB30,HB3#,HDB30 |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77252-36531 |
FB30 |
1 | ||
| 77251-36663 |
BB2#,30 |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95333-08020 |
FB30 *H,L=150 |
1 | ||
| 95333-08015 |
FB30 *H,L=150 |
1 | ||
| 95333-08030 |
BB21,30 *H,L=300 |
1 | ||
| 95332-08030 |
BB20,21,30 *H,L=300,ID=7.6 |
1 | ||
| 95332-08030 |
FB30,HB31 *H,L=260,ID=7.6 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08020 |
BB2#,30 *H,L=190,ID=7.6 |
1 | ||
| 95332-08020 |
FB30 *H,L=200,ID=7.6 |
1 | ||
| 95333-08020 |
FB30 L=200,ID=8 |
1 | ||
| 95333-08020 |
BB2#,30 *H,L=190 |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77255-36291 |
FB30 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 23273-61030 |
FB30 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95332-06020 |
FB30 *H,L=180 |
1 | ||
| 95333-06018 |
FB30 *H,L=180 |
1 | ||
| 95333-06020 |
FB30 *H,L=180 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77704-36020 |
FB30 |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 95411-10195 |
FB30 *H,L=1750 |
1 | ||
| 77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER) | ||||
| 90445-12122 |
FB30 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-60080 |
FB30 |
1 | ||
| 77759 - HOSE, CHARCOAL CANISTER | ||||
| 77759-36040 |
FB30 |
1 | ||
| Common parts | ||||
| 90339-05012 | ||||
| 90440-11042 | ||||
| 90461-06156 | ||||
| 90461-08324 | ||||
| 90467-12011 | ||||
| 90467-13007 | ||||
| 90480-01104 | ||||
| 91611-40816 | ||||
| 91611-60835 | ||||
| 91651-40820 | ||||
| 96132-30600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
