FB30L-MDR (1986)

Toyota Coaster

Production Oct 1986 - Jan 1993
Engine 3F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8610- )FB30,HB30,HZB30..LHD..DLX

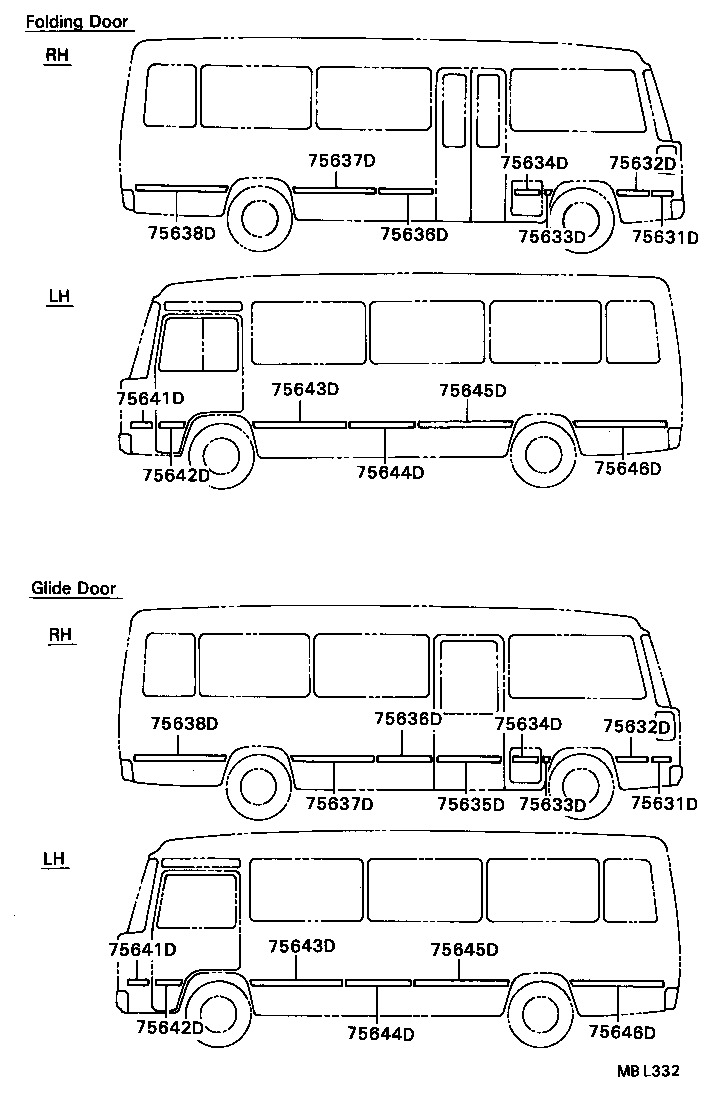

Click highlighted areas on diagram

diagram 75631D 75631D 75632D 75632D 75633D 75633D 75634D 75634D 75635D 75636D 75636D 75637D 75637D 75638D 75638D 75641D 75641D 75642D 75642D 75643D 75643D 75644D 75644D 75645D 75645D 75646D 75646D
Part # Description Qty Price
75631D - MOULDING, SIDE PANEL, LOWER NO.1 RH
75631-90B00

BB20,21,FB30,HB30,RB20..(DLX,EX,EXS)..(GEN,IRQ,ME)

 1
75631D - MOULDING, SIDE PANEL, LOWER NO.1 RH
75631-90B00

BB20,21,FB30,HB30,RB20..(DLX,EX,EXS)..(GEN,IRQ,ME)

 1
75632D - MOULDING, SIDE PANEL, LOWER NO.2 RH
75632-90B00

BB20,21,FB30,HB30,RB20..LHD..(DLX,EXS)

 1
75632D - MOULDING, SIDE PANEL, LOWER NO.2 RH
75632-90B00

BB20,21,FB30,HB30,RB20..LHD..(DLX,EXS)

 1
75633D - MOULDING, SIDE PANEL, LOWER NO.3 RH
75633-90B01

BB20,21,FB30,HB30,RB20..LHD..(DLX,EXS)

 1
75633D - MOULDING, SIDE PANEL, LOWER NO.3 RH
75633-90B01

BB20,21,FB30,HB30,RB20..LHD..(DLX,EXS)

 1
75634D - MOULDING, SIDE PANEL, LOWER NO.4 RH
75769-90B00

BB20,21,FB30,HB30,RB20..LHD..(DLX,EXS)

 1
75634D - MOULDING, SIDE PANEL, LOWER NO.4 RH
75769-90B00

BB20,21,FB30,HB30,RB20..LHD..(DLX,EXS)

 1
75636D - MOULDING, SIDE PANEL, LOWER NO.6 RH
75645-90B00

FB30,HB30,HZB30..LHD..DLX

 1
75645-90B01

FB30,HB30..LHD..DLX

W/GLIDE DOOR

 1
75636D - MOULDING, SIDE PANEL, LOWER NO.6 RH
75645-90B00

FB30,HB30,HZB30..LHD..DLX

 1
75645-90B01

FB30,HB30..LHD..DLX

W/GLIDE DOOR

 1
75637D - MOULDING, SIDE PANEL, LOWER NO.7 RH
75636-90B00

FB30,HB30,HZB30..LHD..DLX

 1
75637D - MOULDING, SIDE PANEL, LOWER NO.7 RH
75636-90B00

FB30,HB30,HZB30..LHD..DLX

 1
75638D - MOULDING, SIDE PANEL, LOWER NO.8 RH
75637-90B00

FB30,HB30,HZB30..LHD..DLX

 1
75638D - MOULDING, SIDE PANEL, LOWER NO.8 RH
75637-90B00

FB30,HB30,HZB30..LHD..DLX

 1
75641D - MOULDING, SIDE PANEL, LOWER NO.1 LH
75631-90B00

BB20,21,FB30,HB30,RB20..(DLX,EX,EXS)..(GEN,IRQ,ME)

 1
75641D - MOULDING, SIDE PANEL, LOWER NO.1 LH
75631-90B00

BB20,21,FB30,HB30,RB20..(DLX,EX,EXS)..(GEN,IRQ,ME)

 1
75642D - MOULDING, SIDE PANEL, LOWER NO.2 LH
75735-90B01

BB20,21,FB30,HB30,RB20..LHD..(DLX,EXS)

 1
75642D - MOULDING, SIDE PANEL, LOWER NO.2 LH
75735-90B01

BB20,21,FB30,HB30,RB20..LHD..(DLX,EXS)

 1
75643D - MOULDING, SIDE PANEL, LOWER NO.3 LH
75636-90B00

BB20,21,FB30,HB30,RB20..LHD..(DLX,EXS)

 1
75643D - MOULDING, SIDE PANEL, LOWER NO.3 LH
75636-90B00

BB20,21,FB30,HB30,RB20..LHD..(DLX,EXS)

 1
75644D - MOULDING, SIDE PANEL, LOWER NO.4 LH
75635-90B00

FB30,HB30,HZB30..LHD..DLX

 1
75644D - MOULDING, SIDE PANEL, LOWER NO.4 LH
75635-90B00

FB30,HB30,HZB30..LHD..DLX

 1
75645D - MOULDING, SIDE PANEL, LOWER NO.5 LH
75633-90B00

FB30,HB30,HZB30..LHD..DLX

 1
75645D - MOULDING, SIDE PANEL, LOWER NO.5 LH
75633-90B00

FB30,HB30,HZB30..LHD..DLX

 1
75646D - MOULDING, SIDE PANEL, LOWER NO.6 LH
75647-90B00

FB30,HB30,HZB30..LHD..DLX

 1
75646D - MOULDING, SIDE PANEL, LOWER NO.6 LH
75647-90B00

FB30,HB30,HZB30..LHD..DLX

 1
