FB30L-MDR (1986)

Toyota Coaster

Production Oct 1986 - Jan 1993
Engine 3F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

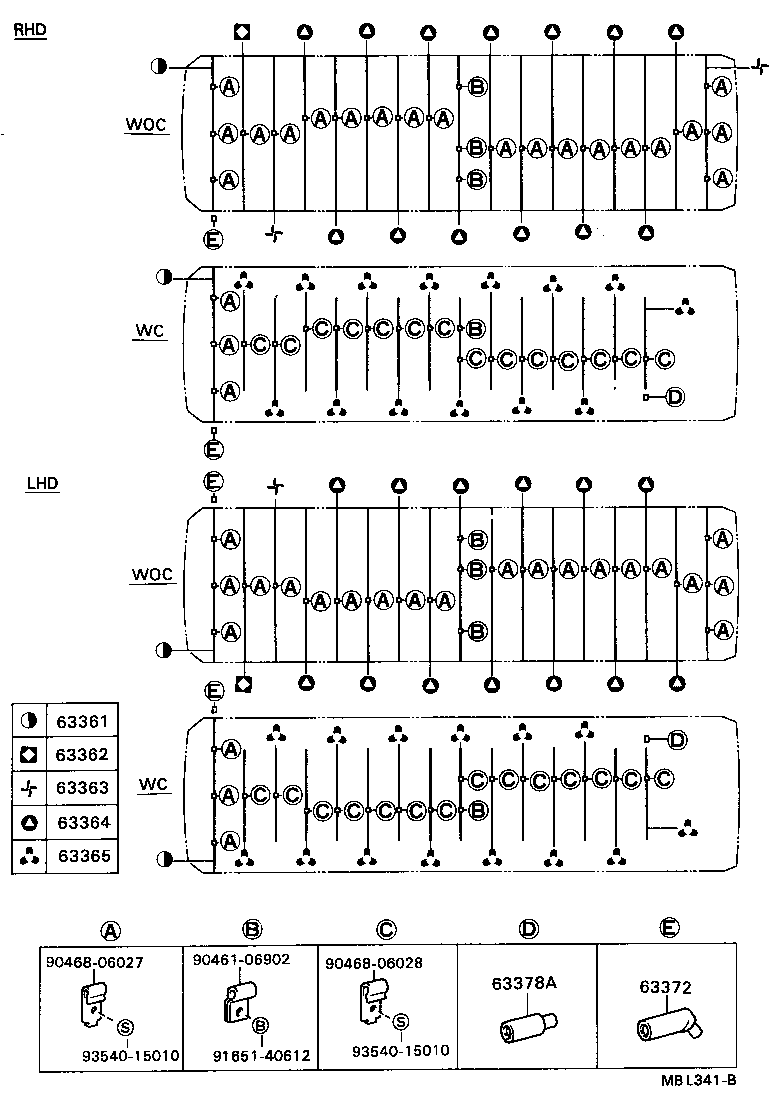

ILLUST NO. 2 OF 4(8610- )BB32,FB30,HB30,HZB30

Click highlighted areas on diagram

diagram 63361 63362 63363 63364 63365 63372 63378A 9046106902 9046806027 9046806028 9165140612 9354015010 9354015010
Part # Description Qty Price
63361 - SUPPORT, ROOF HEADLINING, NO.1
63361-90B00

BB20,21,FB30,HB30,HZB30,RB20..SRF

L=1663,H=25.5

 1
63361-90B02

BB20,21,FB30,HB30,HZB30,RB20..SRF

L=1663,H=20.5

 1
63361-90B04

BB20,21,FB30,HB30,HZB30,RB20..SRF

L=1663,H=30.5

 1
63365 - SUPPORT, ROOF HEADLINING, NO.5
63365-90B02

FB30,HZB30..SRF..WC

L=1017

 14
63365-90B00

FB30,HZB30..SRF..WC

L=1014

 14
63365-90B04

FB30,HZB30..SRF..WC

L=1011

 14
63372 - RETAINER, HEADLINING SUPPORT
63377-90B00

BB20,21,FB30,HZB30,RB20..SRF..WC

 30
63378A - RETAINER, ROOF HEADLINING SUPPORT, NO.2
63378-90B00

FB30,HB30,HZB30..WC

 28
Common parts
90461-06902
90468-06027
90468-06028
91651-40612
93540-15010

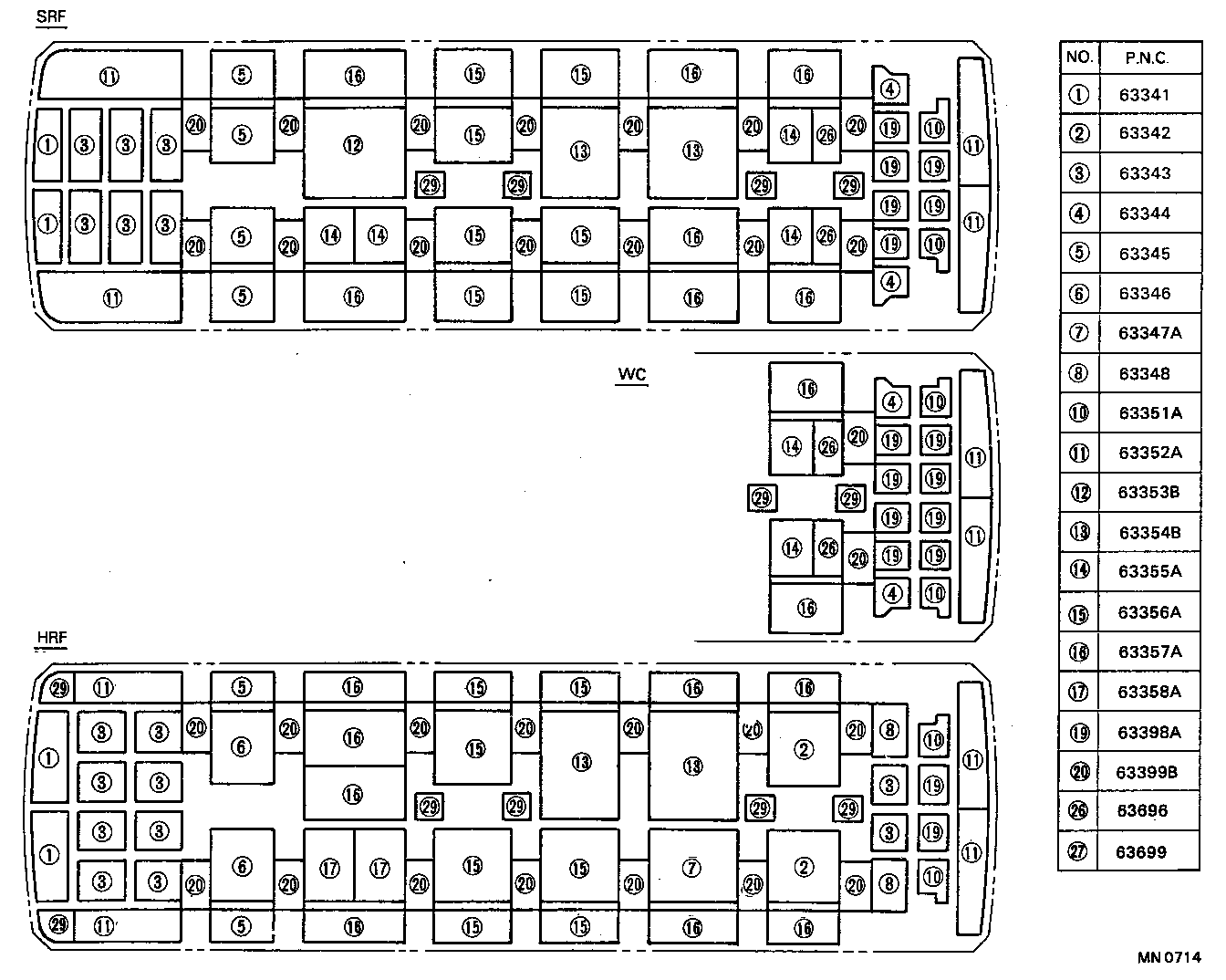

ILLUST NO. 3 OF 4(8610- )BB32,FB30,HB30,HZB30..DLX,STD

Click highlighted areas on diagram

diagram 63341 63342 63343 63344 63345 63346 63347A 63348 63351A 63352A 63353B 63354B 63355A 63356A 63357A 63358A 63398A 63399B 63696 63699
Part # Description Qty Price
63341 - PAD, ROOF SILENCER, NO.1
63341-90B00

BB20,21,FB30,HB30,HZB30,RB20..SRF

 2
63343 - PAD, ROOF SILENCER, NO.3
63343-90B00

BB20,21,FB30,HB30,HZB30,RB20..SRF

 6
63351A - PAD, ROOF SILENCER, NO.10
63351-90B01

BB20,21,FB30,HZB30,RB20..SRF..WC

 2
63352A - PAD, ROOF SILENCER, NO.11
63352-90B00

BB20,21,FB30,HB30,HZB30,RB20..SRF

RR

 2
63354B - PAD, ROOF SILENCER, NO.13
63354-90B03

FB30,HB30,HZB30..SRF

755X795

 1
63354-90B01

BB20,21,FB30,HB30,HZB30,RB20..SRF

680X590

 1
63355A - PAD, ROOF SILENCER, NO.14
63358-90B05

FB30,HB30,HZB30..SRF

 4
63357A - PAD, ROOF SILENCER, NO.16
63357-90B04

BB32,FB30,HB30,HZB30

640X400

 2
63357-90B05

FB30,HB30,HZB30..SRF

750X420

 3
63357-90B00

BB23,32,FB30,HZB30,RB20

820X360

 2
63357-90B00

BB2#,32,FB30,HZB30,RB20

820X360

 2
63357-90B05

BB23,32,FB30,HZB30,RB20

750X420

 2
63699 - PAD, ROOF SILENCER, NO.29
63699-90B00

BB21,FB30,HZB30,RB20..SRF

 5
63699-90B00

BB2#,FB30,HB30,RB20..DLX,STD

 4
