FB30L-MDR (1986)
Toyota Coaster
ILLUST NO. 4 OF 4(9001- )FB30,HZB30..SRF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63023B - STRENGTH SUB-ASSY, ROOF PANEL, CENTER NO.2 | ||||
| 63023-90B00 |
BB21,FB30,HZB30,RB20..SRF |
1 | ||
| 63024B - STRENGTH SUB-ASSY, ROOF PANEL, CENTER NO.4 | ||||
| 63024-90B01 |
FB30,HZB30..SRF |
1 | ||
| 63026C - STRENGTH SUB-ASSY, ROOF PANEL, CENTER NO.7 | ||||
| 63026-90B00 |
FB30,HZB30..SRF |
1 | ||
| 63027A - STRENGTH SUB-ASSY, ROOF PANEL, CENTER NO.8 | ||||
| 63027-90B00 |
BB21,FB30,HZB30,RB20..SRF..WC |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-90B01 |
FB30,HZB30..SRF |
6 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-90B01 |
FB30,HZB30..SRF |
6 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-90B01 |
FB30,HZB30..SRF |
6 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-90B01 |
FB30,HZB30..SRF |
6 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-90B01 |
FB30,HZB30..SRF |
6 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-90B01 |
FB30,HZB30..SRF |
6 | ||
| 63148A - REINFORCEMENT, ROOF PANEL, NO.7 | ||||
| 63207-90B05 |
BB21,FB30,HZB30,RB20..SRF W/ROOF RACK |
1 | ||
| 63149D - REINFORCEMENT, ROOF PANEL, NO.8 | ||||
| 63208-90B00 |
BB21,FB30,HZB30,RB20..SRF..WC |
1 | ||
| 63211D - BRACKET, ROOF REINFORCEMENT, INNER, NO.1 | ||||
| 63211-90B00 |
FB30,HZB30..SRF |
12 | ||
| 63211D - BRACKET, ROOF REINFORCEMENT, INNER, NO.1 | ||||
| 63211-90B00 |
FB30,HZB30..SRF |
12 | ||
| 63211D - BRACKET, ROOF REINFORCEMENT, INNER, NO.1 | ||||
| 63211-90B00 |
FB30,HZB30..SRF |
12 | ||
| 63211D - BRACKET, ROOF REINFORCEMENT, INNER, NO.1 | ||||
| 63211-90B00 |
FB30,HZB30..SRF |
12 | ||
| 63211D - BRACKET, ROOF REINFORCEMENT, INNER, NO.1 | ||||
| 63211-90B00 |
FB30,HZB30..SRF |
12 | ||
| 63211D - BRACKET, ROOF REINFORCEMENT, INNER, NO.1 | ||||
| 63211-90B00 |
FB30,HZB30..SRF |
12 | ||
| 63211D - BRACKET, ROOF REINFORCEMENT, INNER, NO.1 | ||||
| 63211-90B00 |
FB30,HZB30..SRF |
12 | ||
| 63211D - BRACKET, ROOF REINFORCEMENT, INNER, NO.1 | ||||
| 63211-90B00 |
FB30,HZB30..SRF |
12 | ||
| 63211D - BRACKET, ROOF REINFORCEMENT, INNER, NO.1 | ||||
| 63211-90B00 |
FB30,HZB30..SRF |
12 | ||
| 63211D - BRACKET, ROOF REINFORCEMENT, INNER, NO.1 | ||||
| 63211-90B00 |
FB30,HZB30..SRF |
12 | ||
| 63211D - BRACKET, ROOF REINFORCEMENT, INNER, NO.1 | ||||
| 63211-90B00 |
FB30,HZB30..SRF |
12 | ||
| 63211D - BRACKET, ROOF REINFORCEMENT, INNER, NO.1 | ||||
| 63211-90B00 |
FB30,HZB30..SRF |
12 | ||
| 63214G - BRACKET, ROOF REINFORCEMENT, INNER, NO.4 | ||||
| 63214-90B00 |
BB21,FB30,HZB30,RB20..SRF |
2 | ||
| 63214G - BRACKET, ROOF REINFORCEMENT, INNER, NO.4 | ||||
| 63214-90B00 |
BB21,FB30,HZB30,RB20..SRF |
2 | ||
| 63216C - BRACKET, ROOF REINFORCEMENT, INNER, NO.6 | ||||
| 63216-90B00 |
BB21,FB30,HZB30,RB20..SRF |
2 | ||
| 63216C - BRACKET, ROOF REINFORCEMENT, INNER, NO.6 | ||||
| 63216-90B00 |
BB21,FB30,HZB30,RB20..SRF |
2 | ||
| 63235B - BRACKET, ROOM SPEAKER | ||||
| 63235-90B02 |
BB21,FB30,HZB30,RB20..SRF 2 SPEAKER |
4 | ||
| 63235-90B02 |
BB21,FB30,HZB30,RB20..SRF 2 SPEAKER |
3 | ||
| 63235B - BRACKET, ROOM SPEAKER | ||||
| 63235-90B02 |
BB21,FB30,HZB30,RB20..SRF 2 SPEAKER |
4 | ||
| 63235-90B02 |
BB21,FB30,HZB30,RB20..SRF 2 SPEAKER |
3 | ||
| 63235B - BRACKET, ROOM SPEAKER | ||||
| 63235-90B02 |
BB21,FB30,HZB30,RB20..SRF 2 SPEAKER |
4 | ||
| 63235-90B02 |
BB21,FB30,HZB30,RB20..SRF 2 SPEAKER |
3 | ||
| 63235B - BRACKET, ROOM SPEAKER | ||||
| 63235-90B02 |
BB21,FB30,HZB30,RB20..SRF 2 SPEAKER |
4 | ||
| 63235-90B02 |
BB21,FB30,HZB30,RB20..SRF 2 SPEAKER |
3 | ||
| 63235B - BRACKET, ROOM SPEAKER | ||||
| 63235-90B02 |
BB21,FB30,HZB30,RB20..SRF 2 SPEAKER |
4 | ||
| 63235-90B02 |
BB21,FB30,HZB30,RB20..SRF 2 SPEAKER |
3 | ||
| 63235B - BRACKET, ROOM SPEAKER | ||||
| 63235-90B02 |
BB21,FB30,HZB30,RB20..SRF 2 SPEAKER |
4 | ||
| 63235-90B02 |
BB21,FB30,HZB30,RB20..SRF 2 SPEAKER |
3 | ||
| 63235B - BRACKET, ROOM SPEAKER | ||||
| 63235-90B02 |
BB21,FB30,HZB30,RB20..SRF 2 SPEAKER |
4 | ||
| 63235-90B02 |
BB21,FB30,HZB30,RB20..SRF 2 SPEAKER |
3 | ||
| 63235B - BRACKET, ROOM SPEAKER | ||||
| 63235-90B02 |
BB21,FB30,HZB30,RB20..SRF 2 SPEAKER |
4 | ||
| 63235-90B02 |
BB21,FB30,HZB30,RB20..SRF 2 SPEAKER |
3 | ||
| 63251D - STRENGTH, ROOF PANEL, CENTER NO.1 | ||||
| 63251-90B00 |
BB21,FB30,HZB30,RB20..SRF |
1 | ||
| 63252G - STRENGTH, ROOF PANEL, CENTER NO.2 | ||||
| 63252-90B00 |
BB2#,32,FB30,HZB30,RB20 |
1 | ||
| 63253H - STRENGTH, ROOF PANEL, CENTER NO.3 | ||||
| 63253-90B02 |
BB21,FB30,HZB30,RB20..SRF |
1 | ||
| 63255E - STRENGTH, ROOF PANEL, CENTER NO.5 | ||||
| 63255-90B01 |
BB21,FB30,HZB30,RB20..SRF |
1 | ||
| 63256E - STRENGTH, ROOF PANEL, CENTER NO.6 | ||||
| 63256-90B01 |
FB30,HZB30..SRF |
2 | ||
| 63258F - STRENGTH, ROOF PANEL, CENTER NO.8 | ||||
| 63258-90B00 |
BB21,FB30,HZB30,RB20..SRF..WC |
4 | ||
| 63258F - STRENGTH, ROOF PANEL, CENTER NO.8 | ||||
| 63258-90B00 |
BB21,FB30,HZB30,RB20..SRF..WC |
4 | ||
| 63258F - STRENGTH, ROOF PANEL, CENTER NO.8 | ||||
| 63258-90B00 |
BB21,FB30,HZB30,RB20..SRF..WC |
4 | ||
| 63258F - STRENGTH, ROOF PANEL, CENTER NO.8 | ||||
| 63258-90B00 |
BB21,FB30,HZB30,RB20..SRF..WC |
4 | ||
| 63259E - STRENGTH, ROOF PANEL, CENTER NO.9 | ||||
| 63259-90B00 |
BB21,FB30,HZB30,RB20..SRF |
1 | ||
| 63262C - STRENGTH, ROOF PANEL, CENTER NO.2 LH | ||||
| 63262-90B00 |
BB2#,32,FB30,HZB30,RB20 |
1 | ||
| 63271C - STRENGTH, ROOF PANEL, NO.1 RH | ||||
| 63271-90B00 |
BB21,FB30,HZB30,RB20..SRF |
1 | ||
| 63272A - STRENGTH, ROOF PANEL, NO.2 RH | ||||
| 63272-90B03 |
BB21,FB30,HZB30,RB20..SRF |
1 | ||
| 63273H - STRENGTH, ROOF PANEL, NO.3 | ||||
| 63273-90B00 |
BB21,FB30,HZB30,RB20..SRF |
2 | ||
| 63273H - STRENGTH, ROOF PANEL, NO.3 | ||||
| 63273-90B00 |
BB21,FB30,HZB30,RB20..SRF |
2 | ||
| 63274B - STRENGTH, ROOF PANEL, NO.4 RH | ||||
| 63274-90B00 |
BB21,FB30,HZB30,RB20..SRF |
1 | ||
| 63275B - STRENGTH, ROOF PANEL, NO.5 | ||||
| 63275-90B00 |
BB21,FB30,HZB30,RB20..SRF |
2 | ||
| 63275B - STRENGTH, ROOF PANEL, NO.5 | ||||
| 63275-90B00 |
BB21,FB30,HZB30,RB20..SRF |
2 | ||
| 63276B - STRENGTH, ROOF PANEL, NO.6 RH | ||||
| 63276-90B01 |
FB30,HZB30..SRF |
1 | ||
| 63277F - STRENGTH, ROOF PANEL, NO.7 RH | ||||
| 63277-90B00 |
FB30,HZB30..SRF |
1 | ||
| 63279E - STRENGTH, ROOF PANEL, NO.9 RH | ||||
| 63279-90B00 |
BB21,FB30,HZB30..SRF..WC |
1 | ||
| 63279E - STRENGTH, ROOF PANEL, NO.9 RH | ||||
| 63279-90B00 |
BB21,FB30,HZB30..SRF..WC |
1 | ||
| 63281E - STRENGTH, ROOF PANEL, NO.1 LH | ||||
| 63281-90B00 |
BB21,FB30,HZB30..SRF |
1 | ||
| 63282E - STRENGTH, ROOF PANEL, NO.2 LH | ||||
| 63282-90B02 |
BB21,FB30,HZB30..SRF |
1 | ||
| 63284B - STRENGTH, ROOF PANEL, NO.4 LH | ||||
| 63284-90B00 |
BB21,FB30,HZB30..SRF |
1 | ||
| 63286D - STRENGTH, ROOF PANEL, NO.6 LH | ||||
| 63286-90B01 |
FB30,HZB30..SRF |
1 | ||
| 63287C - STRENGTH, ROOF PANEL, NO.7 LH | ||||
| 63287-90B00 |
FB30,HZB30..SRF |
1 | ||
| 63289A - STRENGTH, ROOF PANEL, NO.9 LH | ||||
| 63289-90B00 |
BB21,FB30,HZB30,RB20..SRF..WC |
1 | ||
| 63289A - STRENGTH, ROOF PANEL, NO.9 LH | ||||
| 63289-90B00 |
BB21,FB30,HZB30,RB20..SRF..WC |
1 | ||
| 63291C - STRENGTH, ROOF PANEL, NO.10 | ||||
| 63291-90B00 |
BB21,FB30,HZB30,RB20..SRF |
2 | ||
| 63291C - STRENGTH, ROOF PANEL, NO.10 | ||||
| 63291-90B00 |
BB21,FB30,HZB30,RB20..SRF |
2 | ||
| 63293C - STRENGTH, ROOF PANEL, NO.11 RH | ||||
| 63293-90B00 |
BB21,FB30,HZB30,RB20..SRF |
1 | ||
| 63294C - STRENGTH, ROOF PANEL, NO.11 LH | ||||
| 63294-90B00 |
BB21,FB30,HZB30,RB20..SRF |
1 | ||
| 63295C - STRENGTH, ROOF PANEL, NO.12 RH | ||||
| 63295-90B00 |
BB21,FB30,HZB30,RB20..SRF |
1 | ||
| 63296C - STRENGTH, ROOF PANEL, NO.12 LH | ||||
| 63296-90B00 |
BB21,FB30,HZB30,RB20..SRF |
1 | ||
| 63702 - BRACKET SUB-ASSY, ROOF LINING REAR | ||||
| 63702-90B00 |
BB21,FB30,HZB30,RB20..SRF..WC |
1 | ||
| 63711 - BRACKET, ROOF LINING, FRONT RH | ||||
| 63711-90B00 |
BB21,FB30,HZB30,RB20..SRF |
1 | ||
| 63721A - BRACKET, ROOF LINING, FRONT LH | ||||
| 63721-90B00 |
BB21,FB30,HZB30,RB20..SRF |
1 | ||

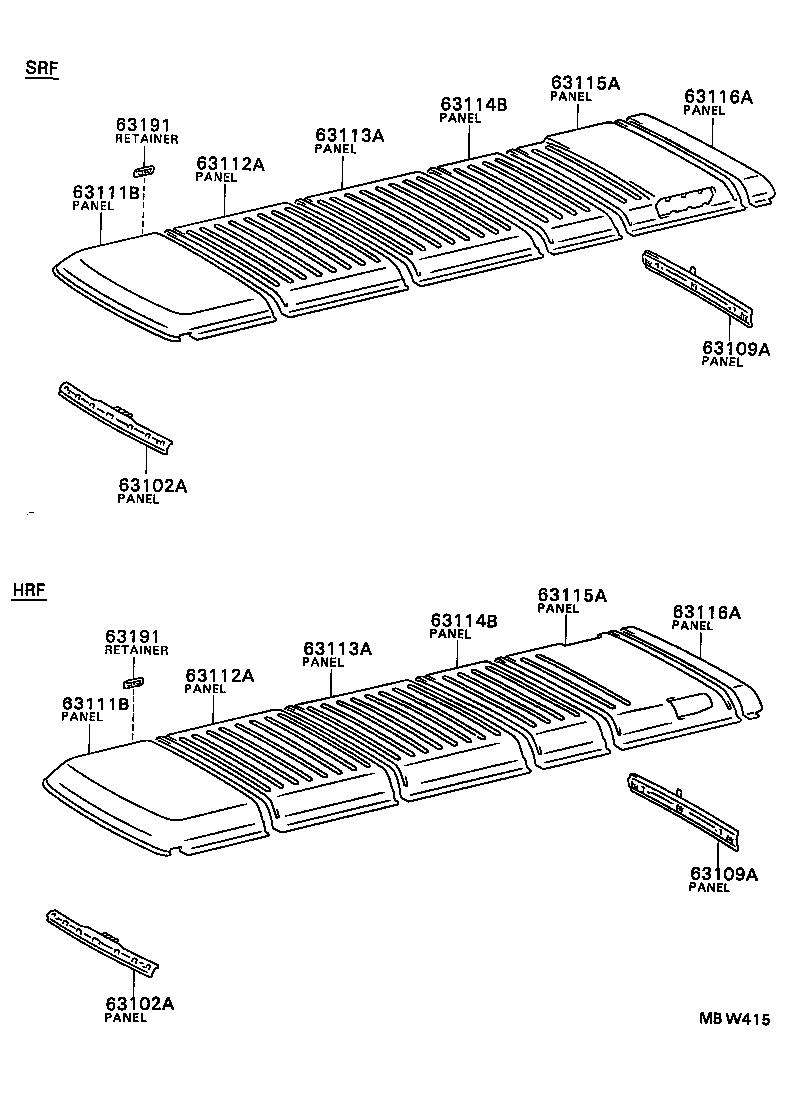

ILLUST NO. 1 OF 4(8610- )FB30,HB30,HZB30 ; (9001- )BB32..4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-90B00 |
BB2#,FB30,HB30,HZB30,RB20..DLX,STD |
1 | ||
| 63102-90B01 |
BB20,21,FB30,HB30,RB20..DLX..SRF..(GEN,ME) W/CLOCK |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-90B00 |
BB2#,FB30,HB30,HZB30,RB20..DLX,STD |
1 | ||
| 63102-90B01 |
BB20,21,FB30,HB30,RB20..DLX..SRF..(GEN,ME) W/CLOCK |
1 | ||
| 63109A - PANEL SUB-ASSY, BACK WINDOW, UPPER | ||||
| 63109-90B02 |
BB20,21,FB30,HZB30,RB20..SRF..WC |
1 | ||
| 63109-90B03 |
BB20,21,FB30,RB20..SRF..WC..(GEN,ME) W/UNDER MIRROR |
1 | ||
| 63109A - PANEL SUB-ASSY, BACK WINDOW, UPPER | ||||
| 63109-90B02 |
BB20,21,FB30,HZB30,RB20..SRF..WC |
1 | ||
| 63109-90B03 |
BB20,21,FB30,RB20..SRF..WC..(GEN,ME) W/UNDER MIRROR |
1 | ||
| 63112A - PANEL, ROOF, NO.2 | ||||
| 63112-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..SRF |
1 | ||
| 63112-90B03 |
FB30,HB30..SRF W/ROOF RACK |
1 | ||
| 63112A - PANEL, ROOF, NO.2 | ||||
| 63112-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..SRF |
1 | ||
| 63112-90B03 |
FB30,HB30..SRF W/ROOF RACK |
1 | ||
| 63113A - PANEL, ROOF, NO.3 | ||||
| 63112-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..SRF |
1 | ||
| 63113-90B00 |
BB20,21,FB30,HB30,RB20..SRF..(GEN,ME) W/ROOF RACK |
1 | ||
| 63113A - PANEL, ROOF, NO.3 | ||||
| 63112-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..SRF |
1 | ||
| 63113-90B00 |
BB20,21,FB30,HB30,RB20..SRF..(GEN,ME) W/ROOF RACK |
1 | ||
| 63114B - PANEL, ROOF, NO.4 | ||||
| 63115-90B00 |
FB30,HB30,HZB30..SRF |
1 | ||
| 63114B - PANEL, ROOF, NO.4 | ||||
| 63115-90B00 |
FB30,HB30,HZB30..SRF |
1 | ||
| 63115A - PANEL, ROOF, NO.5 | ||||
| 63018-90B01 |
FB30,HB30,HZB30..SRF..WC |
1 | ||
| 63018-90B08 |
FB30,HB30,HZB30..SRF..WC W/ROOF RACK |
1 | ||
| 63115A - PANEL, ROOF, NO.5 | ||||
| 63018-90B01 |
FB30,HB30,HZB30..SRF..WC |
1 | ||
| 63018-90B08 |
FB30,HB30,HZB30..SRF..WC W/ROOF RACK |
1 | ||
| 63116A - PANEL, ROOF, NO.6 | ||||
| 63117-90B02 |
FB30,HB30..SRF W/*RW |
1 | ||
| 63117-90B03 |
FB30,HB30,HZB30..SRF W/*RW,UNDER MIRROR |
1 | ||
| 63117-90B11 |
FB30,HB30,HZB30..SRF W/*RW,ROOF RACK |
1 | ||
| 63117-90B13 |
FB30,HB30,HZB30..SRF W/*DSBD |
1 | ||
| 63117-90B12 |
FB30,HB30,HZB30..SRF W/*RW,ROOF RACK,UNDER MIRROR |
1 | ||
| 63116A - PANEL, ROOF, NO.6 | ||||
| 63117-90B02 |
FB30,HB30..SRF W/*RW |
1 | ||
| 63117-90B03 |
FB30,HB30,HZB30..SRF W/*RW,UNDER MIRROR |
1 | ||
| 63117-90B11 |
FB30,HB30,HZB30..SRF W/*RW,ROOF RACK |
1 | ||
| 63117-90B13 |
FB30,HB30,HZB30..SRF W/*DSBD |
1 | ||
| 63117-90B12 |
FB30,HB30,HZB30..SRF W/*RW,ROOF RACK,UNDER MIRROR |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
