FB30L-MDR (1986)

Toyota Coaster

Production Oct 1986 - Jan 1993
Engine 3F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

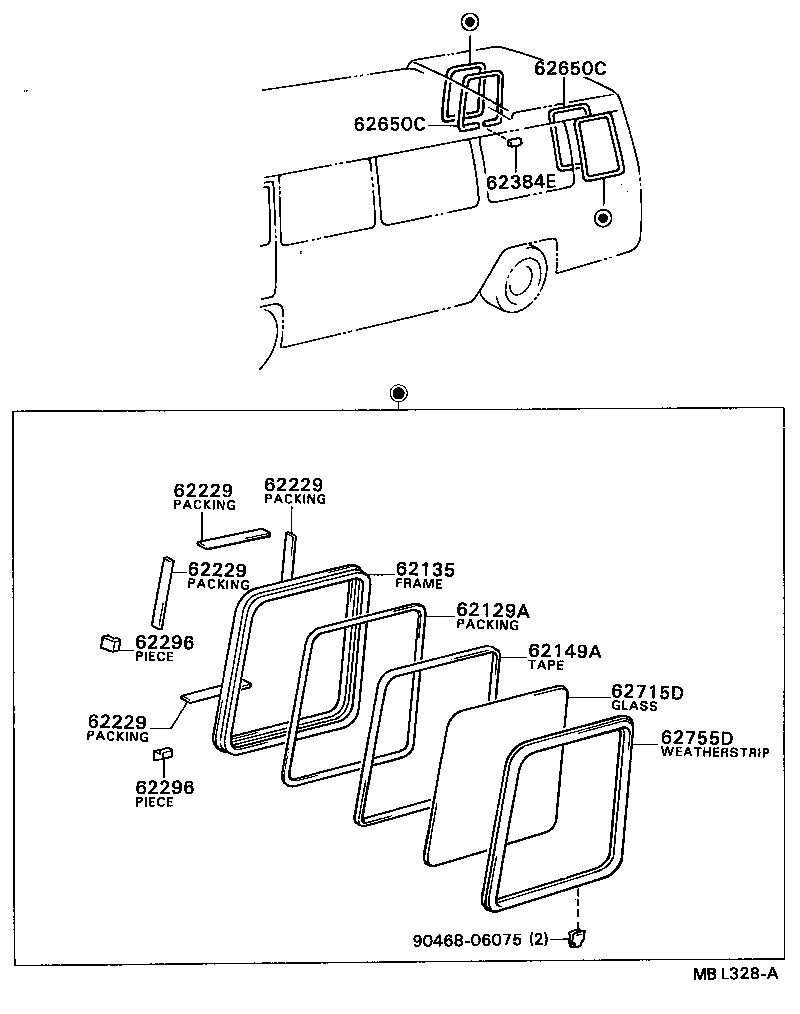

ILLUST NO. 5 OF 5(8610- )FB30,HB30,HZB30..LHD ; (9001- )BB32..4FC

Click highlighted areas on diagram

diagram 62129A 62135 62149A 62229 62229 62229 62229 62296 62296 62384E 62650C 62650C 62715D 62755D 9046806075
Part # Description Qty Price
62129A - PACKING, SIDE WINDOW GLASS
62129-90B00

FB30,HB30

 2
62135 - FRAME, REAR SIDE WINDOW
62135-90B02

FB30,HB30,HZB30

RH

 1
62145-90B02

FB30,HB30,HZB30

LH

 1
62149A - TAPE, SIDE WINDOW FRAME
62149-90B00

FB30,HB30,HZB30

 2
62229 - PACKING, SIDE WINDOW
62229-90B00

FB30,HB30,HZB30

T=1

 8
62229-90B01

FB30,HB30,HZB30

T=2

 8
62229-90B02

FB30,HB30,HZB30

T=3

 8
62229 - PACKING, SIDE WINDOW
62229-90B00

FB30,HB30,HZB30

T=1

 8
62229-90B01

FB30,HB30,HZB30

T=2

 8
62229-90B02

FB30,HB30,HZB30

T=3

 8
62229 - PACKING, SIDE WINDOW
62229-90B00

FB30,HB30,HZB30

T=1

 8
62229-90B01

FB30,HB30,HZB30

T=2

 8
62229-90B02

FB30,HB30,HZB30

T=3

 8
62229 - PACKING, SIDE WINDOW
62229-90B00

FB30,HB30,HZB30

T=1

 8
62229-90B01

FB30,HB30,HZB30

T=2

 8
62229-90B02

FB30,HB30,HZB30

T=3

 8
62296 - PIECE, SIDE WINDOW, NO.3
62296-90B00

FB30,HB30

 6
62296 - PIECE, SIDE WINDOW, NO.3
62296-90B00

FB30,HB30

 6
62384E - CAP, SIDE WINDOW
62384-90B0008

BB2#,FB30,HB30,HZB30,RB20

IVORY,IVORY

 8
62650C - CLIP, SIDE WINDOW OUTER SASH, NO.5 (FOR SLIDE TYPE)
62376-90B00

FB30,HZB30

 2
62650C - CLIP, SIDE WINDOW OUTER SASH, NO.5 (FOR SLIDE TYPE)
62376-90B00

FB30,HZB30

 2
62715D - GLASS, SIDE WINDOW, NO.5(FOR FIXED TYPE)
62125-90B04

FB30,HB30..DLX,EX

*TT,T=4.0,LH,*TT,T=4.0

 1
62115-90B05

FB30,HB30,HZB30..GEN,ME

*TL,T=4.38,RH,*TL,T=4.38

 1
62115-90B04

FB30,HB30..DLX,EX

*TT,T=4.0,RH,*TT,T=4.0

 1
62125-90B05

FB30,HB30,HZB30..GEN,ME

*TL,T=4.38,LH,*TL,T=4.38

 1
62755D - WEATHERSTRIP, SIDE WINDOW, NO.5(FOR FIXED TYPE)
62155-90B01

FB30,HB30,HZB30

 2
Common parts
90468-06075
