FB30L-MDR (1986)
Toyota Coaster

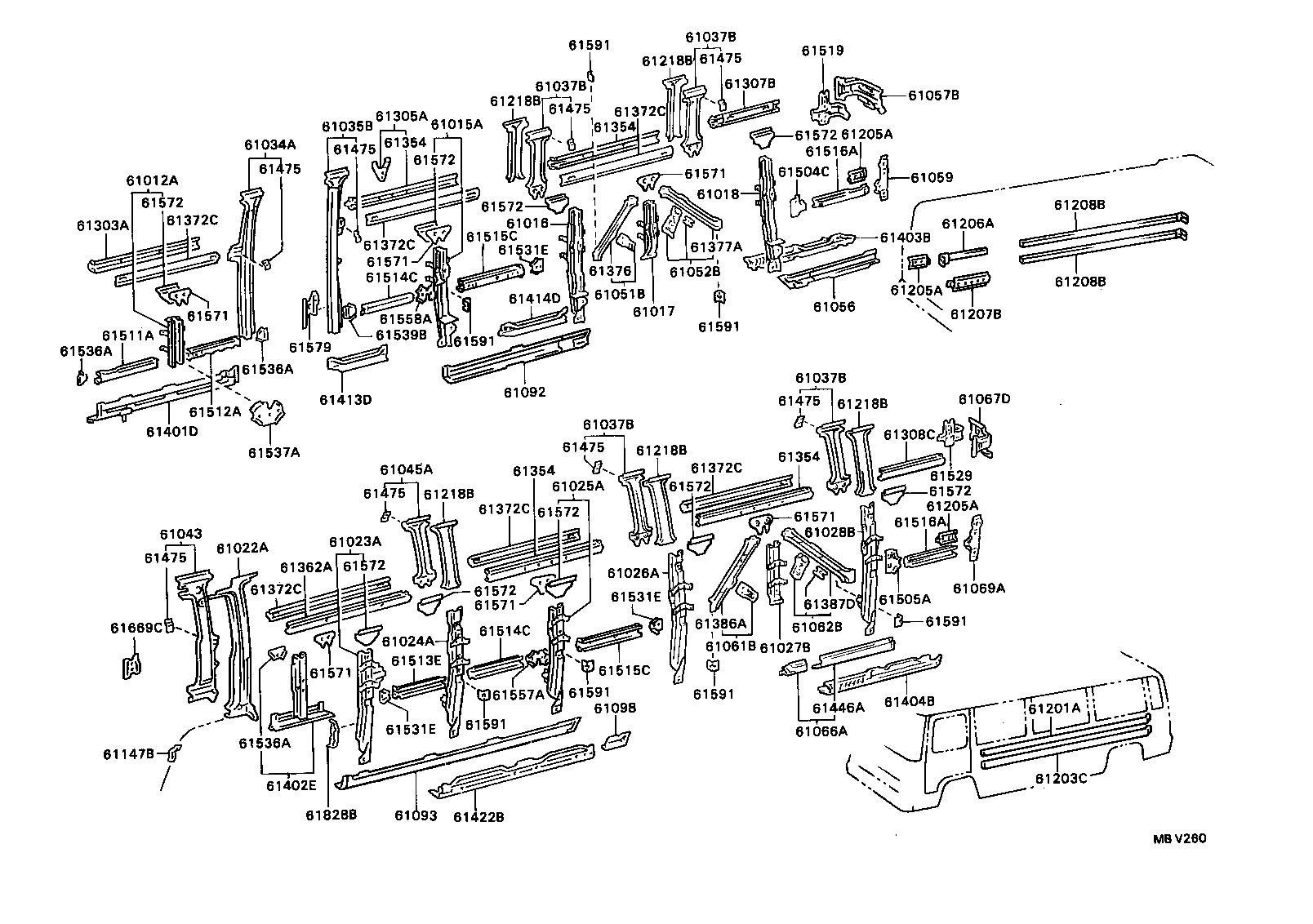

ILLUST NO. 1 OF 3(8610- )FB30,HB30,HZB30..LHD ; (9001- )BB32..4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61011A - PILLAR SUB-ASSY, NO.1 RH | ||||
| 61011-90B02 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61013A - PILLAR SUB-ASSY, NO.3 RH | ||||
| 61013-90B02 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61013-90B02 |
BB21,FB30,HZB30,RB20..LHD |
1 | ||
| 61013-90B03 |
BB21,FB30,HZB30,RB20..LHD W/*GLD |
1 | ||
| 61014A - PILLAR SUB-ASSY, NO.4 RH | ||||
| 61014-90B02 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61014-90B03 |
BB21,FB30,HZB30,RB20..LHD W/*GLD |
1 | ||
| 61014-90B02 |
BB21,FB30,HZB30,RB20..LHD |
1 | ||
| 61031A - PILLAR SUB-ASSY, NO.10 RH | ||||
| 61031-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..DLX,EX,EXS |
1 | ||
| 61031A - PILLAR SUB-ASSY, NO.10 RH | ||||
| 61031-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..DLX,EX,EXS |
1 | ||
| 61032A - PILLAR SUB-ASSY, NO.1 INNER, RH | ||||
| 61032-90B01 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61038 - PILLAR SUB-ASSY, NO.9 INNER, RH | ||||
| 61038-90B11 |
FB30,HB30,HZB30..WC..(GEN,ME) W/*DSBD |
1 | ||
| 61038-90B01 |
FB30,HB30..DLX..WC |
1 | ||
| 61038-90B15 |
FB30..WC W/*RWD,FOLDING SEAT |
1 | ||
| 61038-90B04 |
FB30,HB30,HZB30..DLX..WC..(GEN,ME) W/FOLDING SEAT |
1 | ||
| 61038-90B02 |
FB30..WC W/*RWD |
1 | ||
| 61039 - PILLAR SUB-ASSY, NO.10 INNER, RH | ||||
| 61039-90B00 |
FB30,HB30,HZB30..DLX,STD |
1 | ||
| 61039-90B01 |
FB30,HB30,HZB30..29S,30S W/O RR SEAT |
1 | ||
| 61039-90B03 |
FB30..SRF..WC W/*DSBD |
1 | ||
| 61039-90B05 |
FB30,HB30,HZB30..DLX..(GEN,ME) W/FOLDING SEAT |
1 | ||
| 61039 - PILLAR SUB-ASSY, NO.10 INNER, RH | ||||
| 61039-90B00 |
FB30,HB30,HZB30..DLX,STD |
1 | ||
| 61039-90B01 |
FB30,HB30,HZB30..29S,30S W/O RR SEAT |
1 | ||
| 61039-90B03 |
FB30..SRF..WC W/*DSBD |
1 | ||
| 61039-90B05 |
FB30,HB30,HZB30..DLX..(GEN,ME) W/FOLDING SEAT |
1 | ||
| 61042A - PILLAR SUB-ASSY, NO.1 INNER, LH | ||||
| 61042-90B01 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61048 - PILLAR SUB-ASSY, NO.9 INNER, LH | ||||
| 61048-90B06 |
FB30,HB30,HZB30..DLX..WC..(GEN,ME) W/*DSBD |
1 | ||
| 61048-90B01 |
FB30,HB30,HZB30..DLX..WC |
1 | ||
| 61048-90B02 |
FB30..WC W/*RWD |
1 | ||
| 61048-90B18 |
FB30..WC W/*RWD,FOLDING SEAT |
1 | ||
| 61048-90B17 |
FB30,HB30,HZB30..DLX..WC..(GEN,ME) W/FOLDING SEAT |
1 | ||
| 61049 - PILLAR SUB-ASSY, NO.10 INNER, LH | ||||
| 61049-90B01 |
FB30,HB30,HZB30..29S,30S W/O RR SEAT |
1 | ||
| 61049-90B00 |
FB30,HB30,HZB30..DLX,STD |
1 | ||
| 61049-90B07 |
FB30,HB30,HZB30..DLX..(GEN,ME) W/FOLDING SEAT |
1 | ||
| 61049-90B03 |
FB30..SRF..WC W/*DSBD |
1 | ||
| 61049 - PILLAR SUB-ASSY, NO.10 INNER, LH | ||||
| 61049-90B01 |
FB30,HB30,HZB30..29S,30S W/O RR SEAT |
1 | ||
| 61049-90B00 |
FB30,HB30,HZB30..DLX,STD |
1 | ||
| 61049-90B07 |
FB30,HB30,HZB30..DLX..(GEN,ME) W/FOLDING SEAT |
1 | ||
| 61049-90B03 |
FB30..SRF..WC W/*DSBD |
1 | ||
| 61071A - RAIL SUB-ASSY, NO.2 LOWER OUTER, RH | ||||
| 61071-90B01 |
BB20,21,FB30,HB30,HZB30,RB20..LHD..(DLX,EXS) |
1 | ||
| 61074A - RAIL SUB-ASSY, CENTER DOOR, RH | ||||
| 61074-90B00 |
BB20,21,32,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61075A - RAIL SUB-ASSY, NO.3 UPPER OUTER, RH | ||||
| 61075-90B04 |
BB20,21,FB30,HB30,HZB30,RB20..LHD..SRF W/ROOF RACK |
1 | ||
| 61075-90B03 |
BB20,21,FB30,HB30,HZB30,RB20..LHD..SRF |
1 | ||
| 61076A - RAIL SUB-ASSY, NO.4 UPPER OUTER, RH | ||||
| 61075-90B00 |
FB30,HB30,HZB30..SRF |
1 | ||
| 61076-90B01 |
FB30,HB30,HZB30..SRF W/ROOF RACK |
1 | ||
| 61083A - PANEL SUB-ASSY, FRONT VENTILATOR, LH | ||||
| 61083-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61085A - RAIL SUB-ASSY, NO.3 UPPER OUTER, LH | ||||
| 61086-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..LHD..SRF |
1 | ||
| 61085-90B04 |
BB20,21,FB30,HB30,HZB30,RB20..LHD..SRF W/ROOF RACK |
1 | ||
| 61086A - RAIL SUB-ASSY, NO.4 UPPER OUTER, LH | ||||
| 61086-90B00 |
FB30,HB30,HZB30..SRF |
1 | ||
| 61086-90B02 |
FB30,HB30,HZB30..SRF W/ROOF RACK |
1 | ||
| 61111B - PANEL, NO.1 SIDE, RH | ||||
| 61111-90B06 |
FB30,HB30..LHD W/COOL AIR INTAKE SNORKEL TYPE |
1 | ||
| 61111-90B02 |
BB20,21,FB30,HB30,RB20..LHD |
1 | ||
| 61111-90B11 |
FB30,HB30,HZB30..LHD W/COOL AIR INTAKE SNORKEL TYPE |
1 | ||
| 61111-90B08 |
BB21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61112B - PANEL, NO.2 SIDE, RH | ||||
| 61112-90B03 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61113 - PANEL, NO.2 SIDE, REAR, RH | ||||
| 61113-90B01 |
FB30,HB30,HZB30..LHD..WC |
1 | ||
| 61113-90B03 |
FB30,HB30,HZB30..LHD..WC W/GLIDE DOOR |
1 | ||
| 61114A - PANEL, NO.3 SIDE, RH | ||||
| 61114-90B02 |
FB30,HB30 |
1 | ||
| 61115A - PANEL, NO.4 SIDE, RH | ||||
| 61115-90B00 |
BB20,21,FB30,HB30,RB20..SRF |
1 | ||
| 61115-90B12 |
BB21,FB30,HB30,RB20..SRF W/*DSBD |
1 | ||
| 61107-90B00 |
BB20,21,FB30,HB30,RB20..SRF W/ROOF RACK |
1 | ||
| 61115-90B09 |
BB21,FB30,HB30,HZB30,RB20..SRF |
1 | ||
| 61116 - LINING, SIDE PANEL, REINFORCEMENT | ||||
| 61116-90B02 |
BB32,FB30,HZB30..LHD |
5 | ||
| 61116 - LINING, SIDE PANEL, REINFORCEMENT | ||||
| 61116-90B02 |
BB32,FB30,HZB30..LHD |
5 | ||
| 61117A - GUSSET, SIDE PANEL RELIEF, NO.1 | ||||
| 61118-90B00 |
BB20,21,FB30,HB30,RB20..LHD |
1 | ||
| 61118A - GUSSET, SIDE PANEL RELIEF, NO.2 | ||||
| 61118-90B00 |
BB2#,FB30,HB30,RB20 LH |
1 | ||
| 61117-90B00 |
BB2#,FB30,HB30,RB20 RH |
1 | ||
| 61117-90B01 |
BB2#,FB30,HB30,HZB30,RB20 RH |
1 | ||
| 61118-90B01 |
BB2#,FB30,HB30,HZB30,RB20 LH |
1 | ||
| 61119 - GUSSET, SIDE PANEL RELIEF, NO.3 | ||||
| 61127-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61121B - PANEL, NO.1 SIDE, LH | ||||
| 61121-90B12 |
BB21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61121-90B02 |
BB20,21,FB30,HB30,RB20..LHD |
1 | ||
| 61122B - PANEL, NO.2 SIDE, LH | ||||
| 61122-90B03 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61124A - PANEL, NO.3 SIDE, LH | ||||
| 61124-90B03 |
FB30,HB30 |
1 | ||
| 61125A - PANEL, NO.4 SIDE, LH | ||||
| 61125-90B00 |
BB20,21,FB30,HB30,RB20..SRF |
1 | ||
| 61125-90B06 |
BB21,FB30,HB30,HZB30,RB20..SRF |
1 | ||
| 61125-90B08 |
BB21,FB30,HB30,HZB30,RB20..SRF W/*DSBD |
1 | ||
| 61127A - GUSSET, SIDE PANEL RELIEF, NO.4 | ||||
| 61119-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61128B - GUSSET, SIDE PANEL RELIEF, NO.5 | ||||
| 61129-90B00 |
BB2#,FB30,HB30,HZB30,RB20 LH |
1 | ||
| 61128-90B00 |
BB2#,FB30,HB30,HZB30,RB20 RH |
1 | ||
| 61128B - GUSSET, SIDE PANEL RELIEF, NO.5 | ||||
| 61129-90B00 |
BB2#,FB30,HB30,HZB30,RB20 LH |
1 | ||
| 61128-90B00 |
BB2#,FB30,HB30,HZB30,RB20 RH |
1 | ||
| 61129B - GUSSET, SIDE PANEL RELIEF, NO.6 | ||||
| 61129-90B00 |
BB2#,FB30,HB30,HZB30,RB20 RH |
1 | ||
| 61128-90B00 |
BB2#,FB30,HB30,HZB30,RB20 LH |
1 | ||
| 61129B - GUSSET, SIDE PANEL RELIEF, NO.6 | ||||
| 61129-90B00 |
BB2#,FB30,HB30,HZB30,RB20 RH |
1 | ||
| 61128-90B00 |
BB2#,FB30,HB30,HZB30,RB20 LH |
1 | ||
| 61132A - STRENGTH, SIDE PANEL, NO.2 UPPER RH | ||||
| 61132-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61133A - STRENGTH, SIDE PANEL, LOWER RH NO.2 | ||||
| 61133-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61134A - STRENGTH, SIDE PANEL, NO.3 UPPER RH | ||||
| 61134-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61144A - STRENGTH, SIDE PANEL, NO.3 UPPER LH | ||||
| 61144-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61146A - PANEL, FRONT SIDE END, LH | ||||
| 61146-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61155B - GUSSET, CENTER RAIL, OUTER | ||||
| 61155-90B00 |
BB21,FB30,HZB30,RB20 |
2 | ||
| 61167A - STIFFENER, SIDE PANEL, LOWER RH | ||||
| 61167-90B01 |
FB30,HB30,HZB30..LHD |
1 | ||
| 61168A - STIFFENER, SIDE PANEL, LOWER LH | ||||
| 61169-90B01 |
FB30,HB30,HZB30..LHD |
1 | ||
| 61191A - REINFORCEMENT, SIDE LOWER WINDOW | ||||
| 61191-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61193A - REINFORCEMENT, NO.1 OUTER PILLAR, LH | ||||
| 61193-90B00 |
BB21,FB30,HZB30,RB20..LHD |
2 | ||
| 61194 - RETAINER, OUTER SIDE MIRROR, RH | ||||
| 61194-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61199 - BRACKET, SIDE PANEL TO REAR MUDGUARD | ||||
| 61199-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
2 | ||
| 61223A - PILLAR, NO.3 OUTER, UPPER RH | ||||
| 61224-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61227B - PILLAR, NO.4 OUTER UPPER, RH | ||||
| 61228-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61357-90B04 |
FB30,HB30,HZB30 |
1 | ||
| 61261A - CHANNEL, ROOF DRIP SIDE, FRONT RH | ||||
| 61356-90B01 |
BB20,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61262 - CHANNEL, ROOF DRIP, LH | ||||
| 61357-90B04 |
FB30,HB30,HZB30..LHD |
1 | ||
| 61262A - CHANNEL, ROOF DRIP SIDE, FRONT LH | ||||
| 61366-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61262B - PILLAR, NO.1 INNER, LOWER LH | ||||
| 61262-90B01 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61263 - CHANNEL, ROOF DRIP, REAR RH | ||||
| 61358-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61264 - CHANNEL, ROOF DRIP, REAR LH | ||||
| 61368-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61277 - JOINT, ROOF DRIP CHANNEL, FRONT RH | ||||
| 61359-90B00 |
FB30,HB30,HZB30 |
2 | ||
| 61277 - JOINT, ROOF DRIP CHANNEL, FRONT RH | ||||
| 61359-90B00 |
FB30,HB30,HZB30 |
2 | ||
| 61278 - JOINT, ROOF DRIP CHANNEL, FRONT LH | ||||
| 61359-90B00 |
FB30,HB30,HZB30..LHD |
1 | ||
| 61278 - JOINT, ROOF DRIP CHANNEL, FRONT LH | ||||
| 61359-90B00 |
FB30,HB30,HZB30..LHD |
1 | ||
| 61311A - RAIL, NO.1 UPPER OUTER, RH | ||||
| 61311-90B01 |
BB20,21,FB30,HB30,HZB30,RB20..LHD..SRF |
1 | ||
| 61314B - RAIL, NO.2 UPPER OUTER, RH | ||||
| 61314-90B01 |
BB20,21,FB30,HB30,HZB30,RB20..LHD..SRF |
1 | ||
| 61324-90B01 |
FB30,HB30..LHD..SRF W/GLIDE DOOR,AUTO GLIDE DOOR |
1 | ||
| 61078-90B07 |
FB30,HB30,HZB30..LHD..SRF W/ROOF RACK |
1 | ||
| 61078-90B08 |
FB30,HB30,HZB30..LHD..SRF W/ROOF RACK,GLIDE DOOR |
1 | ||
| 61317A - RAIL, NO.3 UPPER OUTER, RH | ||||
| 61317-90B01 |
FB30,HB30,HZB30..SRF |
1 | ||
| 61318A - RAIL, NO.6 UPPER OUTER, RH | ||||
| 61318-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61321A - RAIL, NO.1 UPPER OUTER, LH | ||||
| 61321-90B01 |
BB20,21,FB30,HB30,HZB30,RB20..LHD..SRF |
1 | ||
| 61323B - RAIL, NO.1 UPPER OUTER, LOWER LH | ||||
| 61323-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61324B - RAIL, NO.2 UPPER OUTER, LH | ||||
| 61324-90B02 |
BB20,21,FB30,HB30,HZB30,RB20..LHD..SRF |
1 | ||
| 61088-90B07 |
FB30,HB30,HZB30..LHD..SRF W/ROOF RACK |
1 | ||
| 61327A - RAIL, NO.5 UPPER OUTER, LH | ||||
| 61327-90B01 |
FB30,HB30,HZB30..SRF |
1 | ||
| 61328A - RAIL, NO.6 UPPER OUTER, LH | ||||
| 61328-90B00 |
BB2#,FB30,HB30,RB20 |
1 | ||
| 61331B - RAIL, NO.1 UPPER INNER, FRONT RH | ||||
| 61331-90B01 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61332A - RAIL, NO.1 UPPER INNER, REAR RH | ||||
| 61332-90B01 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61332-36010 |
BB21,FB30,HZB30,RB20..LHD |
1 | ||
| 61333B - RAIL, NO.2 UPPER INNER, RH | ||||
| 61333-90B01 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61334B - RAIL, NO.3 UPPER INNER, RH | ||||
| 61334-90B01 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61334-36010 |
BB21,FB30,HZB30,RB20..LHD |
1 | ||
| 61335A - RAIL, NO.4 UPPER INNER, RH | ||||
| 61335-90B02 |
FB30,HZB30 |
1 | ||
| 61335-90B00 |
FB30,HB30,HZB30 |
1 | ||
| 61336A - RAIL, NO.5 UPPER INNER, RH | ||||
| 61336-90B00 |
BB2#,FB30,HB30,RB20 |
1 | ||
| 61336-90B03 |
BB2#,FB30,RB20 |
1 | ||
| 61339C - RAIL, NO.1 UPPER, INNER LOWER | ||||
| 61339-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61341B - RAIL, NO.1 UPPER INNER, FRONT LH | ||||
| 61341-90B01 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61342A - RAIL, NO.1 UPPER INNER, REAR LH | ||||
| 61342-90B02 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61343B - RAIL, NO.2 UPPER INNER, LH | ||||
| 61343-90B02 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61343-36010 |
BB21,FB30,HZB30,RB20..LHD |
1 | ||
| 61344B - RAIL, NO.3 UPPER INNER, LH | ||||
| 61344-90B01 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61344-36010 |
BB21,FB30,HZB30,RB20..LHD |
1 | ||
| 61345A - RAIL, NO.4 UPPER INNER, LH | ||||
| 61345-90B00 |
FB30,HB30,HZB30 |
1 | ||
| 61345-90B01 |
FB30,HZB30 |
1 | ||
| 61346A - RAIL, NO.5 UPPER INNER, LH | ||||
| 61346-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61346-90B02 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61418B - RAIL, NO.8 LOWER OUTER, RH | ||||
| 61418-90B01 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61428B - RAIL, NO.8 LOWER OUTER, LH | ||||
| 61428-90B01 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61437 - RAIL, NO.7 LOWER INNER, RH | ||||
| 61437-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61447 - RAIL, NO.7 LOWER INNER, LH | ||||
| 61447-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61461 - PANEL, ROCKER, OUTER LH | ||||
| 61461-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61462 - PANEL, ROCKER, INNER FRONT LH | ||||
| 61462-90B00 |
FB30,HZB30..LHD |
1 | ||
| 61462-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61463A - PANEL, ROCKER, INNER REAR LH | ||||
| 61463-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61464A - PANEL, FRONT DOOR STEP, LH | ||||
| 61464-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61465 - PANEL, FRONT DOOR STEP SIDE, LH | ||||
| 61465-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61475 - BRACKET, CENTER RAIL INSIDE CUSHION, NO.1 | ||||
| 61475-90B00 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61475 - BRACKET, CENTER RAIL INSIDE CUSHION, NO.1 | ||||
| 61475-90B00 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61479B - BRACKET, FRONT DOOR STEP MUDGUARD | ||||
| 61479-90B00 |
BB21,FB30,HZB30,RB20..LHD |
1 | ||
| 61573 - EXTENSION, FLOOR PANEL, NO.1 | ||||
| 61501-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61574A - EXTENSION, FLOOR PANEL, NO.2 RH | ||||
| 61574-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61602B - STRENGTH SUB-ASSY, REAR CORNER, INNER RH | ||||
| 61602-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..WC |
1 | ||
| 61604B - STRENGTH SUB-ASSY, REAR CORNER, INNER LH | ||||
| 61604-90B00 |
FB30,HZB30,RB20 |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-90B00 |
FB30,HB30 |
1 | ||
| 61631-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61631-90B00 |
FB30,HB30 |
1 | ||
| 61631-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61719A - STIFFENER, BATTERY SERVICE HOLE | ||||
| 61719-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61725 - BOX, FUEL INLET | ||||
| 61741-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61793 - PLATE, COOLER CONDENSER COVER LOCK | ||||
| 61793-90B00 |
BB2#,FB30,HB30,HZB30,RB20..WC |
2 | ||
| 61795A - PLATE, COOLER CONDENSER COVER SHIELD | ||||
| 61795-90B01 |
BB20,21,FB30,HB30,HZB30,RB20..LHD..WC |
1 | ||
| 61811A - RAIL, DUSTPROOF, FRONT RH | ||||
| 61811-90B03 |
FB30,HB30,HZB30..LHD |
1 | ||
| 61812A - RAIL, DUSTPROOF, REAR RH | ||||
| 61812-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61821A - RAIL, DUSTPROOF, FRONT LH | ||||
| 61821-90B03 |
FB30,HB30,HZB30..LHD |
1 | ||
| 61822A - RAIL, DUSTPROOF, REAR LH | ||||
| 61822-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61907 - PILLAR SUB-ASSY, NO.1 OUTER, UPPER RH | ||||
| 61907-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| Common parts | ||||
| 90950-01027 | ||||
| 90950-01056 | ||||
| 90950-01150 | ||||
| 90950-01424 | ||||
| 90950-01444 | ||||
| 90950-01450 | ||||
| 90950-06028 | ||||
| 91651-40612 | ||||
ILLUST NO. 2 OF 3(9001- )LHD..29S,30S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61012A - PILLAR SUB-ASSY, NO.2 RH | ||||
| 61012-90B02 |
BB21,FB30,HZB30,RB20..LHD RH |
1 | ||
| 61015A - PILLAR SUB-ASSY, NO.5 RH | ||||
| 61015-90B02 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61016 - PILLAR SUB-ASSY, NO.6 RH | ||||
| 61016-90B00 |
FB30,HZB30 |
1 | ||
| 61017 - PILLAR SUB-ASSY, NO.7 RH | ||||
| 61017-90B01 |
FB30,HZB30 |
1 | ||
| 61018 - PILLAR SUB-ASSY, NO.8 RH | ||||
| 61017-90B01 |
FB30,HZB30 |
1 | ||
| 61022A - PILLAR SUB-ASSY, NO.2 LH | ||||
| 61022-90B00 |
BB21,FB30,HZB30,RB20..LHD..(DLX,STD)..GEN |
1 | ||
| 61023A - PILLAR SUB-ASSY, NO.3 LH | ||||
| 61023-90B03 |
BB21,FB30,HZB30,RB20..LHD |
1 | ||
| 61024A - PILLAR SUB-ASSY, NO.4 LH | ||||
| 61024-90B03 |
BB21,FB30,HZB30,RB20..LHD |
1 | ||
| 61025A - PILLAR SUB-ASSY, NO.5 LH | ||||
| 61025-90B04 |
BB21,FB30,RB20..LHD |
1 | ||
| 61026A - PILLAR SUB-ASSY, NO.6 LH | ||||
| 61026-90B00 |
FB30,HZB30 |
1 | ||
| 61027B - PILLAR SUB-ASSY, NO.7, LH | ||||
| 61027-90B02 |
FB30,HZB30 |
1 | ||
| 61028B - PILLAR SUB-ASSY, NO.8 LH | ||||
| 61028-90B02 |
FB30,HZB30 |
1 | ||
| 61034A - PILLAR SUB-ASSY, NO.3 INNER, RH | ||||
| 61034-90B02 |
BB21,FB30,HZB30,RB20..LHD..WC W/*GLD |
1 | ||
| 61034-90B00 |
BB21,FB30,HZB30,RB20..LHD |
1 | ||
| 61035B - PILLAR SUB-ASSY, NO.4 INNER, RH | ||||
| 61035-90B01 |
BB21,FB30,HZB30,RB20..LHD |
1 | ||
| 61035-90B03 |
BB21,FB30,HZB30,RB20..LHD..DLX..WC W/*GLD |
1 | ||
| 61037B - PILLAR SUB-ASSY, NO.6 INNER NO.1 | ||||
| 61037-90B00 |
BB32,FB30,HZB30..LHD..(29S,30S) RH |
2 | ||
| 61037-90B00 |
BB32,FB30,HZB30..LHD LH |
2 | ||
| 61037B - PILLAR SUB-ASSY, NO.6 INNER NO.1 | ||||
| 61037-90B00 |
BB32,FB30,HZB30..LHD..(29S,30S) RH |
2 | ||
| 61037-90B00 |
BB32,FB30,HZB30..LHD LH |
2 | ||
| 61037B - PILLAR SUB-ASSY, NO.6 INNER NO.1 | ||||
| 61037-90B00 |
BB32,FB30,HZB30..LHD..(29S,30S) RH |
2 | ||
| 61037-90B00 |
BB32,FB30,HZB30..LHD LH |
2 | ||
| 61037B - PILLAR SUB-ASSY, NO.6 INNER NO.1 | ||||
| 61037-90B00 |
BB32,FB30,HZB30..LHD..(29S,30S) RH |
2 | ||
| 61037-90B00 |
BB32,FB30,HZB30..LHD LH |
2 | ||
| 61043 - PILLAR SUB-ASSY, NO.2 INNER, LH | ||||
| 61043-90B01 |
BB21,FB30,HZB30..LHD..GEN W/2 POINT FLXED TYPE DRIVERS SEAT BELT OR W/ONLY ANCHER DRIVERS SEAT BELT |
1 | ||
| 61043-90B00 |
BB21,FB30,HZB30,RB20..LHD..GEN |
1 | ||
| 61045A - PILLAR SUB-ASSY, NO.4 INNER, LH | ||||
| 61045-90B01 |
BB21,32,FB30,HZB30,RB20..LHD |
1 | ||
| 61051B - BRACE SUB-ASSY, REAR WHEEL, UPPER FRONT RH | ||||
| 61051-90B00 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61052B - BRACE SUB-ASSY, REAR WHEEL, UPPER REAR RH | ||||
| 61052-90B00 |
BB21,FB30,HZB30,RB20..LHD |
1 | ||
| 61056 - RAIL SUB-ASSY, NO.6 LOWER INNER, RH | ||||
| 61056-90B02 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61057B - RAIL SUB-ASSY, REAR SIDE, RH | ||||
| 61057-90B00 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61057-90B02 |
BB21,FB30,HZB30,RB20..GEN,ME W/*DSBD |
1 | ||
| 61059 - PILLAR SUB-ASSY, NO.9 INNER, LOWER RH | ||||
| 61059-90B00 |
BB21,FB30,HZB30,RB20..LHD |
1 | ||
| 61061B - BRACE SUB-ASSY, REAR WHEEL, UPPER FRONT LH | ||||
| 61061-90B00 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61062B - BRACE SUB-ASSY, REAR WHEEL, UPPER REAR LH | ||||
| 61062-90B01 |
BB21,FB30,HZB30,RB20..LHD |
1 | ||
| 61066A - RAIL SUB-ASSY, NO.6 LOWER, INNER LH | ||||
| 61066-90B02 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61067D - RAIL SUB-ASSY, REAR SIDE, LH | ||||
| 61067-90B00 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61067-90B02 |
BB21,FB30,HZB30,RB20..GEN W/*SSBD OR W/*DSBD |
1 | ||
| 61069A - PILLAR SUB-ASSY, NO.9 INNER, LOWER LH | ||||
| 61069-90B00 |
BB21,32,FB30,HZB30,RB20..LHD |
1 | ||
| 61092 - RAIL SUB-ASSY, NO.3 LOWER INNER, RH | ||||
| 61092-90B04 |
FB30,HZB30..LHD |
1 | ||
| 61093 - RAIL SUB-ASSY, NO.2 LOWER INNER, LH | ||||
| 61093-90B03 |
FB30,HZB30..LHD |
1 | ||
| 61093-90B02 |
FB30,HZB30..LHD W/ROOF RACK OR W/*SSBD OR W/*DSBD OR W/CARTAIN |
1 | ||
| 61098 - RAIL SUB-ASSY, NO.5 LOWER OUTER, LH | ||||
| 61425-90B00 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61147B - GUSSET, ROCKER OUTER REINFORCEMENT, LH | ||||
| 61147-90B00 |
BB21,FB30,HZB30,RB20..LHD |
1 | ||
| 61201A - STIFFENER SUB-ASSY, SIDE PANEL, NO.1 | ||||
| 61201-90B02 |
BB32,FB30,HZB30..LHD |
1 | ||
| 61203C - STIFFENER SUB-ASSY, SIDE PANEL, NO.3 | ||||
| 61203-90B01 |
BB32,FB30,HZB30..LHD |
1 | ||
| 61205A - STIFFENER SUB-ASSY, SIDE PANEL, NO.5 | ||||
| 61205-90B00 |
BB32,FB30,HZB30..LHD |
3 | ||
| 61205A - STIFFENER SUB-ASSY, SIDE PANEL, NO.5 | ||||
| 61205-90B00 |
BB32,FB30,HZB30..LHD |
3 | ||
| 61205A - STIFFENER SUB-ASSY, SIDE PANEL, NO.5 | ||||
| 61205-90B00 |
BB32,FB30,HZB30..LHD |
3 | ||
| 61206A - STIFFENER SUB-ASSY, SIDE PANEL, NO.6 | ||||
| 61206-90B00 |
BB32,FB30,HZB30..LHD |
1 | ||
| 61207B - STIFFENER SUB-ASSY, SIDE PANEL, NO.7 | ||||
| 61207-90B02 |
BB32,FB30,HZB30..LHD |
1 | ||
| 61208B - STIFFENER SUB-ASSY, SIDE PANEL, NO.8 | ||||
| 61208-90B01 |
BB32,FB30,HZB30..LHD |
2 | ||
| 61208B - STIFFENER SUB-ASSY, SIDE PANEL, NO.8 | ||||
| 61208-90B01 |
BB32,FB30,HZB30..LHD |
2 | ||
| 61218B - PILLAR, NO.4 OUTER, UPPER | ||||
| 61218-90B00 |
FB30,HZB30..LHD |
5 | ||
| 61218B - PILLAR, NO.4 OUTER, UPPER | ||||
| 61218-90B00 |
FB30,HZB30..LHD |
5 | ||
| 61218B - PILLAR, NO.4 OUTER, UPPER | ||||
| 61218-90B00 |
FB30,HZB30..LHD |
5 | ||
| 61218B - PILLAR, NO.4 OUTER, UPPER | ||||
| 61218-90B00 |
FB30,HZB30..LHD |
5 | ||
| 61218B - PILLAR, NO.4 OUTER, UPPER | ||||
| 61218-90B00 |
FB30,HZB30..LHD |
5 | ||
| 61303A - RAIL SUB-ASSY, NO.2 CENTER, OUTER RH | ||||
| 61303-90B00 |
FB30,HZB30..LHD |
1 | ||
| 61303-90B01 |
BB21,FB30,HZB30,RB20..LHD W/*GLD |
1 | ||
| 61303-90B01 |
FB30,HZB30..LHD W/GLIDING AUTO DOOR |
1 | ||
| 61305A - RAIL SUB-ASSY, NO.3 CENTER, OUTER RH | ||||
| 61305-90B01 |
BB21,FB30,HZB30,RB20..LHD W/*GLD |
1 | ||
| 61305-90B00 |
BB21,FB30,HZB30,RB20..LHD |
1 | ||
| 61307B - RAIL SUB-ASSY, NO.5 CENTER, OUTER RH | ||||
| 61307-90B01 |
FB30,HZB30 |
1 | ||
| 61308C - RAIL SUB-ASSY, NO.5 CENTER OUTER, LH | ||||
| 61308-90B01 |
FB30,HZB30 |
1 | ||
| 61354 - RAIL, NO.4 CENTER OUTER, RH | ||||
| 61354-90B00 |
BB2#,FB30,RB20 RH |
1 | ||
| 61354-90B00 |
BB32,FB30,HZB30..LHD..30S LH |
2 | ||
| 61354-90B00 |
FB30..SRF LH W/ROOF RACK |
2 | ||
| 61354 - RAIL, NO.4 CENTER OUTER, RH | ||||
| 61354-90B00 |
BB2#,FB30,RB20 RH |
1 | ||
| 61354-90B00 |
BB32,FB30,HZB30..LHD..30S LH |
2 | ||
| 61354-90B00 |
FB30..SRF LH W/ROOF RACK |
2 | ||
| 61354 - RAIL, NO.4 CENTER OUTER, RH | ||||
| 61354-90B00 |
BB2#,FB30,RB20 RH |
1 | ||
| 61354-90B00 |
BB32,FB30,HZB30..LHD..30S LH |
2 | ||
| 61354-90B00 |
FB30..SRF LH W/ROOF RACK |
2 | ||
| 61354 - RAIL, NO.4 CENTER OUTER, RH | ||||
| 61354-90B00 |
BB2#,FB30,RB20 RH |
1 | ||
| 61354-90B00 |
BB32,FB30,HZB30..LHD..30S LH |
2 | ||
| 61354-90B00 |
FB30..SRF LH W/ROOF RACK |
2 | ||
| 61362A - RAIL, NO.2 CENTER OUTER, LH | ||||
| 61362-90B02 |
BB21,FB30,HZB30,RB20..LHD |
1 | ||
| 61372C - RAIL, NO.2 CENTER, INNER | ||||
| 61372-90B00 |
FB30,HZB30..GEN,ME |
6 | ||
| 61372C - RAIL, NO.2 CENTER, INNER | ||||
| 61372-90B00 |
FB30,HZB30..GEN,ME |
6 | ||
| 61372C - RAIL, NO.2 CENTER, INNER | ||||
| 61372-90B00 |
FB30,HZB30..GEN,ME |
6 | ||
| 61372C - RAIL, NO.2 CENTER, INNER | ||||
| 61372-90B00 |
FB30,HZB30..GEN,ME |
6 | ||
| 61372C - RAIL, NO.2 CENTER, INNER | ||||
| 61372-90B00 |
FB30,HZB30..GEN,ME |
6 | ||
| 61372C - RAIL, NO.2 CENTER, INNER | ||||
| 61372-90B00 |
FB30,HZB30..GEN,ME |
6 | ||
| 61376 - BRACE, REAR WHEEL, UPPER FRONT RH | ||||
| 61376-90B00 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61386A - BRACE, REAR WHEEL, UPPER FRONT LH | ||||
| 61386-90B00 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61401D - RAIL SUB-ASSY, NO.1 LOWER OUTER, RH | ||||
| 61401-90B00 |
BB21,FB30,HZB30,RB20..LHD |
1 | ||
| 61402E - BRACE SUB-ASSY, NO.1 LOWER OUTER, LH | ||||
| 61402-90B02 |
BB21,FB30,HZB30,RB20..LHD |
1 | ||
| 61403B - RAIL SUB-ASSY, NO.6 LOWER OUTER, RH | ||||
| 61403-90B00 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61404B - RAIL SUB-ASSY, NO.6 LOWER OUTER, LH | ||||
| 61404-90B00 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61413D - RAIL, NO.3 LOWER OUTER, RH | ||||
| 61413-90B00 |
BB21,FB30,HZB30,RB20..LHD |
1 | ||
| 61414D - RAIL, NO.4 LOWER OUTER, RH | ||||
| 61414-90B00 |
FB30,HZB30 |
1 | ||
| 61422B - RAIL, NO.2 LOWER OUTER, LH | ||||
| 61422-90B04 |
BB21,FB30,HZB30,RB20..LHD |
1 | ||
| 61446A - RAIL, NO.6 LOWER INNER, LH | ||||
| 61446-90B00 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61475 - BRACKET, CENTER RAIL INSIDE CUSHION, NO.1 | ||||
| 61475-90B00 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61475 - BRACKET, CENTER RAIL INSIDE CUSHION, NO.1 | ||||
| 61475-90B00 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61475 - BRACKET, CENTER RAIL INSIDE CUSHION, NO.1 | ||||
| 61475-90B00 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61475 - BRACKET, CENTER RAIL INSIDE CUSHION, NO.1 | ||||
| 61475-90B00 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61475 - BRACKET, CENTER RAIL INSIDE CUSHION, NO.1 | ||||
| 61475-90B00 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61475 - BRACKET, CENTER RAIL INSIDE CUSHION, NO.1 | ||||
| 61475-90B00 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61475 - BRACKET, CENTER RAIL INSIDE CUSHION, NO.1 | ||||
| 61475-90B00 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61475 - BRACKET, CENTER RAIL INSIDE CUSHION, NO.1 | ||||
| 61475-90B00 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61504C - GUSSET SUB-ASSY, SEAT ANCHOR, NO.4 | ||||
| 61504-90B00 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61505A - GUSSET SUB-ASSY, SEAT ANCHOR, NO.5 | ||||
| 61505-90B00 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61511A - RAIL, SEAT ANCHOR, NO.1 | ||||
| 61511-90B00 |
BB21,FB30,HZB30,RB20..LHD |
1 | ||
| 61512A - RAIL, SEAT ANCHOR, NO.2 RH | ||||
| 61512-90B02 |
BB21,FB30,HZB30,RB20..LHD |
1 | ||
| 61513E - RAIL, SEAT ANCHOR, NO.3 | ||||
| 61513-90B00 |
BB21,FB30,HZB30,RB20..LHD |
1 | ||
| 61514C - RAIL, SEAT ANCHOR, NO.4 | ||||
| 61514-90B00 |
BB2#,FB30,HZB30,RB20 |
2 | ||
| 61514C - RAIL, SEAT ANCHOR, NO.4 | ||||
| 61514-90B00 |
BB2#,FB30,HZB30,RB20 |
2 | ||
| 61515C - RAIL, SEAT ANCHOR, NO.5 | ||||
| 61515-90B00 |
FB30,HZB30 |
2 | ||
| 61515C - RAIL, SEAT ANCHOR, NO.5 | ||||
| 61515-90B00 |
FB30,HZB30 |
2 | ||
| 61516A - RAIL, SEAT ANCHOR, NO.6 | ||||
| 61516-90B00 |
BB2#,FB30,HZB30,RB20 |
2 | ||
| 61516A - RAIL, SEAT ANCHOR, NO.6 | ||||
| 61516-90B00 |
BB2#,FB30,HZB30,RB20 |
2 | ||
| 61519 - GUSSET, REAR SIDE RAIL, RH | ||||
| 61519-90B00 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61529 - GUSSET, REAR SIDE RAIL, LH | ||||
| 61529-90B00 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61531E - GUSSET, SEAT ANCHOR, NO.1 | ||||
| 61531-90B00 |
FB30,HZB30..LHD |
3 | ||
| 61531E - GUSSET, SEAT ANCHOR, NO.1 | ||||
| 61531-90B00 |
FB30,HZB30..LHD |
3 | ||
| 61531E - GUSSET, SEAT ANCHOR, NO.1 | ||||
| 61531-90B00 |
FB30,HZB30..LHD |
3 | ||
| 61536A - GUSSET, SEAT ANCHOR, NO.6 | ||||
| 61536-90B00 |
BB21,FB30,HZB30,RB20..LHD |
3 | ||
| 61536A - GUSSET, SEAT ANCHOR, NO.6 | ||||
| 61536-90B00 |
BB21,FB30,HZB30,RB20..LHD |
3 | ||
| 61536A - GUSSET, SEAT ANCHOR, NO.6 | ||||
| 61536-90B00 |
BB21,FB30,HZB30,RB20..LHD |
3 | ||
| 61537A - GUSSET, SEAT ANCHOR, NO.7 RH | ||||
| 61537-90B00 |
BB21,FB30,HZB30,RB20..LHD |
1 | ||
| 61539B - GUSSET, SEAT ANCHOR, NO.9 | ||||
| 61539-90B00 |
BB21,FB30,HZB30,RB20..LHD |
1 | ||
| 61557A - GUSSET, SEAT ANCHOR, NO.15 | ||||
| 61557-90B00 |
FB30,HZB30..LHD |
2 | ||
| 61558A - GUSSET, SEAT ANCHOR, NO.16 | ||||
| 61558-90B00 |
FB30,HZB30..LHD |
1 | ||
| 61571 - GUSSET, SEAT RAIL, INNER | ||||
| 61571-90B00 |
BB2#,FB30,HZB30,RB20 |
6 | ||
| 61571 - GUSSET, SEAT RAIL, INNER | ||||
| 61571-90B00 |
BB2#,FB30,HZB30,RB20 |
6 | ||
| 61571 - GUSSET, SEAT RAIL, INNER | ||||
| 61571-90B00 |
BB2#,FB30,HZB30,RB20 |
6 | ||
| 61571 - GUSSET, SEAT RAIL, INNER | ||||
| 61571-90B00 |
BB2#,FB30,HZB30,RB20 |
6 | ||
| 61571 - GUSSET, SEAT RAIL, INNER | ||||
| 61571-90B00 |
BB2#,FB30,HZB30,RB20 |
6 | ||
| 61571 - GUSSET, SEAT RAIL, INNER | ||||
| 61571-90B00 |
BB2#,FB30,HZB30,RB20 |
6 | ||
| 61572 - GUSSET, CENTER RAIL, OUTER | ||||
| 61572-90B00 |
BB32,FB30,HZB30..LHD..30S LH |
3 | ||
| 61572-90B00 |
FB30,HZB30..LHD RH |
2 | ||
| 61572 - GUSSET, CENTER RAIL, OUTER | ||||
| 61572-90B00 |
BB32,FB30,HZB30..LHD..30S LH |
3 | ||
| 61572-90B00 |
FB30,HZB30..LHD RH |
2 | ||
| 61572 - GUSSET, CENTER RAIL, OUTER | ||||
| 61572-90B00 |
BB32,FB30,HZB30..LHD..30S LH |
3 | ||
| 61572-90B00 |
FB30,HZB30..LHD RH |
2 | ||
| 61572 - GUSSET, CENTER RAIL, OUTER | ||||
| 61572-90B00 |
BB32,FB30,HZB30..LHD..30S LH |
3 | ||
| 61572-90B00 |
FB30,HZB30..LHD RH |
2 | ||
| 61572 - GUSSET, CENTER RAIL, OUTER | ||||
| 61572-90B00 |
BB32,FB30,HZB30..LHD..30S LH |
3 | ||
| 61572-90B00 |
FB30,HZB30..LHD RH |
2 | ||
| 61572 - GUSSET, CENTER RAIL, OUTER | ||||
| 61572-90B00 |
BB32,FB30,HZB30..LHD..30S LH |
3 | ||
| 61572-90B00 |
FB30,HZB30..LHD RH |
2 | ||
| 61572 - GUSSET, CENTER RAIL, OUTER | ||||
| 61572-90B00 |
BB32,FB30,HZB30..LHD..30S LH |
3 | ||
| 61572-90B00 |
FB30,HZB30..LHD RH |
2 | ||
| 61572 - GUSSET, CENTER RAIL, OUTER | ||||
| 61572-90B00 |
BB32,FB30,HZB30..LHD..30S LH |
3 | ||
| 61572-90B00 |
FB30,HZB30..LHD RH |
2 | ||
| 61572 - GUSSET, CENTER RAIL, OUTER | ||||
| 61572-90B00 |
BB32,FB30,HZB30..LHD..30S LH |
3 | ||
| 61572-90B00 |
FB30,HZB30..LHD RH |
2 | ||
| 61579 - GUSSET, NO.4 PILLAR, CENTER RH | ||||
| 61579-90B00 |
BB21,FB30,HZB30,RB20..LHD |
1 | ||
| 61579-90B01 |
BB21,FB30,HZB30,RB20..LHD W/*GLD |
1 | ||
| 61591 - BRACKET, STIFFENER, NO.1 | ||||
| 61591-90B02 |
BB32,FB30,HZB30..LHD |
7 | ||
| 61591-90B03 |
BB21,FB30,HZB30,RB20..LHD W/*GLD |
1 | ||
| 61591 - BRACKET, STIFFENER, NO.1 | ||||
| 61591-90B02 |
BB32,FB30,HZB30..LHD |
7 | ||
| 61591-90B03 |
BB21,FB30,HZB30,RB20..LHD W/*GLD |
1 | ||
| 61591 - BRACKET, STIFFENER, NO.1 | ||||
| 61591-90B02 |
BB32,FB30,HZB30..LHD |
7 | ||
| 61591-90B03 |
BB21,FB30,HZB30,RB20..LHD W/*GLD |
1 | ||
| 61591 - BRACKET, STIFFENER, NO.1 | ||||
| 61591-90B02 |
BB32,FB30,HZB30..LHD |
7 | ||
| 61591-90B03 |
BB21,FB30,HZB30,RB20..LHD W/*GLD |
1 | ||
| 61591 - BRACKET, STIFFENER, NO.1 | ||||
| 61591-90B02 |
BB32,FB30,HZB30..LHD |
7 | ||
| 61591-90B03 |
BB21,FB30,HZB30,RB20..LHD W/*GLD |
1 | ||
| 61591 - BRACKET, STIFFENER, NO.1 | ||||
| 61591-90B02 |
BB32,FB30,HZB30..LHD |
7 | ||
| 61591-90B03 |
BB21,FB30,HZB30,RB20..LHD W/*GLD |
1 | ||
| 61591 - BRACKET, STIFFENER, NO.1 | ||||
| 61591-90B02 |
BB32,FB30,HZB30..LHD |
7 | ||
| 61591-90B03 |
BB21,FB30,HZB30,RB20..LHD W/*GLD |
1 | ||
| 61669C - REINFORCE, NO.2 PILLAR, OUTER LH | ||||
| 61669-90B00 |
BB21,32,FB30,HZB30,RB20..LHD |
1 | ||
| 61828B - PLATE, DUCT PROOF, NO.6 LH | ||||
| 61828-90B00 |
BB21,FB30,HZB30,RB20..LHD |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
