FB30L-MDR (1986)

Toyota Coaster

Production Oct 1986 - Jan 1993
Engine 3F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

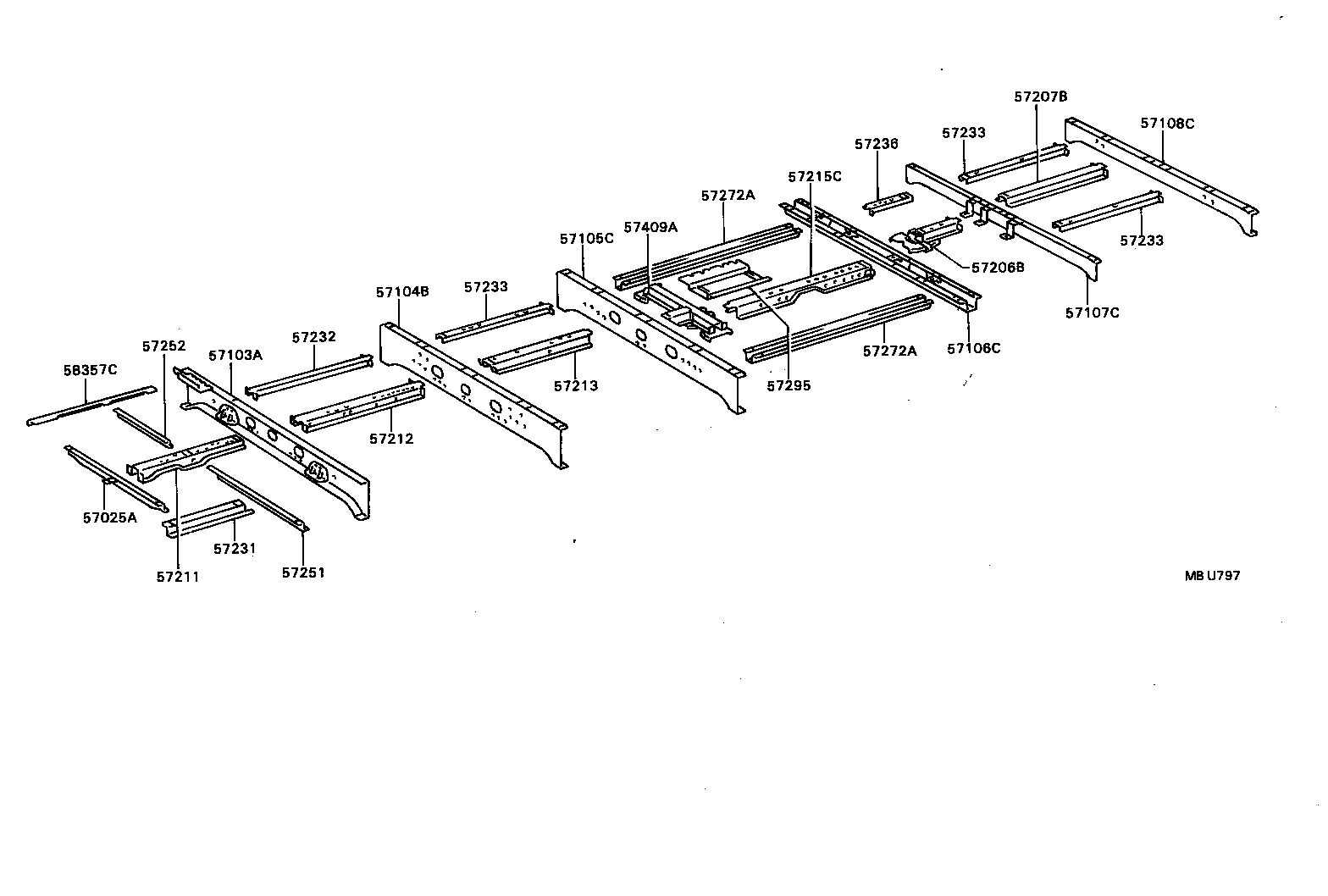

ILLUST NO. 2 OF 2(9001- )BB32,FB30,HZB30..LHD..GEN

Click highlighted areas on diagram

diagram 57025A 57103A 57104B 57105C 57106C 57107C 57108C 57206B 57207B 57211 57212 57213 57215C 57231 57232 57233 57233 57233 57236 57251 57252 57272A 57272A 57295 57409A 58357C
Part # Description Qty Price
57025A - STRENGTH, SUB-ASSY, CROSSMEMBER FLOOR, NO.2 SUB
57025-90B01

FB30

 1
57103A - CROSSMENBER SUB-ASSY, FLOOR, NO.3
57103-90B08

BB21,32,FB30,HZB30,RB20..LHD

W/GLIDING TYPE CENTER DOOR OR W/GLIDING TYPE CENTER DOOR & W/TACHOMETER

 1
57103-90B01

BB21,32,FB30,HZB30,RB20..LHD

 1
57104B - CROSSMEMBER SUB-ASSY, FLOOR, NO.4
57104-90B02

BB32,FB30

 1
57105C - CROSSMEMBER SUB-ASSY, FLOOR, NO.5
57105-90B04

BB32,FB30

 1
57106C - CROSSMEMBER SUB-ASSY, FLOOR, NO.6
57106-90B04

BB2#,32,FB30,HZB30,RB20

 1
57107C - CROSSMENBER SUB-ASSY, FLOOR, NO.7
57107-90B03

BB32,FB30

 1
57108C - CROSSMEMBER SUB-ASSY, FLOOR, NO.8
57108-90B03

BB2#,32,FB30,HZB30,RB20

 1
57206B - STRENGTH SUB-ASSY, ANCHOR
57206-90B07

FB30,HZB30..LHD

CHINA DISTINATION PACKAGE

 1
57206-90B01

BB21,FB30,HZB30,RB20..LHD

 1
57206-90B07

BB21,FB30,RB20..LHD

CROSSMEMBER TEMPRERED

 1
57207B - STRENGTH SUB-ASSY, REAR FLOOR HOUSING, NO.7
57207-90B01

BB2#,32,FB30,HZB30,RB20

 1
57207-36010

BB2#,32,FB30,HZB30,RB20

 1
57211 - STRENGTH, ANCHOR, NO.1
57211-90B08

FB30

 1
57212 - STRENGTH, ANCHOR, NO.2
57212-90B01

BB21,32,FB30,HZB30,RB20..LHD

 1
57213 - STRENGTH, ANCHOR, NO.3
57213-90B03

BB32,FB30

 1
57215C - STRENGTH, ANCHOR, NO.5
57205-90B00

FB30,HZB30..LHD

CHINA DISTINATION PACKAGE

 1
57215-90B01

BB21,FB30,HZB30,RB20..LHD

 1
57205-90B00

BB21,FB30,RB20..LHD

CROSSMEMBER TEMPRERED

 1
57231 - STRENGTH, ANCHOR SIDE, NO.1
57231-90B01

FB30

 1
57232 - STRENGTH, ANCHOR SIDE, NO.2
57232-90B00

BB2#,32,FB30,HZB30,RB20

 1
57233 - STRENGTH, ANCHOR SIDE, NO.3
57233-90B00

BB32,FB30

RR

 1
57233 - STRENGTH, ANCHOR SIDE, NO.3
57233-90B00

BB32,FB30

RR

 1
57233 - STRENGTH, ANCHOR SIDE, NO.3
57233-90B00

BB32,FB30

RR

 1
57236 - STRENGTH, ANCHOR SIDE, NO.6
57236-90B00

BB2#,32,FB30,HZB30,RB20..GEN,ME

 1
57251 - STRENGTH, FLOOR CROSS
57251-90B01

FB30

 1
57252 - STRENGTH, FLOOR CROSS, NO.2
57252-90B00

BB2#,32,FB30,HZB30,RB20

 1
57272A - STRENGTH, REAR FLOOR HOUSING, SIDE
57272-90B00

BB2#,32,FB30,HZB30,RB20

 2
57272A - STRENGTH, REAR FLOOR HOUSING, SIDE
57272-90B00

BB2#,32,FB30,HZB30,RB20

 2
57295 - INSULATOR, ANCHOR STRENGTH TO REAR FLOOR
57295-90B00

BB21,32,FB30,HZB30,RB20..LHD

 1
57409A - STRENGTH SUB-ASSY, REAR FLOOR HOUSING
57409-90B03

BB21,FB30,HZB30,RB20..LHD

 1
57409-90B05

FB30,HZB30..LHD

CHINA DISTINATION PACKAGE

 1
57409-90B05

BB21,FB30,RB20..LHD

CROSSMEMBER TEMPRERED

 1
58357C - STRENGTH, CENTER DOOR STEP, UPPER
58357-90B01

BB21,32,FB30,HZB30,RB20..LHD

 1
