FB30L-MDR (1986)
Toyota Coaster
Production
Oct 1986
-
Jan 1993
Engine
3F
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8610- )FB30,HB30,HDB30,HZB30

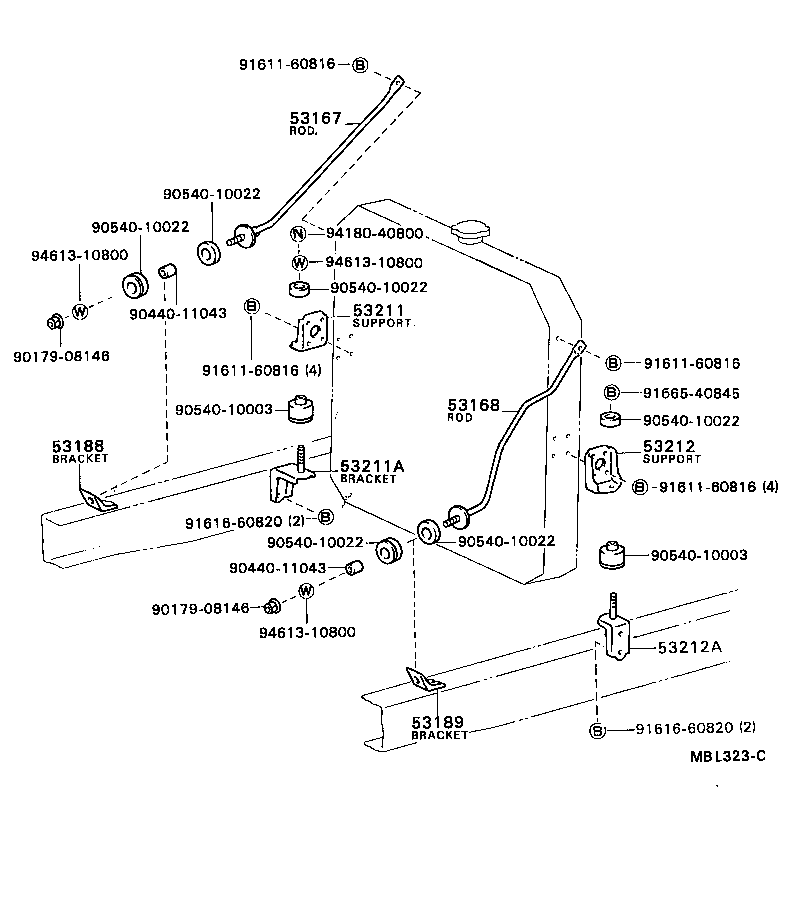

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53167 - ROD, RADIATOR BRACE, RH | ||||
| 53167-36070 |
BB20,21,3#,RB20..LHD |
1 | ||
| 53167-36090 |
FB30,HB30,HDB30,HZB30..LHD |
1 | ||
| 53168 - ROD, RADIATOR BRACE, LH | ||||
| 53169-36060 |
BB20,21,3#,RB20..LHD |
1 | ||
| 53169-36080 |
FB30,HB30,HDB30,HZB30..LHD |
1 | ||
| 53188 - BRACKET, RADIATOR BRACE ROD, RH | ||||
| 53168-26010 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20 |
1 | ||
| 53189 - BRACKET, RADIATOR BRACE ROD, LH | ||||
| 53168-26010 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20 |
1 | ||
| 53211 - SUPPORT, RADIATOR, RH | ||||
| 53211-36050 |
FB30,HB3#,HDB30,HZB30 |
1 | ||
| 53211-36040 |
BB2#,3#,RB20 |
1 | ||
| 53211A - BRACKET, RADIATOR SUPPORT, RH | ||||
| 51411-36070 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20 |
1 | ||
| 53212 - SUPPORT, RADIATOR, LH | ||||
| 53211-36040 |
BB2#,3#,RB20 |
1 | ||
| 53211-36050 |
FB30,HB3#,HDB30,HZB30 |
1 | ||
| 53212A - BRACKET, RADIATOR SUPPORT, LH | ||||
| 51412-36070 |
BB2#,3#,FB30,HB30,RB20 |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 90440-11043 | ||||
| 90540-10003 | ||||
| 90540-10022 | ||||
| 91611-60816 | ||||
| 91616-60820 | ||||
| 91665-40845 | ||||
| 94180-40800 | ||||
| 94613-10800 | ||||
