FB30L-MDR (1986)
Toyota Coaster

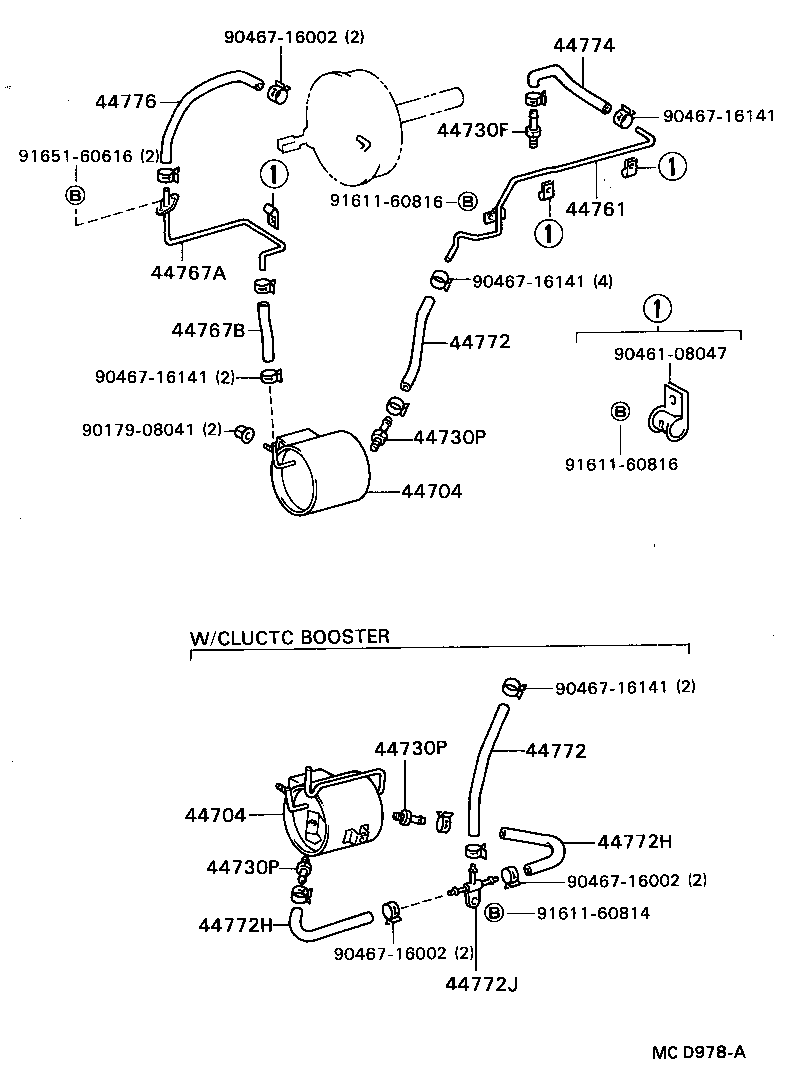

ILLUST NO. 2 OF 2(8205-8808)BB2#,30
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-36201 |
FB30 |
1 | ||
| 44704-36200 |
FB30 |
1 | ||
| 44704-36210 |
FB30 W/CLUTCH BOOSTER |
1 | ||
| 44704-36120 |
BB2#,30;RB20..ARL |
1 | ||
| 44704-36211 |
FB30 W/CLUTCH BOOSTER |
1 | ||
| 44704D - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90345-51025 |
BB2#,30;RB20..ARL |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-60040 |
BB2#,3#,HB3#,HDB30,HZB30 |
2 | ||
| 44730-36050 |
FB30 |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-60040 |
BB2#,3#,HB3#,HDB30,HZB30 |
2 | ||
| 44730-36050 |
FB30 |
1 | ||
| 44762G - TUBE, VACUUM CHECK VALVE TO CONNECTOR | ||||
| 44762-36070 |
BB21,22,30..GEN,ME W/EXHAUST BRAKE |
1 | ||
| 44762G - TUBE, VACUUM CHECK VALVE TO CONNECTOR | ||||
| 44762-36070 |
BB21,22,30..GEN,ME W/EXHAUST BRAKE |
1 | ||
| 44767A - TUBE, VACUUM RESERVOIR TO BRAKE BOOSTER | ||||
| 44767-36050 |
FB30,HB30,HZB30..LHD |
1 | ||
| 44767-36040 |
BB20,21,30..LHD |
1 | ||
| 44767A - TUBE, VACUUM RESERVOIR TO BRAKE BOOSTER | ||||
| 44767-36050 |
FB30,HB30,HZB30..LHD |
1 | ||
| 44767-36040 |
BB20,21,30..LHD |
1 | ||
| 44767B - HOSE(FOR VACUUM RESERVOIR TO BRAKE BOOSTER TUBE) | ||||
| 95445-09160 |
FB30,HB30,HDB30,HZB30..LHD |
1 | ||
| 44767B - HOSE(FOR VACUUM RESERVOIR TO BRAKE BOOSTER TUBE) | ||||
| 95445-09160 |
FB30,HB30,HDB30,HZB30..LHD |
1 | ||
| 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE | ||||
| 95445-09480 |
FB30 W/CLUTCH BOOSTER |
1 | ||
| 44772-36020 |
FB30,HB30,HZB30 |
1 | ||
| 44772-36020 |
BB2#,30,FB30,HB30 |
1 | ||
| 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE | ||||
| 95445-09480 |
FB30 W/CLUTCH BOOSTER |
1 | ||
| 44772-36020 |
FB30,HB30,HZB30 |
1 | ||
| 44772-36020 |
BB2#,30,FB30,HB30 |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-36040 |
BB2#,30 |
1 | ||
| 44774-36160 |
FB30 |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-36040 |
BB2#,30 |
1 | ||
| 44774-36160 |
FB30 |
1 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 44776-36010 |
BB20,30,RB20 |
1 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 44776-36010 |
BB20,30,RB20 |
1 | ||
| Common parts | ||||
| 90179-08041 | ||||
| 90461-08047 | ||||
| 90467-16141 | ||||
| 91611-40816 | ||||
| 91651-60616 | ||||
ILLUST NO. 2 OF 2(8610- )FB30
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-36201 |
FB30 |
1 | ||
| 44704-36200 |
FB30 |
1 | ||
| 44704-36210 |
FB30 W/CLUTCH BOOSTER |
1 | ||
| 44704-36120 |
BB2#,30;RB20..ARL |
1 | ||
| 44704-36211 |
FB30 W/CLUTCH BOOSTER |
1 | ||
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-36201 |
FB30 |
1 | ||
| 44704-36200 |
FB30 |
1 | ||
| 44704-36210 |
FB30 W/CLUTCH BOOSTER |
1 | ||
| 44704-36120 |
BB2#,30;RB20..ARL |
1 | ||
| 44704-36211 |
FB30 W/CLUTCH BOOSTER |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51039 |
FB30 |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-60040 |
BB2#,3#,HB3#,HDB30,HZB30 |
2 | ||
| 44730-36050 |
FB30 |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-60040 |
BB2#,3#,HB3#,HDB30,HZB30 |
2 | ||
| 44730-36050 |
FB30 |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-60040 |
BB2#,3#,HB3#,HDB30,HZB30 |
2 | ||
| 44730-36050 |
FB30 |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-36100 |
FB30 |
1 | ||
| 44767A - TUBE, VACUUM RESERVOIR TO BRAKE BOOSTER | ||||
| 44767-36050 |
FB30,HB30,HZB30..LHD |
1 | ||
| 44767-36040 |
BB20,21,30..LHD |
1 | ||
| 44767B - HOSE(FOR VACUUM RESERVOIR TO BRAKE BOOSTER TUBE) | ||||
| 95445-09160 |
FB30,HB30,HDB30,HZB30..LHD |
1 | ||
| 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE | ||||
| 95445-09480 |
FB30 W/CLUTCH BOOSTER |
1 | ||
| 44772-36020 |
FB30,HB30,HZB30 |
1 | ||
| 44772-36020 |
BB2#,30,FB30,HB30 |
1 | ||
| 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE | ||||
| 95445-09480 |
FB30 W/CLUTCH BOOSTER |
1 | ||
| 44772-36020 |
FB30,HB30,HZB30 |
1 | ||
| 44772-36020 |
BB2#,30,FB30,HB30 |
1 | ||
| 44772H - HOSE, CHECK VALVE TO 3 WAY | ||||
| 44772-36040 |
FB30,HB30,HZB30 |
1 | ||
| 44772H - HOSE, CHECK VALVE TO 3 WAY | ||||
| 44772-36040 |
FB30,HB30,HZB30 |
1 | ||
| 44772J - WAY, 3(FOR VACUUM CHECK VALVE TO 3 WAY HOSE) | ||||
| 90413-09033 |
FB30,HB3#,HZB30 |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-36040 |
BB2#,30 |
1 | ||
| 44774-36160 |
FB30 |
1 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 44776-36010 |
BB20,30,RB20 |
1 | ||
| Common parts | ||||
| 90179-08041 | ||||
| 90461-08047 | ||||
| 90467-16002 | ||||
| 90467-16141 | ||||
| 91611-60814 | ||||
| 91611-60816 | ||||
| 91651-60616 | ||||
