FB30L-MDR (1986)

Toyota Coaster

Production Oct 1986 - Jan 1993
Engine 3F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8610- )FB30

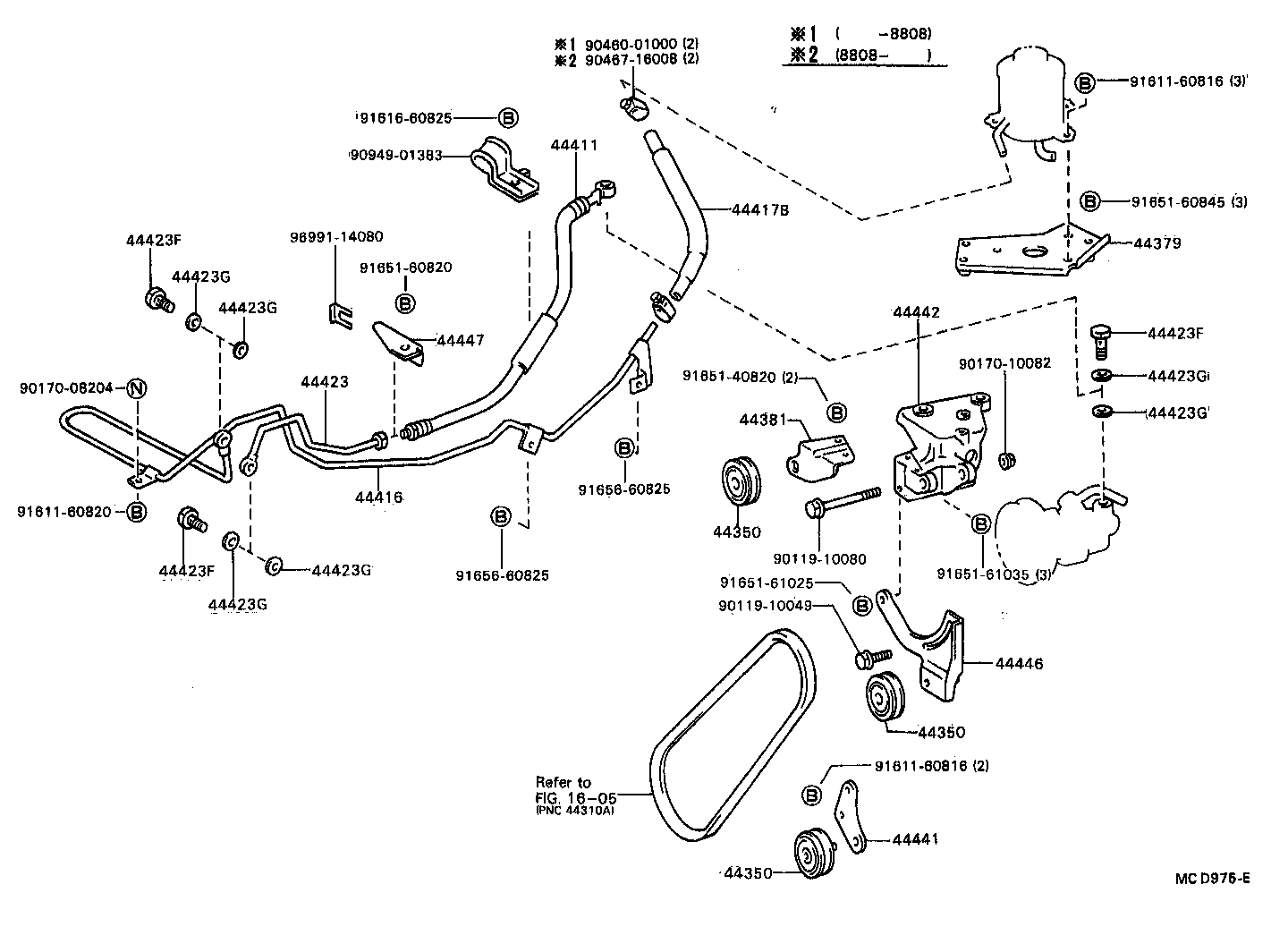

Click highlighted areas on diagram

diagram 1605 44350 44350 44350 44379 44381 44411 44416 44417B 44423 44423F 44423F 44423F 44423G 44423G 44423G 44423G 44423G 44423G 44441 44442 44446 44447 9011910049 9011910080 9017008204 9017010082 9046001000 9046716008 9094901383 9161160816 9161160816 9161160820 9161660825 9165140820 9165160820 9165160845 9165161025 9165161035 9165660825 9165660825 9699114080
Part # Description Qty Price
44350 - PULLEY ASSY, POWER STEERING IDLE
16630-56020

BB20,30..ARL,GEN

 1
44350-36050

FB30

OUTSIDE

 2
44350-36040

FB30

INSIDE

 1
44350 - PULLEY ASSY, POWER STEERING IDLE
44350-36040

FB30

INSIDE

 1
16630-56020

BB20,30..ARL,GEN

 1
44350-36050

FB30

OUTSIDE

 2
44350 - PULLEY ASSY, POWER STEERING IDLE
44350-36040

FB30

INSIDE

 1
16630-56020

BB20,30..ARL,GEN

 1
44350-36050

FB30

OUTSIDE

 2
44379 - BRACKET, OIL RESERVOIR, NO.2
44379-36040

BB20,21,30..ARL,GEN,ME

 1
44379-36140

FB30

 1
44381 - BRACKET, POWER STEERING IDLE PULLEY
44381-36010

FB30

 1
44411 - HOSE, PRESSURE FEED
44411-36250

FB30

 1
44411-36060

BB20,21,30..LHD..(GEN,ME)

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-36160

FB30

 1
44416-36030

BB20,21,30..LHD..(GEN,ME)

 1
44416-36270

FB30

 1
44417B - HOSE, RETURN TUBE(FOR RETURN TUBE TO VANE PUMP)
90445-18110

BB20,21,30..ARL,GEN,ME

 1
90447-18032

FB30

 1
44423 - TUBE, OIL PUMP TO GEAR BOX
44423-36050

BB20,30..ARL,GEN

 1
44423-36080

FB30,HB30..LHD

 1
44423-36210

FB30,HB30,HDB30,HZB30..LHD

 1
44423F - BOLT, UNION
90401-14003

BB20,30..ARL,GEN

 3
90401-16004

BB22,FB30,HB3#,HDB30,HZB30,RB20

PUMP SIDE

 1
44423F - BOLT, UNION
90401-14003

BB20,30..ARL,GEN

 3
90401-16004

BB22,FB30,HB3#,HDB30,HZB30,RB20

PUMP SIDE

 1
44423F - BOLT, UNION
90401-14003

BB20,30..ARL,GEN

 3
90401-16004

BB22,FB30,HB3#,HDB30,HZB30,RB20

PUMP SIDE

 1
44423G - GASKET, UNION BOLT
90430-14235

BB20,30..ARL,GEN

 6
44423G - GASKET, UNION BOLT
90430-14235

BB20,30..ARL,GEN

 6
44423G - GASKET, UNION BOLT
90430-14235

BB20,30..ARL,GEN

 6
44423G - GASKET, UNION BOLT
90430-14235

BB20,30..ARL,GEN

 6
44423G - GASKET, UNION BOLT
90430-14235

BB20,30..ARL,GEN

 6
44423G - GASKET, UNION BOLT
90430-14235

BB20,30..ARL,GEN

 6
44441 - BRACKET, PUMP, FRONT
44441-36040

BB20,30..ARL,GEN

 1
44441-36090

FB30

 1
44442 - BRACKET, PUMP, REAR
44442-36100

FB30

 1
44442-36030

BB20,30..ARL,GEN

 1
44446 - STRUT, ADJUSTING
44446-36010

FB30

 1
44447 - BRACKET, POWER STEERING OIL COOLER TUBE SUPPORT
44447-36071

FB30,HB30,HDB30,HZB30..LHD

 1
44447-36040

BB2#,30..ARL,GEN,ME

 1
44447-36150

BB21,30

 1
Common parts
90119-10049
90119-10080
90170-08204
90170-10082
90460-01000
90467-16008
90949-01383
91611-60816
91611-60820
91616-60825
91651-40820
91651-60820
91651-60845
91651-61025
91651-61035
91656-60825
96991-14080
Linked diagrams
1605
