FB30L-MDR (1986)

Toyota Coaster

Production Oct 1986 - Jan 1993
Engine 3F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

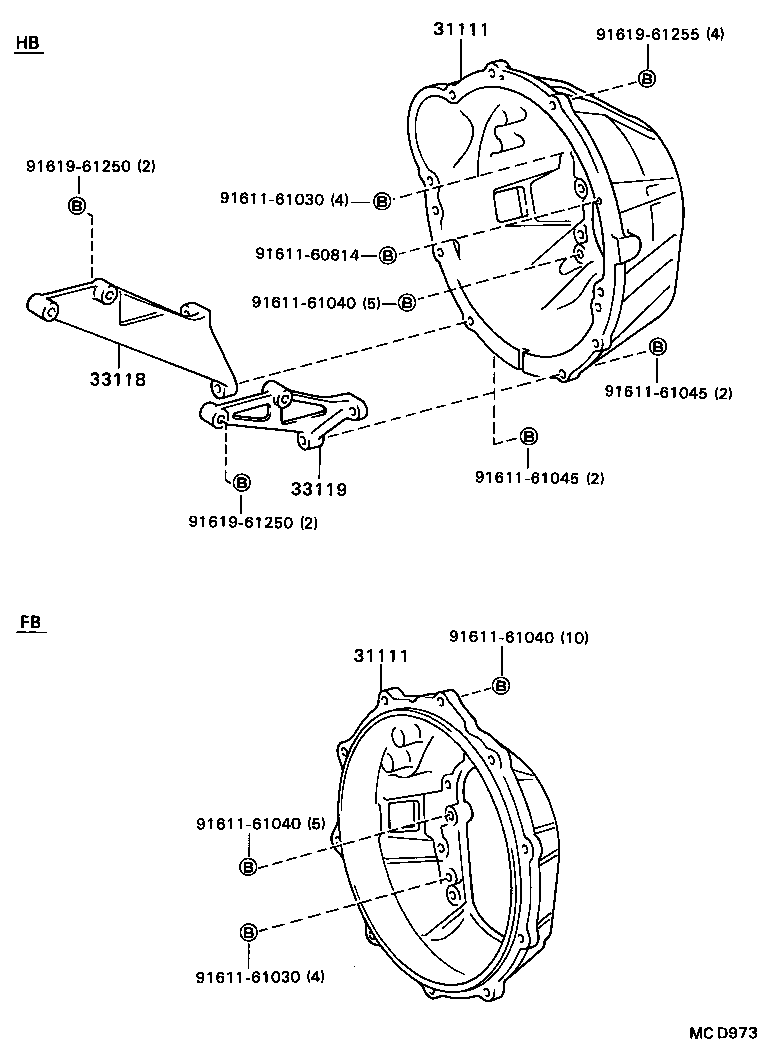

ILLUST NO. 1 OF 2(8610- )FB30,HB3#

Click highlighted areas on diagram

diagram 31111 31111 33118 33119 9161160814 9161161030 9161161030 9161161040 9161161040 9161161040 9161161045 9161161045 9161961250 9161961250 9161961255
Part # Description Qty Price
31111 - HOUSING, CLUTCH
31111-36050

BB20,30

 1
31111-36240

FB30

 1
31111 - HOUSING, CLUTCH
31111-36050

BB20,30

 1
31111-36240

FB30

 1
33118 - PLATE, STIFFENER, RH(MTM)
33118-36010

BB20,30

 1
33118-36021

BB2#,3#..5F

 1
33119 - PLATE, STIFFENER, LH(MTM)
33119-36010

BB20,30

 1
Common parts
91611-60814
91611-61030
91611-61040
91611-61045
91619-61250
91619-61255
