FB30L-MDR (1986)
Toyota Coaster
(8205-9001)BB2#,3#,FB30,HB30,RB20

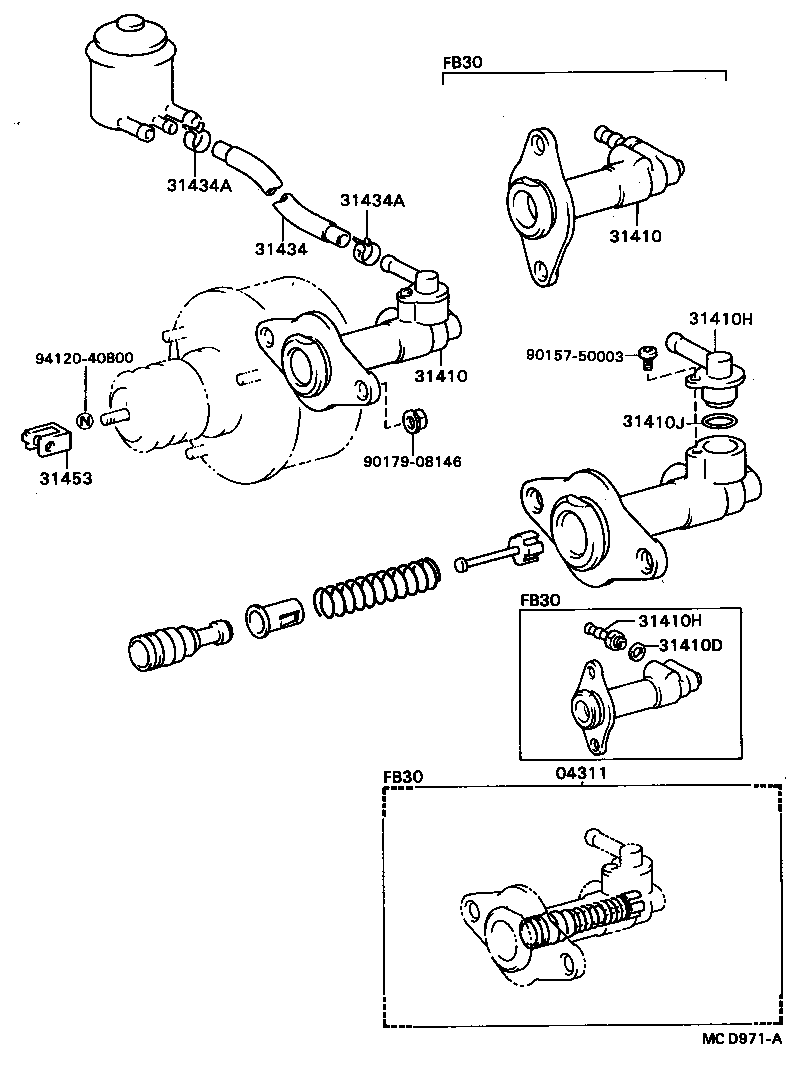

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04311 - CYLINDER KIT, CLUTCH MASTER | ||||
| 04311-30080 |
BB20,30,RB20 |
1 | ||
| 04311-36060 |
FB30,HB31 W/CLUTCH BOOSTER |
1 | ||
| 04311-20080 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 04311-12040 |
BB21,22,30,FB30,HB30 |
1 | ||
| 04311-12040 |
BB2#,FB30,HB30 |
1 | ||
| 04311-36061 |
FB30,HB31 W/CLUTCH BOOSTER |
1 | ||
| 31383 - PLATE, PEDAL SUPPORT SHAFT SET | ||||
| 55136-90B00 |
BB20,22,23,3#,RB20 |
1 | ||
| 31410 - CYLINDER ASSY, CLUTCH MASTER | ||||
| 31401-36041 |
FB30 W/CLUTCH BOOSTER |
1 | ||
| 31401-36040 |
FB30 W/CLUTCH BOOSTER |
1 | ||
| 31420-36061 |
BB2#,FB30,HB30 |
1 | ||
| 31420-36061 |
BB21,22,3#,HB30 |
1 | ||
| 31401-36042 |
FB30,HDB30..LHD W/CLUTCH BOOSTER |
1 | ||
| 31420-36160 |
BB2#,FB30,HZB30 |
1 | ||
| 31410A - BOLT(FOR CLUTCH MASTER CYLINDER SETTING) | ||||
| 91121-40870 |
BB2#,3#,FB30,HB30,HZB30,RB20 |
2 | ||
| 31410F - BOLT, UNION(FOR CLUTCH MASTER CYLINDER) | ||||
| 90401-16078 |
BB2#,3#,RB20 |
1 | ||
| 31410G - GASKET(FOR CLUTCH MASTER CYLINDER UNION) | ||||
| 90430-16242 |
BB2#,3#,FB30,HB30,RB20 |
2 | ||
| 31410G - GASKET(FOR CLUTCH MASTER CYLINDER UNION) | ||||
| 90430-16242 |
BB2#,3#,FB30,HB30,RB20 |
2 | ||
| 31410H - UNION(FOR CLUTCH MASTER CYLINDER) | ||||
| 90404-12006 |
FB30,HDB30..LHD W/CLUTCH BOOSTER |
1 | ||
| 90405-10007 |
BB2#,3#,FB30,HB30,RB20 |
1 | ||
| 31434 - TUBE, CLUTCH RESERVOIR | ||||
| 31434-36080 |
BB20,21,3#,FB30,HB30,RB20..LHD |
1 | ||
| 31434-36180 |
FB30,HDB30..LHD W/CLUTCH BOOSTER |
1 | ||
| 31434 - TUBE, CLUTCH RESERVOIR | ||||
| 31434-36080 |
BB20,21,3#,FB30,HB30,RB20..LHD |
1 | ||
| 31434-36180 |
FB30,HDB30..LHD W/CLUTCH BOOSTER |
1 | ||
| 31434A - CLIP(FOR CLUTCH RESERVOIR TUBE) | ||||
| 90467-14044 |
BB20,30,RB20 |
2 | ||
| 31434A - CLIP(FOR CLUTCH RESERVOIR TUBE) | ||||
| 90467-14044 |
BB20,30,RB20 |
2 | ||
| 31434A - CLIP(FOR CLUTCH RESERVOIR TUBE) | ||||
| 90467-14044 |
BB20,30,RB20 |
2 | ||
| 31434A - CLIP(FOR CLUTCH RESERVOIR TUBE) | ||||
| 90467-14044 |
BB20,30,RB20 |
2 | ||
| 31451 - ROD, CLUTCH MASTER CYLINDER PUSH | ||||
| 31451-30060 |
BB2#,30,FB30,HB30,RB20 |
1 | ||
| 31451-22070 |
BB2#,3#,FB30,HB30,RB20 |
1 | ||
| 31451-36040 |
BB2#,32,FB30,RB20 |
1 | ||
| 31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD | ||||
| 31453-22010 |
FB30,HB31 W/CLUTCH BOOSTER |
1 | ||
| 31453-35010 |
FB30,HB31,HDB30 W/CLUTCH BOOSTER |
1 | ||
| 31404-36011 |
BB2#,FB30,HB30 |
1 | ||
| 31404-36050 |
BB2#,FB30 |
1 | ||
| 31454 - BOOT, CLUTCH MASTER CYLINDER | ||||
| 31454-14010 |
BB2#,3#,FB30,HB30,HZB30,RB20 |
1 | ||
| Common parts | ||||
| 94120-40800 | ||||
| 94512-00800 | ||||
| Linked diagrams | ||||
| 4702 | ||||
(8610- )FB30,HB31
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04311 - CYLINDER KIT, CLUTCH MASTER | ||||
| 04311-30080 |
BB20,30,RB20 |
1 | ||
| 04311-36060 |
FB30,HB31 W/CLUTCH BOOSTER |
1 | ||
| 04311-20080 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 04311-12040 |
BB21,22,30,FB30,HB30 |
1 | ||
| 04311-12040 |
BB2#,FB30,HB30 |
1 | ||
| 04311-36061 |
FB30,HB31 W/CLUTCH BOOSTER |
1 | ||
| 31410 - CYLINDER ASSY, CLUTCH MASTER | ||||
| 31401-36041 |
FB30 W/CLUTCH BOOSTER |
1 | ||
| 31401-36040 |
FB30 W/CLUTCH BOOSTER |
1 | ||
| 31420-36061 |
BB2#,FB30,HB30 |
1 | ||
| 31420-36061 |
BB21,22,3#,HB30 |
1 | ||
| 31401-36042 |
FB30,HDB30..LHD W/CLUTCH BOOSTER |
1 | ||
| 31420-36160 |
BB2#,FB30,HZB30 |
1 | ||
| 31410 - CYLINDER ASSY, CLUTCH MASTER | ||||
| 31401-36041 |
FB30 W/CLUTCH BOOSTER |
1 | ||
| 31401-36040 |
FB30 W/CLUTCH BOOSTER |
1 | ||
| 31420-36061 |
BB2#,FB30,HB30 |
1 | ||
| 31420-36061 |
BB21,22,3#,HB30 |
1 | ||
| 31401-36042 |
FB30,HDB30..LHD W/CLUTCH BOOSTER |
1 | ||
| 31420-36160 |
BB2#,FB30,HZB30 |
1 | ||
| 31410D - GASKET(FOR CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE | ||||
| 90430-12221 |
FB30,HDB30..LHD |
1 | ||
| 31410H - UNION(FOR CLUTCH MASTER CYLINDER) | ||||
| 90404-12006 |
FB30,HDB30..LHD W/CLUTCH BOOSTER |
1 | ||
| 90405-10007 |
BB2#,3#,FB30,HB30,RB20 |
1 | ||
| 31410H - UNION(FOR CLUTCH MASTER CYLINDER) | ||||
| 90404-12006 |
FB30,HDB30..LHD W/CLUTCH BOOSTER |
1 | ||
| 90405-10007 |
BB2#,3#,FB30,HB30,RB20 |
1 | ||
| 31434 - TUBE, CLUTCH RESERVOIR | ||||
| 31434-36080 |
BB20,21,3#,FB30,HB30,RB20..LHD |
1 | ||
| 31434-36180 |
FB30,HDB30..LHD W/CLUTCH BOOSTER |
1 | ||
| 31434A - CLIP(FOR CLUTCH RESERVOIR TUBE) | ||||
| 90467-14044 |
BB20,30,RB20 |
2 | ||
| 31434A - CLIP(FOR CLUTCH RESERVOIR TUBE) | ||||
| 90467-14044 |
BB20,30,RB20 |
2 | ||
| 31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD | ||||
| 31453-22010 |
FB30,HB31 W/CLUTCH BOOSTER |
1 | ||
| 31453-35010 |
FB30,HB31,HDB30 W/CLUTCH BOOSTER |
1 | ||
| 31404-36011 |
BB2#,FB30,HB30 |
1 | ||
| 31404-36050 |
BB2#,FB30 |
1 | ||
| Common parts | ||||
| 90157-50003 | ||||
| 90179-08146 | ||||
| 94120-40800 | ||||
(9001- )BB2#,FB30,HZB30,RB20
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04311 - CYLINDER KIT, CLUTCH MASTER | ||||
| 04311-30080 |
BB20,30,RB20 |
1 | ||
| 04311-36060 |
FB30,HB31 W/CLUTCH BOOSTER |
1 | ||
| 04311-20080 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 04311-12040 |
BB21,22,30,FB30,HB30 |
1 | ||
| 04311-12040 |
BB2#,FB30,HB30 |
1 | ||
| 04311-36061 |
FB30,HB31 W/CLUTCH BOOSTER |
1 | ||
| 31383 - PLATE, PEDAL SUPPORT SHAFT SET | ||||
| 55136-90B00 |
BB20,22,23,3#,RB20 |
1 | ||
| 31410 - CYLINDER ASSY, CLUTCH MASTER | ||||
| 31401-36041 |
FB30 W/CLUTCH BOOSTER |
1 | ||
| 31401-36040 |
FB30 W/CLUTCH BOOSTER |
1 | ||
| 31420-36061 |
BB2#,FB30,HB30 |
1 | ||
| 31420-36061 |
BB21,22,3#,HB30 |
1 | ||
| 31401-36042 |
FB30,HDB30..LHD W/CLUTCH BOOSTER |
1 | ||
| 31420-36160 |
BB2#,FB30,HZB30 |
1 | ||
| 31410A - BOLT(FOR CLUTCH MASTER CYLINDER SETTING) | ||||
| 91121-40870 |
BB2#,3#,FB30,HB30,HZB30,RB20 |
2 | ||
| 31434 - TUBE, CLUTCH RESERVOIR | ||||
| 31434-36080 |
BB20,21,3#,FB30,HB30,RB20..LHD |
1 | ||
| 31434-36180 |
FB30,HDB30..LHD W/CLUTCH BOOSTER |
1 | ||
| 31434 - TUBE, CLUTCH RESERVOIR | ||||
| 31434-36080 |
BB20,21,3#,FB30,HB30,RB20..LHD |
1 | ||
| 31434-36180 |
FB30,HDB30..LHD W/CLUTCH BOOSTER |
1 | ||
| 31434A - CLIP(FOR CLUTCH RESERVOIR TUBE) | ||||
| 90467-14044 |
BB20,30,RB20 |
2 | ||
| 31434A - CLIP(FOR CLUTCH RESERVOIR TUBE) | ||||
| 90467-14044 |
BB20,30,RB20 |
2 | ||
| 31434A - CLIP(FOR CLUTCH RESERVOIR TUBE) | ||||
| 90467-14044 |
BB20,30,RB20 |
2 | ||
| 31434A - CLIP(FOR CLUTCH RESERVOIR TUBE) | ||||
| 90467-14044 |
BB20,30,RB20 |
2 | ||
| 31451 - ROD, CLUTCH MASTER CYLINDER PUSH | ||||
| 31451-30060 |
BB2#,30,FB30,HB30,RB20 |
1 | ||
| 31451-22070 |
BB2#,3#,FB30,HB30,RB20 |
1 | ||
| 31451-36040 |
BB2#,32,FB30,RB20 |
1 | ||
| 31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD | ||||
| 31453-22010 |
FB30,HB31 W/CLUTCH BOOSTER |
1 | ||
| 31453-35010 |
FB30,HB31,HDB30 W/CLUTCH BOOSTER |
1 | ||
| 31404-36011 |
BB2#,FB30,HB30 |
1 | ||
| 31404-36050 |
BB2#,FB30 |
1 | ||
| 31454 - BOOT, CLUTCH MASTER CYLINDER | ||||
| 31454-14010 |
BB2#,3#,FB30,HB30,HZB30,RB20 |
1 | ||
| Common parts | ||||
| 94120-40800 | ||||
| 94512-00800 | ||||
| Linked diagrams | ||||
| 4702 | ||||
