FB30L-MDR (1986)

Toyota Coaster

Production Oct 1986 - Jan 1993
Engine 3F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8610- )3F

Click highlighted areas on diagram

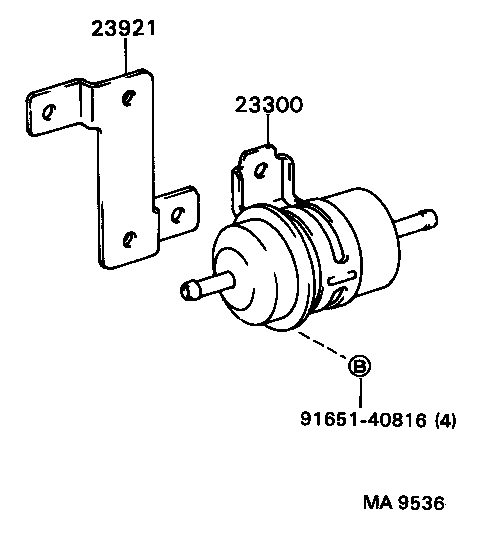

diagram 23300 23921 9165140816
Part # Description Qty Price
23300 - FILTER ASSY, FUEL
23300-61040

3F..FB30

 1
23300-61060

3F..FB30

 1
23921 - SUPPORT, FUEL FILTER
23921-61061

3F..FB30

 1
Common parts
91651-40816
