FB30L-MDR (1986)
Toyota Coaster
Production
Oct 1986
-
Jan 1993
Engine
3F
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8610- )3F

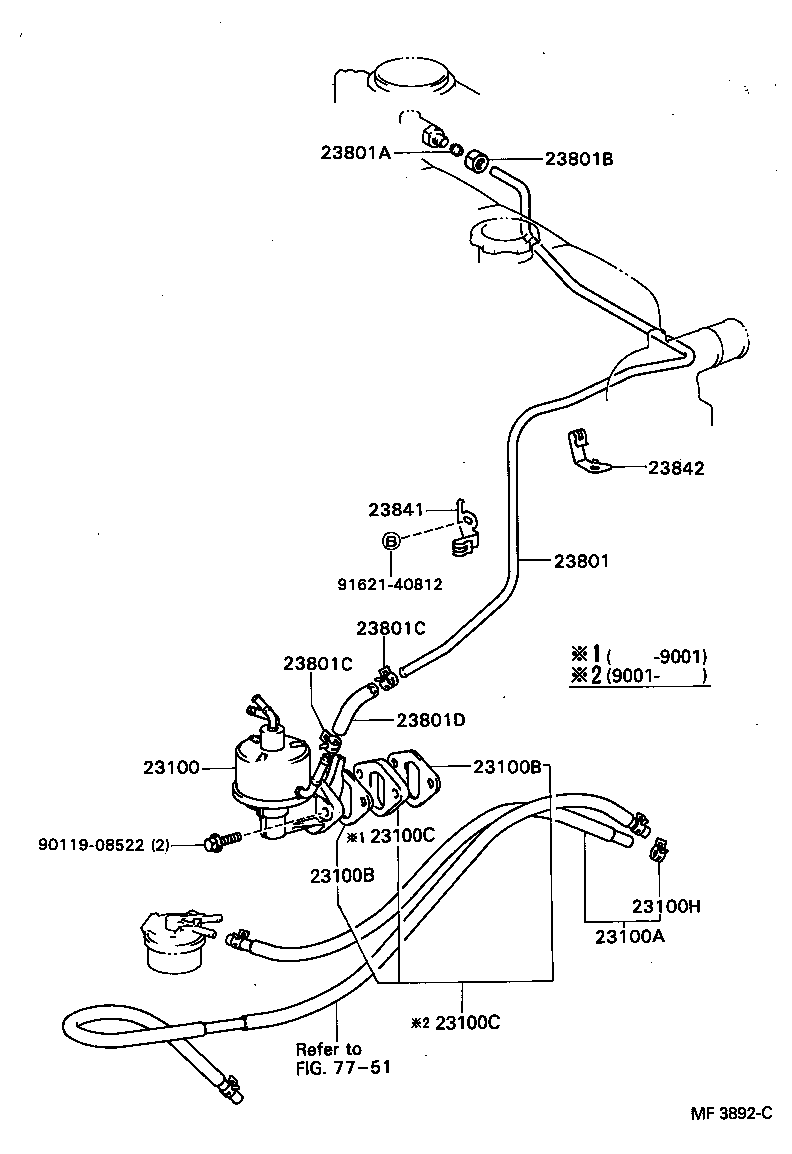

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23100 - PUMP ASSY, FUEL | ||||
| 23100-61090 |
3F..FB30..GEN CHINA SPEC |
1 | ||
| 23100-61080 |
3F..FB30 |
1 | ||
| 23100-61100 |
3F..FB30 |
1 | ||
| 23100-61101 |
3F..FB30 |
1 | ||
| 23100A - HOSE, FUEL | ||||
| 77260-36030 |
3F..FB30 |
1 | ||
| 77260-36031 |
3F..FB30 |
1 | ||
| 23100B - GASKET, FUEL PUMP | ||||
| 90923-05019 |
3F..FB30 |
2 | ||
| 90923-05016 |
3F..FB30 |
2 | ||
| 23100B - GASKET, FUEL PUMP | ||||
| 90923-05019 |
3F..FB30 |
2 | ||
| 90923-05016 |
3F..FB30 |
2 | ||
| 23100C - INSULATOR, FUEL PUMP | ||||
| 90923-06008 |
3F..FB30 |
1 | ||
| 90923-06010 |
3F..FB30 |
1 | ||
| 23100C - INSULATOR, FUEL PUMP | ||||
| 90923-06008 |
3F..FB30 |
1 | ||
| 90923-06010 |
3F..FB30 |
1 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30800 |
3F..FB30 |
2 | ||
| 96132-31000 |
3F..FB30 |
2 | ||
| 23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1 | ||||
| 23811-61060 |
3F..FB30 |
1 | ||
| 23801A - OLIVE(FOR FUEL PIPE) | ||||
| 96395-71400 |
3F..FB30 |
1 | ||
| 23801B - NUT, UNION(FOR FUEL PIPE) | ||||
| 90402-13041 |
3F..FB30 |
1 | ||
| 23801C - CLIP(FOR CARBURETOR FUEL HOSE) | ||||
| 96132-30800 |
3F..FB30 |
2 | ||
| 23801C - CLIP(FOR CARBURETOR FUEL HOSE) | ||||
| 96132-30800 |
3F..FB30 |
2 | ||
| 23801D - HOSE, FUEL PIPE, NO.1 | ||||
| 95332-08020 |
3F..FB30 *H,L=130,ID=7.6 |
1 | ||
| 95333-08020 |
3F..FB30 L=200,ID=8 |
1 | ||
| 23841 - CLAMP, FUEL PIPE(HOSE), NO.1 | ||||
| 23841-61030 |
3F..FB30 |
1 | ||
| 23842 - CLAMP, FUEL PIPE(HOSE), NO.2 | ||||
| 23842-61020 |
3F..FB30 |
1 | ||
| Common parts | ||||
| 90119-08522 | ||||
| 91621-40812 | ||||
| Linked diagrams | ||||
| 7751 | ||||
