FB30L-MDR (1986)
Toyota Coaster
Production
Oct 1986
-
Jan 1993
Engine
3F
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8610- )3F..WC

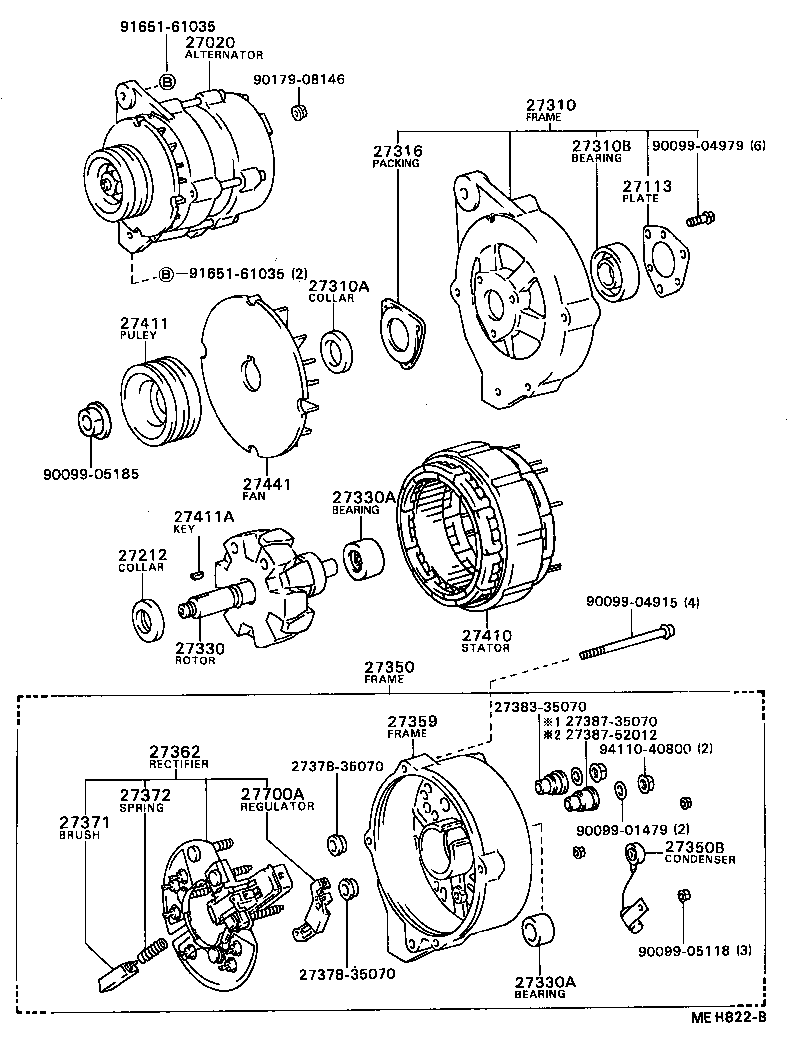

Click highlighted areas on diagram
12V 90A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-61080 |
3F..FB30..WC 12V 90A,12V 90A |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-35070 |
3F..FB30..WC 12V 90A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27333-35070 |
3F..FB30..WC 12V 90A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-35071 |
3F..FB30..WC 12V 90A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27333-57060 |
3F..FB30..WC 12V 90A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10137 |
3F..FB30..WC 12V 90A |
1 | ||
| 27316 - PACKING, RETAINER PLATE, ALTERNATOR | ||||
| 27316-35070 |
3F..FB30..WC 12V 90A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-35071 |
3F..FB30..WC 12V 90A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10145 |
3F..FB30..WC 12V 90A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10145 |
3F..FB30..WC 12V 90A |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27350-35071 |
3F..FB30..WC 12V 90A |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| 90099-52075 |
3F..FB30..WC 12V 90A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-35071 |
3F..FB30..WC 12V 90A |
1 | ||
| 27362 - RECTIFIER ASSY, W/BRUSH | ||||
| 27362-35071 |
3F..FB30..WC 12V 90A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-31011 |
3F..FB30 12V 45A,50A,90A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
3F..FB30 12V 45A,50A,90A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-35071 |
3F..FB30..WC 12V 90A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-35030 |
3F..FB30..WC 12V 90A |
1 | ||
| 27411A - KEY(FOR ALTERNATOR PULLEY) | ||||
| 90099-00405 |
3F..FB30..WC 12V 90A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-13070 |
3F..FB30..WC 12V 90A |
1 | ||
| Common parts | ||||
| 27378-35070 | ||||
| 27383-35070 | ||||
| 27387-35070 | ||||
| 27387-52012 | ||||
| 90099-01479 | ||||
| 90099-04915 | ||||
| 90099-04979 | ||||
| 90099-05118 | ||||
| 90099-05185 | ||||
| 90179-08146 | ||||
| 91651-61035 | ||||
| 94110-40800 | ||||
