FB30L-MDR (1986)

Toyota Coaster

Production Oct 1986 - Jan 1993
Engine 3F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8610- )3F

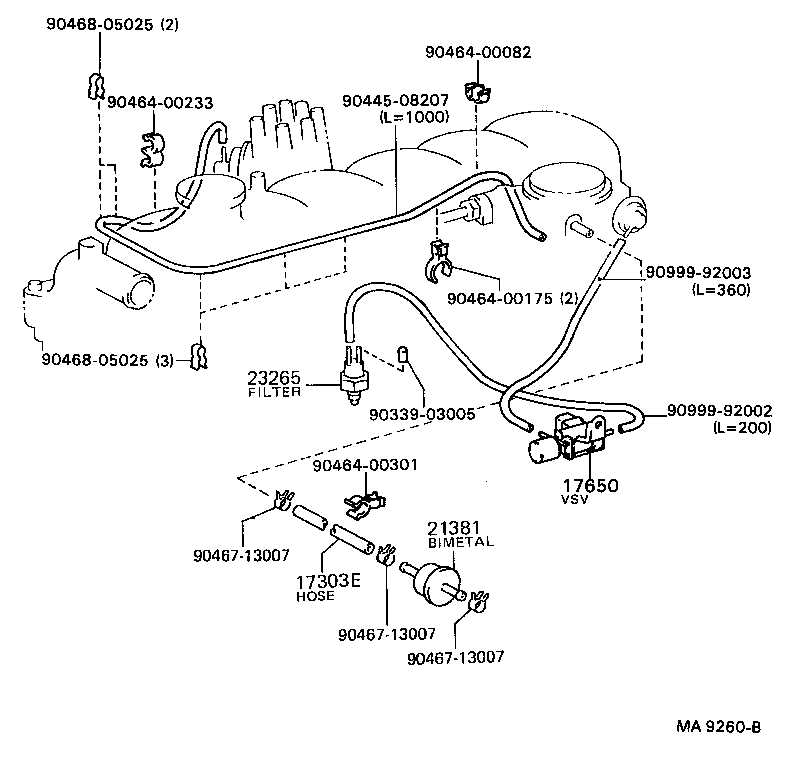

Click highlighted areas on diagram

diagram 17303E 17650 21381 23265 9033903005 9044508207 9046400082 9046400175 9046400233 9046400301 9046713007 9046713007 9046713007 9046805025 9046805025 9099992002 9099992003
Part # Description Qty Price
17303E - HOSE, NO.1(FOR AIR PIPE)
77759-36030

3F..FB30

 1
17650 - VALVE ASSY, VACUUM SWITCHING
90910-12024

3F..FB30

 1
21381 - BIMETAL, THERMOSTATIC
21381-71040

3F..FB30

 1
23265 - FILTER, GAS, NO.1
90917-11023

3F..FB30

 1
Common parts
90339-03005
90445-08207
90464-00082
90464-00175
90464-00233
90464-00301
90467-13007
90468-05025
90999-92002
90999-92003
