FB30L-MDR (1986)

Toyota Coaster

Production Oct 1986 - Jan 1993

Engine 3F

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

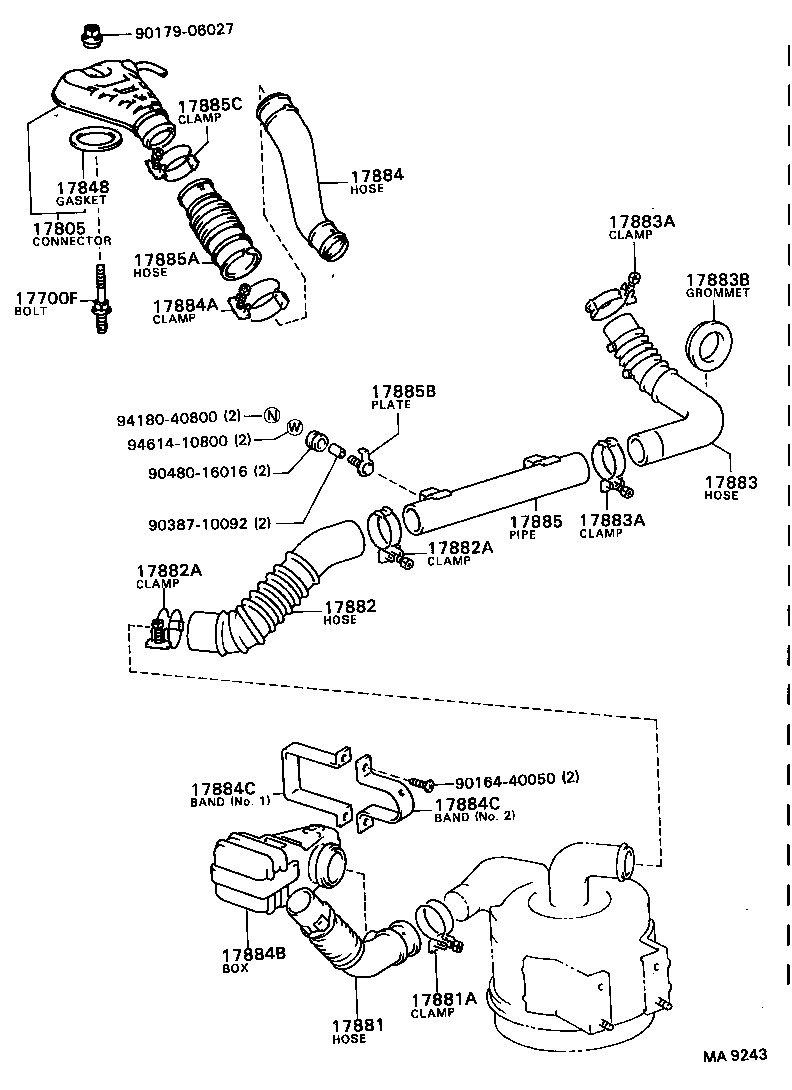

ILLUST NO. 2 OF 2(8610- )3F

Click highlighted areas on diagram

Part #	Description	Period	Qty
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06309	3F..FB30	10/1986 - 01/1993	1
17805 - CONNECTOR SUB-ASSY, INTAKE AIR
17805-61040	3F..FB30	10/1986 - 01/1993	1
17848 - GASKET, AIR CLEANER TO CARBURETOR
17848-61020	3F..FB30	10/1986 - 01/1993	1
17881 - HOSE, AIR CLEANER, NO.1
59131-90B01	3F..FB30 OIL BATH	10/1986 - 08/1988	1
59131-90B00	3F..FB30	10/1986 - 01/1993	1
17781-90B02	3F..FB30 SNORKEL TYPE	10/1986 - 01/1990	1
17781-90B03	3F..FB30 SNORKEL TYPE	01/1990 - 01/1993	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10750	3F..FB30	01/1987 - 01/1993	2
96111-10750	3F..FB30	05/1982 - 01/1987	2
96111-10830	3F..FB30 SNORKEL TYPE	10/1986 - 04/1990	2
96111-10850	3F..FB30 SNORKEL TYPE	04/1990 - 01/1993	2
17882 - HOSE, AIR CLEANER, NO.2
59132-90B03	3F..FB30	10/1986 - 01/1993	1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10780	3F..FB30	05/1982 - 01/1993	2
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10780	3F..FB30	05/1982 - 01/1993	2
17883 - HOSE, AIR CLEANER, NO.3
59133-90B02	3F..FB30	10/1986 - 01/1993	1
17883B - GROMMET, AIR CLEANER HOSE
90480-99006	3F..FB30 SNORKEL TYPE,NO.1,NO.2	10/1986 - 01/1993	1
17884 - HOSE, AIR CLEANER, NO.4
17882-61050	3F..FB30	10/1986 - 01/1993	1
17884A - CLAMP(FOR AIR CLEANER HOSE, NO.4)
96111-10880	3F..FB30	10/1986 - 01/1993	1
17885 - PIPE, AIR CLEANER
59101-90B00	3F..FB30	05/1982 - 01/1993	1
17885A - HOSE, AIR CLEANER, NO.5
17883-61011	3F..FB30	10/1986 - 01/1993	1
17885C - CLAMP(FOR AIR CLEANER HOSE, NO.5)
96111-10800	3F..FB30	10/1986 - 01/1993	1
Common parts
90164-40050
90179-06027
90387-10092
90480-16016
94180-40800
94614-10800

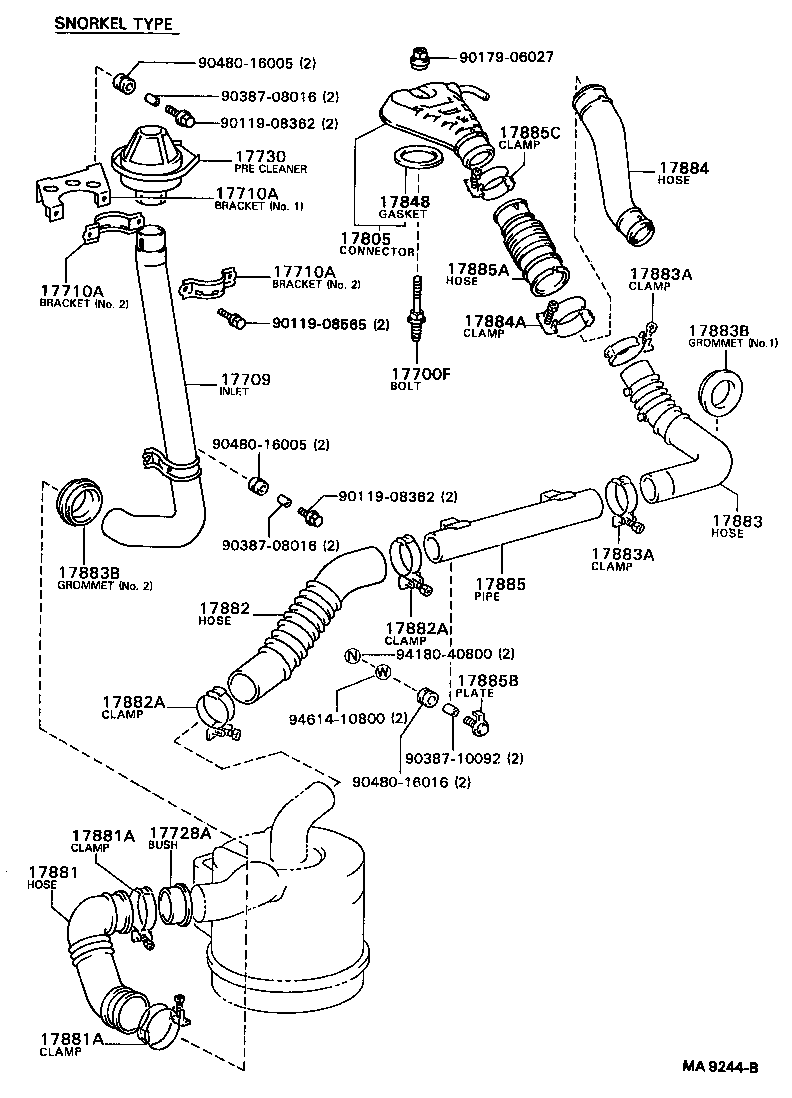

ILLUST NO. 2 OF 2(8610- )3F

Click highlighted areas on diagram

Part #	Description	Period	Qty
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06309	3F..FB30	10/1986 - 01/1993	1
17709 - INLET SUB-ASSY, AIR CLEANER
17709-90B02	3F..FB30 SNORKEL TYPE	10/1986 - 01/1993	1
17710A - BRACKET SUB-ASSY, AIR CLEANER INLET DUCT
17771-90B02	3F..FB30 SNORKEL TYPE,NO.1	10/1986 - 01/1993	1
53773-90B00	3F..FB30 SNORKEL TYPE,NO.2	10/1986 - 01/1993	2
17710A - BRACKET SUB-ASSY, AIR CLEANER INLET DUCT
17771-90B02	3F..FB30 SNORKEL TYPE,NO.1	10/1986 - 01/1993	1
53773-90B00	3F..FB30 SNORKEL TYPE,NO.2	10/1986 - 01/1993	2
17710A - BRACKET SUB-ASSY, AIR CLEANER INLET DUCT
17771-90B02	3F..FB30 SNORKEL TYPE,NO.1	10/1986 - 01/1993	1
53773-90B00	3F..FB30 SNORKEL TYPE,NO.2	10/1986 - 01/1993	2
17728A - BUSH
90385-65001	3F..FB30 SNORKEL TYPE	10/1986 - 01/1993	1
17730 - PRECLEANER ASSY, AIR W/HOSE
17730-58020	3F..FB30	10/1986 - 01/1993	1
17805 - CONNECTOR SUB-ASSY, INTAKE AIR
17805-61040	3F..FB30	10/1986 - 01/1993	1
17848 - GASKET, AIR CLEANER TO CARBURETOR
17848-61020	3F..FB30	10/1986 - 01/1993	1
17881 - HOSE, AIR CLEANER, NO.1
59131-90B01	3F..FB30 OIL BATH	10/1986 - 08/1988	1
59131-90B00	3F..FB30	10/1986 - 01/1993	1
17781-90B02	3F..FB30 SNORKEL TYPE	10/1986 - 01/1990	1
17781-90B03	3F..FB30 SNORKEL TYPE	01/1990 - 01/1993	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10750	3F..FB30	01/1987 - 01/1993	2
96111-10750	3F..FB30	05/1982 - 01/1987	2
96111-10830	3F..FB30 SNORKEL TYPE	10/1986 - 04/1990	2
96111-10850	3F..FB30 SNORKEL TYPE	04/1990 - 01/1993	2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10750	3F..FB30	01/1987 - 01/1993	2
96111-10750	3F..FB30	05/1982 - 01/1987	2
96111-10830	3F..FB30 SNORKEL TYPE	10/1986 - 04/1990	2
96111-10850	3F..FB30 SNORKEL TYPE	04/1990 - 01/1993	2
17882 - HOSE, AIR CLEANER, NO.2
59132-90B03	3F..FB30	10/1986 - 01/1993	1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10780	3F..FB30	05/1982 - 01/1993	2
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10780	3F..FB30	05/1982 - 01/1993	2
17883 - HOSE, AIR CLEANER, NO.3
59133-90B02	3F..FB30	10/1986 - 01/1993	1
17883B - GROMMET, AIR CLEANER HOSE
90480-99006	3F..FB30 SNORKEL TYPE,NO.1,NO.2	10/1986 - 01/1993	1
17883B - GROMMET, AIR CLEANER HOSE
90480-99006	3F..FB30 SNORKEL TYPE,NO.1,NO.2	10/1986 - 01/1993	1
17884 - HOSE, AIR CLEANER, NO.4
17882-61050	3F..FB30	10/1986 - 01/1993	1
17884A - CLAMP(FOR AIR CLEANER HOSE, NO.4)
96111-10880	3F..FB30	10/1986 - 01/1993	1
17885 - PIPE, AIR CLEANER
59101-90B00	3F..FB30	05/1982 - 01/1993	1
17885A - HOSE, AIR CLEANER, NO.5
17883-61011	3F..FB30	10/1986 - 01/1993	1
17885C - CLAMP(FOR AIR CLEANER HOSE, NO.5)
96111-10800	3F..FB30	10/1986 - 01/1993	1
Common parts
90119-08362
90119-08565
90179-06027
90387-08016
90387-10092
90480-16005
90480-16016
94180-40800
94614-10800
