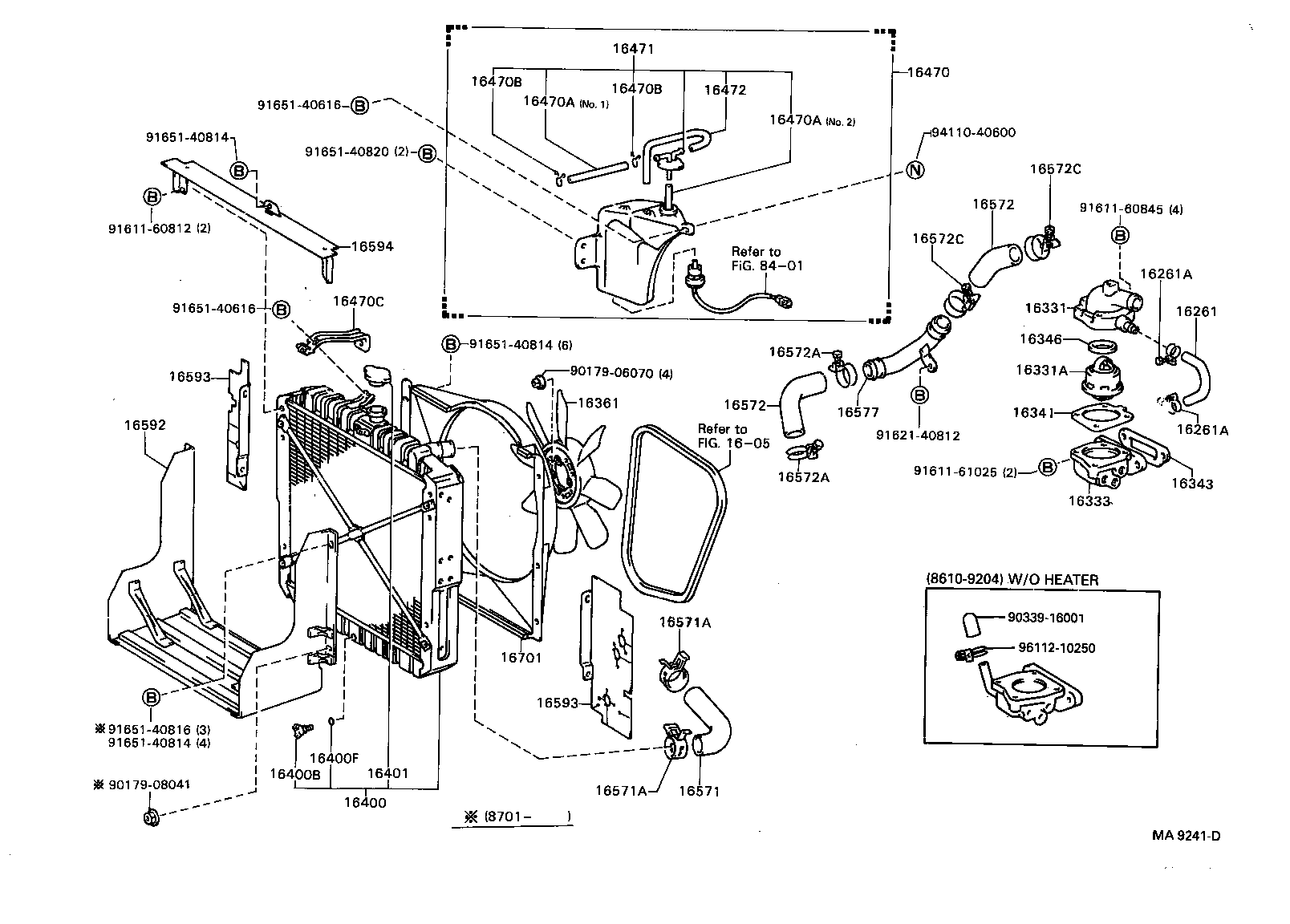

FB30L-MDR (1986)
Toyota Coaster
(8610- )3F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-61010 |
3F..FB30 |
1 | ||
| 16261-61020 |
3F..FB30 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96112-10250 |
3F..FB30 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96112-10250 |
3F..FB30 |
2 | ||
| 16331 - OUTLET, WATER | ||||
| 16303-61010 |
3F..FB30 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03071 |
3F..FB30 *WAX 88-100 |
1 | ||
| 90916-03052 |
3F..FB30 *WAX 88-100 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16331-61060 |
3F..FB30 |
1 | ||
| 16304-61010 |
3F..FB30 W/HEATER |
1 | ||
| 16304-61010 |
3F..FB30 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-61020 |
3F..FB30 |
1 | ||
| 16341-61030 |
3F..FB30 |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-61020 |
3F..FB30 |
1 | ||
| 16343-61010 |
3F..FB30 |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 90430-43002 |
3F..FB30 |
1 | ||
| 16361 - FAN | ||||
| 16361-68030 |
3F..FB30 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-61130 |
3F..FB30 |
1 | ||
| 16400-61131 |
3F..FB30 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-24200 |
3F..FB30 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-24200 |
3F..FB30 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-61030 |
3F..FB30 |
1 | ||
| 16470-61040 |
3F..FB30 W/OK MONITOR |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90099-33534 |
3F..FB30 *H,L=180,NO.1 |
1 | ||
| 90445-12078 |
3F..FB30 *H,L=260,NO.2 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90099-33534 |
3F..FB30 *H,L=180,NO.1 |
1 | ||
| 90445-12078 |
3F..FB30 *H,L=260,NO.2 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3F..FB30 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3F..FB30 |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16611-68030 |
3F..FB30 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-61020 |
3F..FB30 |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-41150 |
3F..FB30 |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-61120 |
3F..FB30 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-42001 |
3F..FB30 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-42001 |
3F..FB30 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 90445-49001 |
3F..FB30 WATER PUMP SIDE |
1 | ||
| 16573-61050 |
3F..FB30 RADIATOR SIDE |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 90445-49001 |
3F..FB30 WATER PUMP SIDE |
1 | ||
| 16573-61050 |
3F..FB30 RADIATOR SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10510 |
3F..FB30 |
2 | ||
| 96111-10500 |
3F..FB30 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10510 |
3F..FB30 |
2 | ||
| 96111-10500 |
3F..FB30 |
2 | ||
| 16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2) | ||||
| 96111-10500 |
3F..FB30 |
2 | ||
| 96111-10510 |
3F..FB30 |
2 | ||
| 16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2) | ||||
| 96111-10500 |
3F..FB30 |
2 | ||
| 96111-10510 |
3F..FB30 |
2 | ||
| 16577 - PIPE, RADIATOR, NO.7 | ||||
| 16577-61140 |
3F..FB30 |
1 | ||
| 16592 - GUIDE, RADIATOR AIR, NO.3 | ||||
| 16592-68010 |
3F..FB30 W/RADIATOR DUCT |
1 | ||
| 16592-68011 |
3F..FB30 W/RADIATOR DUCT |
1 | ||
| 16593 - GUIDE, RADIATOR AIR, NO.1 | ||||
| 16593-61010 |
3F..FB30 RH |
1 | ||
| 16595-61010 |
3F..FB30 LH |
1 | ||
| 16593 - GUIDE, RADIATOR AIR, NO.1 | ||||
| 16593-61010 |
3F..FB30 RH |
1 | ||
| 16595-61010 |
3F..FB30 LH |
1 | ||
| 16594 - GUIDE, RADIATOR AIR, NO.2 | ||||
| 16594-68010 |
3F..FB30 |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-61250 |
3F..FB30 |
1 | ||
| Common parts | ||||
| 90179-06070 | ||||
| 90179-08041 | ||||
| 90339-16001 | ||||
| 91611-60812 | ||||
| 91611-60845 | ||||
| 91611-61025 | ||||
| 91621-40812 | ||||
| 91651-40616 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| 91651-40820 | ||||
| 94110-40600 | ||||
| 96112-10250 | ||||
| Linked diagrams | ||||
| 1605 | ||||
| 8401 | ||||
