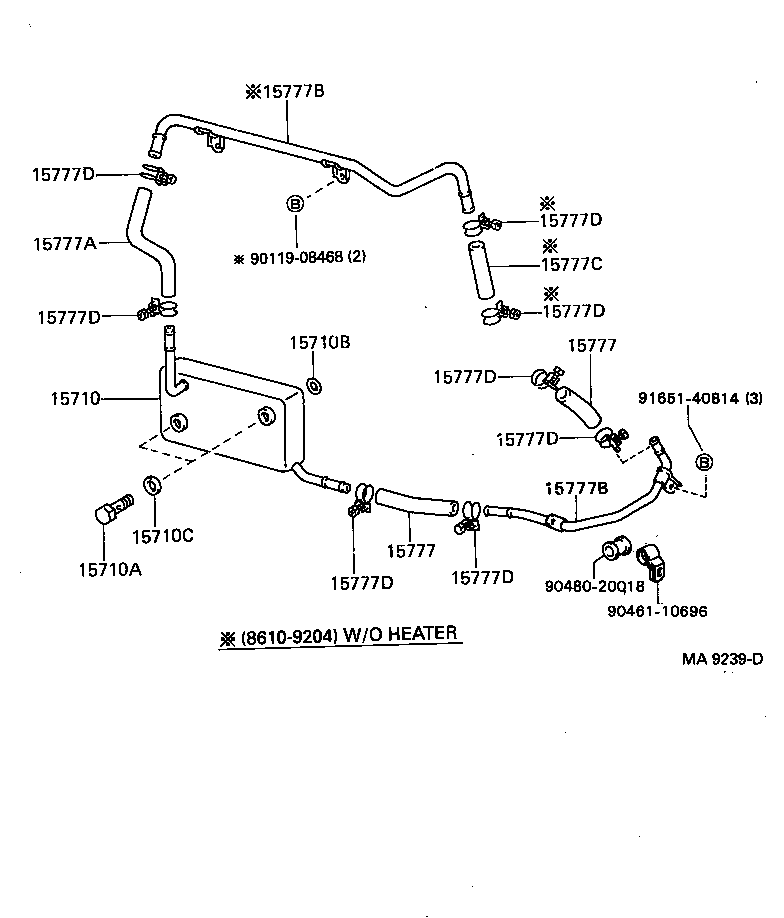

Toyota Coaster FB30 ENGINE OIL COOLER

Part #	Description	Period	Qty
15710 - COOLER ASSY, OIL
15710-61030	3F..FB30	10/1986 - 01/1993	1
15710A - BOLT, UNION(FOR OIL COOLER)
90401-18083	3F..FB30	10/1986 - 01/1993	2
15710B - RING, O(FOR OIL COOLER)
90301-21176	3F..FB30	10/1986 - 01/1993	2
15710C - GASKET(FOR OIL COOLER)
90430-18027	3F..FB30	05/1991 - 01/1993	2
90430-18012	3F..FB30	10/1986 - 05/1991	2
15777 - HOSE, OIL COOLER
90445-24039	3F..FB30 *H,L=105,PIPE TO WATER PUMP	02/1990 - 01/1993	1
15778-61020	3F..FB30 PIPE TO OIL COOLER LOWER	10/1986 - 02/1990	1
99556-30210	3F..FB30 *H,L=210,PIPE TO WATER PUMP	10/1986 - 02/1990	1
15777 - HOSE, OIL COOLER
90445-24039	3F..FB30 *H,L=105,PIPE TO WATER PUMP	02/1990 - 01/1993	1
15778-61020	3F..FB30 PIPE TO OIL COOLER LOWER	10/1986 - 02/1990	1
99556-30210	3F..FB30 *H,L=210,PIPE TO WATER PUMP	10/1986 - 02/1990	1
15777A - HOSE, OIL COOLER
15777-61030	3F..FB30	10/1986 - 01/1993	1
15777B - PIPE, OIL COOLER
15772-61020	3F..FB30 W/O HEATER	10/1986 - 04/1992	1
15770-61020	3F..FB30	10/1986 - 04/1992	1
15777B - PIPE, OIL COOLER
15772-61020	3F..FB30 W/O HEATER	10/1986 - 04/1992	1
15770-61020	3F..FB30	10/1986 - 04/1992	1
15777C - HOSE, OIL COOLER
99556-30100	3F..FB30 W/O HEATER	10/1986 - 04/1992	1
15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE)
96112-10250	3F..FB30 W/O HEATER	10/1986 - 04/1992	8
96112-10250	3F..FB30	10/1986 - 01/1993	6
15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE)
96112-10250	3F..FB30 W/O HEATER	10/1986 - 04/1992	8
96112-10250	3F..FB30	10/1986 - 01/1993	6
15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE)
96112-10250	3F..FB30 W/O HEATER	10/1986 - 04/1992	8
96112-10250	3F..FB30	10/1986 - 01/1993	6
15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE)
96112-10250	3F..FB30 W/O HEATER	10/1986 - 04/1992	8
96112-10250	3F..FB30	10/1986 - 01/1993	6
15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE)
96112-10250	3F..FB30 W/O HEATER	10/1986 - 04/1992	8
96112-10250	3F..FB30	10/1986 - 01/1993	6
15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE)
96112-10250	3F..FB30 W/O HEATER	10/1986 - 04/1992	8
96112-10250	3F..FB30	10/1986 - 01/1993	6
15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE)
96112-10250	3F..FB30 W/O HEATER	10/1986 - 04/1992	8
96112-10250	3F..FB30	10/1986 - 01/1993	6
15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE)
96112-10250	3F..FB30 W/O HEATER	10/1986 - 04/1992	8
96112-10250	3F..FB30	10/1986 - 01/1993	6
Common parts
90119-08468
90461-10696
90480-20018
91651-40814

FB30L-MDR (1986)

(8610- )3F
