FB30L-MDR (1986)

Toyota Coaster

Production Oct 1986 - Jan 1993
Engine 3F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8610- )3F

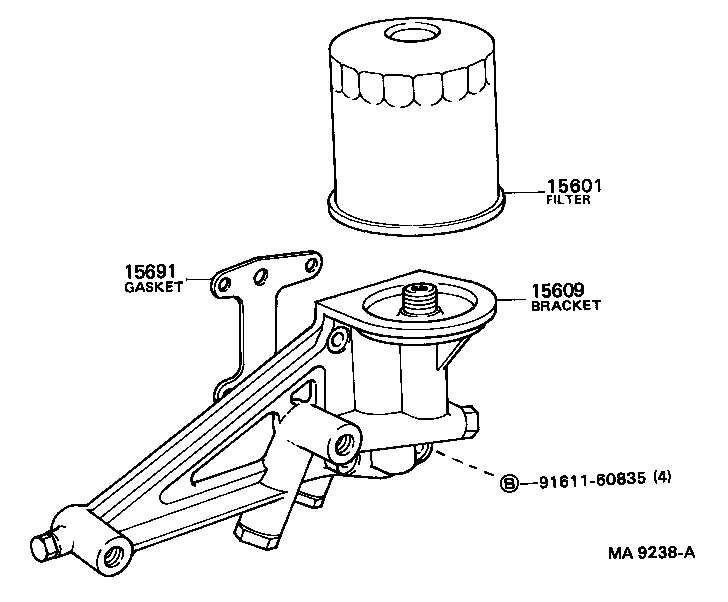

Click highlighted areas on diagram

diagram 15601 15609 15691 9161160835
Part # Description Qty Price
15601 - FILTER SUB-ASSY, OIL
15600-41010

3F..FB30

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-61012

3F..FB30

 1
15691 - GASKET, OIL FILTER
15691-60010

3F..FB30

 1
Common parts
91611-60835
