FB30L-MDR (1986)
Toyota Coaster
Production
Oct 1986
-
Jan 1993
Engine
3F
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8610-9001)3F
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15012 - COVER SUB-ASSY, OIL PUMP | ||||
| 15012-60014 |
3F..FB30 |
1 | ||
| 15100 - PUMP ASSY, OIL | ||||
| 15100-61020 |
3F..FB30 |
1 | ||
| 15100-61011 |
3F..FB30 |
1 | ||
| 15121 - GEAR, OIL PUMP DRIVE | ||||
| 15121-61011 |
3F..FB30 |
1 | ||
| 15121A - KEY, OIL PUMP DRIVE SHAFT | ||||
| 90280-03009 |
3F..FB30 |
1 | ||
| 15122 - GEAR, OIL PUMP DRIVEN | ||||
| 15122-61011 |
3F..FB30 |
1 | ||
| 15125 - SHAFT, OIL PUMP | ||||
| 15125-60013 |
3F..FB30 |
1 | ||
| 15126 - SHAFT, OIL PUMP DRIVEN | ||||
| 15126-60013 |
3F..FB30 |
1 | ||
| 15131 - VALVE, OIL PUMP RELIEF | ||||
| 15131-24010 |
3F..FB30 |
1 | ||
| 15132 - SPRING, OIL PUMP RELIEF VALVE | ||||
| 15132-40010 |
3F..FB30 |
1 | ||
| 15133 - PLUG, OIL PUMP RELIEF VALVE | ||||
| 15133-24010 |
3F..FB30 |
1 | ||
| 15413 - PIPE, OIL PUMP OUTLET | ||||
| 15403-60020 |
3F..FB30 |
1 | ||
| 15403-61010 |
3F..FB30 |
1 | ||
| 15413A - UNION(FOR OIL PUMP OUTLET PIPE) | ||||
| 90404-16008 |
3F..FB30 |
1 | ||
| 15413B - SLEEVE, BALL(FOR OIL PUMP OUTLET PIPE) | ||||
| 90410-11005 |
3F..FB30 |
1 | ||
| 15413C - NUT, UNION(FOR OIL PUMP OUTLET PIPE) | ||||
| 90402-16042 |
3F..FB30 |
1 | ||
| 15413D - GASKET(FOR OIL PUMP OUTLET PIPE) | ||||
| 90430-15261 |
3F..FB30 |
2 | ||
| 15413D - GASKET(FOR OIL PUMP OUTLET PIPE) | ||||
| 90430-15261 |
3F..FB30 |
2 | ||
| 15413F - BOLT, UNION(FOR OIL PUMP OUTLET PIPE) | ||||
| 90401-14093 |
3F..FB30 |
1 | ||
| Common parts | ||||
| 91611-60820 | ||||
| 93311-16020 | ||||
(9001- )3F

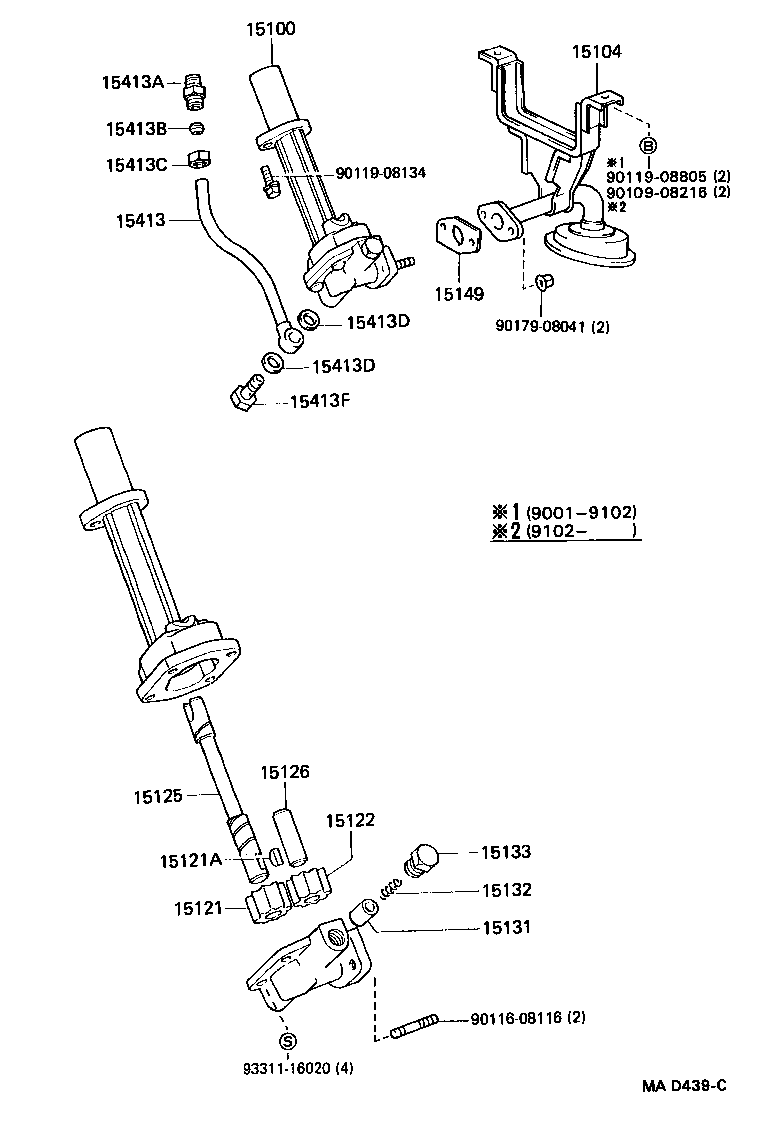

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15100 - PUMP ASSY, OIL | ||||
| 15100-61020 |
3F..FB30 |
1 | ||
| 15100-61011 |
3F..FB30 |
1 | ||
| 15104 - STRAINER SUB-ASSY, OIL | ||||
| 15104-61020 |
3F..FB30 |
1 | ||
| 15121 - GEAR, OIL PUMP DRIVE | ||||
| 15121-61011 |
3F..FB30 |
1 | ||
| 15121A - KEY, OIL PUMP DRIVE SHAFT | ||||
| 90280-03009 |
3F..FB30 |
1 | ||
| 15122 - GEAR, OIL PUMP DRIVEN | ||||
| 15122-61011 |
3F..FB30 |
1 | ||
| 15125 - SHAFT, OIL PUMP | ||||
| 15125-60013 |
3F..FB30 |
1 | ||
| 15126 - SHAFT, OIL PUMP DRIVEN | ||||
| 15126-60013 |
3F..FB30 |
1 | ||
| 15131 - VALVE, OIL PUMP RELIEF | ||||
| 15131-24010 |
3F..FB30 |
1 | ||
| 15132 - SPRING, OIL PUMP RELIEF VALVE | ||||
| 15132-40010 |
3F..FB30 |
1 | ||
| 15133 - PLUG, OIL PUMP RELIEF VALVE | ||||
| 15133-24010 |
3F..FB30 |
1 | ||
| 15149 - GASKET, OIL STRAINER FLANGE | ||||
| 15149-61020 |
3F..FB30 |
1 | ||
| 15413 - PIPE, OIL PUMP OUTLET | ||||
| 15403-60020 |
3F..FB30 |
1 | ||
| 15403-61010 |
3F..FB30 |
1 | ||
| 15413A - UNION(FOR OIL PUMP OUTLET PIPE) | ||||
| 90404-16008 |
3F..FB30 |
1 | ||
| 15413B - SLEEVE, BALL(FOR OIL PUMP OUTLET PIPE) | ||||
| 90410-11005 |
3F..FB30 |
1 | ||
| 15413C - NUT, UNION(FOR OIL PUMP OUTLET PIPE) | ||||
| 90402-16042 |
3F..FB30 |
1 | ||
| 15413D - GASKET(FOR OIL PUMP OUTLET PIPE) | ||||
| 90430-15261 |
3F..FB30 |
2 | ||
| 15413D - GASKET(FOR OIL PUMP OUTLET PIPE) | ||||
| 90430-15261 |
3F..FB30 |
2 | ||
| 15413F - BOLT, UNION(FOR OIL PUMP OUTLET PIPE) | ||||
| 90401-14093 |
3F..FB30 |
1 | ||
| Common parts | ||||
| 90109-08216 | ||||
| 90116-08116 | ||||
| 90119-08134 | ||||
| 90119-08805 | ||||
| 90179-08041 | ||||
| 93311-16020 | ||||
